2010 MITSUBISHI LANCER SPORTBACK ECO mode

3-196 Features and controls
3

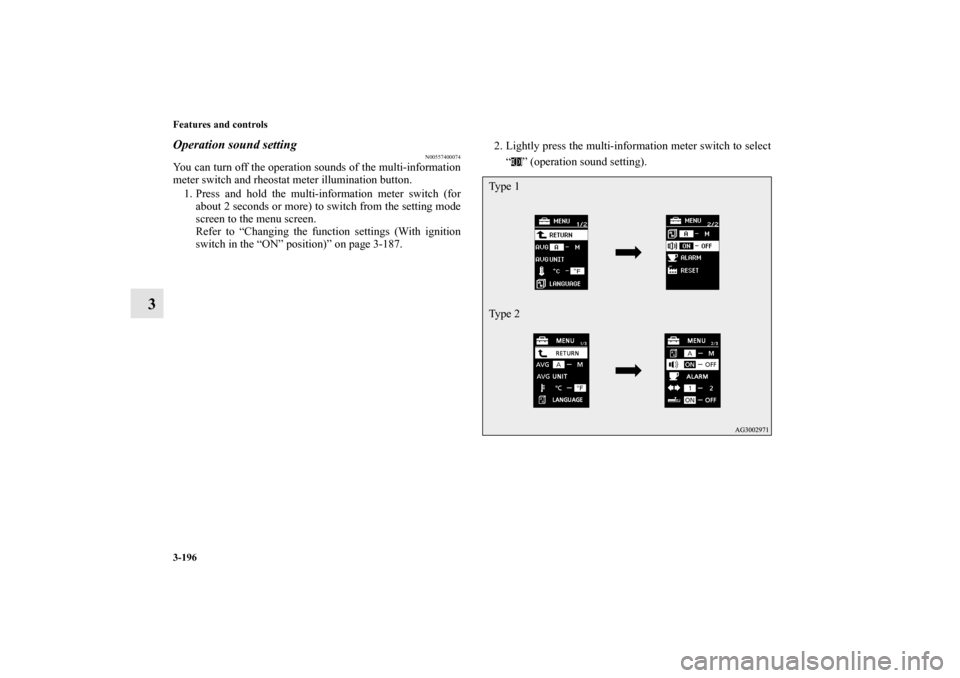

Operation sound setting
N00557400074
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting).
Ty p e 1
Ty p e 2
BK0103001US.book 196 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-197
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.NOTE

If the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).


The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
Changing the amount of time until “REST
REMINDER” is displayed
N00557500088
The amount of time until the display appears can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
“ALARM” (rest time setting).Ty p e 1
Ty p e 2
BK0103001US.book 197 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-198 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ALARM” (rest time
setting).
4. Lightly press the multi-information meter switch to select
the amount of time until the display appears.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected time.NOTE

If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to the “OFF”.


The drive time is reset when the ignition switch is in the
“OFF” position.
Changing the turn-signal sound (Type2)
N00563500012
It is possible to change the turn-signal sound.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
. (changing the turn-signal sound)
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from 1
(turn-signal sound 1) → 2 (turn-signal sound 2) → 1
(turn-signal sound 1).
The setting changes to the selected turn-signal sound.
Type 1 Type 2
BK0103001US.book 198 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-199
3

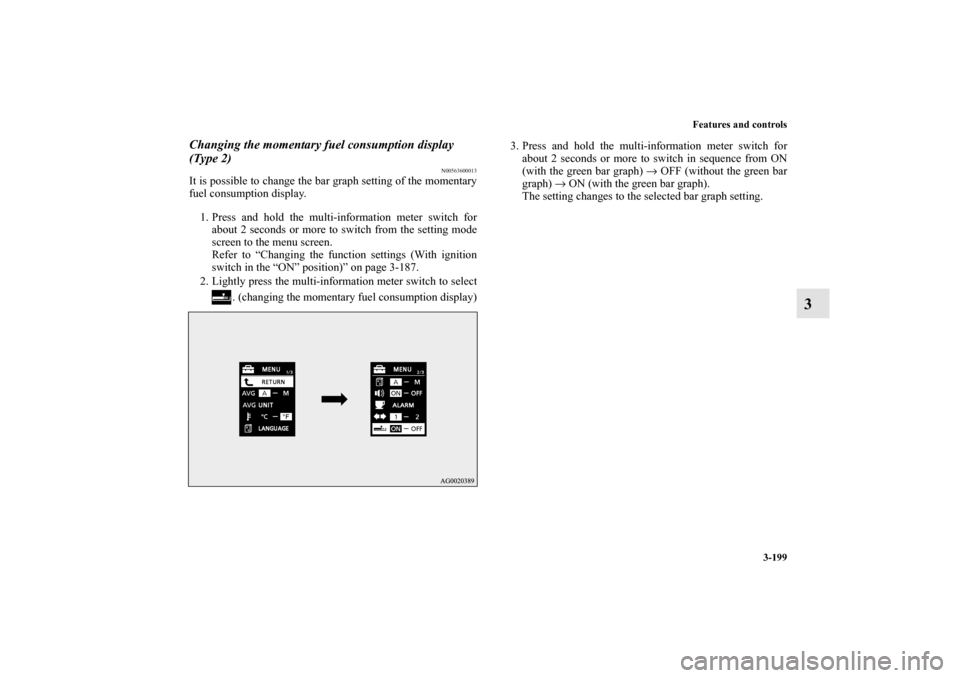

Changing the momentary fuel consumption display
(Type 2)
N00563600013
It is possible to change the bar graph setting of the momentary
fuel consumption display.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
. (changing the momentary fuel consumption display)3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from ON
(with the green bar graph) → OFF (without the green bar
graph) → ON (with the green bar graph).
The setting changes to the selected bar graph setting.
BK0103001US.book 199 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-200 Features and controls
3
Returning to the factory settings
N00557600106
All of the function settings can be returned to their factory set-
tings.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
“RESET” (return to the factory settings).3. Press and hold the multi-information meter switch (for
about 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.
NOTE

The factory settings are as follows.
 Average fuel consumption and average speed reset
mode: A (Auto reset)
 Fuel consumption display unit: mpg (US) or L/100 km
 Temperature unit: °F (Fahrenheit) or °C (Celsius)
 Display language: ENGLISH
 Cooperative language setting: A
 Operation sounds: ON (Operation sound on)
 “REST REMINDER” display: OFF
 Turn-signal sound: Turn-signal sound 1
 Momentary fuel consumption with the green bar graph:
ON
Ty p e 1
Ty p e 2BK0103001US.book 200 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-238 Features and controls
3
Rear window wiper and washer
N00523200349
The rear window wiper and washer can be operated when the
ignition switch is in the “ON” or “ACC” position.
Turn the knob to operate the rear window wiper.
NOTE

The rear window wiper will automatically perform several
continuous operations if the gearshift lever or the selector
lever is put in the “R” position while the windshield wip-
ers or the rear window wiper is operating. (automatic
operation mode)
After the automatic operation, the rear window wiper will
stop operating if the knob is in the “OFF” position. If the
knob is in the “INT” position, the rear window wiper will
return to the intermittent operation.
It is possible to set the rear window wiper to perform the
automatic operation only if the gearshift lever or the selec-
tor lever is put in the “R” position while the rear window
wiper is operating with the knob in the “INT” position.
See your authorized Mitsubishi Motors dealer for details.


If the knob is in the “OFF” position, turn the knob to the
“INT” position twice quickly to operate the rear window
wiper continuously. (continuous operation mode)
Turn the knob to the “OFF” position to stop the rear win-
dow wiper continuous operation.


The wiper intermittent operation time can be adjusted.
See your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For further details, refer to the separate
owner’s manual.


The washer fluid reservoir is located in the engine com-
partment.
Check the fluid level regularly and refill if necessary.
(Refer to “Washer fluid” on page 7-21.)
OFF- Off
INT- The wiper operates continuously for several seconds then
operates intermittently at intervals of about 8 seconds.
-Washer fluid will be sprayed onto the rear window glass
while the knob is turned fully in either direction.
When the washer fluid is sprayed, the wiper will automati-
cally operate 2 or 3 times.BK0103001US.book 238 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-244 Features and controls
3

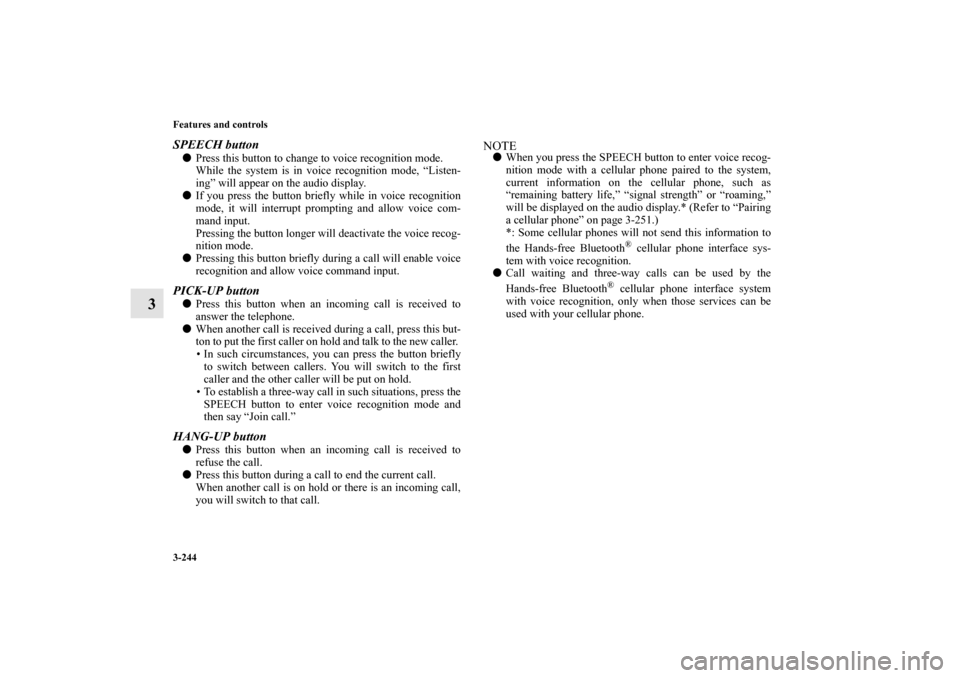

SPEECH button

Press this button to change to voice recognition mode.
While the system is in voice recognition mode, “Listen-
ing” will appear on the audio display.


If you press the button briefly while in voice recognition
mode, it will interrupt prompting and allow voice com-
mand input.
Pressing the button longer will deactivate the voice recog-
nition mode.


Pressing this button briefly during a call will enable voice
recognition and allow voice command input.
PICK-UP button

Press this button when an incoming call is received to
answer the telephone.


When another call is received during a call, press this but-
ton to put the first caller on hold and talk to the new caller.
 In such circumstances, you can press the button briefly
to switch between callers. You will switch to the first
caller and the other caller will be put on hold.
 To establish a three-way call in such situations, press the
SPEECH button to enter voice recognition mode and
then say “Join call.”
HANG-UP button

Press this button when an incoming call is received to
refuse the call.


Press this button during a call to end the current call.
When another call is on hold or there is an incoming call,
you will switch to that call.
NOTE

When you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.* (Refer to “Pairing
a cellular phone” on page 3-251.)
*: Some cellular phones will not send this information to
the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition.


Call waiting and three-way calls can be used by the
Hands-free Bluetooth
® cellular phone interface system
with voice recognition, only when those services can be
used with your cellular phone.
BK0103001US.book 244 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-246 Features and controls
3

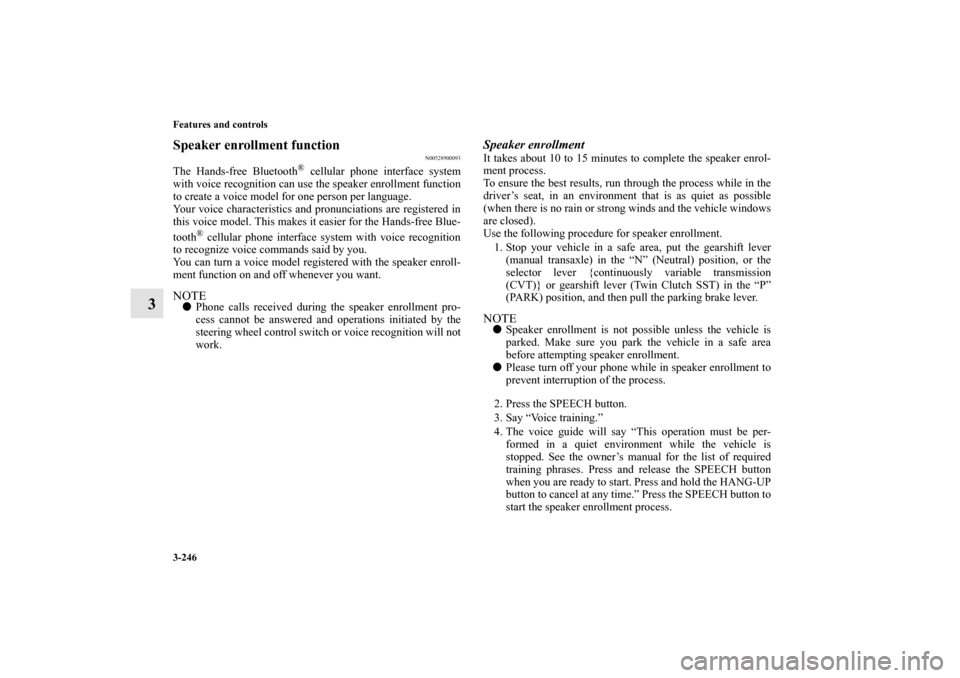

Speaker enrollment function
N00528900093
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can use the speaker enrollment function
to create a voice model for one person per language.
Your voice characteristics and pronunciations are registered in
this voice model. This makes it easier for the Hands-free Blue-
tooth
® cellular phone interface system with voice recognition
to recognize voice commands said by you.
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
NOTE

Phone calls received during the speaker enrollment pro-
cess cannot be answered and operations initiated by the
steering wheel control switch or voice recognition will not
work.
Speaker enrollmentIt takes about 10 to 15 minutes to complete the speaker enrol-
ment process.
To ensure the best results, run through the process while in the
driver’s seat, in an environment that is as quiet as possible
(when there is no rain or strong winds and the vehicle windows
are closed).
Use the following procedure for speaker enrollment.
1. Stop your vehicle in a safe area, put the gearshift lever
(manual transaxle) in the “N” (Neutral) position, or the
selector lever {continuously variable transmission
(CVT)} or gearshift lever (Twin Clutch SST) in the “P”
(PARK) position, and then pull the parking brake lever.NOTE

Speaker enrollment is not possible unless the vehicle is
parked. Make sure you park the vehicle in a safe area
before attempting speaker enrollment.


Please turn off your phone while in speaker enrollment to
prevent interruption of the process.
2. Press the SPEECH button.
3. Say “Voice training.”
4. The voice guide will say “This operation must be per-
formed in a quiet environment while the vehicle is
stopped. See the owner’s manual for the list of required
training phrases. Press and release the SPEECH button
when you are ready to start. Press and hold the HANG-UP
button to cancel at any time.” Press the SPEECH button to
start the speaker enrollment process.
BK0103001US.book 246 ページ ２００９年８月２０日　木曜日　午前１０時４５分
