2010 MERCEDES-BENZ SLS COUPE Owners Manual

X
To cancel the selection: press the0001
back button next to the COMAND control-
ler.
or
X Select Back.
The special destination list appears.
X Starting route calculation: select
Start.
X To store an address in the destination
memory: selectSave.Y ou can now select
storage options.
X To display details: selectDetails.
X To connec tacall:select Call.
When this menu item is available, COMAND
switches to the telephone function and
connects a call.
X To call up the map: selectMap.
X You can move the map and select the des-
tination.
Special destination lis twith inpu tspeller
If you have selected "Entering a special des-
tination using name search" (Y page 106), the
list of all available special destinations on the
digital map appears. 0001
Firstlist entry after calling up the list
0002 Special destination list
0015 Input speller
i With input speller 0015, you can only select
the characters that are currently available.
These depend on the current input string
and the data contained on the digital map.
X For the following operating steps: R
entering characters
R deleting an entry
R accepting the first list entry
R cancelling an entry
proceed as described in "Main category list
with the input speller" (Y page 107).
Selecting aspecial destination
To accept the first list entry:
X Press and hold 0017until the list is displayed
withou tthe speller.
i If COMAND can unambiguously assign
the characters entered to one entry, the
address entry appears automatically.
You can display the full address of a special
destination at any point during character
input.
X Slide 001F0013until the list is displayed without
the speller.
or
X Select 0005and press 0017.
The full address of the special destination
appears.
X To cancel the selection: press the0001
back button next to the COMAND control-
ler.
or
X Select Back.
The special destination list appears.
X To start route calculation: select
Start (Ypage 101). Entering
aspecial destination using
the map
i You can select special destinations that
are available in the selected (visible) sec-
tion of the map.
X Select Guidein map view with the menu
system shown (Y page 82).
Special destinations are available: 110
Navigation system (entering special destinations)COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 110

Depending on the map scale selected, spe-
cial destination icons appear on the map.
The scale at which the icons are displayed
on the map varies according to the icon.
You can select the icons tha tCOMAND will
display (Y page 85).
No special destinations are available:
You will see a message to this effect.
i You also see this message if you have
selected the No symbols menu item under
"Map display".
X To confirm the message: press0017. 0001
Information aboutt he highlighted special
destination
0002 Highlighted special destination
X To selectas pecial destination: select
Next orPrevious .
X To display details about the selection:
select Details.
i The option is available if not all informa-
tion on the selected special destination can
be displayed in 0001.
X To start route calculation: selectStart
(Y page 101).
Ap rompt appears asking whethe rthe spe-
cial destination should be used as the des-
tination.
X Select YesorNo.
If you select Yes, route calculation begins.
If you select No, you can select a new spe-
cial destination. Navigation system (route guidance)
General notes
G
Risk of accident
COMAND calculates the route to the destina-
tion without taking account of the following,
for example:
R traffic lights
R stop and give way signs
R parking or stopping restrictions
R lane narrowing
R other road and traffic rules and regulations
COMAND may give incorrect driving recom-
mendations if the data on the digital map does
not correspond to the actual conditions, e.g.
the road layouth as changed.
For this reason, you must always observe the
respective road and traffic rules and regula-
tions during your journey. Road and traffic
rules and regulations always have priority
ove rsystem driving recommendations.
COMAND guides you to your destination by
means of navigation commands in the form
of audible navigation announcements and
route guidance displays.
i The route guidance displays can only be
see nift he display is switched to navigation
mode.
If, for any reason, you do not follow the navi-
gation announcements or if you leave the cal-
culated route, COMAND automatically calcu-
lates a new route to the destination.
If the map data contains the relevant infor-
mation, COMAND tries to avoid roads that
only have limited access, e.g. roads closed to
through traffic and non-residents.
Roads that have time restrictions (e.g. closed
on Sundays or publich olidays) are not taken
into account for route guidance unless the
digital map contains the relevant information. Navigation system (route guidance)
111COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 111 Z

Changing direction
Changes of direction have three phases:
R preparation phase
R announcemen tphase
R change-of-direction phase
Preparation phase COMAND prepares you for the upcoming
change of direction. Based on the example
display below, the change of direction is
announced with the Prepare to turn
right message. The display is not split and
shows the map over the full width. 0001
Point at which the change of direction
takes place (light blue dot)
0002 Next road
0015 Current vehicle position: the triangle
points in the vehicle’s direction of travel
0014 Current street
i Depending on the basic setting selection
in "Text information on the map", 0014dis-
plays:
R "arrival time/distance" details
R current street
R the geo-coordinate display.
If you have selected the Nonemenu item,
the display is not shown.
Announcement phase COMAND announces the imminent change of
direction. Based on the following example,
the change of direction is announced with the In 400 metres turn right onto the
A81
message.
The display is now split into two sectors. In
the left half, you see the normal map view.
The right side shows an enlarged section of
the area around the junction (Crossing Zoom)
or a 3D image of the road's course with the
route indicating the next manoeuvre. 0001
Next road
0002 Point at which the change of direction
takes place (light blue dot, shown in both
the left and right displays)
0015 Visual representation of the distance to
the next change of direction
0014 Change of direction (turn right here)
0012 Distance to the next change of direction
0013 Route (highlighted in blue, shown in both
the left and right displays)
i The filled-in section of visual display for
distance 0015gets shorter, the nearer you
get to the announced change of direction.
Change-of-direction phase COMAND announces the imminent change of
direction. Based on the example display
below, the change of direction is announced
40 metres before the change of direction with
the
Now turn right message. The display is
split into two halves, as in the announcement
phase. 112
Navigation system (route guidance)COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 112

0001
Curren tvehicle position :the tip of the tri-
angle indicates the vehicle’s direction of
travel
0002 Visual representation of the distance to
the next change of direction
0015 Distance to the next change of direction
Once the change of direction is completed,
COMAND automatically switches back to full-
screen display. Example of
adispla ywithout changes
of direction 0001
Route (highlighted in blue)
0002 Curren tvehicle position
0015 Current street
0014 Map orientation selected
0012 Map scale selected Lane recommendations
On multilane roads, COMAND can display
lane recommendations for the nextc hange ofdirection. The relevant data must be available
on the digital map.
COMAND displays lane recommendations
0013, based on the next two changes of direc-
tion.
Example of display: day design
0001
Point of the next change in direction (light
blue circle)
0002 Point of the change of direction after next
0015 Next change of direction: turn off to the
right here
0014 Visual representation of the distance to
the next change of direction
0012 Distance to the next change of direction
0013 Recommended lane (dark blue)
000A Possible lane (light blue)
000B Non-recommended lane (grey)
000C Current vehicle position: the tip of the tri-
angle indicates the vehicle’s direction of
travel
i The instrumentc luster also displays lane
recommendations .Only the recommended
lanes are displayed in the instrument clus-
ter. Navigation system (route guidance)
113COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeuV ersion: 3.0.3.6
2010-05-07T14:19:43+02:00 - Seite 113 Z

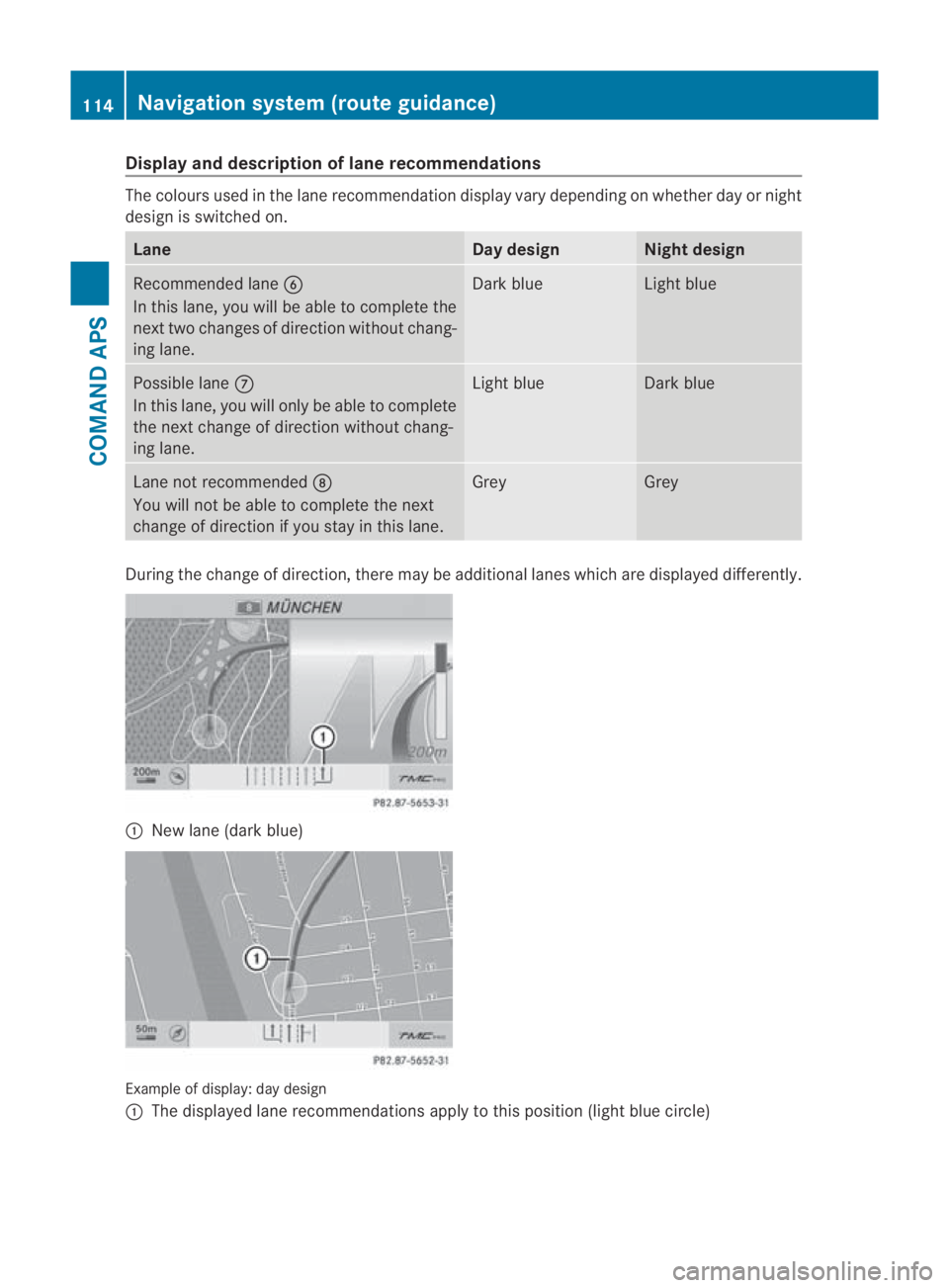

Display an
ddescription of lane recommendations The colours used in the lane recommendatio
ndisplay vary depending on whether day or night
design is switched on. Lane Day design Nigh
tdesign Recommended lane
0013
In this lane, you will be able to complete the
nex ttwo changes of directio nwithout chang-
ing lane. Dar
kblue Light blue
Possible lane
000A
In this lane, you will only be able to complete
the nex tchange of direction without chang-
ing lane. Light blue Dark blue
Lane not recommended
000B
You will not be able to complete the next
change of direction if you stay in this lane. Grey Grey
During the change of direction, there may be additional lanes which are displayed differently.
0001
New lane (dark blue) Example of display:d
ay design
0001 The displayed lane recommendations apply to this position (light blue circle) 114
Navigation system (route guidance)COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbae
uV ersion: 3.0.3.6
2010-05-07T14:19:43+02:00 - Seite 114

Example display
:night design Destination or area of destination
reached
When you reach your destination, you will see
a chequered flag and route guidance is auto-
matically ended.
For certain special destinations (airports or
motorway intersections), you will see the
Area of dest. reached message in addi-
tion to the chequered flag. Off-road and off-map
Route guidance to an off-road destina-
tion COMAN
Dcan guide you to destinations
which are within the area covered by the dig-
ital map, but which are no tthemselves recor-
ded on the map.
These destinations are known as off-road
destinations, which you can enter using the
map, for example. In these cases, COMAND
guides you for as long as possible with navi-
gation announcements and displays on roads
known to the system. 0001
Off-road destination
0002 Off-road route section (dashed blue)
0015 Current vehicle position: the tip of the tri-
angle indicates the vehicle’s direction of
travel
Shortly before you reach the last known point
on the map, you will see the Area of dest.
reached message and an arrow. The direc-
tional arrow shows the linear direction of the
destination.
Route guidance from an off-road loca-
tion to adestination If the vehicle position is within the area cov-
ered by the digital map, but the map does not
contain any information about that location,
the vehicle is in an off-road location.
COMAND is also able to guide you to a des-
tination even from such a location.
If the vehicle is travelling on a non-digitised
road, then the linear distance to the destina-
tio nis calculated. You will see the Off road Navigation system (route guidance)
115COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 115 Z

message, a directio
narrow and the distance
to the destination or to the intermediate stop,
if this was configured (Y page 104). The direc-
tional arrow shows the linea rdirection of the
destination. The distance and the estimated
arrival time are displayed in grey in this case.
The route is highlighted blue, starting from
the last recognised street the vehicle was on
before it left the map.
As soon as the vehicle is back on a digitised
road, the distance to the destination appears,
based on the calculated route. Route guid-
ance continues in the usual way.
Route guidance from an off-map loca-
tion to adestination If the vehicle position is outside the area cov-
ered by the digital map, then the vehicle is in
an off-map location. COMAND is also able to
guide you to a destination even from such a
location.
At the start of route guidance you will see the
Off road message, a directio narrow and the
linea rdistance to the destination or to the
intermediate stop, if this has been config-
ured. The arrow shows the compass heading
to the road left last.
The route is highlighted blue fro mthe nearest
road known to the system.
As soon as the vehicle is back on a road
known to the system, route guidance contin-
ues in the usual way.
Off-road during route guidance Due to roadworks, for example, there may be
differences between the data on the digital
map and the actual course of the road.
In such cases, the system will temporarily be
unable to locate the vehicle position on the
digital map and thus considers the vehicle to
be in an off-road position.
You will see the Off roadmessage in the
display, a direction arrow and the distance to
the destination or to the intermediate stop, if
this was configured. As soon as the system can assign the vehicle
position to the map again, route guidance
continues in the usual way. Navigation announcements
i Audible navigation announcements are
muted during a telephone call.
If you have missed an announcement, you can
call up the current announcement at any
time.
X To call up the current announcement:
select 0025in the map display with the menu
system (Y page 83) shown.
X To switch off navigation announce-
ments: during the announcement, press
and hold the 000Bbutton.
You will briefly see the message: The
guidance instructions have been
muted.
X To switch navigation announcements
on again manually: select0025in the map
display with menu system displayed.
or
X Start a new route calculation
(Y page 101).
or
X Switch COMAND on again or start the
engine.
i COMAND switches the navigation
announcements on automatically if it
receives RDS-TMC traffic announcements
during dynamic route guidance
(Y page 119) and starts recalculating the
route.
X To adjust the volume of the announce-
ments: adjust the volume during the auto-
matic announcement (Y page 67).
or
X Call up an announcemen tmanually using
Navi00040025 and adjust the volume.116
Navigation system (route guidance)COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6
2010-05-07T14:19:43+02:00 - Seite 116

Reducing volume during
anavigation
announcement The volume of an active radio of video source
can be automatically reduced during a navi-
gation announcement.
X To activate/deactivate the audio fade-
out: select Navi0004 Audio fadeout.
The function is switched on 0019or off 0004,
depending on the previous status.
Setting the volume manually
X Set the volume during a navigation
announcement.
or
X In the map display with the menu system
shown, select 0025and set the volume. Traffic jam function
i The traffic jam function avoids a blocked
sectio nofthe route ahead of you. You can
set the length of the blocked route section.
If possible, COMAND calculates a detour
around the blocked section of the route.
X Select Route0004Detour in map view with
the menu system displayed.
X To block a section of the route: select
Longer orShorter repeatedly until the
desired length has been set.
i The total length of the section that can be
blocked is defined by the digital map. The
menu items are available accordingly. 0001
Length of the blocked route section
0002 Name of route section
0015 Blocked route section
X To cancel afunction: selectBack.
X To start route calculation: select
Start (Ypage 101).
X To delete a blocked area: selectDelete .
COMAND calculates the route without the
block. Alternative route
i With the "Alternative route" function,
routes other than the original one can be
calculated.
X Select Route0004 Alternative route in
the map view with the menu system
(Y page 83) displayed.
You see the active route. The display is split
into two halves. On the left-hand side, one
or more alternative routes are show nfrom
start to destination. The selected route is
highlighted dark blue; other alternative
routes appear light blue.
On the right of the display, you will see
information on the selected alternative
route. Navigation system (route guidance)
117COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu Version: 3.0.3.6
2010-05-07T14:19:43+02:00 - Seite 117 Z
