2010 JAGUAR XFR torque

1. CAUTION: Only tighten the bolts finger-tight at this stage.














2. CAUTION: Tighten the bolts in the sequence shown.
Torque:
Bolt 1 63 Nm Bolt 2 63 Nm Bolt 1 63 Nm


















3. Torque: 12 Nm www.JagDocs.com

8. Torque:
Stage 1:80





















9. Remove the special tool.

Special Tool(s): 502-005 Nm
240°
Stage 2:

10. Remove the special tool.

Special Tool(s): 502-005
























11.

























Torque:
Stage 1: 100 Nm Stage 2: 270°













12. CAUTION:
Make sure each bolt aligns with the removal markings.

Torque: 175 Nm

13. CAUTION:
Make sure each bolt aligns with the removal markings.

Torque: 175 Nm











14.






















15.
NOTE: Repeat the step for the other side.

Torque: 175 Nm




















Torque: 43 Nm

17.

























Torque: 100 Nm














18. Torque: 45 Nm www.JagDocs.com

Torque: 5 Nm

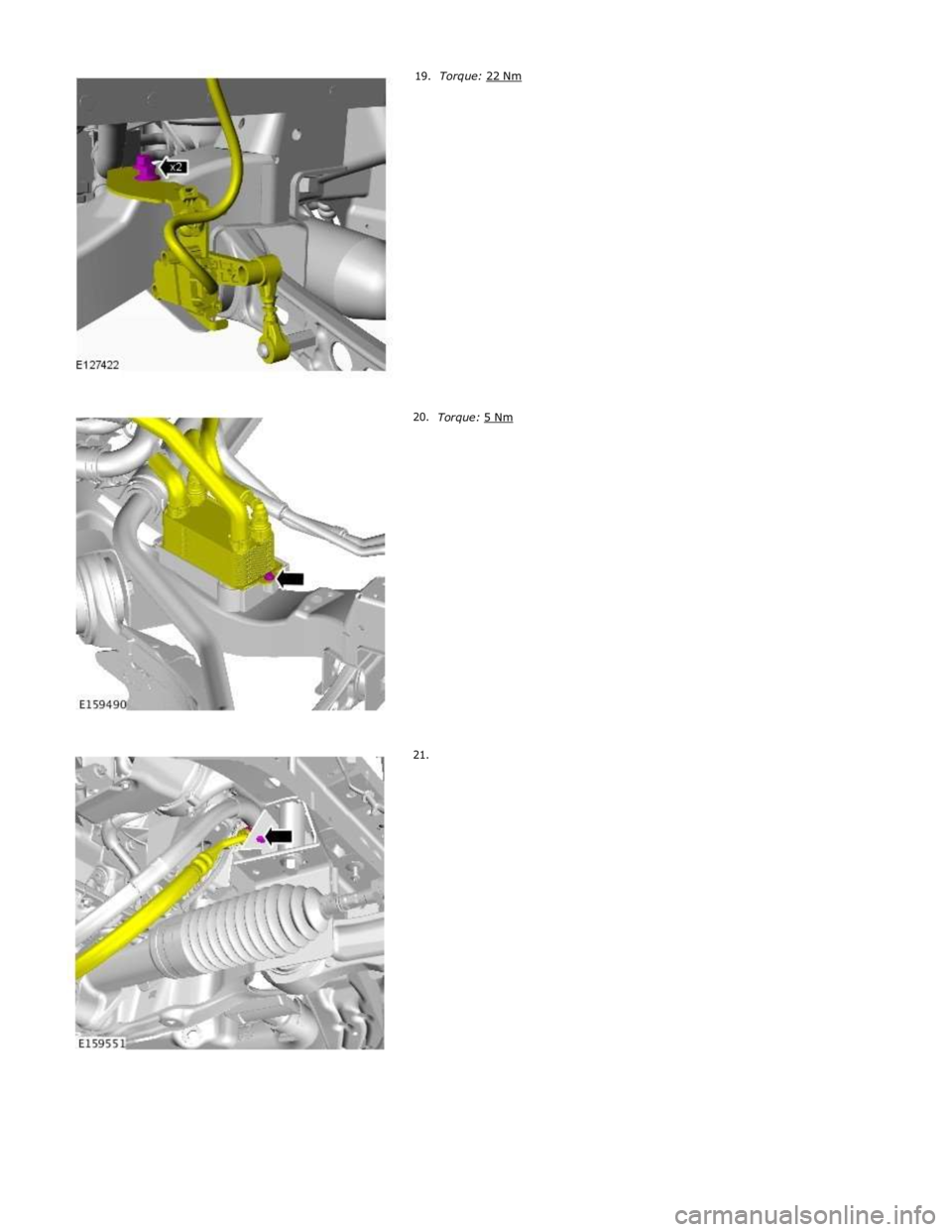

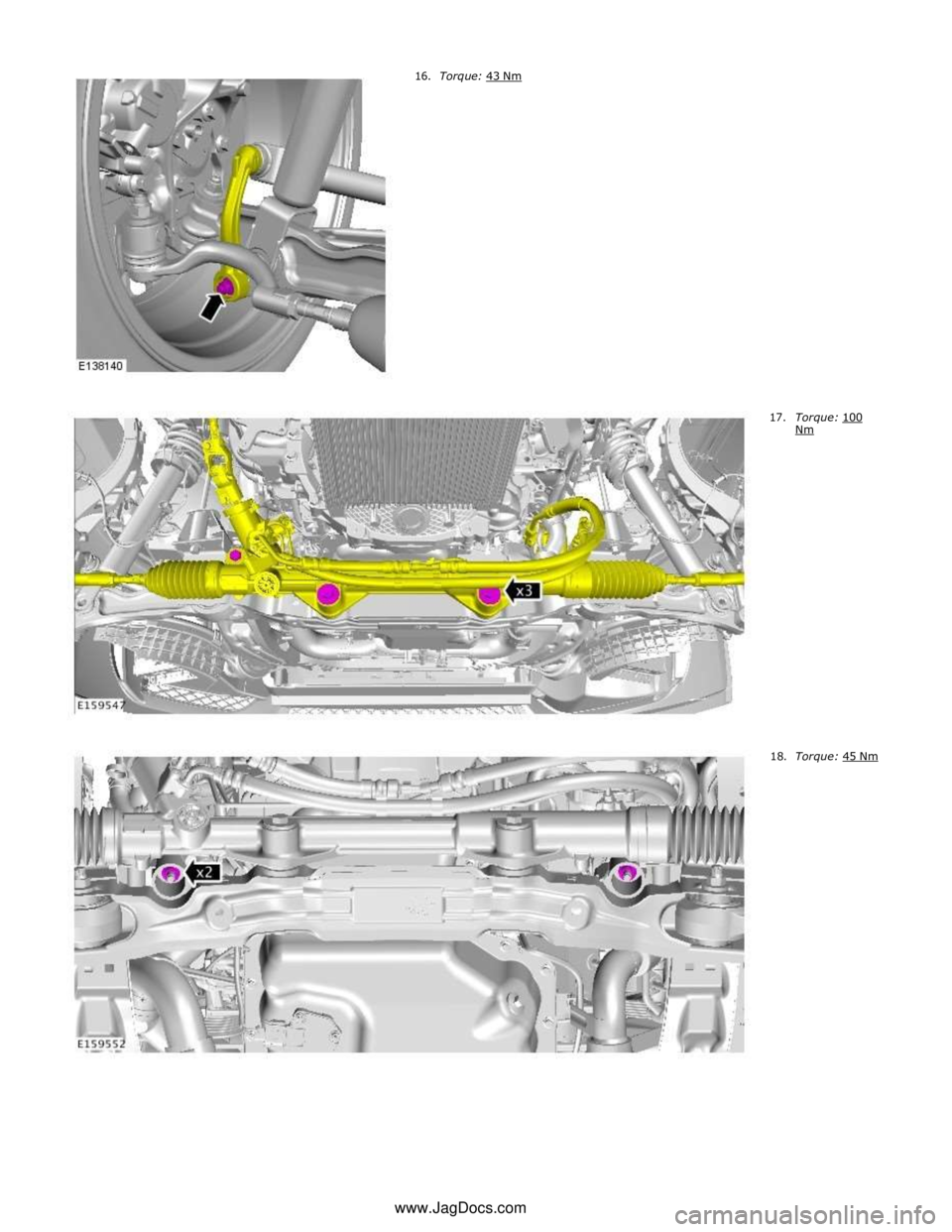

8. WARNING: If the fluid is spilled on the paintwork, the
affected area must be immediately washed down with cold
water.
CAUTIONS:


Make sure that a new sealing washer is installed.
Be prepared to collect escaping fluids.
NOTE: LH illustration shown, RH is similar.
Torque: 35 Nm








9.

12.

























13. NOTE: Left-hand shown, right-hand similar.

Torque: 47 Nm






















NOTE: Left-hand shown, right-hand similar.
