2010 INFINITI QX56 light

PARKING LAMP CIRCUITEXL-41
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
3. Check continuity between the license plate lamp harness con- nectors and ground.
Does continuity exist?
YES >> Inspect the parking lamp bulb.
NO >> Repair the harness.
Diagnosis Procedure - With Daytime Light SystemINFOID:0000000005146653
Regarding Wiring Diagram information, refer to EXL-84, "Wiring Diagram".
1.CHECK PARKING LAMP FUSES
1. Turn the ignition switch OFF.
2. Check that the following fuses are not open.
Is the fuse open?
YES >> Repair the harness and replace the fuse.
NO >> GO TO 2.
2.CHECK TAIL LAMP RELAY OUTPUT (VOLTAGE)
1. Turn the ignition switch OFF.
2. Disconnect the front combination lamp connector, rear combination lamp connector and license plate
lamp connector.
3. Turn the ignition switch ON.
4. Turn the parking lamps ON.
5. With the parking lamps ON, check voltage between the front combination lamp connectors and ground.
6. With the parking lamps ON, check voltage between the rear combination lamp connectors and ground.
Connector Terminal —Continuity
D703 2Ground Yes
WKIA4615E
Unit LocationFuse No.Capacity
Parking lamps IPDM E/R3710A
(+)
(−)V olt a g e
Connector Terminal
LH E6 3Ground Battery voltage
RH E108
ALLIA0857ZZ
(+) (−)V olt a g e
Connector Terminal
LH B70 3Ground Battery voltage
RH B130
AWLIA1622ZZ
Revision: April 20092010 QX56

EXL-44
< COMPONENT DIAGNOSIS >
TURN SIGNAL LAMP CIRCUIT
TURN SIGNAL LAMP CIRCUIT
DescriptionINFOID:0000000005146654
The BCM monitors inputs from the combination switch (lighting and turn signal switch) to determine when to
activate the turn signals. The BCM outputs voltage direction to the left and right turn signals during turn signal
operation or both during hazard warning operation. The BCM sends a turn signal indicator request to the com-
bination meter via the CAN communication lines.
The BCM performs the fast flasher operation (fail-safe) if any bulb or harness of the turn signal lamp circuit is
open.
NOTE:
Turn signal lamp blinks at normal speed when using the hazard warning lamp.
Component Function CheckINFOID:0000000005146655
1.CHECK TURN SIGNAL LAMP
CONSULT-III
1. Select "FLASHER" of BCM (FLASHER) active test item.
2. With operating the test items, check that the turn signal lamp blinks.
Does the turn signal lamp blink?
YES >> Turn signal lamp circuit is normal.
NO >> Refer to EXL-44, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005146656
Regarding Wiring Diagram information, refer to EXL-77, "Wiring Diagram".
1.CHECK TURN SIGNAL LAMP BULB
Check the applicable lamp bulb to be sure the proper bulb standard is in use and the bulb is not open.
Is the bulb OK?
YES >> GO TO 2.
NO >> Replace the bulb.
2.CHECK TURN SIGNAL LAMP OUTPUT VOLTAGE
1. Turn the ignition switch OFF.
2. Disconnect the front turn/fog lamp connector or the rear combi- nation lamp connector.
3. Turn the ignition switch ON.
4. With turn signal switch operating, check the voltage between the BCM harness connector M20 and ground.LH : Turn signal lamp LH blinking
RH : Turn signal lamp RH blinking
Off : The turn signal lamp OFF
(+)
(−) Voltage
Connector Terminal
ALLIA0896ZZ
Revision: April 20092010 QX56

OPTICAL SENSOREXL-47
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
OPTICAL SENSOR
DescriptionINFOID:0000000005146657
The optical sensor converts the outside brightness (lux) to voltage and transmits the optical sensor signal to
the BCM.
Component Function CheckINFOID:0000000005146658
1.CHECK OPTICAL SENSOR SIGNAL BY CONSULT-III
CONSULT-III
1. Turn the ignition switch ON.
2. Select "OPTICAL SENSOR" of BC M (HEAD LAMP) DATA MONITOR item.
3. Turn the lighting switch to AUTO.
4. With the optical sensor illuminat ing, check the monitor status.
*: Illuminates the optical sensor. The value may be less than the standard value if brightness is weak.
Is the item status normal?
YES >> Optical sensor is normal.
NO >> Refer to EXL-47, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005146659
Regarding Wiring Diagram information, refer to EXL-62, "Wiring Diagram".
1.CHECK OPTICAL SENSOR GROUND CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect BCM connector M18 and optical sensor connector M302.
3. Check continuity between BCM harness connector M18 (A) ter-
minal 18 and optical sensor harness connector M302 (B) termi-
nal 3.
4. Check continuity between BCM harness connector M18 (A) ter- minal 18 and ground.
Are continuity test results as specified?
YES >> GO TO 2.
NO >> Repair harness or connector.
2.CHECK OPTICAL SENSOR SIGNAL CIRCUIT
Monitor item ConditionVoltage
OPTICAL SENSOR When illuminating
3.1V or more *
When shutting off light 0.6V or less
AB
Connector Terminal Connector Terminal Continuity M181 8M3023 Y es
A —Contin u it y
Connector Terminal
M18 18Ground No
AWLIA1620ZZ
Revision: April 20092010 QX56

HEADLAMP AIMING SWITCHEXL-49
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
HEADLAMP AIMING SWITCH
DescriptionINFOID:0000000005146660
The manual headlamp aiming system uses a headlamp aiming switch to adjust the axis of the headlamp aim-
ing motor. The headlamp aiming switch has four settings, each with a different resistance value. The head-
lamp aiming motor adjusts to the proper axis based off the position of the headlamp aiming switch.
Diagnosis Procedure - Without Daytime Light SystemINFOID:0000000005146661
Regarding Wiring Diagram information, refer to EXL-69, "Wiring Diagram".
1.CHECK HEADLAMP AIMING SWITCH SIGNAL FOR OPEN OR SHORT CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect headlamp aiming switch connector M148 (A), headlamp aiming motor LH connector E11 and
headlamp aiming motor RH connector E107 (B).
3. Check continuity between the headlamp aiming switch connec-
tor M148 terminal 1 (A) and headlamp aiming motor LH E11 and
RH E107 terminal 7 (B).
4. Check continuity between the headlamp aiming switch connec- tor M148 terminal 1 and ground.
Are the continuity test results as specified?
YES >> GO TO 2.
NO >> Repair the harness or connector.
2.CHECK HEADLAMP AIMING SWITCH
1. Check resistance between the headlamp aiming switch termi- nals 1 and 2 in each switch position.
Are the resistance check results as specified?
YES >> GO TO 3.
NO >> Replace the headlamp aiming switch.
3.CHECK HEADLAMP AIMING SWITCH GROUND CIRCUIT
Connector Terminal Connector Terminal Continuity
M148 1E11
7Y es
E107
Connector Terminal —Continuity
M148 1Ground No
AWLIA1093ZZ
Component Terminal Switch Position Resistance
Headlamp
aiming switch 12 06
04 Ω
13 24 Ω
21 91 Ω
31 30 Ω
AWLIA1027ZZ
Revision: April 20092010 QX56

EXL-50
< COMPONENT DIAGNOSIS >
HEADLAMP AIMING SWITCH
1. Turn the ignition switch OFF.
2. Disconnect headlamp aiming switch connector M148.
3. Check continuity between headlamp aiming switch connectorM148 terminal 2 and ground.
Is continuity as specified?
YES >> Inspect headlamp aiming motors.
NO >> Repair harness or connector.
Diagnosis Procedure - With Daytime Light SystemINFOID:0000000005146662
Regarding Wiring Diagram information, refer to EXL-69, "Wiring Diagram".
1.CHECK HEADLAMP AIMING SWITCH SIGNAL FOR OPEN OR SHORT CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect headlamp aiming switch connector M148 (A), headlamp aiming motor LH connector E6 and headlamp aiming motor RH connector E108 (B).
3. Check continuity between the headlamp aiming switch connec-
tor M148 terminal 1 (A) and headlamp aiming motor LH E6 and
RH E108 terminal 7 (B).
4. Check continuity between the headlamp aiming switch connec- tor M148 terminal 1 and ground.
Are the continuity test results as specified?
YES >> GO TO 2.
NO >> Repair the harness or connector.
2.CHECK HEADLAMP AIMING SWITCH
1. Check resistance between the headlamp aiming switch termi- nals 1 and 2 in each switch position.
Are the resistance check results as specified?
YES >> GO TO 3.
NO >> Replace the headlamp aiming switch.
3.CHECK HEADLAMP AIMING SWITCH GROUND CIRCUIT
Connector Terminal —Continuity
M148 2Ground Yes
AWLIA1028ZZ
Connector Terminal Connector Terminal Continuity
M148 1E6
7Y es
E108
Connector Terminal —Continuity
M148 1Ground No
AWLIA1093ZZ
Component Terminal Switch Position Resistance
Headlamp
aiming switch 12 06
04 Ω
13 24 Ω
21 91 Ω
31 30 Ω
AWLIA1027ZZ
Revision: April 20092010 QX56

EXL-56
< COMPONENT DIAGNOSIS >
DAYTIME LIGHT SYSTEM
DAYTIME LIGHT SYSTEM
Wiring DiagramINFOID:0000000005146664
ABLWA0417GB
Revision: April 20092010 QX56

DAYTIME LIGHT SYSTEMEXL-57
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P

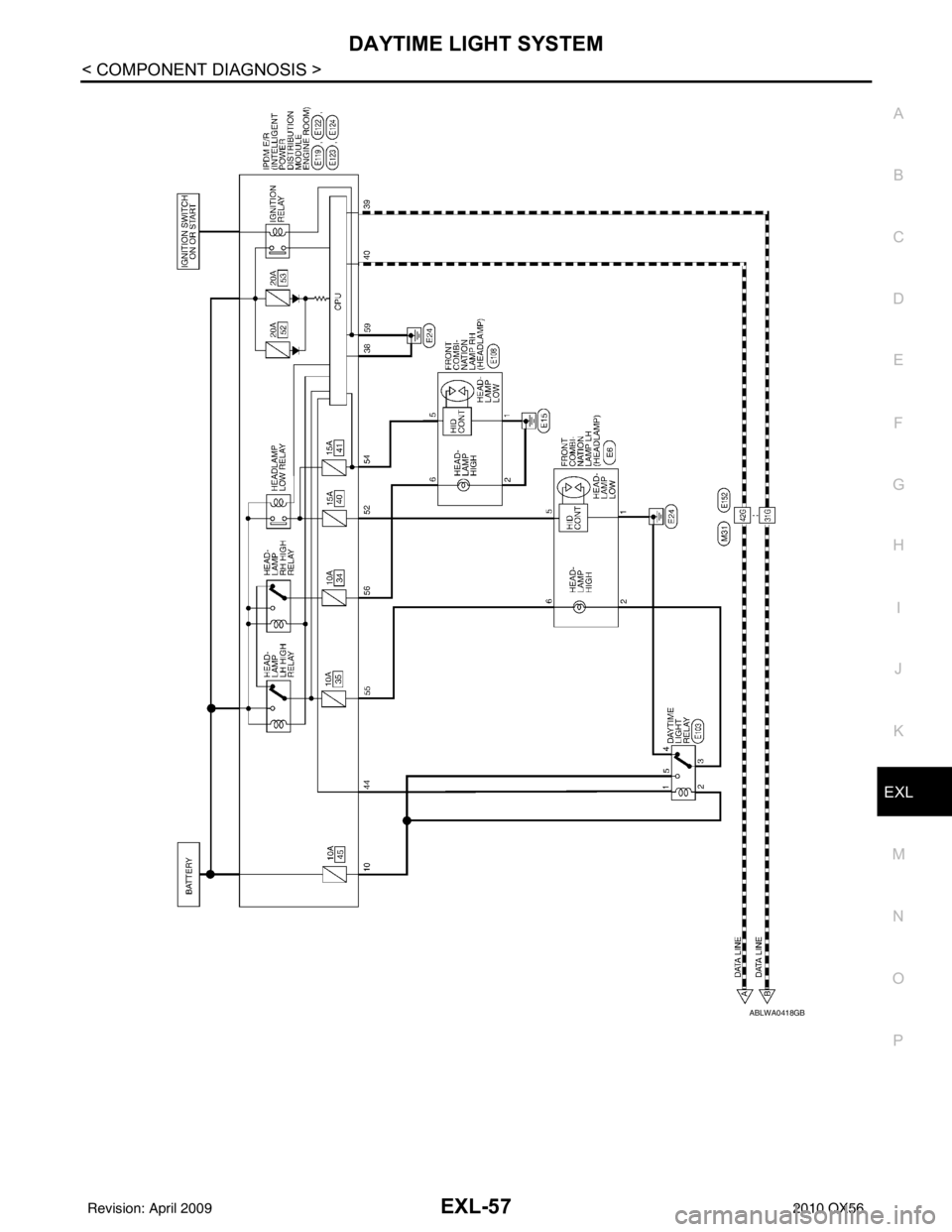

ABLWA0418GB
Revision: April 20092010 QX56

EXL-58
< COMPONENT DIAGNOSIS >
DAYTIME LIGHT SYSTEM

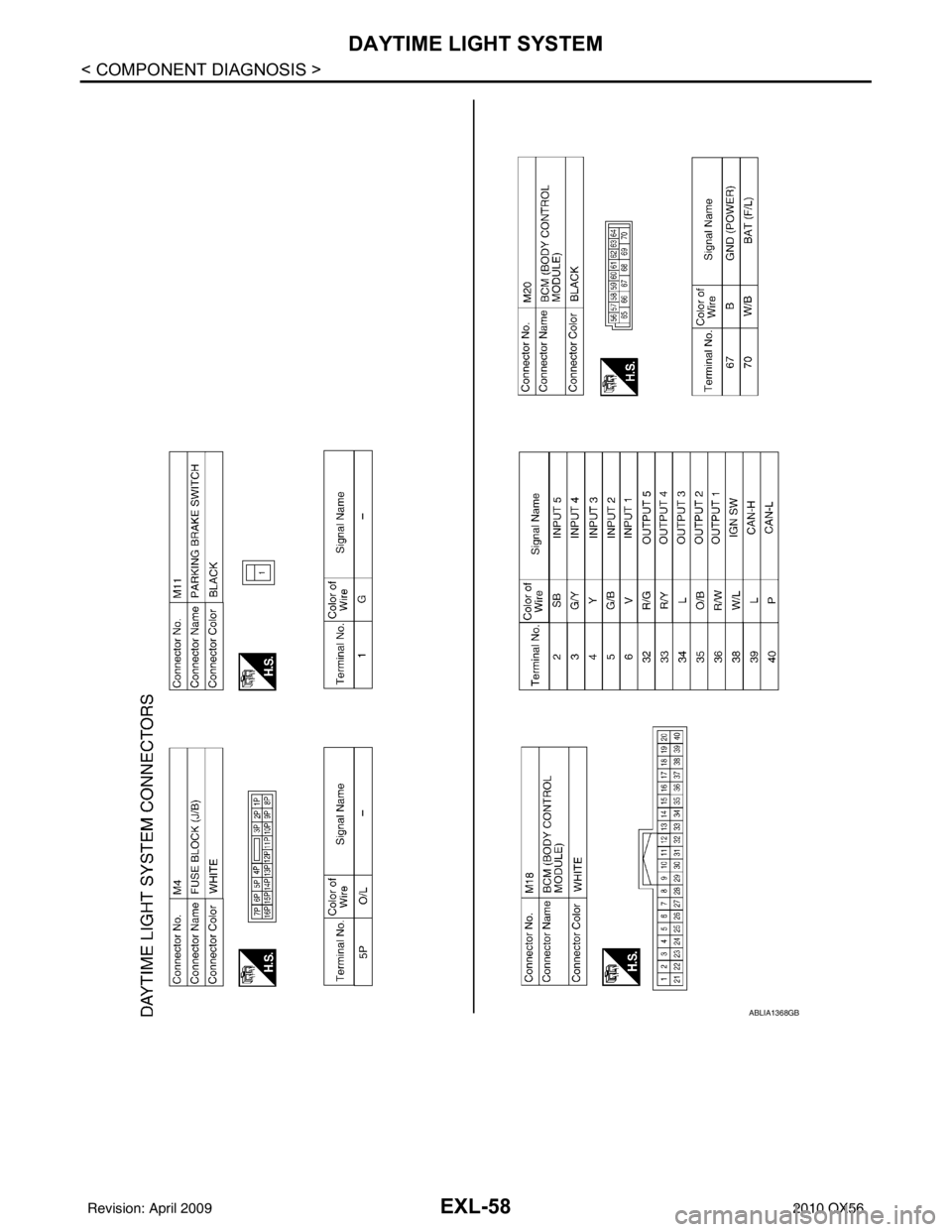

ABLIA1368GB
Revision: April 20092010 QX56
