2010 FIAT PUNTO EVO Owners Manual

88
F0U0081mfig. 89
REAR DOORS EMERGENCY LOCK DEVICE
(5-door versions) fig. 89
The rear doors are fitted with a device to lock doors when
there is no current.
In this event, proceed as follows:
❒insert the ignition key into latch B;
❒turn it from position 2 to position 1 and close the door.
When the device is active, use the internal doors handles
to open the rear doors.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
After engaging the child lock on both rear
doors, check for proper engagement by
trying to open a door with the internal handle.
WARNING
Do not activate the child lock device if the
rear doors emergency lock device is al-
ready activated.
If both have been activated, you need to use the
interior handle to disengage the rear doors emer-
gency locking system and then open the door from
the outside.
WARNING
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 88

89
F0U0082mfig. 90F0U0083mfig. 91
Continuous automatic operation
Versions with 2 electric windows (at the front) are
equipped with automatic window opening.
Versions with 4 electric windows (front and rear) are fit-
ted with automatic window opening/closing on all doors.
Keep one of the buttons pressed for longer than
half a secondto activate the automatic continuous op-
eration of the window. The window will stop when it is
fully opened or closed, or when the button is pressed again.
Versions with 4 electric windows (front and rear) are fit-
ted with an anti-crushing safety device to detect the pres-
ence of an obstacle when the window is being closed. If an
obstacle is detected, the safety system will stop the clos-
ing process and, according to window position, reverse
the movement of the glass.ELECTRIC WINDOW
OPENING
The driver’s door armrest features two fig. 91 or (for ver-
sions/markets where provided) five fig. 90 switches that,
with the key turned to MAR, can be used:
A to open/close the left front window;
B to open/close the right front window;
C to open/close the left rear window (for versions/
markets where provided)
D to open/close the right rear window (for versions/
markets where provided)
E to disable the controls located on the rear doors (for
versions/markets where provided).
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 89

90
F0U0084mfig. 92
Front passenger-side and rear doors
(for versions/markets where provided)
The front passenger door armrest and rear door armrests
feature switches A-fig. 92 for controlling the correspond-
ing window.
Press button A-fig. 93 to disable the controls located on
the rear doors (for versions/markets where provided). IMPORTANT In the event that the anti-crushing function
is activated 5 times in only 1 minute, the system will au-
tomatically enter the “recovery” mode (self-protection).
This condition is apparent from the window closing in
stages.
On such occasions, it is necessary to carry out the system
restore procedure, acting as follows:
❒open the windows;
or
❒turn the ignition key to STOP and then to MAR.
If no malfunction is present, the window returns to its nor-
mal operation automatically.
IMPORTANT With the ignition key at STOP or removed,
the windows remain activated for about 2 minutes and are
deactivated as soon a door is opened.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The system conforms to the 2000/4/EC
standard concerning the safety of passen-
gers leaning out of the passenger compartment.
WARNING
IMPORTANTOn some versions, pressing the remote con-
trol button Ëfor over 2 seconds will open the windows,
whereas pressing the remote control button Áfor over
2 seconds will close them.
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 90

91
F0U0085mfig. 93F0U0086mfig. 94
Initialisation procedure:
❒fully close the window to be initialised manually;
❒once fully closed, keep holding down the closing con-
trol for at least 1 second.
REAR WINDOW WINDERS (5-door versions)
fig. 94 (for versions/markets where provided)
To open and to close the window, use the relevant handle.
Electric window system initialisation
The system must be re-initialised after disconnecting the
battery or if the relevant protection fuse is blown.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Improper use of the electric windows can
be dangerous. Before and during opera-
tion, always check that no-one is exposed to the
risk of being injured either directly by the moving
window or through objects getting caught and be-
ing dragged by it. When leaving the vehicle, al-
ways remove the key from the ignition to avoid
the risk of injury to anyone remaining in the
car due to accidental operation of the electric
windows.
WARNING
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 91

92
F0U0088mfig. 95
F0U0087mfig. 96F0U0273mfig. 97
When you open the boot using the remote control, the
direction indicators will flash twice.
OPEN VIA DASHBOARD CONTROL
(for versions/markets where provided)
On some versions, you can unlock the boot using the dash-
board button A-fig. 97 BOOT
OPENING THE BOOT
The boot can be opened by pressing button A-fig. 95.
It can also be opened by pressing button Ron the re-
mote control fig. 96.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 92

93
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

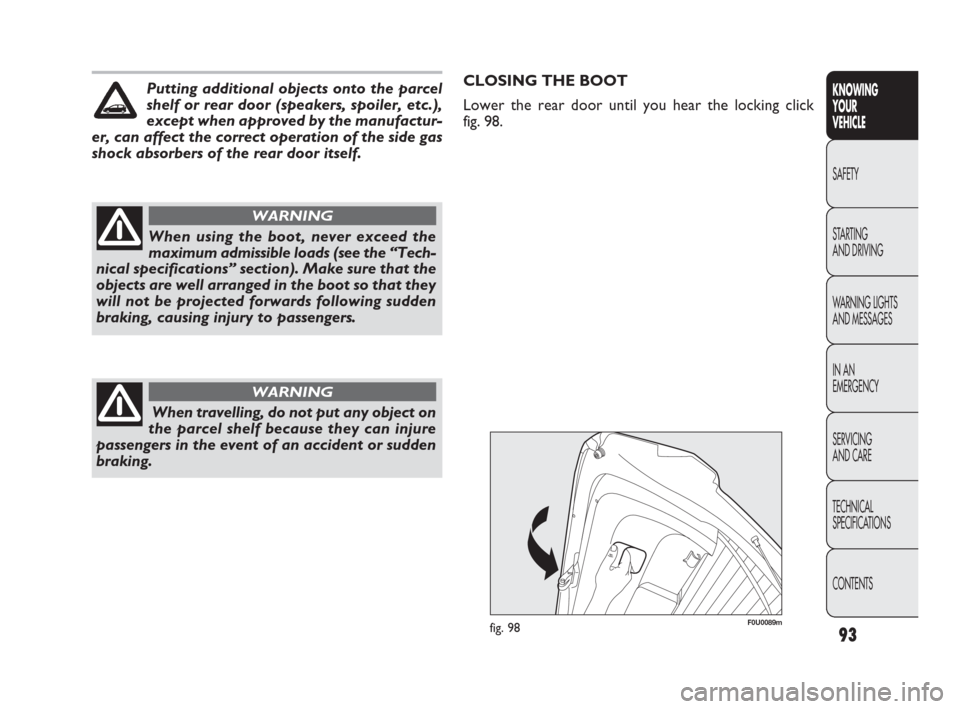

When using the boot, never exceed the
maximum admissible loads (see the “Tech-
nical specifications” section). Make sure that the
objects are well arranged in the boot so that they
will not be projected forwards following sudden
braking, causing injury to passengers.
WARNING
When travelling, do not put any object on
the parcel shelf because they can injure
passengers in the event of an accident or sudden
braking.
WARNING
Putting additional objects onto the parcel
shelf or rear door (speakers, spoiler, etc.),
except when approved by the manufactur-
er, can affect the correct operation of the side gas
shock absorbers of the rear door itself.
F0U0089mfig. 98
CLOSING THE BOOT
Lower the rear door until you hear the locking click
fig. 98.
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 93

94
F0U0091mfig. 100
OPENING THE BOOT IN AN
EMERGENCY fig. 99
To open the boot from inside if the car battery is flat or
the electric lock of the rear door is faulty, proceed as fol-
lows:
❒tilt the rear seats fully forward (see “Extending the boot”
in this section);
❒press lever B inside the boot.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U0090mfig. 99
EXTENDING THE BOOT
Partial extension (1/3 or 2/3) fig. 100
(for versions/markets where provided)
The boot can be partially (1/3 or 2/3) or totally extended
by splitting the rear seat.
Proceed as follows:
❒fully lower the rear seat head restraints;
❒check that the seat belt is not twisted;
❒tilt the cushions forward as shown by the arrow
fig. 100;
❒lift handle A or B-fig. 101 to release either the left or
right part of the backrest and guide the backrest down
onto the cushion.
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 94

95
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
❒tilt the cushions forward as shown by the arrow
fig. 100;
❒lift handles A and B-fig. 101 to release the backrests and
guide them down onto the cushion. Extending the right side of the boot makes allows you to
carry two passengers on the left part of the rear seat. Ex-
tending the left side of the boot allows you to carry one
passenger on the right part of the rear seat.
Full extension fig. 103
Tilting the whole rear seat forwards gives maximum load-
ing volume.
Proceed as follows:
❒fully lower the rear seat head restraints;
❒check that the seat belts are not twisted;
F0U0092mfig. 101F0U0094mfig. 103
F0U0093mfig. 102
