“Smart washing” function
Pull the stalk towards the steering wheel (temporary po-
sition) to operate the windscreen washer.
Keeping the stalk pulled for more than half a second, with
just one movement it is possible to operate the washer jet
and the wiper at the same time.
The wiper stops working three strokes after releasing the
stalk. A further stroke 6 seconds later completes the wip-
ing operation.RAIN SENSOR
(for versions/markets where provided)
The rain sensor is located behind the rear-view mirror in
contact with the windscreen and has the purpose of au-
tomatically adjusting the frequency of the windscreen wiper
strokes depending on the intensity of the rain during in-
termittent operation.
IMPORTANT Keep the glass in the sensor area clean.
Activation
Move the twist switch on the right-hand stalk to
≤fig.
51. The activation of the sensor is signalled by a wiper
stroke. Through the setup menu it is possible to increase
the sensitivity of the rain sensor. The increasing of the rain
sensor sensitivity is also signalled by a stroke of the wipers.
If the windscreen washer is used with the rain sensor ac-
tivated, the normal washing cycle is performed, after which
the rain sensor resumes its normal automatic operation.
Deactivation
Move the stalk twist switch away from
≤fig. 51 or turn
the ignition key to STOP. When the engine is next start-
ed (key at MAR), the sensor will not be reactivated even
if the twist switch is still at
≤fig. 51. To activate the rain
sensor, you have to move the twist switch from
≤to an-
other position and then back to
≤. Rain sensor activa-
tion will be indicated by at least one wiper stroke, even if
the windscreen is dry.
64
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Do not use the windscreen wipers to re-
move layers of snow or ice from the wind-
screen. In such conditions, the windscreen
wipers may be subjected to excessive stress,
prompting intervention from the motor protection
which prevents operation for a few seconds. If op-
eration is not restored, even after turning the key
and restarting the engine, go to a Fiat Dealership.
When released, the stalk returns to its default position and
the wipers automatically switch off.
With the twist switch at
≤, the windscreen wiper will
automatically adapt to the speed of the car.
IMPORTANT Replace the wiper blades as specified in the
“Maintenance and care” section.
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 64

Do not use the rear window wiper to re-
move layers of snow or ice. In such condi-
tions, the rear window wiper may be sub-
jected to excessive stress, prompting intervention
from the motor protection which prevents opera-
tion for a few seconds. If operation is not restored,
even after turning the key and restarting the engine,
go to a Fiat Dealership.The rain sensor is able to recognise, and automatically
adjust itself in the presence of, the following particular con-
ditions:
❒impurities on the surface (salt, dirt, etc.);
❒difference between day and night.
IMPORTANT Streaks of water may cause the blades to
move unnecessarily.
REAR WINDOW WIPER/WASHER
This operates only with the ignition turned to MAR. The
function stops when the stalk is released. Turning the twist
switch from Oto
'will operate the rear window wiper
as follows:
❒intermittent operation if the windscreen wiper is off;
❒synchronised operation (but with half-stroke frequen-
cy) when the windscreen wiper is on;
❒continuous operation with reverse engaged and func-
tion on.
With the windscreen wiper on and reverse gear engaged,
rear window wiping will be continuous.
Pushing the stalk towards the dashboard (temporary po-
sition) will activate the rear window washer jet.
Keeping the stalk pushed for more than half a second will
also activate the rear window wiper.
Releasing the stalk will activate the smart washing function,
as described for the windscreen wiper.
65
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 65

❒move the stalk upwards (+) for at least one second, then
release it. The car speed is now memorised and you can
therefore come off the accelerator pedal.
If needed (when overtaking for instance), you can accel-
erate simply by pressing the accelerator pedal; when you
come off the pedal, the car will return to the speed mem-
orised previously.
RESTORING THE MEMORISED SPEED
If the device has been switched off, for example by press-
ing the brake or clutch pedal, the memorised speed can
be restored as follows:
❒accelerate gradually until reaching a speed approaching
the memorised speed;
❒engage the gear that was selected when you memorised
the speed;
❒press button RES B-fig. 52.
66

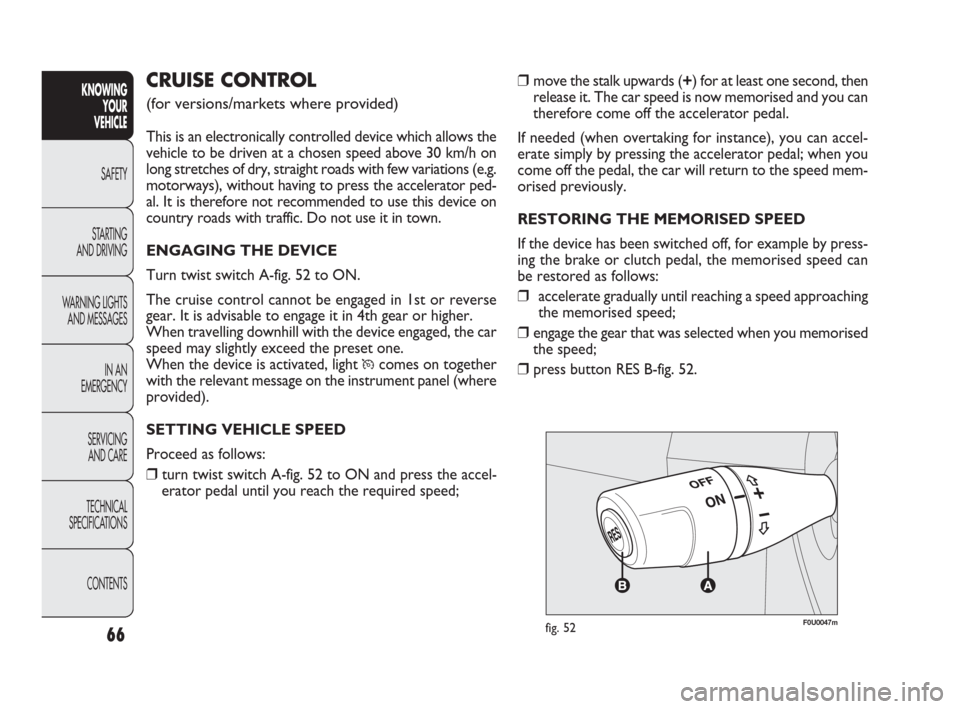

CRUISE CONTROL

(for versions/markets where provided)
This is an electronically controlled device which allows the
vehicle to be driven at a chosen speed above 30 km/h on
long stretches of dry, straight roads with few variations (e.g.
motorways), without having to press the accelerator ped-
al. It is therefore not recommended to use this device on
country roads with traffic. Do not use it in town.
ENGAGING THE DEVICE
Turn twist switch A-fig. 52 to ON.
The cruise control cannot be engaged in 1st or reverse
gear. It is advisable to engage it in 4th gear or higher.
When travelling downhill with the device engaged, the car
speed may slightly exceed the preset one.
When the device is activated, light
Ücomes on together
with the relevant message on the instrument panel (where
provided).
SETTING VEHICLE SPEED
Proceed as follows:
❒turn twist switch A-fig. 52 to ON and press the accel-
erator pedal until you reach the required speed;
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U0047mfig. 52
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 66

67
INCREASING THE MEMORISED SPEED
This can be done in two ways:
❒by pressing the accelerator and then memorising the
new speed reached;
or
❒moving the stalk upwards (+).
Each movement of the stalk will correspond to an increase
in speed of about 1 km/h, while keeping the stalk held up-
wards will continuously increase the speed.
REDUCING THE MEMORISED SPEED
This can be done in two ways:
❒by turning the device off and then storing a new speed;
or
❒by moving the stalk downwards (–) until reaching the
new speed which will be memorised automatically.
Each movement of the stalk will correspond to a reduc-
tion in speed of about 1 km/h, while keeping the stalk held
downwards will continuously reduce the speed.
DISENGAGING THE DEVICE
The device can be switched off by the driver in the fol-
lowing ways:
❒turning twist switch A to OFF;
❒switching off the engine;
❒pressing the brake pedal;
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
❒pressing the clutch pedal;
❒pressing the accelerator pedal; in this case, the system
is not really switched off but the request for accelera-
tion takes priority. The cruise control is, however, ac-
tive and you do not need to press button RES B-fig. 52
to restore the previous conditions when you have fin-
ished accelerating.
The device is automatically switched off in the following
cases:
❒if the ABS or ESP systems cut in;
❒if the car speed drops below the preset limit;
❒if there is a system failure.
While travelling with the device engaged, do not
put the gear lever into neutral.
WARNING
In case of malfunctioning or if the device fails,
turn twist switch A to OFF and contact a Fiat
Dealership.
WARNING
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 67

F0U0048mfig. 53F0U0049mfig. 54
CEILING COURTESY LIGHTS
FRONT CEILING LIGHT
WITH MOVABLE LENS
The light will turn on/off by pressing the right or left side
as shown in fig. 53.
FRONT CEILING LIGHT WITH SPOT LIGHTS
Switch A-fig. 54 switches the ceiling courtesy lights on/off.
With switch A-fig. 54 in the centre, lights C and D come
on/go off when front doors are opened/closed.
With switch A-fig. 54 pressed to the left, lights C and D
are always off.
With switch A-fig. 54 pressed to the left, lights C and D
are always on.
68
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The lights switch on/off gradually.
Switch B-fig, 54 controls the spot light function; when the
ceiling light is off, it switches the following on individually:
❒light C if pressed on the left side;
❒light D if pressed on the right side.
CAUTION Before getting out of the car, make sure both
switches are in the centre; when the doors are closed, the
lights switch off to prevent the battery running down.
In any case, if the switch is left in on position, the courtesy
light switches off automatically 15 minutes after the engine
switching off.
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 68

69
TIMED OPERATION FOR GETTING OUT OF THE VEHICLE
After removing the key from the ignition, the courtesy
lights switch on according to the following modes:
❒within 2 minutes from turning the engine off for about
10 seconds;
❒when opening one of the side doors for about 3 min-
utes;
❒when one of the doors is closed for a period of about
10 seconds.
Timing will stop automatically when the doors are locked.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Courtesy light timing
On certain versions, to facilitate getting in/out of the car
at night or in poorly-lit areas, two timed modes have been
provided.
TIMED OPERATION FOR GETTING INTO THE VEHICLE
The courtesy lights switch on according to the following
modes:
❒for about 10 seconds when unlocking the front doors;
❒for about 3 minutes when opening one of the side
doors;
❒for about 10 seconds when closing the doors.
The timed period is interrupted when the ignition is turned
to MAR.
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 69

70
F0U0051mfig. 55F0U0053mfig. 57
F0U0052mfig. 56
COURTESY LIGHT fig. 57
(for versions/markets where provided)
On some versions a courtesy light is fitted behind the pas-
senger-side sun visor. Use button A-fig. 57 to turn the
light on/off. BOOT COURTESY LIGHT fig. 55
(for versions/markets where provided)
On versions where it is fitted, the light comes on auto-
matically when the boot is opened and goes out when it
is closed.
PUDDLE LIGHTS fig. 56
(for versions/markets where provided)
These lights A are located in the doors and they turn on
when the relevant door is opened, regardless of the igni-
tion key position. KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 70

71
F0U0054mfig. 58F0U0055mfig. 59
PARKING LIGHTS
These lights can be turned on only with the ignition key
at STOP or removed, by moving the left stalk twist switch
first to
Oand then to
6or 2.
The 3light on the instrument panel comes on.
FRONT FOG LIGHTS fig. 59
(for versions/markets where provided)
To turn the front fog lights on, press the button 5with
the side lights on.
The 5light on the instrument panel will come on.
Press the button again to turn the lights off.
The use of fog lights is governed by the highway code of
the country in which you are driving. Keep to the rules.
CONTROLS
HAZARD WARNING LIGHTS fig. 58
They are turned on by pressing switch A, regardless of the
position of the ignition key.
When the device is on, the switch flashes and the lights
Îand ¥on the instrument panel come on. Press the
switch again to turn the lights off. The use of hazard warn-
ing lights is governed by the highway code of the country
you are in. Keep to the rules.
Emergency braking
During emergency braking, the hazard warning lights come
on automatically and lights Îand ¥on the panel also come
on. The function switches off automatically when the na-
ture of the braking changes. This function complies with
the relevant legal regulations currently in force.
