2010 FIAT PUNTO EVO Owners Manual

112
IMPORTANT NOTES ABOUT THE TPMS
SYSTEM
The fault indications are not stored and will therefore not
be displayed after the engine has been switched off and
then on again. If the fault conditions persist, the control
unit will send the relative indications to the instrument
panel only after the vehicle has been in motion for a short
time.
WARNING Particularly strong radio frequency interference
may cause the TPMS system to function incorrectly. This
condition is indicated to the driver by a message on the dis-
play. The warning message will go off automatically as soon
as the interference stops disturbing the system.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The presence of TPMS does not exoner-
ate the driver from regularly checking the
pressure of the tyres and the spare wheel (see
“Wheels” in the “Maintenance and care” section).
WARNING
The TPMS is not able to warn you of sud-
den tyre pressure losses (for example when
a tyre bursts). In this case, stop the car, braking
with care and avoiding sharp steering actions.
WARNING
Replacing the normal tyres with winter
tyres and vice versa requires an inspection
of the TPMS, which should be carried out only
by a Fiat Dealership.
WARNING
The TPMS requires the use of specific
equipment. Contact a Fiat Dealership to
find out which accessories are compatible with the
system (wheels, hub caps etc.). Using other ac-
cessories may hinder the normal operation of the
system.
WARNING
Changes in outside temperature may
cause tyre pressures to vary. The TPMS
system may temporarily indicate insufficient pres-
sure. In this case, check the tyre pressures with the
tyres cold and, if necessary, pump them up.
WARNING
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 112

113
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
If the vehicle is fitted with TPMS, tyre and
wheel fitting/removal operations require
specific precautions. To avoid damaging the sen-
sors or fitting them incorrectly, tyre and wheel fit-
ting/removal operations should be carried out on-
ly by specialists. Contact a Fiat Dealership.
WARNING
Strong radio-frequency interference could
hinder the regular operation of the TPMS
system. This condition will be indicated by a mes-
sage on the multfunction display (where provided).
The warning message will go off automatically
as soon as the interference ceases to disturb the
system.
WARNING
If the vehicle is fitted with TPMS, when a
tyre is removed, it is advisable to replace
the rubber gasket for the valve. Contact a Fiat
Dealership.
WARNING
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 113

114
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
In order to use the system properly, refer to the following table when you have to change wheels/tyres:
Operation Sensor Failure warning Fiat Dealership
intervention
–
Replacing a wheel with the spare wheel
Replacing wheels
with snow tyres
Replacing wheels
with snow tyres
Replacing wheels with
others of a different size (*)
Switching wheels(front/rear) (**)
(*) Given as an alternative in the Owner’s Handbook and available at Lineaccessori Fiat.
(**) Not cross-swapped (tyres must stay on the same side).–
NO
NO
YES
YES
YESYES
YES
YES
NO
NO
NOContact a Fiat
Dealership
Repair the damaged
wheel
Contact a Fiat
Dealership
–
–
–
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 114

115
F0U0200mfig. 118F0U0201mfig. 119
With Dualogic gearbox
(for versions/markets where provided)
The engine cuts out if the car stops with the brake pedal
pressed.
This condition can be maintained even if the brake pedal
is not pressed, if the gear lever is in position N.
NB: The engine can be stopped automatically only after
a speed of about 10 Km/h is reached, to prevent the en-
gine from being repeatedly stopped when driving at walk-
ing pace.
The engine being stopped is signalled by the warning light
fig. 118 on the instrument panel, depending on the con-
figuration.
Engine restarting mode
With normal transmission
Press the clutch pedal to allow the engine to be restarted.
START&STOP SYSTEM
(for versions/markets where provided)
FOREWORD
The Start&Stop device automatically stops the engine each
time the vehicle is stationary and starts it again when the
driver wants to move off.
This improves the efficiency of the vehicle by reducing fu-
el consumption, the emission of harmful gases and noise
pollution. The system is activated each time the car is
started.
OPERATING MODES
Engine cut-out mode
With manual transmission
With the vehicle stationary, the engine cuts out with the
gearbox in neutral and the clutch pedal released.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 115

116
F0U0202mfig. 120
NO ENGINE CUT-OUT
CONDITIONS
With the device activated, for reasons of comfort, limiting
emissions and safety, the engine does not stop in certain
conditions, including:
❒ engine still cold;
❒particularly cold external temperatures, where the ap-
propriate indication is provided;
❒ battery not sufficiently charged;
❒ heated rear windscreen activated;
❒ windscreen wipers working at maximum speed;
❒diesel particulate filter (DPF) regeneration ongoing (for
versions/markets where provided);
❒ driver’s door not shut;
❒ driver’s seat belt not fastened;
❒ reverse gear engaged (for example, during parking ma-
noeuvres);
❒automatic climate control, if a comfortable temperature
has not yet been reached or MAX – DEF function en-
abled;
❒during the first period of use, to initialize the system.
In the above cases, an information message appears on the
display and (for versions/markets where provided) the warn-
ing light fig. 118 will flash on the instrument panel. With Dualogic gearbox
(for versions/markets where
provided)
If the gear lever is in position N, place it in any other gear,
otherwise release the brake pedal or move the gear lever
to (+), (–) or R .
MANUAL ACTIVATION AND
DEACTIVATION
You can activate/deactivate the device by pressing the but-
ton on the dashboard fig. 120. When the system is
switched off, “Start&Stop OFF” appears on the dashboard
fig. 119.
In addition, (for versions/markets where provided) addi-
tional indications concerning the deactivation or activation
of Start&Stop is given through a message on the
display.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 116

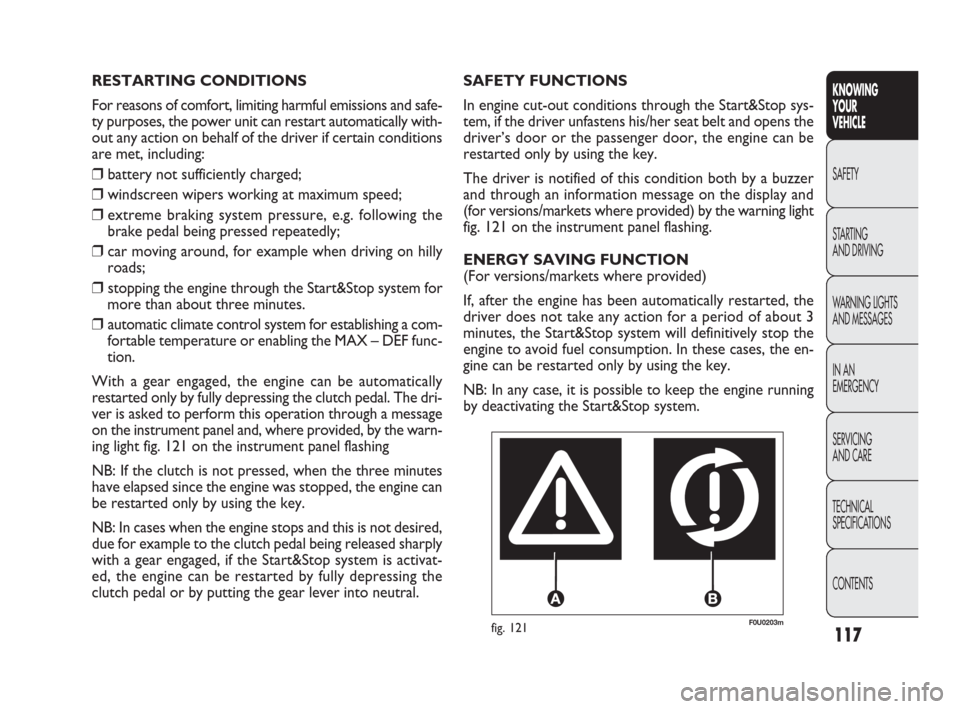

117
F0U0203mfig. 121
SAFETY FUNCTIONS
In engine cut-out conditions through the Start&Stop sys-
tem, if the driver unfastens his/her seat belt and opens the
driver’s door or the passenger door, the engine can be
restarted only by using the key.
The driver is notified of this condition both by a buzzer
and through an information message on the display and
(for versions/markets where provided) by the warning light
fig. 121 on the instrument panel flashing.
ENERGY SAVING FUNCTION
(For versions/markets where provided)
If, after the engine has been automatically restarted, the
driver does not take any action for a period of about 3
minutes, the Start&Stop system will definitively stop the
engine to avoid fuel consumption. In these cases, the en-
gine can be restarted only by using the key.
NB: In any case, it is possible to keep the engine running
by deactivating the Start&Stop system. RESTARTING CONDITIONS
For reasons of comfort, limiting harmful emissions and safe-
ty purposes, the power unit can restart automatically with-
out any action on behalf of the driver if certain conditions
are met, including:
❒ battery not sufficiently charged;
❒ windscreen wipers working at maximum speed;
❒extreme braking system pressure, e.g. following the
brake pedal being pressed repeatedly;
❒ car moving around, for example when driving on hilly
roads;
❒stopping the engine through the Start&Stop system for
more than about three minutes.
❒automatic climate control system for establishing a com-
fortable temperature or enabling the MAX – DEF func-
tion.
With a gear engaged, the engine can be automatically
restarted only by fully depressing the clutch pedal. The dri-
ver is asked to perform this operation through a message
on the instrument panel and, where provided, by the warn-
ing light fig. 121 on the instrument panel flashing
NB: If the clutch is not pressed, when the three minutes
have elapsed since the engine was stopped, the engine can
be restarted only by using the key.
NB: In cases when the engine stops and this is not desired,
due for example to the clutch pedal being released sharply
with a gear engaged, if the Start&Stop system is activat-
ed, the engine can be restarted by fully depressing the
clutch pedal or by putting the gear lever into neutral.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 117

118
F0U0204mfig. 122F0U0544mfig. 123
CAR INACTIVITY
(with Start&Stop system without dummy pole)
(for versions/markets where provided)
In case of car inactivity, special attention must be paid due
to the disconnection of the battery power supply. Proceed
as follows: detach the connector A-fig. 123 (by pressing
button B) from sensor C for monitoring the battery sta-
tus installed on the battery negative pole D. This sensor
should never be disconnected from the pole except if the
battery is replaced. OPERATING IRREGULARITIES
In the case of malfunctions the Start&Stop system is dis-
abled. The driver is informed of the problem by the gen-
eral failure warning light A-fig. 121, where provided, com-
ing on with an information message and the system fail-
ure symbol B-fig. 121 on the control panel. In this case,
contact a Fiat Dealership.
CAR INACTIVITY fig. 122
(with Start&Stop system with dummy pole)
(for versions/markets where provided)
In case of vehicle inactivity conditions, pay special atten-
tion to the disconnection of the battery power supply. The
procedure must be made by disconnecting the quick re-
lease negative terminal A-fig. 122 from the dummy nega-
tive pole B, as the battery negative pole C has a sensor D
for battery condition monitoring that must never be dis-
connected (unless the battery is replaced).KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
When replacing the battery, always go to
a Fiat Dealership. Replace the battery us-
ing a new one of the same type (HEAVY DUTY)
and having the same specifications.
WARNING
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 118

119
F0U0545mfig. 123aF0U0546mfig. 123b
EMERGENCY STARTING
(with Start&Stop system without dummy pole)
(for versions/markets where provided)
When jump starting, never connect the negative lead (–)
of the auxiliary battery to the negative pole A-fig. 123b of
the car battery, but rather to an engine/gearbox earth
point. EMERGENCY STARTING
(with Start&Stop system with dummy pole)
(for versions/markets where provided)
In case of vehicle jump starting, never connect the nega-
tive cable (–) of the auxiliary battery to the negative pole
B-fig. 123a of the vehicle battery, rather to the dummy pole
A or to an engine/gearbox earth point.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
082-128 PUNTO FL EN 4ed 20-01-2010 15:07 Pagina 119
