Fig. 20 7 S chem atic
o verview : in stallati on
o f the seat usi ng t he
v e h icl e's s afety belt
system
- Whe n usi ng th e v ehicle safety belt to ins tall a c hild safety
seat , you mus t first activ ate the convert ible locking
f ea ture on the s afe ty b elt to preve nt the child s afe ty seat
fro m moving==>
page 232 or install t he seat usi ng t he
L A T CH a ttac hments .
- P ush the child saf ety s eat dow n with yo ur full weight to
get the safety be lt rea lly t ight so that the se at ca nnot
mov e fo rward o r sideways more than o ne i nch ( 2.5 cm)
=> page 232.
A tod dler or ch ild is usu a lly too large for a n in fant rest raint if it is
more tha n on e year old and weig hs mo re than 20 lbs. (9 kg).
Todd le rs and children who are older than one year up to about 4 years
old and weig h m or e th an 20 l bs ( 9 kg) up t o 40 l bs. (1 8 kg) mus t
always be properly restrained in a chi ld safety seat certif ied for the ir
si ze and weig ht =>
p age 2 28, fi g. 206 and => page 229, fig . 207 .
Th e a irbag on the passenger side makes the front seat a pot entia lly
dange rous p lace for a child to ride . The front seat is not t he safest
pla ce fo r a child in a forwa rd-f acin g ch ild sa fe ty seat . It is a very
dange rous p lace for an infant or a large r chi ld in a rearward -facing
se at.
Safety first Vehicle OP-eration
Child Safety
& WARNING
Not using a child safety seat, using the wrong child safety seat or
improperly installing a child restraint increases the risk of serious
personal injury and death in a collision or other emergency situa­
tion .
• Children on the front seat of any car, even with Advanced
Airbags, can be seriously injured or even killed when an airbag inflates. A child in a rearward-facing child safety seat installed on
the front passenger seat will be seriously injured and can be killed
if the front airbag inflates - even with an Advanced Airbag
System .
• The inflating airbag will hit the child safety seat or infant
c arrier with great force and will sma sh the child safety seat and
child against the backrest, center arm rest, door or roof.
• Always install rearward-facing child safety seats on the rear
seat .
• If you must install a rearward facing child safety seat on the
front passenger seat because of exceptional circumstances and
the PASSENGER AIR BAG
OFF light does not come on and stay on,
immediately install the rearward-facing child safety seat in a rear
seating position and have the airbag system inspected by your
authorized Audi dealer .
• Always read and heed all WARNINGS whenever u sing a child
restrained in a vehicle is being used=>
page 190, "Safety belts ",
=> page 200, "Airbag system " and => page 222, "Important
things to know ".
& WARNING
If exceptional cir cumstances require the use of a forward-facing
c hild restraint on the front passenger's seat, the child' s safety and
well-being require that the following special precautions be
taken:
9J,,
Vehicle care Do-it-yourselt service iTechnical data

___ C_ h_il ..:....d _ S...:.....:.. a..:....fe -=- t~ y~ -----------------------------------------
& WARNING (continued)
• Make sure the forward-facing seat has been designed and certi­
fied by its manufacturer for use on a front seat with a passenger
front and side airbag.
• Always follow the manufacturer's instructions provided with
the child safety seat or infant carrier.
• Always move the front passenger seat into the rearmost posi­
tion of the passenger seat's fore and aft adjustment range, and as
far away from the airbag as possible before installing the child restraint.
• Always make sure that nothing prevents the front passenger's
seat from being moved to the rearmost position
in its fore and aft
adjustment range.
• Always make sure the backrest is
in an upright position.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched
on.
• If the light does not stay on, perform the checks~ page 211,
"Monitoring the Advanced Airbag System".
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay
on whenever the ignition is switched
on.a
Booster seats and safety belts
Properly used booster seats can help protect children
weighing between about40 lbs. and 80 lbs. (18 kg and
36 kg) who are less than 4
ft. 9 in.
(57 inches/1.45 meters) tall.
Fig. 208 Rear seat:
child properly
restrained in a booster
seat
The vehicle's safety belts alone will not fit most children until
they are at least 4 ft . 9 in . (57 inches/1.45 meters) tall and
weigh about 80 lbs. (36 kg). Booster seats raise these chil­
dren up so that the safety belt will pass properly
over the
stronger parts of their bodies and the safety belt can help protect them in a crash.
- Do not use the convertible locking retractor when using
the vehicle's safety belt to restrain a child on a booster
seat .
- Always position the shoulder portion of the safety belt
midway
over the child's shoulder .
- Always make sure that the shoulder portion of the safety
belt never rests against or across the child's neck.
~

lffllL___:C:..:h..:.. i:..: l .=d ~S=-= a..:..f .= e ~ty ~ --------------------------------------------
& WA RNING (conti nued)
• Never let a child stand or kneel on an y seat, for example the
front seat.
• Never let a child ride in the cargo area of your vehicle.
• Alwa ys remember that a child leaning forward , sitting s ide·
ways or out of po sition in an y way during an accident can be struck
by a deploying airbag. Th is will result in serious personal injury or
death.
• If you must install a booster seat on the front passenger seat
because of e xceptional circumstance s the PASSENGER AIR BAG
OFF light must come on and stay on, whenever the ignit ion is
switched on.
• If the PASSENGER AIR BAG OFF light does not come on and
s tay on, perform the checks described =>
page 211, "Monitoring
the Advanced Airbag System ".
• Take the child re straint off the front pa ssenger seat and install
it prope rly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on whenever the ignition i s swit ched
on.
• Always read and heed all WARNINGS whenever u sing a child
restrained in a vehicle is being used=>
page 190, "Safety belts ",
=> page 200, "Airbag system " and => page 222, "Impo rtant
th ings to know ". •

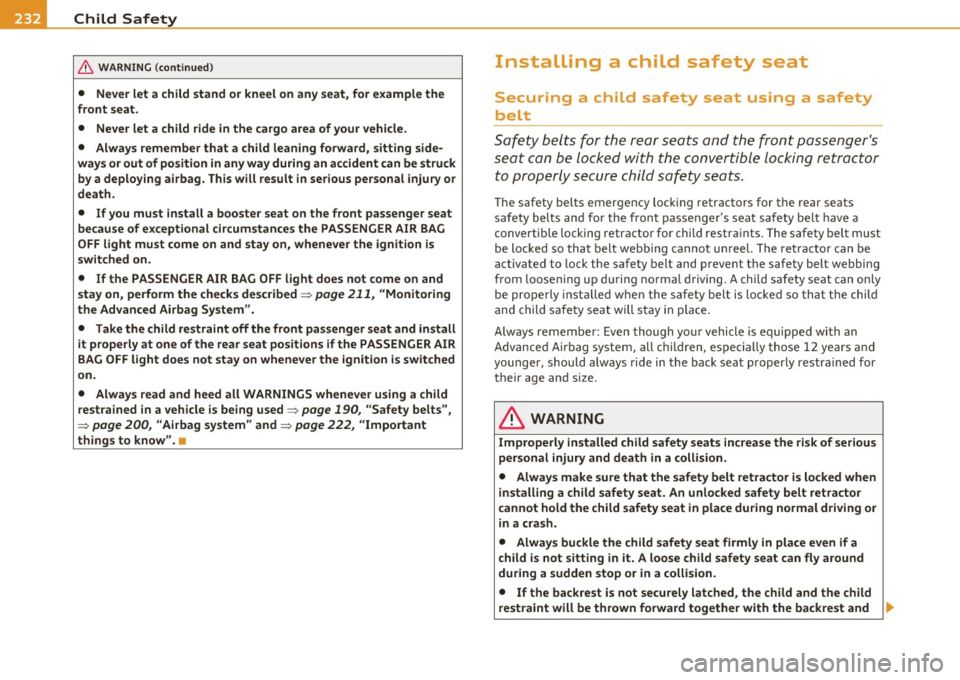

Installing a child safety seat
Securing a child safety seat using a safety
belt
S afet y belts for the re ar seats a nd the front passenger's
seat c an be locked with the c onvertible locking retract or
to pro perly secure child safety seats.
T he safety belts emergency loc king retractors for the rear seats
saf ety belts and fo r the front passe nger's seat safety be lt have a
convertib le locking retractor for child restraints. The safety be lt m ust
be loc ked so that belt webbing ca n not u nreel. The re tractor can be
activated to lock the safety belt and prevent the safety belt webbing
from loosening up d uring norm al driving. A chi ld safety seat can only
be properly installed when the safety belt is locked so that the child
and child safe ty seat will stay in p lace .
Always remembe r: Even though your vehicle is equipped with an
Advanced Airbag system, all chi ld ren, especially those 12 yea rs and
younger, should always ride in th e bac k seat p roperly restra ined for
their age and size.
& WARNING
Improperl y in stalled child safety se ats increase the risk of serious
per sonal injury and death in a collision.
• Always make sure that the safety belt retractor is locked when
i nstalling a child safety seat . An unlocked safety belt retractor
cannot hold the child safety seat in place during normal driving or
in a crash.
• Always buckle the child safety seat firmly in place even if a
child is not s itting in it. A loose child safety seat can fly around
during a sudden stop or in a collision.
• If the back rest is not securely latched , the child and the child
restraint will be thrown forward together with the backre st and ._

Child Safety Ill
------------------=------
& WARNING (continued)
will strike parts of the vehicle interior. The child can be seriously injured or killed.
• Never install rearward-facing child safety seats or infant
carriers on the front passenger seat. A child will be seriously
injured and can be killed when the passenger airbag inflates .
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest, center arm rest, door or roof. • Always install rearward-facing child safety seats or infant
carriers on the rear seat.
• Forward-facing child safety seats or infant carriers installed on
the front passenger's seat may interfere with the deployment of
the airbag and cause serious injury to the child.
• It is safer to install a forward-facing child safety seat on the
rear seat.
• Always read and heed all WARNINGS whenever using a child
restrained in a vehicle is being used:::::>
page 222. Special precau­
tions apply when installing a child safety seat on the front
passenger seat:::::>
page 202, "Child restraints on the front seat -
some important things to know ".
& WARNING
Always take special precautions if you must install a forward or
rearward-facing child restraint on the front passenger's seat in
exceptional situations:
• Whenever a forward or rearward-facing child restraint is
installed on the front passenger seat, the PASSENGER AIR BAG
OFF light must come on and stay on whenever the ignition is
switched on.
• If the PASSENGER
AIR BAG OFF light does not come on and
stay on, perform the checks described:::::>
page 211, "Monitoring
the Advanced Airbag System".
Controls and equip­ ment Safety first Vehicle operation
& WARNING
(continued)
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on whenever the ignition is switched
on.
• Improper installation of child restraints can reduce their effec­
tiveness or even prevent them from providing any protection.
• An improperly installed child restraint can interfere with the
airbag as it deploys and seriously injure or even kill the child.
• Always carefully follow the manufacturer's instructions
provided with the child safety seat or carrier.
• Never place additional items on the seat that can increase the
total weight registered by the weight-sensing mat and can cause
injury in a crash.
& WARNING
Forward-facing child restraints:
• Always make sure the forward-facing seat has been designed
and certified by its manufacturer for use on a front seat with a
passenger front and side airbag. • Never put the forward-facing child restraint up, against or very
near the instrument panel.
• Always move the passenger seat into its rearmost position in
the seat's fore and aft adjustment range, as far away from the
airbag as possible before installing the forward-facing child
restraint. The backrest must be adjusted to an upright position.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on.
& WARNING
Rearward-facing child restraints:
Vehicle care Do-it-yourself service Technical data

ffl.___C_ h_ il_d _ S_a _ f_ e _ t--= y '------------------------------------------------
& WARNING (continued)
• A child in a rearward-facing child safety seat installed on the
front passenger seat will be seriously injured and can be killed if
the front airbag inflates -even with an Advanced Airbag System.
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest, center arm rest, door or roof.
• Always be especially careful if you must install a rearward
facing child safety seat on the front passenger seat in exceptional
circumstances.
• A tight tether strap on a rearward-facing child restraint
attached to the front passenger seat can put too much pressure on
the weight-mat in the seat and register a heavier weight in the
Advanced Airbag System. The heavier weight registered can make
the system work as though an adult were on the seat and deploy the Advanced Airbag when it must be suppressed causing serious
or even fatal injury to the child.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on.
• If the PASSENGER AIR BAG OFF light does not come on and
stay on, immediately install the rearward-facing child safety seat
in a rear seating position and have the airbag system inspected by
your authorized Audi dealer. •
Activating the convertible locking retractor
Use the convertible locking retractor to secure a child
restraint.
Always heed the child safety seat manufacturer's instruc­
tions when installing a child restraint in your vehicle. To acti­
vate the convertible locking retractor:
- Place the child restraint on a seat, preferably on the rear
seat. -
Slowly pull the belt
all the way out.
- Route it around or through the child restraint belt path
=>& .
- Push the child safety seat down with your full weight to
get the safety belt really tight.
- Insert the belt tongue into the buckle for that seating
position.
- Guide the safety belt back into the retractor until the belt
lies flat and snug on the child safety seat.
- You should hear a "clicking" noise as the belt winds back
into the inertia reel. Test the convertible locking retractor
by pulling on the belt. You should no longer be able to pull
the belt out of the retractor. The convertible locking
retractor is now activated.
- Make sure that the red release button is facing away from
the child restraint so that it can be unbuckled quickly.
- Pull on the belt to make sure the safety belt is properly
tight and fastened so that the seat cannot move forward
or sideways more than one inch (2.5 cm).
& WARNING
Using the wrong child restraint or an improperly installed child
restraint can cause serious personal injury or death in a crash.
• Always make sure that the safety belt retractor is locked when
installing a child safety seat. An unlocked safety belt retractor
cannot hold the child safety seat in place during normal driving or
in a crash.
• Always buckle the child safety seat firmly in place even if a
child is not sitting in it. A loose child safety seat can fly around
during a sudden stop or in a crash.

___________________________________________ C_ h_il _d _ S_a _f _e _t ~ y __ _
Using tether straps on rearward -facing
child restraints
Currently, few rearward-facing child rest raint systems come w ith a
t e ther. Please re ad and heed the c hild restrain t system manu fac­
t u rer 's instructions car efully to determine how to prope rly insta ll the
t ether.
& WARNING
A child in a rearward-facing child safety seat installed on the front
passenger seat will be seriously injured and can be killed if the
front airbag inflates - even with an Advanced Airbag System.
• The inflating airbag will hit the child safety seat or infant
c arrier with great force and will smash the child safety seat and
child against the backrest, center armrest , or door .
• A tight tether or other strap on a rearward -facing child
restraint attached to the front passenger seat can put too much
pressure on the weight-mat in the seat and register a heavier
weight in the Advanced Airbag System. The heavier weight regi s­
tered can make the system work as though an adult were on the seat and deploy the Advanced A irbag when it must be suppressed
c ausing serious or even fatal injury to the child .
• If you must install a rearward facing child safety seat on the
front passenger seat becau se of exceptional circum stances and
the PASSENGER AIR BAG OFF light does not come on and stay on ,
immediately install the rearward-facing child safety seat in a rear
seating position and have the airbag system inspected by your
authorized Audi dealer. •
Controls and equip­ ment Safety first Vehicle operation
Additional Information
Sources of information about child
restraints and their use
There are a number of sou rces of additional informat ion abo ut child
restr aint sele ct io n, inst all ati on and use:
NH TSA adv ises t hat t he best ch ild safety seat is the one that f its your
child and fits in yo ur vehicle, a nd that yo u wi ll use cor rectly and
co nsist en tly .
Try before you buy!
U.S National Highway Traffic Safety Administration
T el. : 1-888 -327 -4236 (T TY : 1-800 -424-9153)
www .nhtsa .gov
National SAFE KIDS Campaign
Te l.: (202) 662-0600
www. safe kids .o rg
Safety BeltSafe U .S.A
T el. : (800) 745 -SAFE ( English)
Te l.: (800) 747-SA NO (Span ish)
www .carseat .org
Transport Canada Information Centre
Te l.: 1 (800) 333-0371 or call 1 (613) 998 -8616 if you are in the
O tt awa area
www .tc .gc.ca/ roadsafety
Audi Customer CARE
Te l.: (800) 822-2834 •
Vehicle care Do-it-yourself service Technical data

Intelligent technology
--------------------------------------------------' "---.L==--
The system operates across the entire speed range in combination
with the ABS system. If the Anti-Lock Brake System (ABS) malfunc­
tions, the ESP will also shut down.
How the system works
The Anti-Lock Brake System (ABS), Electronic Differential Lock (EDL)
and the Anti-Slip Regulation System (ASR) are integ rated in the elec­
tronic stabilization program . In addition to the data provided by
these functions, the ESP control unit requires additional measure­
ment data provided by high performance sensors . The rotational
speed of the vehicle about its vertical axis, vehicle acceleration in the
fore-and-aft and lateral directions, the brake pressure, and the
steering angle are all measured .
Th e direction in which the driver wishes to travel is determined with
the aid of the steering angle and vehicle speed and is con tinually
compared with the actual behavior of the vehicle. If the two do not
match, for example, when the vehicle starts hydroplaning on a wet
road, ESP will automatically brake the appropriate whee l to correct
the problem.
The vehicle is then stabilized by the forces acting on the whee l during
brak ing.
If the vehicle is oversteering (the vehicle turns too sharply
and the rear wheels slide toward the outside of a curve), the brakes
are mainly applied on the wheel that is on the outside of the curve. In
the case of a vehicle that is
understeering (the vehicle does not turn
sharply enough and pushes out of a curve), the brakes are applied as
needed on the wheel that is on the inside of the curve or additionally
on the other wheels. An acoustic signal indicates when ESP brake
application cuts in=> &.
The system operates across the entire speed range in combination
with the ABS system =>
page 245. If the Anti- Lock Brake System
(ABS) malfunctions, the ESP will be out of action as well.
Activating
When you turn on the engine, ESP will automatically be activated and
w ill perform a self-test. As soon as the test is comp leted, the system
is in normal operating mode.
Controls and equip­
ment Safety first Vehicle operation
You can activate a
deactivated ESP or deactivated ESP/ ASR if required
by pressing the =>
page 240, fig. 214 => page 240, fig. 213 button.
When they are activated, the message
ESP/ ASR on appears briefly
in the display.
Deactivating
The ESP should normally be activated all the time. If necessary, you
can deactivate Anti-Slip Regulation (ASR) or the Electron ic Stabiliza ­
tion Program (ESP) by press ing the button =>
page 240, fig. 214 .
• Deactivating ASR: Tap the button . In certain exceptional s itua­
t ions (e.g. driving with tire chains), the Anti-Slip Regu lation (ASR) can
be deact ivated =>
page 242. The message ASR off appears in the
display as we ll.
• Deactivating ESP/ASR Press the button for more than 3 seconds .
With the ESP/ASR deactivated, the ESP check light comes on, see
=>
page 14. The message ESP switched off appea rs in the display as
well.
& WARNING
The Electronic Stabilization Program is nevertheless subject to the
laws of physics. It is particularly important to pay attention to
this fact on wet and slippery roads. It is therefore important that
you always adapt your driving to the condition of the road and
traffic conditions . Do not allow the increased safety provided by
the Electronic Stabilization Program system to lull you into
accepting additional safety risks.
u
Vehicle care Do-it-yourself service Technical data

Intelligent t echnology
---------------------------------------
Electronic differential lock (EDL)
The elec tronic differen tial lock monitors the rotational
speed of the drive wheels.
G en era l not es
The electronic differentia l lock (EDL) helps the ca r to sta rt moving,
accelerate and climb a gradient on surfaces provid ing poor or almost
no grip . W ithout ED L, this would be d iff icu lt, if not impossible.
How the sy stem works
The EDL operates automatically. It mo nitors the rota tional speed of
wheels with the help of the ABS sensors=>
page 245. If a not iceab le
slip is detected at the wheels (e.g. on slippery g round on one side),
the spinn ing wheels are braked and power is transferred to the other
wheels . This is done up to a speed of about 60 mph (100 km/h).
No ises from the brake system signal that wheel sp in is being
controlled.
Driv ing off
When d riving off, always be s ure to keep road conditions in mind as
you accelerate. If one drive wheel spins because it is on a surface with
less grip, apply
plenty of throttle until the car starts to move.
O verheating of bra kes
To prevent the disc b rake of the bra ked wheel from ove rhea ting if
subjected to excessive loads on this wheel, the EDL cuts out tempo­
ra rily. The vehicle remains operat io nal and be haves in the same way
as a veh icle without EDL.
As soon as the brake has coo led down, EDL switches on again auto ­
matically.
Electronic limited slip differential
In vehicles w ith front wheel drive *, an e lectron ic lim ited slip d ifferen­
tial engages when driving on curves . The brakes are applied spec ifi­
cally to the front wheel that is on the inside of the curve. T his m ini­
m izes sliding on the front wheels and enables precise and neutral dr
iv ing t hrouge curves. The electronic lim ited slip differentia l does
no t engage whe n driving in we t cond it io ns or snow.
& WARNING
• Wh en acc elerating on slipp ery s urface s, such a s on ice or snow,
always be careful when depre ssing the accele rator pedal. Even
with the EDL and the electroni c limited slip differential working,
the dr ive wh eels can spin and reduce you r ability to control your
c ar . -Ri sk of cra sh!
• The increased safet y afforded b y EDL and the electronic l imited
slip differ ential d oes not mean th at you can take safety risks .
Alw ay s adapt your d riving st yle to the road c onditions and traffi c
si tuation.
[ i ] Tips
If a fa ult occurs in the ABS, the EDL is also not funct ioning. This is
ind icated by the ABS warn ing light=>
page 16 . •
Anti-Slip Regulation System (ASR)
The Anti-Slip Regulation System prevents the driven
wheels from spinning when the car is a ccelerating.
General notes
T he Anti-Slip Regu lation System (ASR) is in tegrated in the electronic
stabilization program (ESP) . When the veh icle starts up and acceler­
a tes, the wheels are preven ted from sp inning by adjust ing the engine
power to match the amount of grip ava ilable from the road surface.
How the system works
ASR performs automatica lly, i.e. without the driver's intervent ion.
With the a id o f the ABS sensors=>
page 245, ASR moni tors the speed
of the driven wheels. If the wheels start to spin, engine torque is
reduced automatically unti l the tires find enough grip to lock onto
the road s urface. The system is active across the entire speed range . .,
