To Play a USB Flash Memory
Device
This audio system can select and
play the audio files on a USB flash
memory device with the same
controls used for the disc player. To
play a USB flash memory device,
connect it to the USB adapter cable
in the console compartment, then
press the USB/AUX button until you
see‘‘USB’’ in the display. The power
mode must be ACCESSORY or ON.
Your vehicle has the engine start/
stop button instead of an ignition
switch. For more information to
select the power mode, see page 194. The audio system reads and plays
the audio files on the USB flash
memory device in MP3, WMA or
AAC
ꭧformats. The USB flash
memory device limit is up to 500
folders or up to 15000 files.
ꭧ : Only AAC format files recorded
with iTunes are playable on this
audio unit.
The recommended USB flash
memory devices are 256 MB or
higher, and formatted with the FAT
file system. Some digital audio
players may be compatible as well.
Some USB flash memory devices
(such as devices with security
lockout features, etc.) will not work
in this audio unit. NOTE:
●Do not use a device such as a card
reader or hard drive as it or your
files may be damaged.●Do not connect your USB flash
memory device using a hub.●Do not use an extension cable to
the USB adapter cable equipped
with your vehicle.●Do not keep a USB flash memory
device in the vehicle. Direct
sunlight and high heat will damage
it.●We recommend backing up your
data before playing a USB flash
memory device.●Some devices cannot be powered
or charged via the USB adapter, if
this is the case use the accessory
adapter to supply power to your
device.
Playing a USB Flash Memory Device (Models with navigation system)35009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Your vehicle is equipped with aBluetooth
®audio system, which
allows you to listen to streaming
audio from your Bluetooth audio
compatible phone. This function is
only available on Bluetooth Audio
Compatible phones that are paired
and linked to the vehicle's
Bluetooth
®HandsFreeLink
®(HFL)
system (see page 416).
Not all Bluetooth-enabled phones
with streaming audio capabilities are
compatible with the system. You can
find an approved phone by visiting
www.acura.com/handsfreelink,
or by
calling the HandsFreeLink
®
consumer support at 1-888-528-7876.
In Canada, visit
www.acura.ca,
or call
1-888-9-ACURA-9.
NOTE: In some states it may be
illegal to perform some data device
functions while driving. To Play
Bluetooth
®Audio Files
Make sure that your phone is paired
and linked to the HFL.
To begin to play the audio files, you
may need to operate your phone. If
so, follow the phone maker
’s
operating instructions. Press the USB/AUX button
ꭧwith
the power mode in ACCESSORY or
ON. When the phone is recognized,
you will see the
Bluetooth
ꭂAudio
message and icon on the display and
the audio control display on the
navigation screen (if selected), and
the system begins to play.
Your vehicle has the engine start/
stop button instead of an ignition
switch. For more information to
select the power mode, see page 194.
ꭧ : If an iPod or USB flash memory
device or audio unit connected
to the auxiliary input jack was
selected at the last mode, you
will see iPod, USB or AUX in
the display and the audio
control display on the
navigation screen (if selected).
Push the USB/AUX button
again to play audio files from
your
Bluetooth
ꭂAudio phone.
CONTINUED
Bluetooth
®Audio System (Models with navigation system)
361
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

●When the ABS or VSA is activated.●When the VSA indicator comes on.
If ACC is canceled by any these
conditions, wait until the condition
improves, then press the RES/
ACCEL button to restore ACC.
When you do this, the vehicle will
resume its set cruising speed.
If you select the ACCESSORY or
VEHICLE OFF(LOCK) mode by
operating the engine start/stop
button (see page 194) after ACC
was automatically canceled, the set
speed is erased, and you must
enter it again (see page 386).ACC Indicator
The ACC indicator (orange) normally
comes on for a few seconds when
you select the ON mode by operating
the engine start/stop button (see
page 194). If it comes on at any other
time, there is a problem in the ACC
system. If this happens, take the
vehicle to your dealer to have it
checked.
The ACC system cannot be used
while this indicator (orange) is on.
ACC INDICATOR
Adaptive Cruise Control (ACC)39209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Your vehicle's starting system has an
auto control mode. When you have
your keyless access remote and push
the engine start/stop button while
depressing the brake pedal, this
feature keeps the engine's starter
motor running until the engine
starts.
Follow these instructions to start the
engine:1. Apply the parking brake.
2. In cold weather, turn off all electrical accessories to reduce the
drain on the battery.
3. Make sure the shift lever is in Park. Press on the brake pedal.
In either of the following cases, you
should insert the keyless access
remote into the keyless remote slot.
For more information, see pages 202
and 203.●The keyless access remote system
main switch is off.
●The keyless access remote battery
becomes weak or dead.
4. Without touching the accelerator pedal, push and release the engine
start/stop button. You do not need
to hold the engine start/stop
button to start the engine. The
starter motor can run for up to 9
seconds to guarantee starting
when the outside temperature is
very low.
If you hold the engine start/stop
button for more than 7 seconds,
the starter motor, depending on
the outside temperature, runs for
up to 25 seconds until the engine
starts.
If the engine does not start, wait at
least 10 seconds before trying
again.
The immobilizer system protects your
vehicle from theft. If an improperly
coded keyless access remote (or other
device) is used, the engine's fuel system
is disabled. For more information, see
page 149.The engine is harder to start in cold
weather. Also, the thinner air found at
altitudes above 8,000 feet (2,400
meters) adds to this problem.
Starting the Engine (Models with Keyless Access System)
475
Driving
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

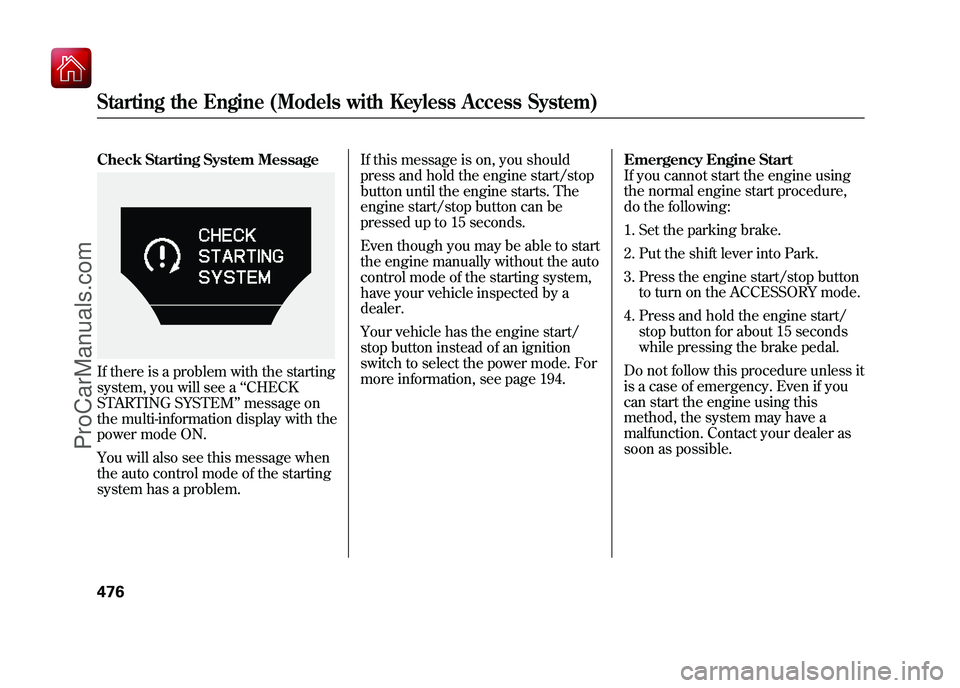

Check Starting System MessageIf there is a problem with the starting
system, you will see a‘‘CHECK
STARTING SYSTEM ’’message on
the multi-information display with the
power mode ON.
You will also see this message when
the auto control mode of the starting
system has a problem. If this message is on, you should
press and hold the engine start/stop
button until the engine starts. The
engine start/stop button can be
pressed up to 15 seconds.
Even though you may be able to start
the engine manually without the auto
control mode of the starting system,
have your vehicle inspected by a
dealer.
Your vehicle has the engine start/
stop button instead of an ignition
switch to select the power mode. For
more information, see page 194.
Emergency Engine Start
If you cannot start the engine using
the normal engine start procedure,
do the following:
1. Set the parking brake.
2. Put the shift lever into Park.
3. Press the engine start/stop button
to turn on the ACCESSORY mode.
4. Press and hold the engine start/ stop button for about 15 seconds
while pressing the brake pedal.
Do not follow this procedure unless it
is a case of emergency. Even if you
can start the engine using this
method, the system may have a
malfunction. Contact your dealer as
soon as possible.Starting the Engine (Models with Keyless Access System)47609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Shift Lever Position IndicatorsThese indicators between the
tachometer and speedometer show
which position the shift lever is in.
Using a paddle shift mode, the gear
position indicator shows you the
selected gear number (see page
482).
The‘‘D ’’indicator comes on for a few
seconds when you turn the ignition
switch to the ON (II) position. If it
flashes while driving (in any shift
position), it indicates a possible
problem in the transmission. Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON mode is the equivalent of
ON (II). See page 196 for ignition
switch and power mode comparison.
If the malfunction indicator lamp
comes on along with the
‘‘D ’’
indicator, there is a problem with the
automatic transmission control
system. Avoid rapid acceleration, and
have the transmission checked by
your dealer as soon as possible.
When the ‘‘D ’’indicator warns of a
possible problem with the
transmission, you will see a ‘‘CHECK
TRANSMISSION ’’message on the
multi-information display (see page
91).
CONTINUED
Automatic Transmission
477
Driving
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

ShiftingTo shift from Park to any position,
press firmly on the brake pedal, and
press the release button on the front
of the shift lever, then move the
lever. You cannot shift out of Park
when the ignition switch is in the
LOCK (0) or ACCESSORY (I)
position.Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. VEHICLE OFF (LOCK)
mode is the equivalent of LOCK (0);
and ACCESSORY mode is the
equivalent of ACCESSORY (I). See
page 196 for ignition switch and
power mode comparison.
To shift from:
Do this:
PtoR Press the brake pedal, and
press the shift lever release
button.
RtoP
NtoR DtoS Press the shift lever release
button.
StoD
DtoN
NtoD RtoN Move the shift lever.
Park (P)
－This position
mechanically locks the transmission.
Use Park whenever you are turning
off or starting the engine. To shift out
of Park, you must press on the brake
pedal and press the release button on
the shift lever. Make sure your foot is
off the accelerator pedal.
If you have done all of the above and
still cannot move the lever out of
Park, see Shift Lock Release on
page 480.
Automatic Transmission47809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

You must also press the release
button to shift into Park. To avoid
transmission damage, come to a
complete stop before shifting into
Park.On models without keyless accesssystemThe shift lever must be in Park
before you can remove the key from
the ignition switch.On models with keyless access
systemThe shift lever must be in Park
before you change the power mode
from ON to VEHICLE OFF (LOCK). Reverse (R)
－Press the brake
pedal and press the release button on
the front of the shift lever to shift
from Park to reverse. To shift from
reverse to neutral, come to a
complete stop, and then shift. Press
the release button before shifting
into reverse from neutral.
Neutral (N) －Use neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with the
engine idling. Shift to the Park
position if you need to leave your
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from neutral to
another gear. Drive (D)
－Use this position for
your normal driving. The
transmission automatically selects a
suitable gear (1 through 6) for your
speed and acceleration. You may
notice the transmission shifting up at
higher engine speeds when the
engine is cold. This helps the engine
warm up faster.
CONTINUED
Automatic Transmission
479
Driving
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
