Loading DiscsYour vehicle’s in-dash disc changer
holds up to six discs.
1. To load all disc, press the LOAD button until you hear a beep and
see ‘‘LOAD ’’in the display. To load
only one disc, press and release
the LOAD button.
2. The disc number for an empty position begins blinking.
3. Insert the disc into the disc slot when the green disc load indicator
comes on. Insert it only about
halfway; the drive will pull it in the
rest of the way. You will see
‘‘BUSY ’’in the display while the
disc load indicator turns red and
blinks as the disc is loaded. You cannot load and play 3-inch
(8-cm) discs in this unit.
4. When the disc load indicator turns green and ‘‘LOAD ’’appears in the
display again, insert the next disc
in the slot. Do not try to insert a
disc until ‘‘LOAD ’’appears. You
could damage the audio unit.
5. Repeat this until all six positions are loaded. If you are not loading
all six positions, the system begins
playing the last disc loaded.
You can also load a disc into an
empty position while a disc is playing
by pressing the appropriate preset
button. The system stops playing the
current disc and starts the loading
sequence. It then plays the disc just
loaded.
Text Data Display FunctionEach time you press the TITLE
button, the display shows you the
text data on a disc, if the disc was
recorded with text data.
If you select NAME OFF, the text
display is turned off.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the folder and file name, and the
artist, album, and track tag.
When you press and release the
TITLE button while a disc without
text data is playing, you will see ‘‘NO
INFO ’’on the display.
The display shows up to 17
characters of selected text data (the
folder name, file name, etc.).
Playing Discs (Models without navigation system)24609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To Play the AM/FM RadioThe power mode must be in
ACCESSORY or ON. Press the
AUDIO button to view the audio
control display. Turn the system on
by pressing the VOL/
knob or the
AM/FM button. Adjust the volume
by turning the VOL/knob.
Your vehicle has the engine start/
stop button instead of an ignition
switch. For more information to
select the power mode, see page 195. The band and frequency that the
radio was last tuned to are shown on
the display. To change bands, press
the AM/FM button. You can also
change bands by pushing the
interface selector up. Each time you
push it up, the band will change to
FM1, FM2 or AM. On the FM bands,
STEREO will be shown on the
navigation screen and ST on the
display, if the station is broadcasting
in stereo. Stereo reproduction on AM
is not available.
To Select a Station
You can use any of five methods to
find radio stations on the selected
band: tune, skip (seek), scan, the
preset buttons, and auto select. On
the FM band, you can also use the
features provided by the radio data
system (RDS). For more information
on the RDS, see page 282.
STEREO INDICATOR
BAND
CONTINUED
Playing the AM/FM Radio (Models with navigation system)
279
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To activate RDS category search with
the interface dial, push the AUDIO
button to display the FM radio
information on the screen. Push the
interface selector down, and turn the
interface dial to select RDS search.
Press ENTER on the interface
selector. The screen shows you the
RDS category list.
Turn the interface dial to the desired
RDS category.While the RDS category is selected,
move the interface selector to the left
or right to select Seek Up, Seek
Down, or Scan in the upper right
corner of the screen. When you
press and release ENTER to select
the RDS category, RDS category
search (Seek Up/Down) starts.
RDS Category SCANThe scan function samples all
stations with strong signals on the
selected RDS category one by one.
You will also see the selected RDS
category name blinking in the
display while scanning it. When the
system finds one, it will stop and play
that station for about 10 seconds.
If you do nothing, the system will
scan for the next strong station and
play it for 10 seconds. When it plays
a station that you want to listen to,
press the SCAN side of the SCAN/
TITLE bar again.
If the system does not find a station,
‘‘
NOTHING ’’will blink for about 5
seconds on the navigation screen
and the display, and the system will
go back to the last selected station.
SEEK is selected. RDS CATEGORY LIST
SEEK/SCAN ICON (RDS Search mode)
CONTINUED
Playing the AM/FM Radio (Models with navigation system)
285
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

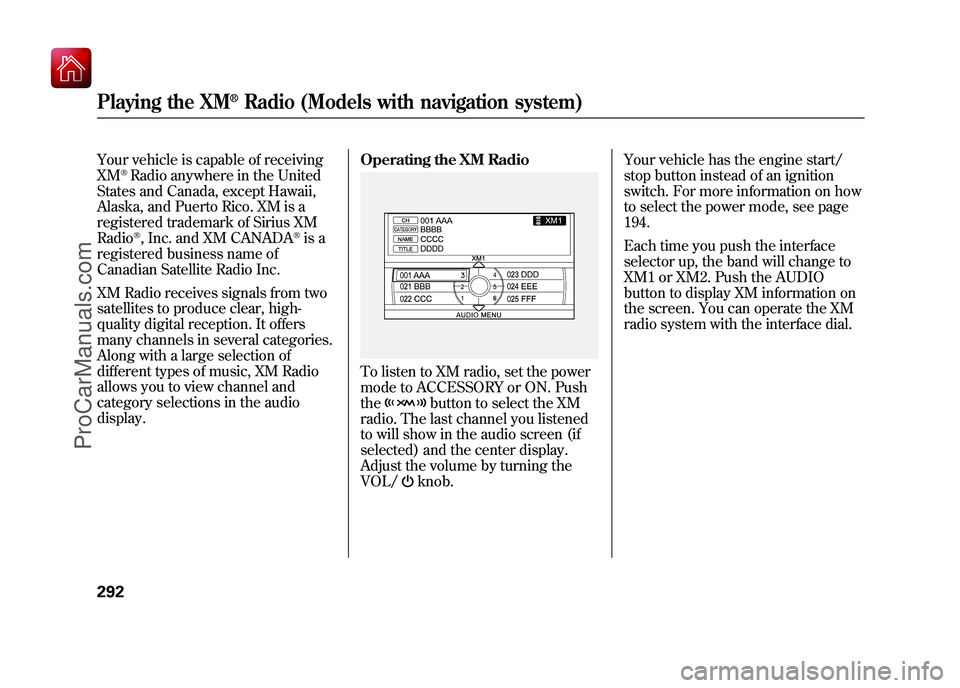

Your vehicle is capable of receiving
XM
®Radio anywhere in the United
States and Canada, except Hawaii,
Alaska, and Puerto Rico. XM is a
registered trademark of Sirius XM
Radio®, Inc. and XM CANADA
®is a
registered business name of
Canadian Satellite Radio Inc.
XM Radio receives signals from two
satellites to produce clear, high-
quality digital reception. It offers
many channels in several categories.
Along with a large selection of
different types of music, XM Radio
allows you to view channel and
category selections in the audio
display. Operating the XM Radio
To listen to XM radio, set the power
mode to ACCESSORY or ON. Push
the
button to select the XM
radio. The last channel you listened
to will show in the audio screen (if
selected) and the center display.
Adjust the volume by turning the
VOL/knob. Your vehicle has the engine start/
stop button instead of an ignition
switch. For more information on how
to select the power mode, see page
194.
Each time you push the interface
selector up, the band will change to
XM1 or XM2. Push the AUDIO
button to display XM information on
the screen. You can operate the XM
radio system with the interface dial.
Playing the XM
®Radio (Models with navigation system)
29209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Turn the selector dial to select a
sound file, then press ENTER. The
display shows the category, name
and title information of the selected
file and plays the recorded portion of
the song.
To delete a file, push the interface
selector to the right to select
‘‘DELETE. ’’Select ‘‘Delete All ’’or
‘‘ Delete Selected Item, ’’then press
ENTER on the interface selector. Receiving XM Radio Service
If your XM Radio service has expired
or you purchased your vehicle from a
previous owner, you can listen to a
sampling of the broadcasts available
on XM Radio. With the power mode
in ACCESSORY or ON, press the
button. A variety of music
types and styles will play.
Your vehicle has the engine start/
stop button instead of an ignition
switch. For more information on how
to select the power mode, see page
194. If you decide to purchase XM radio
service, contact XM
ꭂRadio at
www.
xmradio.com,
or at 1-800-852-9696. In
Canada, contact XM Canada
ꭂat
www.xmradio.ca,
or call
1-877-209-0079. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, press and release
the
side of the TUNE bar until ‘‘0’’
appears in the display. Your I.D. will
appear in the display.
After you have registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
for activation. This should take about
30 minutes.
SOUND FILE RECORDED DATE
Playing the XM
®Radio (Models with navigation system)
29809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Your vehicle’s audio system has an
internal disc player. To operate the
disc player, the power mode must be
ACCESSORY or ON.
Your vehicle has the engine start/
stop button instead of an ignition
switch. For more information on how
to select the power mode, see page
194.
The DISC player can play these disc
formats:●CD (CD-DA, CD-TEXT)●CD-R/CD-RW (MP3, WMA, AAC)●DVD-A●DVD-R/DVD-RW (MP3, WMA,
AAC)
If you have a disc that is a
combination of CD-DA tracks and
MP3/WMA/AAC files, you can
choose the format to listen to by
pressing and holding the DISC
button until you hear a beep. The disc packages or jackets should
have one of these marks.
The disc player can also play MP3,
WMA, or AAC format saved on CD-
R/RW or DVD-R/RW (see page 306).
NOTE:
If a file on an MP3, WMA or AAC
disc is protected by digital rights
management (DRM), the audio
system skips to the next file.
Depending on the software the files
were made with, it may not be
possible to play some files, or display
some text data.
DVD-A discs not meeting DVD
verification standards may not be
playable.
Video CDs and DVD-V format discs
will not work in this unit.
Some CD-DA and CD-ROM mixed
discs are not playable.
You cannot load and play 3-inch (8-
cm) discs in this system.
CONTINUED
Playing a Disc (Models with navigation system)
301
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To Stop Playing a Disc
To take the system out of disc mode,
press the AM/FM button, thebutton, the HDD button, or the USB/
AUX button. To return to disc mode,
press the DISC button.
If you turn the system off while a disc
is playing, either with the VOL/knob or the engine start/stop button,
the disc will stay in the drive. When
you turn the system back on, the disc
will begin playing where it left off.
Your vehicle has the engine start/
stop button instead of an ignition
switch. For more information on how
to turn the power mode off, see page
194.Playing an MP3/WMA/AAC Disc
This audio system plays CD-ROM,
CD-R/RW, DVD-ROM, and DVD-R/
RW compressed in MP3, WMA, or
AAC formats. You can select up to
255 folders or tracks.
Disc
Maximum
folders
ꭧ
Maximum
files
Maximum
layers
ꭧ
CD-ROM
CD-R
CD-RW 255 999 8
DVD-ROM
DVD-R
DVD-RW 255 3500 8ꭧ
: Including Root folder NOTE:
Combining a low sampling frequency
with a low bitrate may result in
extremely degraded sound quality.
To play an MP3/WMA/AAC disc,
use the disc controls previously
described, along with the following
information.
Playing a Disc (Models with navigation system)30609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To Play an iPod
ꭂ
This audio system can select and
play the audio files on the iPod
ꭂwith
the same controls used for the in-
dash disc player. To play an iPod,
connect it to the USB adapter cable
in the console compartment by using
your dock connector, then press the
USB/AUX button. The power mode
must be ACCESSORY or ON. The
iPod will also be charged with the
power mode in these settings.
Your vehicle has the engine start/
stop button instead of an ignition
switch. For more information on how
to select the power mode, see page
194.
The system will only play songs
stored on the iPod with iTunes.
iPod and iTunes are registered
trademarks owned by Apple Inc.
Voice Control SystemYou can select the AUX mode by
using the navigation system voice
control buttons, but cannot operate
the play mode functions.
The voice command operable music
search feature Song By Voice ™is
also available. Refer to the navigation
system manual for complete details. iPods compatible with your audio
system using the USB adapter cable
are:
Model
Software
iPod
5th and 6th
generations Ver. 1.3 or more
iPod classic Ver. 1.1.2 or more
iPod nano
1st generation Ver. 1.3.1 or more
iPod nano
2nd generation Ver. 1.1.2 or more
iPod nano
3rd generation Ver. 1.1.3 or more
iPod nano
4th generation Ver.1.0.3 or more
iPod touch
1st generation Ver. 1.1.1 or more
iPod touch
2nd generation Ver. 2.2.1 or more
iPhone Ver. 2.1.0 or more
iPhone 3G Ver.2.1.0 or more
CONTINUED
Playing an iPod
®(Models with navigation system)
341
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
