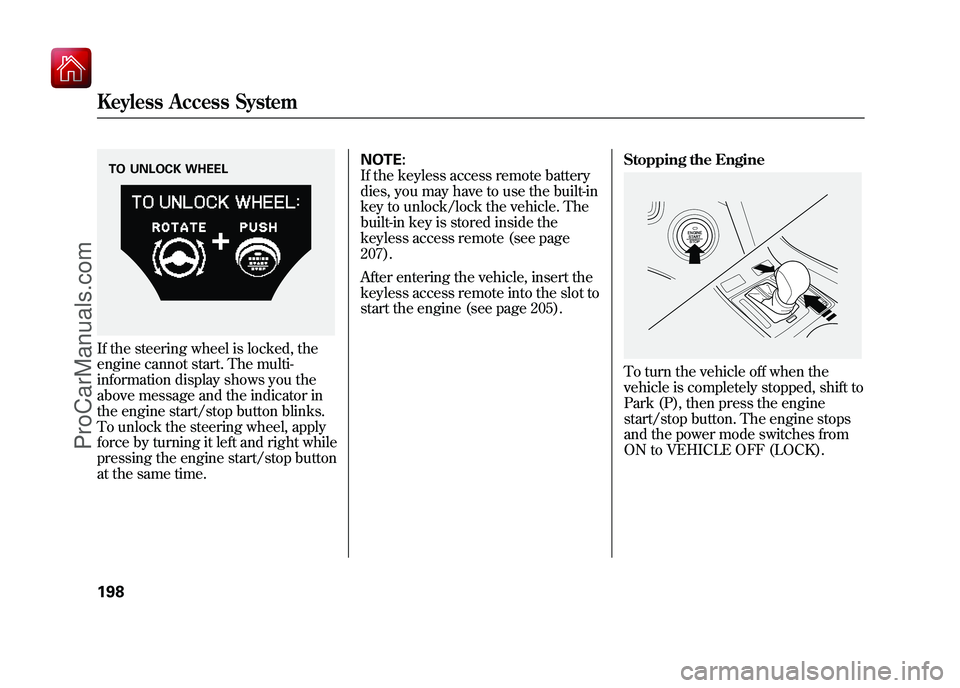

2010 ACURA ZDX start stop button

If the steering wheel is locked, the
engine cannot start. The multi-
information display shows you the
above message and the indicator in
the engine start/stop button blinks.
To unlock the steering wheel, apply
force by turning it left and right while
pressing the engine start/stop button
at the same time.NOTE:
If the keyless access remote battery
dies, you may have to use the built-in
key to unlock/lock the vehicle. The
built-in key is stored inside the
keyless access remote (see page
207).
After entering the vehicle, insert the
keyless access remote into the slot to
start the engine (see page 205).
Stopping the Engine
To turn the vehicle off when the
vehicle is completely stopped, shift to
Park (P), then press the engine
start/stop button. The engine stops
and the power mode switches from
ON to VEHICLE OFF (LOCK).
TO UNLOCK WHEELKeyless Access System19809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Operation GuidanceYou can only place the vehicle in the
VEHICLE OFF (LOCK) mode if the
transmission is in Park. You will see
the‘‘SHIFT TO PARK ’’message on
the multi-information display if you
press the engine start/stop button to
turn the vehicle off with the shift
lever in any other position except P
(Park).
If the power mode is in
ACCESSORY, the ACCESSORY
MODE will appear.
You will also see the ‘‘TO TURN
VEHICLE OFF: ’’message on the
multi-information display. Press the
engine start/stop button twice to
change the power mode from
ACCESSORY to VEHICLE OFF
(LOCK).
SHIFT TO PARK
ACCESSORY MODE
TO TURN VEHICLE OFF
CONTINUED
Keyless Access System
199
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

When the keyless access system
main switch in the glove box is off,
the‘‘TO UNLOCK KEYLESS
REMOTE TURN OFF POWER ’’
message will be shown after shifting
into Park.
Before leaving the vehicle, make
sure it is in VEHICLE OFF (LOCK).
You can verify if the power is off by
checking the engine start/stop
button LED indicator. If you open the driver’
s door in the
ACCESSORY mode, a beeper will
sound. You will also see a ‘‘TO TURN
VEHICLE OFF: ’’message on the
multi-information display.
Press the engine start/stop button
twice with your foot off the brake
pedal to change the power mode to
VEHICLE OFF (LOCK).
Emergency Engine StopThe engine start/stop switch may be
used to stop the engine due to an
emergency situation even while
driving. If you must stop the engine,
do either of the following operations:●Press and hold the engine start/
stop button for three seconds.●Firmly press the engine start/stop
button three times.
Do not press the switch while driving
unless it is absolutely necessary for
the engine to be switched off.
If you are driving, the power mode
switches from ON to ACCESSORY or
VEHICLE OFF (LOCK) whenever
you perform either procedure.
However, the steering wheel will
NOT lock. If the vehicle is stopped
and in Park, the power mode will
change to OFF, however, the
steering wheel may NOT lock.
Keyless Access System20009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

If you cannot stop the engine by
pressing the engine start/stop button
once when the vehicle is stopped and
the shift lever is in Park, do either
emergency engine stop procedure.
In this case, the power mode will
change to VEHICLE OFF (LOCK),
however, the steering wheel may
NOT lock.Beeper and Message
Keyless Remote Not DetectedIf you take the keyless access remote
out of the vehicle and close the door
with the power mode ON, the inside
and outside beepers sound and a
‘‘
KEYLESS REMOTE NOT
DETECTED ’’message will be
displayed on the multi-information
display. The displayed message goes away
when you bring the remote back
inside the vehicle, and close the
door.
If the engine is running and you take
the remote out of the vehicle, it will
continue to run. Once the power
mode is changed to VEHICLE OFF
(LOCK), the engine will not restart
until you bring back a remote into
the vehicle.
The engine does not restart if you
push the engine start/stop button to
select the VEHICLE OFF (LOCK)
mode when the remote is outside the
vehicle. Check where the remote is.
Make sure that you carry the remote
with you when you operate the
engine start/stop button.
CONTINUED
Keyless Access System
201
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Even when the remote is inside the
vehicle, the beeper may sound when
the location of the remote is not
detected due to surrounding
conditions. It is not a failure. Make
sure that you carry the remote with
you.
The outside beeper sounds when the
power mode is in ACCESSORY, and
a door is opened, then closed.
Keyless Remote Low BatteryThe battery in the remote normally
lasts about 2 years. To ensure
maximum battery life, do not store
the remote close to electrical devices
such as computers or TVs. When the
multi-information display shows
‘‘CHANGE KEYLESS REMOTE
BATTERY, ’’replace the battery as
soon as possible (see page 191). If the remote battery becomes weak
and the power door lock/unlock
operation is disabled, you should
insert the remote into the keyless
access remote slot to set the power
mode and start the engine. After
inserting the remote to the slot,
operate the engine start/stop button
as previously described (see pages
194 and 195). For more information
on the keyless access slot, see page
205.
Inserting the remote does not charge
the remote battery. You should
replace the battery as soon as
possible.
Keyless Access System20209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

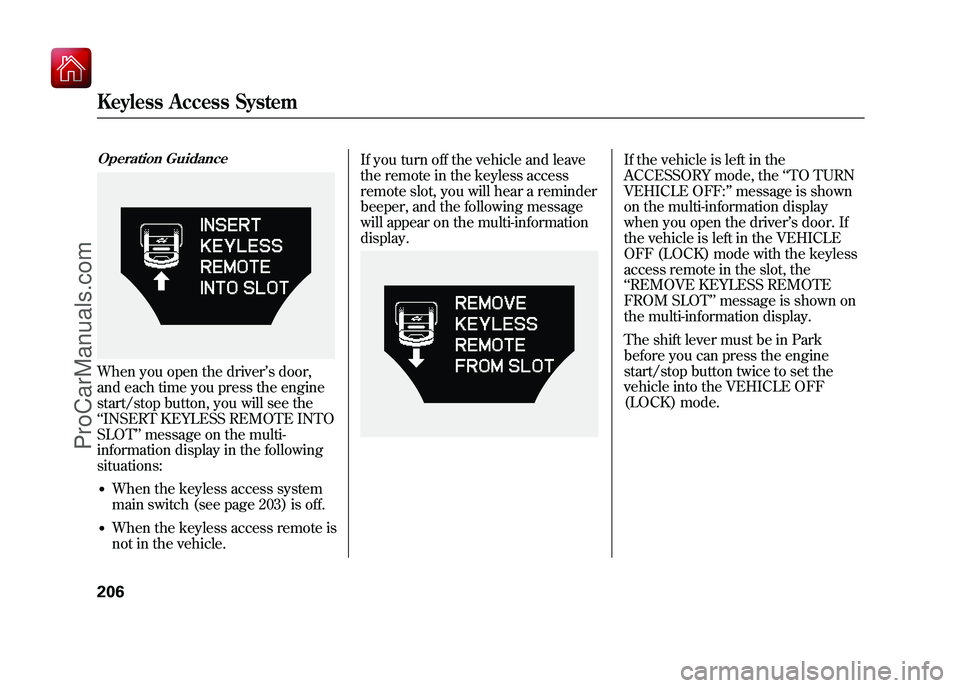

Operation GuidanceWhen you open the driver’s door,
and each time you press the engine
start/stop button, you will see the
‘‘ INSERT KEYLESS REMOTE INTO
SLOT’’ message on the multi-
information display in the following
situations:●When the keyless access system
main switch (see page 203) is off.●When the keyless access remote is
not in the vehicle. If you turn off the vehicle and leave
the remote in the keyless access
remote slot, you will hear a reminder
beeper, and the following message
will appear on the multi-information
display.
If the vehicle is left in the
ACCESSORY mode, the
‘‘TO TURN
VEHICLE OFF: ’’message is shown
on the multi-information display
when you open the driver’ s door. If
the vehicle is left in the VEHICLE
OFF (LOCK) mode with the keyless
access remote in the slot, the
‘‘ REMOVE KEYLESS REMOTE
FROM SLOT’’ message is shown on
the multi-information display.
The shift lever must be in Park
before you can press the engine
start/stop button twice to set the
vehicle into the VEHICLE OFF
(LOCK) mode.
Keyless Access System20609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON mode is the equivalent of
ON (II). See page 196 for ignition
switch and power mode comparison.The courtesy light in each door
comes on when the door is opened,
and goes out when the door is
closed.
On models with adaptive cruise
control (ACC)The ambient door inner handle lights
come on when the parking lights are
on.On models without keyless accesssystemYour vehicle also has a courtesy light
in the ignition switch. This light
comes on when you open the driver's
door. It fades out in about 30 seconds
after the door is closed.
In addition to the courtesy lights on
the ceiling, the ambient foot lights
come on. Cargo Area Light
The cargo area light has a three-
position switch. In the OFF position,
the light does not come on. In the
center position, it comes on when
you open the tailgate. In the ON
position, it stays on continuously.
ON
OFF
Interior Lights21009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Vanity MirrorTo use the vanity mirror on the back
of the sun visor, pull up the cover.
The vanity mirror lights come on
when you pull up the cover.Accessory Power Sockets
Your vehicle has two accessory
power sockets. One is next to the
shift lever. The other is in the
console compartment.
To access the front accessory power
socket, slide the lid forward until it
latches. To close it, push forward
until it unlatches.
To use an accessory power socket,
the ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ACCESSORY mode is the
equivalent of ACCESSORY (I), and
ON mode is the equivalent of ON
(II). See page 196 for ignition switch
and power mode comparison.
CONTINUED
Interior Convenience Items
217
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
