2009 YAMAHA MAJESTY 125 Owners Manual

1. Headlight bulb holder
4. Place a new headlight bulb into
position, and then secure it with
the bulb holder by turning it
clockwise.
5. Install the headlight bulb cover.
6. Install the panel.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24252
Replacing a front turn signal
light bulb
1. Remove the front turn signal light
lens by removing the screw.
1. Screw
2. Turn signal light lens
3. Turn signal light bulb
2. Remove the burnt-out bulb by
pushing it in and turning it coun-
terclockwise.
1. Bulb
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise
the lens may break.
[ECA11191]
1
1 2
3
1
PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 65

EAUS1133
Replacing a tail/brake light
bulb or a rear turn signal
light bulb
Tail/brake light bulb1. Remove the tail/brake light lens by removing the screw.
1. Screw
2. Tail/brake light lens
3. Bulb
2. Remove the burnt-out bulb bypushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket, push it in, and then turn it clock-
wise until it stops. 4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break.
[ECA10681]
Rear turn signal light bulb 1. Remove the left or right tail/brake light lens by removing the screw.
2. Remove the turn signal light lens by pulling it backwards.
3. Remove the turn signal light bulb lens by removing the screw.
1. Turn signal light lens
2. Screw
3. Turn signal light bulb lens
4. Bulb
4. Remove the burnt-out bulb bypushing it in and turning it coun-
terclockwise. 5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6. Install the turn signal light bulb lens by installing the screw.
NOTICE: Do not overtighten
the screws, otherwise the lens
may break.
[ECA10681]
7. Install the turn signal light lens.
8. Install the tail/brake light lens by installing the screw. NOTICE: Do
not overtighten the screws,
otherwise the lens may break.
[ECA10681]

1
2
3
4

1
2
3

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
5D8-F8199-E1.QXD 11/7/08 15:49 Página 66

EAUM1461

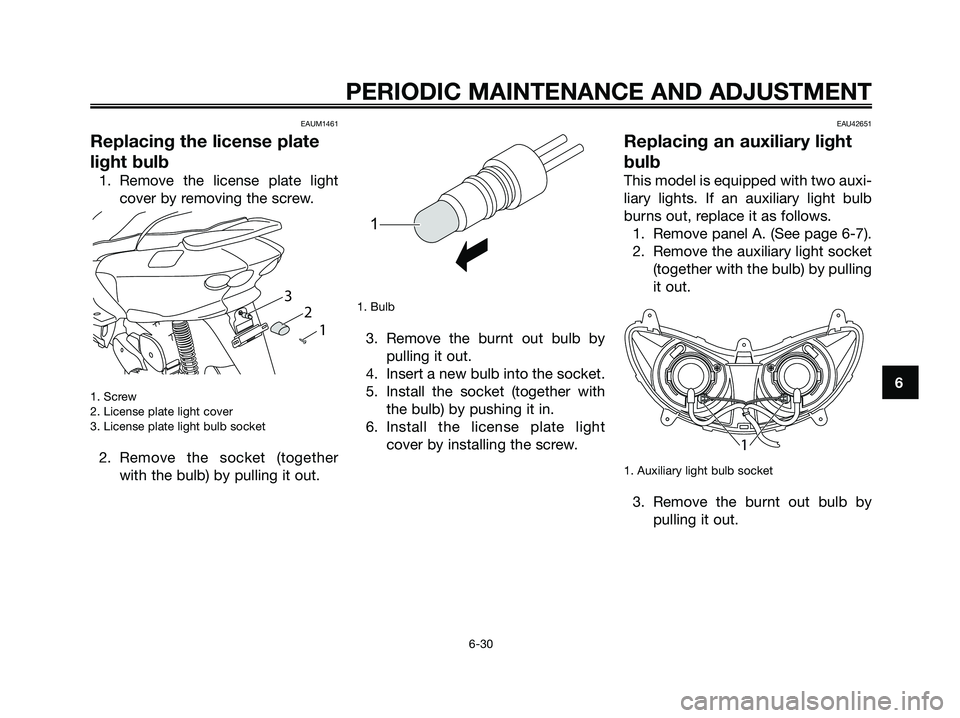

Replacing the license plate
light bulb
1. Remove the license plate light
cover by removing the screw.
1. Screw
2. License plate light cover
3. License plate light bulb socket
2. Remove the socket (together
with the bulb) by pulling it out.
1. Bulb
3. Remove the burnt out bulb by
pulling it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by pushing it in.
6. Install the license plate light
cover by installing the screw.
EAU42651
Replacing an auxiliary light
bulb
This model is equipped with two auxi-
liary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove panel A. (See page 6-7).
2. Remove the auxiliary light socket
(together with the bulb) by pulling
it out.
1. Auxiliary light bulb socket
3. Remove the burnt out bulb by
pulling it out.
1
1
1 2 3
PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 67

1. Auxiliary light bulb
4. Insert a new bulb into the socket.
5. Install the auxiliary light socket
(together with the bulb) by pus-
hing it in.
6. Install the panel.
EAU25881
Troubleshooting
Although Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition sys-
tems, for example, can cause poor
starting and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your scooter
require any repair, take it to a Yamaha
dealer, whose skilled technicians
have the necessary tools, experience,
and know-how to service the scooter
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
EWA15141
s s
WARNING
When checking the fuel system, do
not smoke, and make sure there
are no open flames or sparks in the
area, including pilot lights from
water heaters or furnaces. Gasoli-
ne or gasoline vapors can ignite or
explode, causing severe injury or
property damage.
1
PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 68

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
EAUM2441
Troubleshooting charts
Starting problems or poor engine performance
Check the fuel level in
the fuel tank.
1. FuelThere is enough fuel.
There is no fuel.Check the compression.
Supply fuel.
Operate the electric starter.
2. CompressionThere is compression.
There is no compression.Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.
3. IgnitionWe t
DryWipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.The engine does not start.
Check the battery.Operate the electric starter.
Operate the electric starter.
4. BatteryThe engine turns over
quickly.
The engine turns over
slowly.The battery is good.
Check the electrolyte and battery
lead connections, and charge the
battery if necessary.The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the compression.
5D8-F8199-E1.QXD 10/7/08 07:39 Página 69

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6Engine overheating
EWA10400
s s
WARNING
●Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
●After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the his-
sing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
TIP
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.
Wait until the
engine has cooled.Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.
The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.
Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
5D8-F8199-E1.QXD 10/7/08 07:39 Página 70

EAU37833
Matte color cautionECA15192
NOTICE
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use
before cleaning the vehicle.
Using a brush, harsh chemical pro-
ducts or cleaning compounds
when cleaning these parts will
scratch or damage their surface.
Wax also should not be applied to
any matte colored finished parts.
EAU26092
Care
While the open design of a scooter
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go
unnoticed on a car, however, it
detracts from the overall appearance
of a scooter. Frequent and proper
care does not only comply with the
terms of the warranty, but it will also
keep your scooter looking good,
extend its life and optimize its perfor-
mance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and
covers as well as all electrical
couplers and connectors, inclu-
ding the spark plug cap, are
tightly installed.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such pro-ducts onto seals, gaskets and
wheel axles. Always rinse the dirt
and degreaser off with water.
Cleaning
ECA10781
NOTICE
●Avoid using strong acidic whe-
el cleaners, especially on spo-
ked wheels. If such products
are used on hard-to-remove
dirt, do not leave the cleaner on
the affected area any longer
than instructed. Also, tho-
roughly rinse the area off with
water, immediately dry it, and
then apply a corrosion protec-
tion spray.
●Improper cleaning can damage
plastic parts such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc. Use
only a soft, clean cloth or spon-
ge with mild detergent and
water to clean plastic.
●Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
SCOOTER CARE AND STORAGE
7-1
7
5D8-F8199-E1.QXD 10/7/08 07:39 Página 71

cleaning products, solvent or
thinner, fuel (gasoline), rust
removers or inhibitors, brake
fluid, antifreeze or electrolyte.
●Do not use high-pressure was-
hers or steam-jet cleaners sin-
ce they cause water seepage
and deterioration in the follo-
wing areas: seals (of wheel and
swingarm bearings, fork and
brakes), electric components
(couplers, connectors, instru-
ments, switches and lights),
breather hoses and vents.
●For scooters equipped with a
windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or scrat-
ching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not lea-
ve any marks. If the windshield
is scratched, use a quality
plastic polishing compound
after washing.
After normal use
1. Remove dirt with warm water, a
mild detergent, and a soft, clean
sponge, and then rinse tho-
roughly with clean water. Use a
toothbrush or bottlebrush for
hard-to-reach areas. Stubborn
dirt and insects will come off
more easily if the area is covered
with a wet cloth for a few minutes
before cleaning.
After riding in the rain, near the sea or
on salt-sprayed roads
1. Since sea salt or salt sprayed on
the roads during winter are extre-
mely corrosive in combination
with water, carry out the following
steps after each ride in the rain,
near the sea or on salt-sprayed
roads.
TIP
Salt sprayed on roads in the winter
may remain well into spring.
1. Clean the scooter with cold water
and a mild detergent after the
engine has cooled down. NOTI-
CE: Do not use warm watersince it increases the corrosive
action of the salt.
[ECA10791]
2. Apply a corrosion protection
spray on all metal, including
chrome- and nickel-plated, surfa-
ces to prevent corrosion.
After cleaning
1. Dry the scooter with a chamois or
an absorbing cloth.
2. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally indu-
ced discoloring of stainless-steel
exhaust systems can be removed
through polishing.)
3. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal, inclu-
ding chrome- and nickel-plated,
surfaces.
4. Use spray oil as a universal clea-
ner to remove any remaining dirt.
5. Touch up minor paint damage
caused by stones, etc.
6. Wax all painted surfaces.
7. Let the scooter dry completely
before storing or covering it.
SCOOTER CARE AND STORAGE
7-2
7
5D8-F8199-E1.QXD 10/7/08 07:39 Página 72
