2009 YAMAHA MAJESTY 125 Owners Manual

EWA10941
s s
WARNING
Contaminants on the brakes or
tires can cause loss of control.
●Make sure that there is no oil or
wax on the brakes or tires. If
necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or
acetone, and wash the tires
with warm water and a mild
detergent.
●Before operating the scooter
test its braking performance
and cornering behavior.
ECA10800
NOTICE
●Apply spray oil and wax spa-
ringly and make sure to wipe
off any excess.
●Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
●Avoid using abrasive polishing
compounds as they will wear
away the paint.
TIP
Consult a Yamaha dealer for advice
on what products to use.EAU26301
Storage
Short-term
Always store your scooter in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA10820
NOTICE
●Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.
●To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your scooter for seve-
ral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Drain the carburetor float cham-
ber by loosening the drain bolt;
this will prevent fuel deposits
from building up. Pour the drai-
ned fuel into the fuel tank.
SCOOTER CARE AND STORAGE
7-3
7
5D8-F8199-E1.QXD 10/7/08 07:39 Página 73

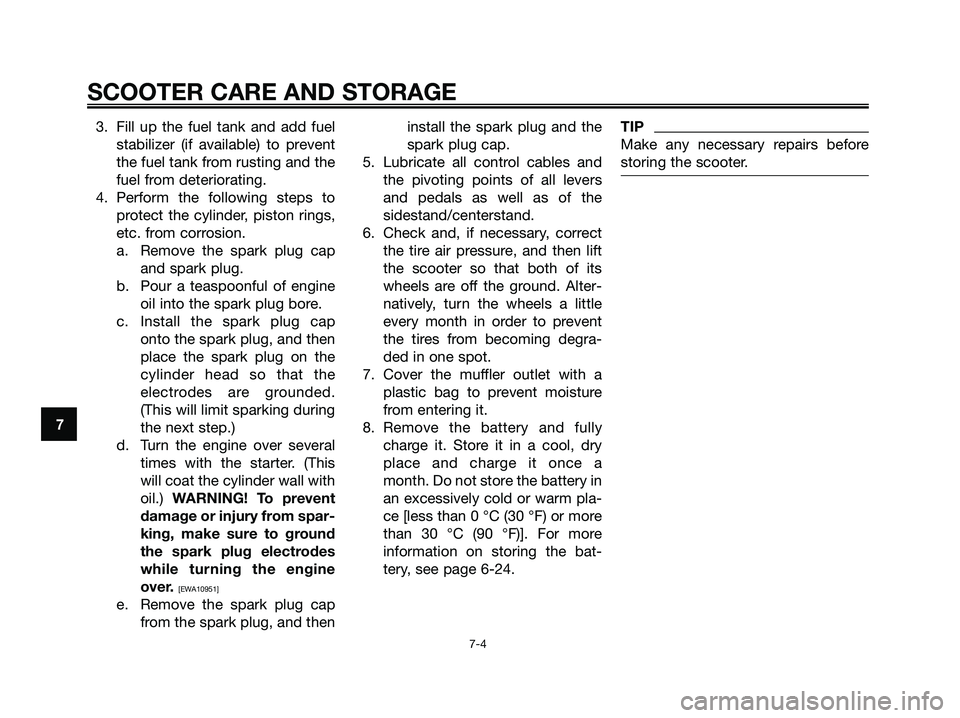

3. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
4. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine
oil into the spark plug bore.
c. Install the spark plug cap
onto the spark plug, and then
place the spark plug on the
cylinder head so that the
electrodes are grounded.
(This will limit sparking during
the next step.)
d. Turn the engine over several
times with the starter. (This
will coat the cylinder wall with
oil.) WARNING! To prevent
damage or injury from spar-
king, make sure to ground
the spark plug electrodes
while turning the engine
over.
[EWA10951]
e. Remove the spark plug cap
from the spark plug, and theninstall the spark plug and the
spark plug cap.
5. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
6. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alter-
natively, turn the wheels a little
every month in order to prevent
the tires from becoming degra-
ded in one spot.
7. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
8. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery in
an excessively cold or warm pla-
ce [less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For more
information on storing the bat-
tery, see page 6-24.
TIP
Make any necessary repairs before
storing the scooter.
SCOOTER CARE AND STORAGE
7-4
7
5D8-F8199-E1.QXD 10/7/08 07:39 Página 74

Dimensions:Overall length:
2030 mm (79.9 in)
Overall width:
745 mm (29.3 in)
Overall height:
1285 mm (50.6 in)
Seat height:
774 mm (30.5 in)
Wheelbase:
1480 mm (58.3 in)
Ground clearance:
102 mm (4.02 in)
Minimum turning radius:
3840 mm (151.2 in)
Weight:With oil and fuel:
148.0 kg (326 lb)
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
124.1 cm
3
Bore x stroke:
53.7 x 54.8 mm (2.11 x 2.16 in)
Compression ratio:
11.00 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 10W-30, SAE 10W-40, SAE 20W-40
or SAE 20W-50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:Periodic oil change:
1.20 L (1.27 US qt, 1.06 Imp.qt)
Final transmission oil:Type:
SAE 10W-30 type SE motor oil
Quantity:
0.15 L (0.16 US qt, 0.13 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark):
0.30 L (0.32 US qt, 0.26 Imp.qt)
Radiator capacity (including all routes):
1.20 L (1.27 US qt, 1.06 Imp.qt)
Air filter:Air filter element:
Dry element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
10.5 L (2.77 US gal, 2.31 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal, 0.66 Imp.gal)
Carburetor:Manufacturer:
MINARELLIType x quantity:
TK 5DS x 1
Spark plug (s):Manufacturer/model:
NGK/ CR8E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Clutch:Clutch type:
Dry, centrifugal automatic
Transmission:Primary reduction system:
Helical gear
Primary reduction ratio:
40 x 15 (2.666)
Secondary reduction system:
Helical gear
Secondary reduction ratio:
40 x 15 (2.666)
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic type
Chassis:Frame type:
Steel tube underbone
Caster angle:
28.00 º
Trail:
104.0 mm (4.09 in)
Front tire:Type:
Tubeless
SPECIFICATIONS
8-1
8
5D8-F8199-E1.QXD 10/7/08 07:39 Página 75

Size:
120 / 70 - 12 51L
Manufacturer/model:
PIRELLI / SL66
Manufacturer/model:
MICHELIN / BOOPER
Manufacturer/model:
CONTINENTAL / ZIPPY 1
Rear tire:Type:
Tubeless
Size:
130 / 70 - 12 56L
Manufacturer/model:
PIRELLI / SL66
Manufacturer/model:
MICHELIN / BOOPER
Manufacturer/model:
CONTINENTAL /ZIPPY 1
Loading:Maximum load:
177 kg (390 lb)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
190 kPa (1.90 kgf/cm
2, 28 psi, 1.90 bar)
Rear:
220 kPa (2.20 kgf/cm
2, 32 psi, 2.20 bar)
Loading condition:
90 kg - maximum load
Front:
190 kPa (1.90 kgf/cm
2, 28 psi, 1.90 bar)Rear:
240 kPa (2.40 kgf/cm
2, 35 psi, 2.40 bar)
High-speed riding:Front:
190 kPa (1.90 kgf/cm2, 28 psi, 1.90 bar)
Rear:
220 kPa (2.20 kgf/cm
2, 32 psi, 2.20 bar)
Front wheel:Wheel type:
Cast wheel
Rim size:
12 x MT3.5
Rear wheel:Wheel type:
Cast wheel
Rim size:
12 x MT3.75
Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic forkSpring/shock absorber type:
Coil spring/oil damper
Wheel travel:
90.0 mm (3.54 in)
Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
90.0 mm (3.54 in)
Electrical system:Ignition system:
DC. CDI
Charging system:
AC magneto
Battery:Model:
CB7L-B2
Voltage, capacity:
12 V, 8.0 Ah
Headlight:Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:Headlight:
12 V, 55.0 W x 2
Tail/brake light:
12 V, 21.0 W/5.0 W x 2
Front turn signal light:
12 V, 21.0 W x 2
Rear turn signal light:
12 V, 10.0 W x 2
SPECIFICATIONS
8-2
8
5D8-F8199-E1.QXD 10/7/08 07:39 Página 76

Auxiliary light:
12 V, 5.0 W x 2
License plate light:
12 V, 5.0 W x 1
Meter lighting:
12 V, 1.2 W x 2
High beam indicator light:
12 V, 1.2 W x 1
Turn signal indicator light:
12 V, 1.2 W x 2
Coolant temperature warning light:
12 V, 1.2 W x 1
Fuses:Main fuse:
20.0 A
Radiator fan fuse:
4.0A
SPECIFICATIONS
8-3
8
5D8-F8199-E1.QXD 10/7/08 07:39 Página 77

EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and
model label information in the spaces
provided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the
vehicle is stolen.
●KEY IDENTIFICATION NUMBER:
●VEHICLE IDENTIFICATION NUM-
BER:
●MODEL LABEL INFORMATION:
EAU26381
Key identification number
1. Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and
use it for reference when ordering a
new key.
EAU26410
Vehicle identification number
1. Vehicle identification number
The vehicle identification number is
stamped into the frame.
TIP
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licen-
sing authority in your area.
1
1
ZAUM0070
CONSUMER INFORMATION
9-1
9
5D8-F8199-E1.QXD 10/7/08 07:39 Página 78

EAU26490

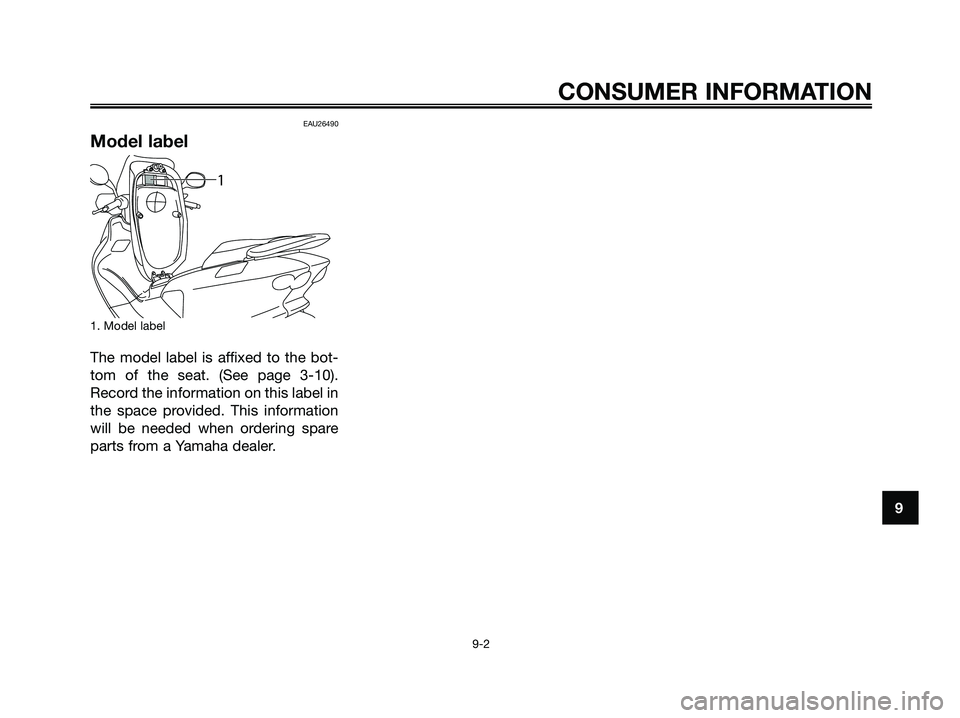

Model label
1. Model label
The model label is affixed to the bot-
tom of the seat. (See page 3-10).
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1
CONSUMER INFORMATION
9-2
9
5D8-F8199-E1.QXD 10/7/08 07:39 Página 79

AAcceleration and deceleration ...................5-2
Air filter and V-belt case air filter
elements ................................................6-14
Anti-theft alarm (optional) ..........................3-5
Auxiliary light bulb, replacing ...................6-30
BBattery......................................................6-24
Brake fluid level, checking .......................6-20
Brake fluid, changing ...............................6-21
Brake lever, front ........................................3-7
Brake lever, rear .........................................3-7
Brake levers, lubricating ..........................6-21
Braking .......................................................5-3
CCables, checking and lubricating ............6-21
Carburetor,adjusting.................................6-15
Care............................................................7-1
Catalytic converter ...................................3-10
Centerstand and sidestand, checking
and lubricating .......................................6-22
Clock ..........................................................3-5
Coolant.....................................................6-12
Coolant temperature warning light ............3-2
DDimmer switch ...........................................3-6
EEngine break-in ..........................................5-4
Engine oil ...................................................6-9
FFinal transmission oil ...............................6-11
Front and rear brake lever free play.........6-18
Front and rear brake pads, checking ......6-19
Front fork, checking .................................6-23Fuel ............................................................3-8
Fuel and battery voltage gauge .................3-4
Fuel consumption, tips for reducing ..........5-3
Fuel tank breather/overflow hose ..............3-9
Fuel tank cap .............................................3-7
Fuses, replacing .......................................6-26
HHandlebar switches ...................................3-6
Hazard switch ............................................3-6
Headlight bulb, replacing .........................6-26
High beam indicator light...........................3-2
Horn switch ................................................3-6
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-14
Indicator and warning lights ......................3-2
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-30
MMain switch/steering lock ..........................3-1
Matte color, caution ...................................7-1
Model label ................................................9-2
OOil change indicator ...................................3-2
PPanels, removing and installing .................6-7
Parking .......................................................5-4
Part locations .............................................2-1
Periodic maintenance and lubrication
chart .........................................................6-3
Pre-operation check list .............................4-2
SSafe-riding points.......................................1-5
Safety information ......................................1-1
Seat ..........................................................3-10
Shock absorber assemblies, adjusting....3-13
Sidestand .................................................3-13
Spark plug, checking .................................6-8
Specifications.............................................8-1
Speedometer unit ......................................3-3
Start switch ................................................3-6
Starting off .................................................5-2
Starting the engine.....................................5-1
Steering, checking ...................................6-23
Storage.......................................................7-3
Storage compartment ..............................3-11
Storage compartment ..............................3-12
TTail/brake light bulb or rear turn signal light
bulb, replacing .......................................6-29
Throttle cable free play, adjusting ............6-15
Tires .........................................................6-16
Tool kit ........................................................6-1
Troubleshooting .......................................6-31
Troubleshooting charts ............................6-32
Turn signal indicator lights .........................3-2
Turn signal light bulb (front), replacing ....6-28
Turn signal switch ......................................3-6
VValve clearance ........................................6-16
Vehicle identification number .....................9-1
WWheel bearings, checking........................6-24
Wheels .....................................................6-18
INDEX
5D8-F8199-E1.QXD 10/7/08 07:39 Página 80
