2009 YAMAHA GRIZZLY 125 Owners Manual

2-3
12
3
4
5
6
7
8
9
10
11
GB
D
E
FI
NL
P

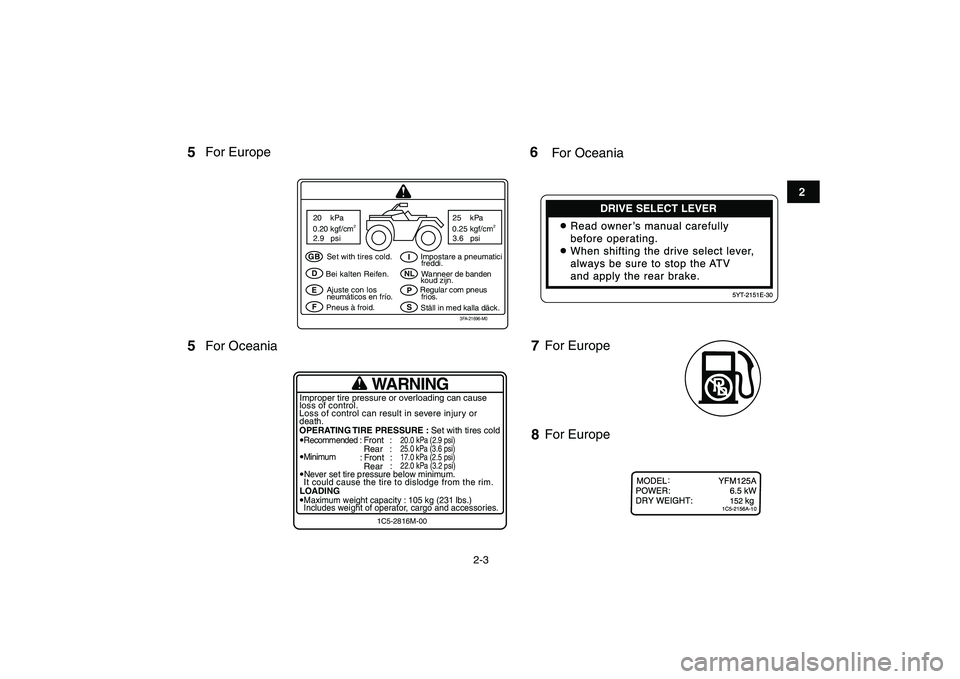

S Set with tires cold.
Bei kalten Reifen.
Ajuste con los
neumáticos en frío.
Pneus à froid.Impostare a pneumatici
freddi.
Wanneer de banden
koud zijn.
Regular com pneus
frios.
Ställ in med kalla däck. 20 kPa
0.20 kgf/cm
2
2.9 psi25 kPa
0.25 kgf/cm
2
3.6 psi3FA-21696-M0
For Europe
For Oceania
5
5
For Oceania
For Europe For Europe
7
8 6
WARNING
Improper tire pressure or overloading can cause
loss of control.
Loss of control can result in severe injury or
death.
OPERATING TIRE PRESSURE : Set with tires coldRecommended
: Front :
20.0 kPa (2.9 psi)
Rear:
25.0 kPa (3.6 psi)
Minimum
: Front :
17.0 kPa (2.5 psi)
Rear:
22.0 kPa (3.2 psi)
Never set tire pressure below minimum.
It could cause the tire to dislodge from the rim.LOADINGMaximum weight capacity : 105 kg (231 lbs.)
Includes weight of operator, cargo and accessories.
1C5-2816M-00

2-4
12
3
4
5
6
7
8
9
10
11

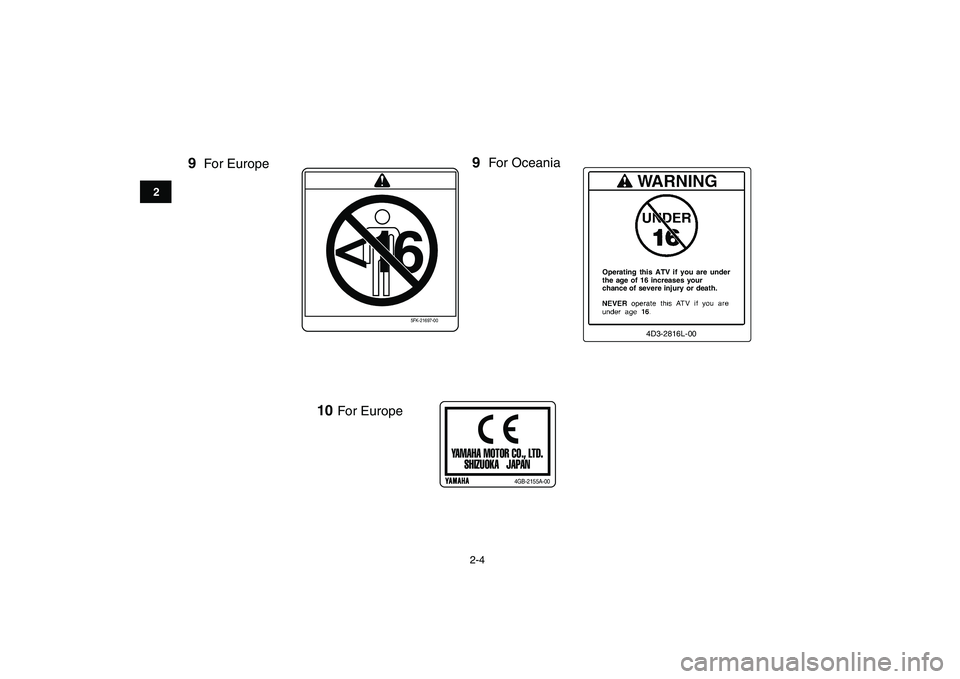

4D3-2816L-00
<
16
5FK-21697-00
For EuropeFor Oceania
YAMAHA MOTOR CO., LTD.
SHIZUOKA JAPANp
4GB-2155A-00
For Europe
99
10
Operating this ATV if you are under
the age of 16 increases your
chance of severe injury or death.

2-5
12
3
4
5
6
7
8
9
10
11
GB
D
E
F
I
NL
P
S

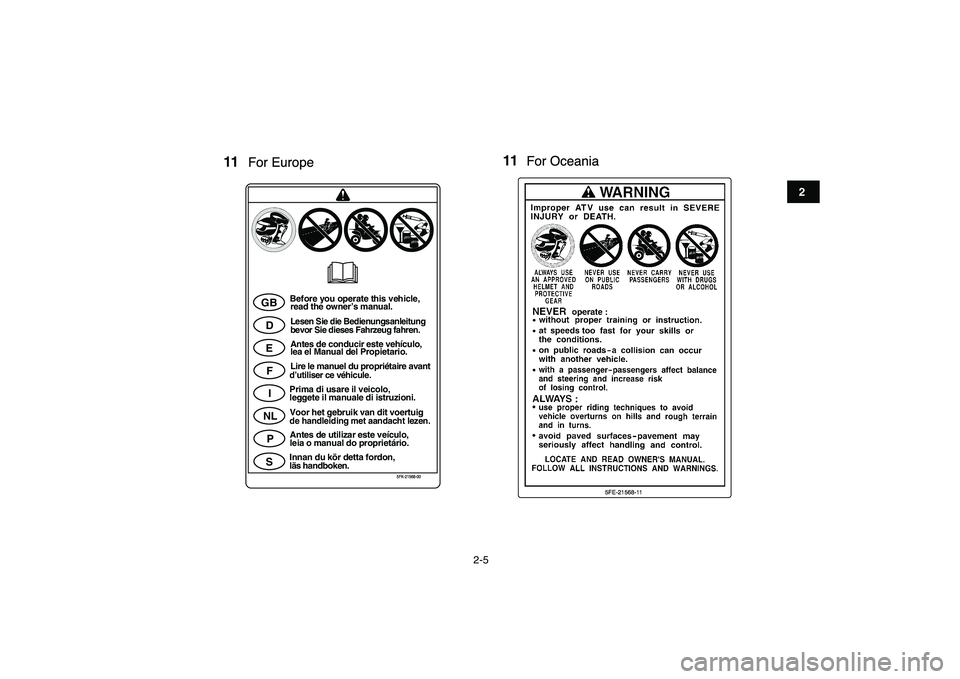

Before you operate this vehicle,
read the owner’s manual.Lesen Sie die Bedienungsanleitung
bevor Sie dieses Fahrzeug fahren.Antes de conducir este vehículo,
lea el Manual del Propietario.
Lire le manuel du propriétaire avantd’utiliser ce véhicule.Prima di usare il veicolo,
leggete il manuale di istruzioni.
Voor het gebruik van dit voertuigde handleiding met aandacht lezen.Antes de utilizar este veículo,
leia o manual do proprietário.
Innan du kör detta fordon,läs handboken.
5FK-21568-00
5FE-21568-11
For EuropeFor Oceania
11
11

3-1
1
23
4
5
6
7
8
9
10
11

EBU17680

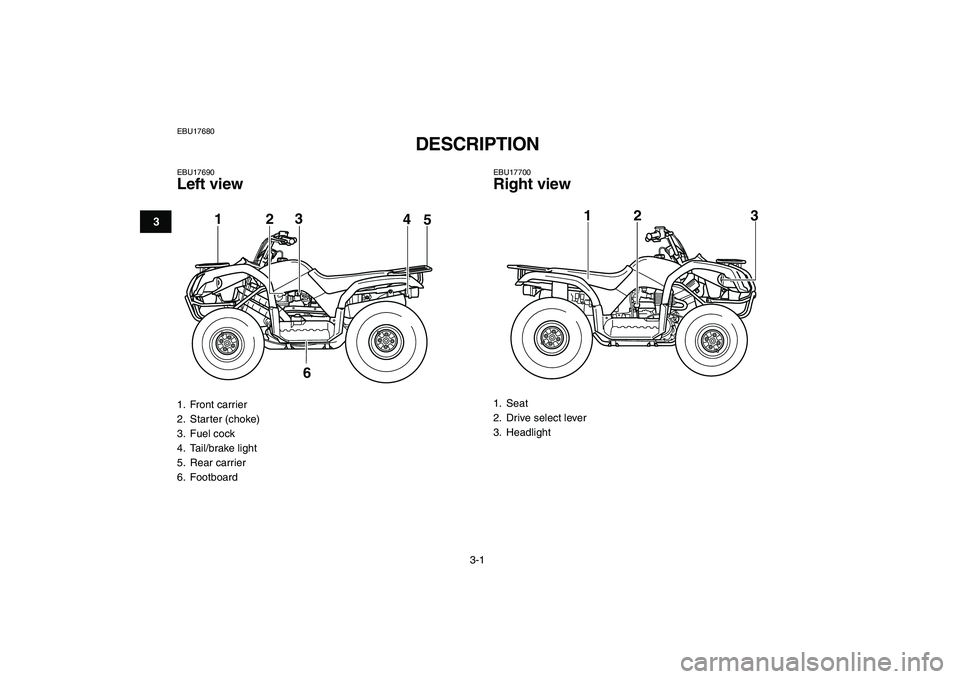

DESCRIPTION
EBU17690
Left view
EBU17700
Right view
1. Front carrier
2. Starter (choke)
3. Fuel cock
4. Tail/brake light
5. Rear carrier
6. Footboard
123
4
5
6

1. Seat
2. Drive select lever
3. Headlight
12 3

3-2
1
23
4
5
6
7
8
9
10
11

EBU17712

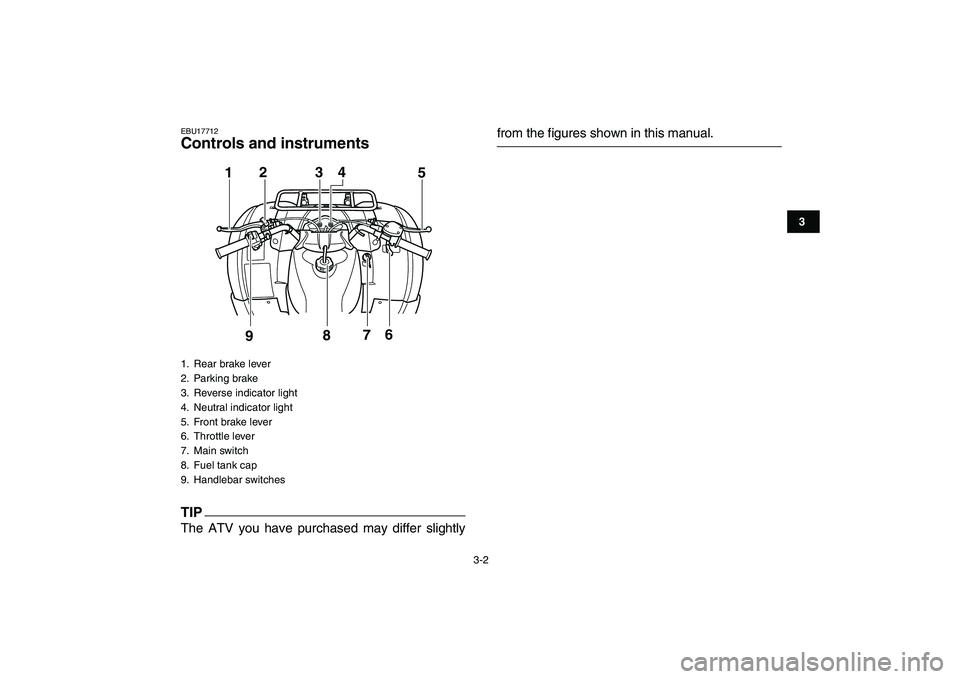

Controls and instruments
TIP

The ATV you have purchased may differ slightly
from the figures shown in this manual.
1. Rear brake lever
2. Parking brake
3. Reverse indicator light
4. Neutral indicator light
5. Front brake lever
6. Throttle lever
7. Main switch
8. Fuel tank cap
9. Handlebar switches
12
34
5
9876

4-1
1
2
34
5
6
7
8
9
10
11

EBU17732
INSTRUMENT AND CONTROL FUNCTIONS
EBU17740
Main switch
The positions of the main switch are as follows:
ON
All electrical systems are supplied with power, and
the engine can be started. The key cannot be re-
moved.
OFF
All electrical systems are off. The key can be re-
moved.

EBU17791
Indicator lights
EBU17830
Reverse indicator light “”
This indicator light comes on when the transmis-
sion is in the reverse position.
EBU17860
Neutral indicator light “”
This indicator light comes on when the transmis-
sion is in the neutral position.
1. Main switch
OFF ON
1

1. Reverse indicator light “R”
2. Neutral indicator light “N”
1
2

4-2
1
2
34
5
6
7
8
9
10
11

EBU18061
Handlebar switches
EBU18070
Engine stop switch “ENG. STOP”
Set this switch to “RUN” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “OFF”.
EBU18090
Start switch “START”
Push this switch to crank the engine with the start-
er.
NOTICE
ECB00050
See the starting instructions on page 6-1 prior
to starting the engine.
EBU18140
Light switch “LIGHTS”
Set this switch to “LO” to turn on the low beams
and the taillight. Set the switch to “HI” to turn on the
high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.NOTICE

ECB00040
Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it.
1. Engine stop switch “ENG. STOP”
2. Start switch “START”
3. Light switch “LIGHTS”
3
1
2

4-3
1
2
34
5
6
7
8
9
10
11

EBU18280
Throttle lever
Once the engine is running, movement of the throt-
tle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING

EWB00250
Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the op-
eration of the throttle lever before you start the
engine. If the throttle does not work smoothly,
check for the cause. Correct the problem be-
fore riding the ATV or consult a Yamaha dealer.
EBU18321
Speed limiter
Your ATV was delivered with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b).
1. Throttle lever
1
