2009 YAMAHA GRIZZLY 125 Owners Manual

4-4
1
2
34
5
6
7
8
9
10
11

3. Tighten the locknut.
WARNING

EWB00240
Improper adjustment of the speed limiter and
throttle could cause throttle cable damage or
improper throttle operation. You could lose
control, have an accident or be injured. Do not
turn the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 1.0–3.0 mm (0.04–0.12 in).
(See page 8-23.)
EBU18391
Front brake lever
The front brake lever is located on the right handle-
bar. To apply the front brake, pull the brake lever
toward the handlebar grip.
EBU18401
Rear brake lever
The rear brake lever is located on the left handle-
bar. To apply the rear brake, pull the brake lever to-
ward the handlebar grip.
1. Adjusting screw
2. Locknut
3. No more than 12 mm (0.47 in)
3 1
2
(a)
(b)

1. Front brake lever
1

4-5
1
2
34
5
6
7
8
9
10
11

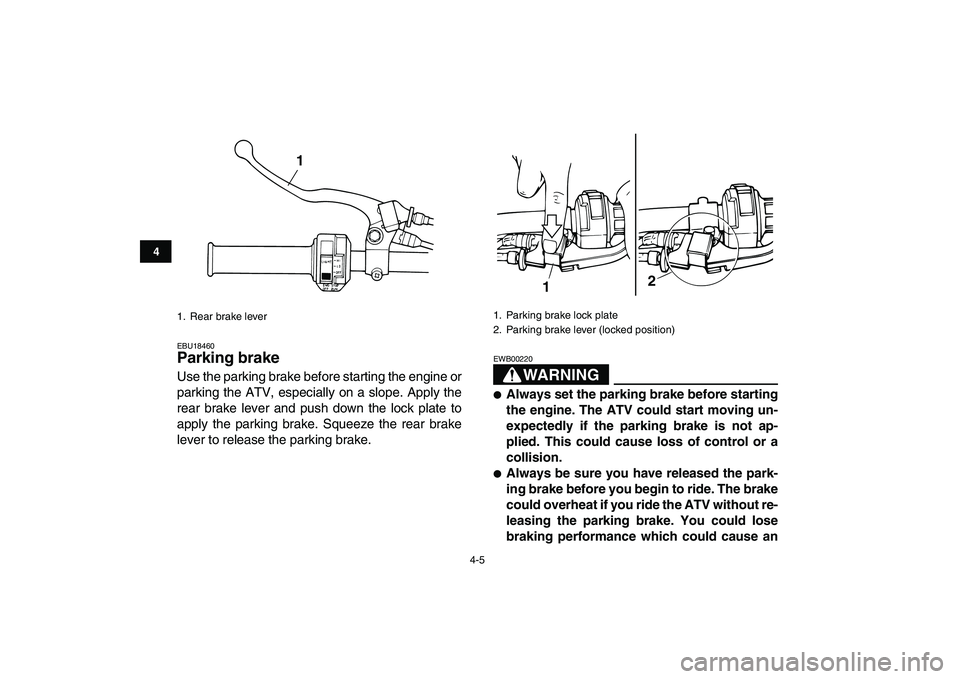

EBU18460
Parking brake
Use the parking brake before starting the engine or
parking the ATV, especially on a slope. Apply the
rear brake lever and push down the lock plate to
apply the parking brake. Squeeze the rear brake
lever to release the parking brake.
WARNING

EWB00220

Always set the parking brake before starting
the engine. The ATV could start moving un-
expectedly if the parking brake is not ap-
plied. This could cause loss of control or a
collision.

Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
1. Rear brake lever
1

1. Parking brake lock plate
2. Parking brake lever (locked position)
2
1

4-6
1
2
34
5
6
7
8
9
10
11

accident. You could also wear out the brakes
prematurely.

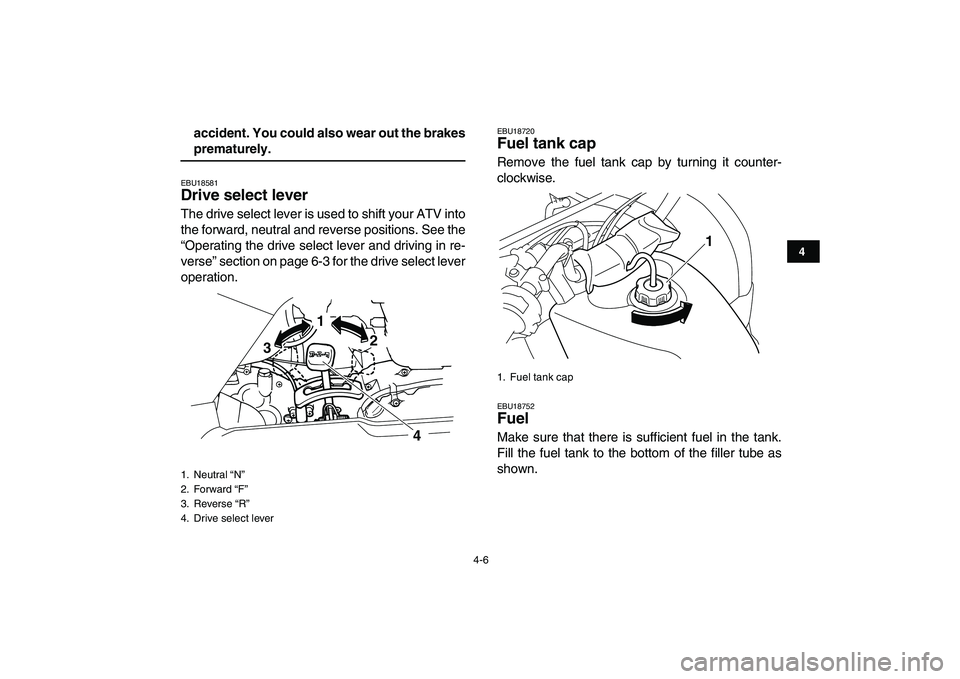

EBU18581
Drive select lever
The drive select lever is used to shift your ATV into
the forward, neutral and reverse positions. See the
“Operating the drive select lever and driving in re-
verse” section on page 6-3 for the drive select lever
operation.
EBU18720
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
EBU18752
Fuel
Make sure that there is sufficient fuel in the tank.
Fill the fuel tank to the bottom of the filler tube as
shown.
1. Neutral “N”
2. Forward “F”
3. Reverse “R”
4. Drive select lever
1
2
3
4

1. Fuel tank cap
1

4-7
1
2
34
5
6
7
8
9
10
11

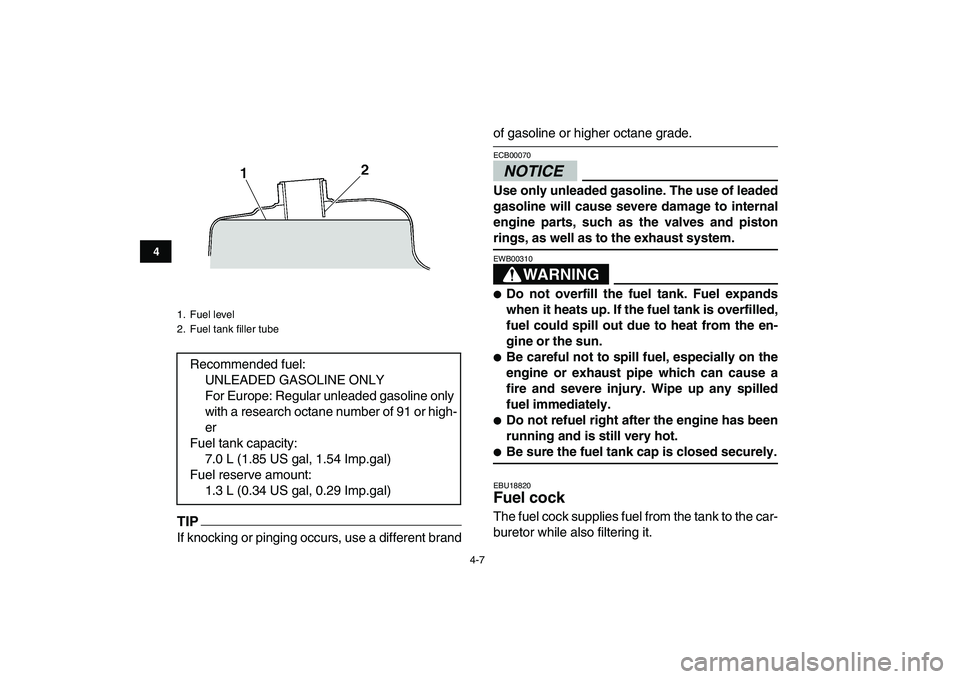

TIP

If knocking or pinging occurs, use a different brand
of gasoline or higher octane grade.
NOTICE

ECB00070
Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system.
WARNING

EWB00310

Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.

Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.

Do not refuel right after the engine has been
running and is still very hot.

Be sure the fuel tank cap is closed securely.
EBU18820
Fuel cock
The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
1. Fuel level
2. Fuel tank filler tube
Recommended fuel:
UNLEADED GASOLINE ONLY
For Europe: Regular unleaded gasoline only
with a research octane number of 91 or high-
er
Fuel tank capacity:
7.0 L (1.85 US gal, 1.54 Imp.gal)
Fuel reserve amount:
1.3 L (0.34 US gal, 0.29 Imp.gal)

4-8
1
2
34
5
6
7
8
9
10
11

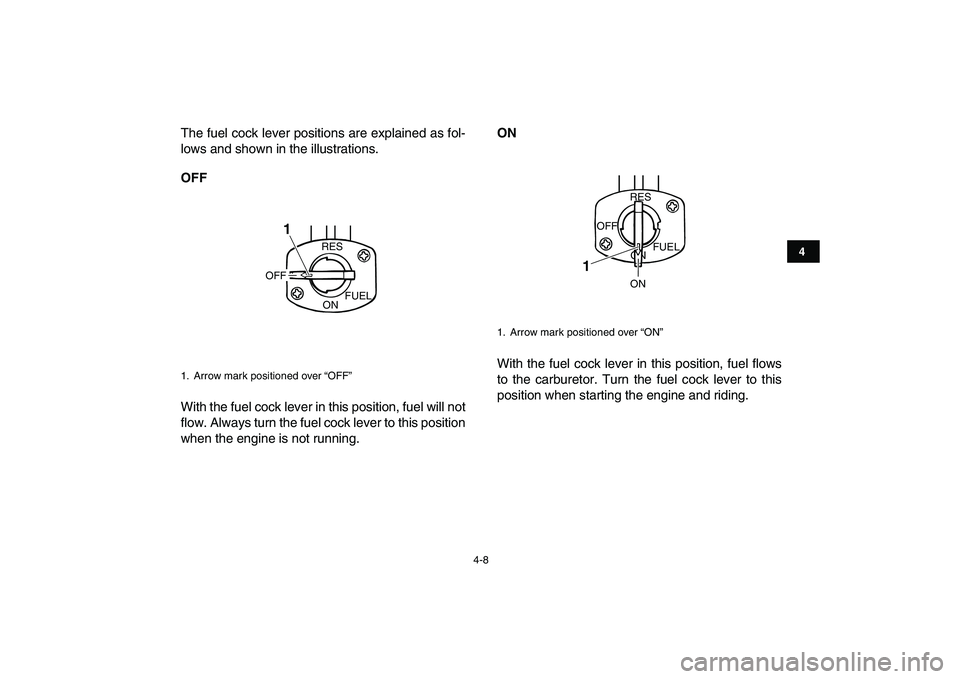

The fuel cock lever positions are explained as fol-
lows and shown in the illustrations.
OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.
ON
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding.

1. Arrow mark positioned over “OFF”
RES
ONFUEL
OFF
1

1. Arrow mark positioned over “ON”
ON
FUEL
RES
OFF
ON
1

4-9
1
2
34
5
6
7
8
9
10
11

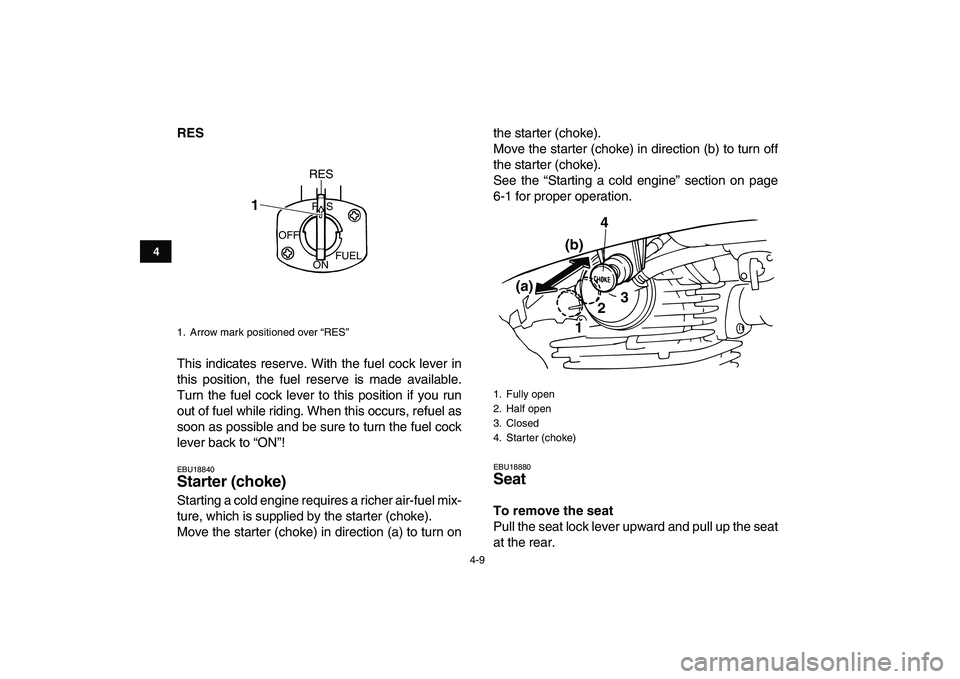

RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18840
Starter (choke)
Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn onthe starter (choke).
Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU18880
Seat
To remove the seat
Pull the seat lock lever upward and pull up the seat
at the rear.
1. Arrow mark positioned over “RES”
OFF
ONFUEL RES
RES
1

1. Fully open
2. Half open
3. Closed
4. Starter (choke)
(b)
(a)4
123

4-10
1
2
34
5
6
7
8
9
10
11

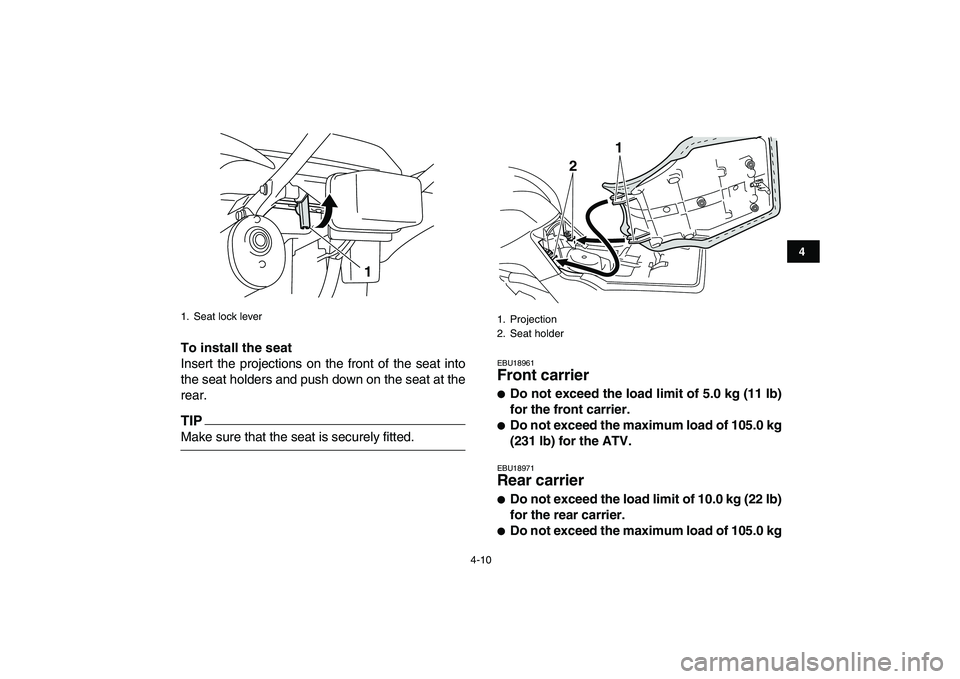

To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear.
TIP

Make sure that the seat is securely fitted.
EBU18961
Front carrier

Do not exceed the load limit of 5.0 kg (11 lb)
for the front carrier.

Do not exceed the maximum load of 105.0 kg
(231 lb) for the ATV.
EBU18971
Rear carrier

Do not exceed the load limit of 10.0 kg (22 lb)
for the rear carrier.

Do not exceed the maximum load of 105.0 kg
1. Seat lock lever
1

1. Projection
2. Seat holder
1
2

4-11
1
2
34
5
6
7
8
9
10
11

(231 lb) for the ATV.
