2009 YAMAHA GRIZZLY 125 Owners Manual

8-29
1
2
3
4
5
6
78
9
10
11

6. Tighten the locknut on each brake cable.
7. Turn the adjusting bolt in direction (a) to in-
crease the free play, and in direction (b) to de-
crease it.
1. Brake equalizer
2. Cable joint
aa'
a=a'
1 2

1. Locknut
2. Adjusting nut
12 2
1

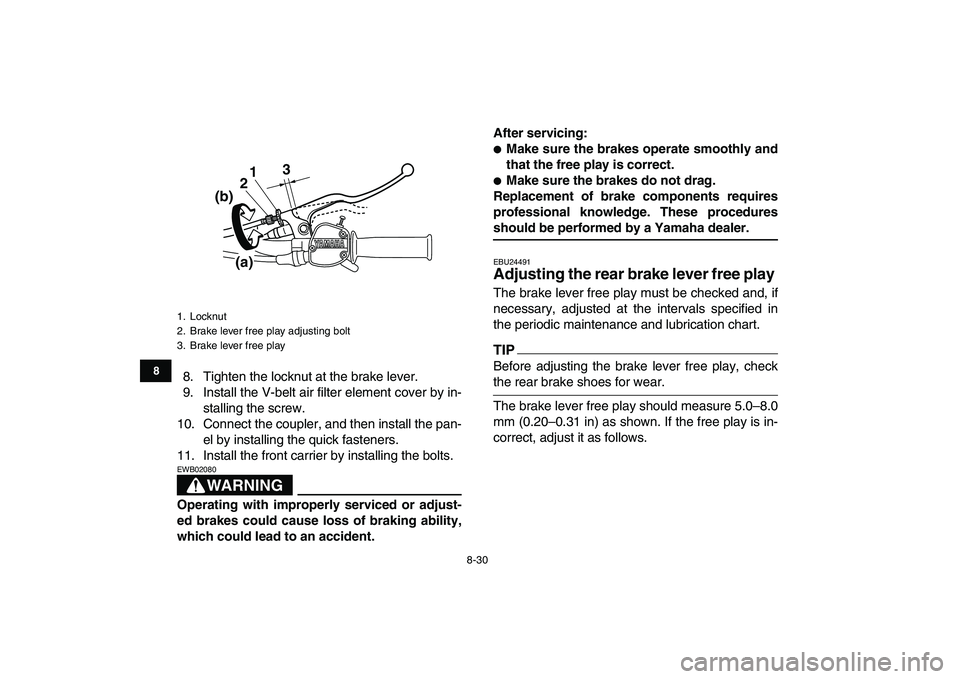

8-30
1
2
3
4
5
6
78
9
10
11

8. Tighten the locknut at the brake lever.
9. Install the V-belt air filter element cover by in-
stalling the screw.
10. Connect the coupler, and then install the pan-
el by installing the quick fasteners.
11. Install the front carrier by installing the bolts.
WARNING

EWB02080
Operating with improperly serviced or adjust-
ed brakes could cause loss of braking ability,
which could lead to an accident.After servicing:

Make sure the brakes operate smoothly and
that the free play is correct.

Make sure the brakes do not drag.
Replacement of brake components requires
professional knowledge. These procedures
should be performed by a Yamaha dealer.
EBU24491
Adjusting the rear brake lever free play
The brake lever free play must be checked and, if
necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
TIP

Before adjusting the brake lever free play, check
the rear brake shoes for wear.
The brake lever free play should measure 5.0–8.0
mm (0.20–0.31 in) as shown. If the free play is in-
correct, adjust it as follows.
1. Locknut
2. Brake lever free play adjusting bolt
3. Brake lever free play
3
1
2
(b)
(a)

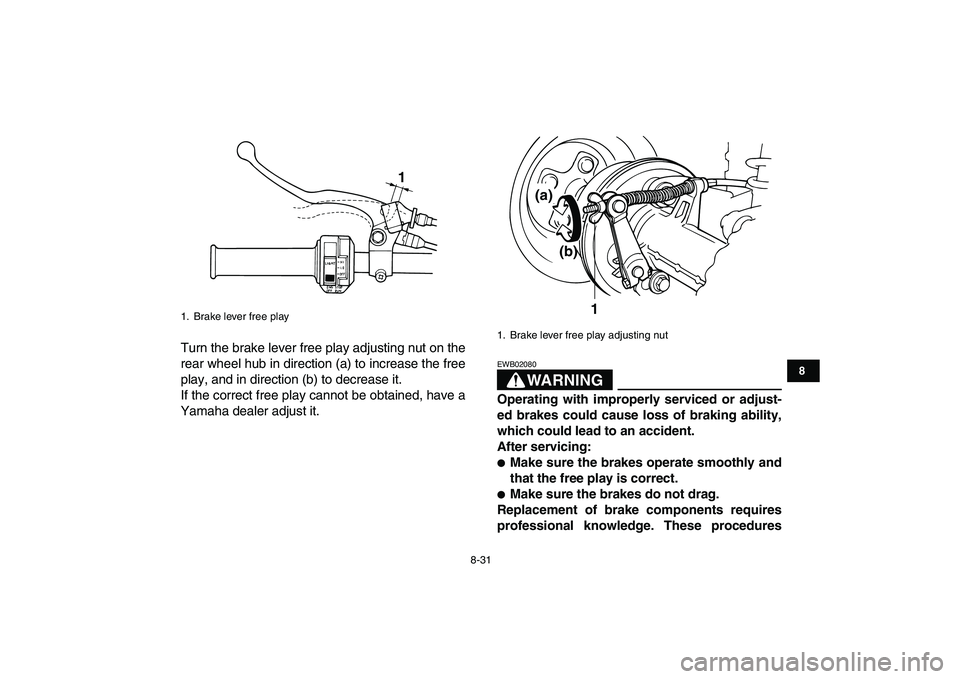

8-31
1
2
3
4
5
6
78
9
10
11

Turn the brake lever free play adjusting nut on the
rear wheel hub in direction (a) to increase the free
play, and in direction (b) to decrease it.
If the correct free play cannot be obtained, have a
Yamaha dealer adjust it.
WARNING

EWB02080
Operating with improperly serviced or adjust-
ed brakes could cause loss of braking ability,
which could lead to an accident.
After servicing:

Make sure the brakes operate smoothly and
that the free play is correct.

Make sure the brakes do not drag.
Replacement of brake components requires
professional knowledge. These procedures
1. Brake lever free play
1

1. Brake lever free play adjusting nut
1
(a)
(b)

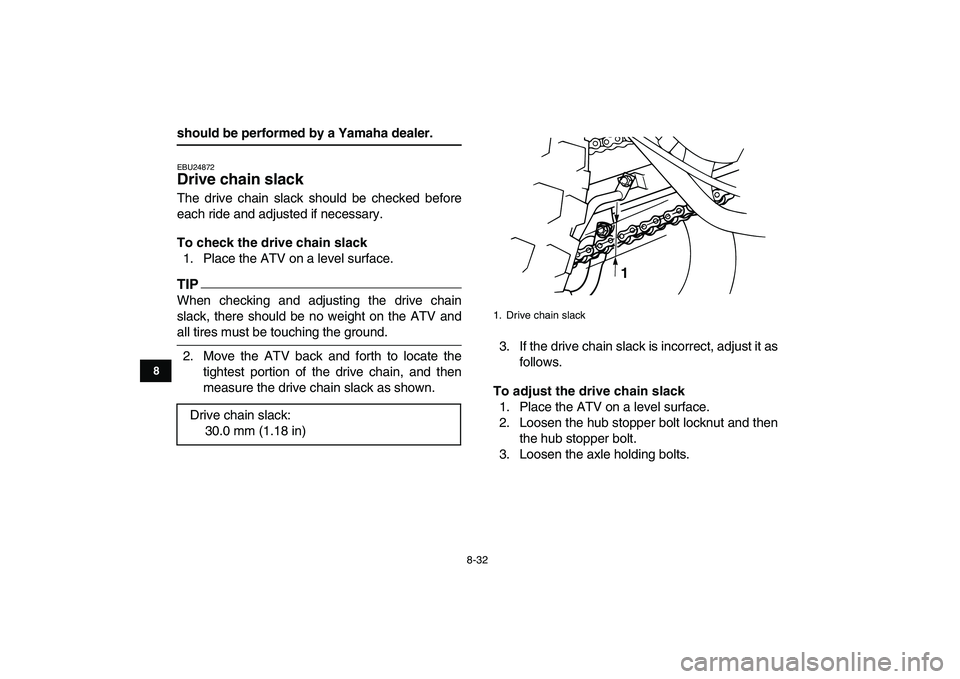

8-32
1
2
3
4
5
6
78
9
10
11

should be performed by a Yamaha dealer.
EBU24872
Drive chain slack
The drive chain slack should be checked before
each ride and adjusted if necessary.
To check the drive chain slack
1. Place the ATV on a level surface.
TIP

When checking and adjusting the drive chain
slack, there should be no weight on the ATV and
all tires must be touching the ground.
2. Move the ATV back and forth to locate the
tightest portion of the drive chain, and then
measure the drive chain slack as shown.3. If the drive chain slack is incorrect, adjust it as
follows.
To adjust the drive chain slack
1. Place the ATV on a level surface.
2. Loosen the hub stopper bolt locknut and then
the hub stopper bolt.
3. Loosen the axle holding bolts. Drive chain slack:
30.0 mm (1.18 in)
1. Drive chain slack
1

8-33
1
2
3
4
5
6
78
9
10
11

4. Loosen the chain adjusting bolt locknut. To
tighten the drive chain, turn the adjusting bolt
in direction (a). To loosen the drive chain, turn
the adjusting bolt in direction (b), and then
push the wheels forward.
NOTICE

ECB00541
Improper drive chain slack will overload the en-
gine as well as other vital parts of the ATV and
can lead to drive chain slippage or breakage.
To prevent this from occurring, keep the drive
chain slack within the specified limits.
5. Tighten the locknut and the axle holding bolts
to the specified torques.
1. Hub stopper bolt
2. Locknut
3. Axle holding bolt (lower)
4. Axle holding bolt (upper)
1
2
34

1. Locknut
2. Drive chain slack adjusting bolt
1
2
(a)
(b)

8-34
1
2
3
4
5
6
78
9
10
11
NOTICE

ECB00550
If measurement “A” of the drive chain adjust-
ing bolt is less than 27 mm (1.06 in), have a
Yamaha dealer replace the drive chain.
6. Tighten the hub stopper bolt, and then its lock-
nut.
EBU24880
Lubricating the drive chain
The drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows. Tightening torques:
Chain adjusting bolt locknut:
15.5 Nm (1.6 m·kgf, 11.2 ft·lbf)
Axle holding bolt (upper):
85 Nm (8.5 m·kgf, 61.5 ft·lbf)
Axle holding bolt (lower):
60 Nm (6.0 m·kgf, 43.4 ft·lbf)
1. Measurement A
1

8-35
1
2
3
4
5
6
78
9
10
11
NOTICE

ECB00560
The drive chain must be lubricated after wash-
ing the ATV or riding in the rain.
1. Clean the drive chain with kerosene and a
small soft brush.
NOTICE

ECB00570
To prevent damaging the O-rings, do not clean
the drive chain with steam cleaners, high-pres-
sure washers or inappropriate solvents.
2. Wipe the drive chain dry.3. Thoroughly lubricate the drive chain with a
special O-ring chain lubricant.NOTICE
ECB00580
Do not use engine oil or any other lubricants
for the drive chain, as they may contain sub-
stances that could damage the O-rings.
EBU24900
Checking and lubricating the cables
The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.WARNING

EWB02130
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could re-
strict the operation of controls and lead to an
1. O-ring
1

Recommended lubricant:
Engine oil

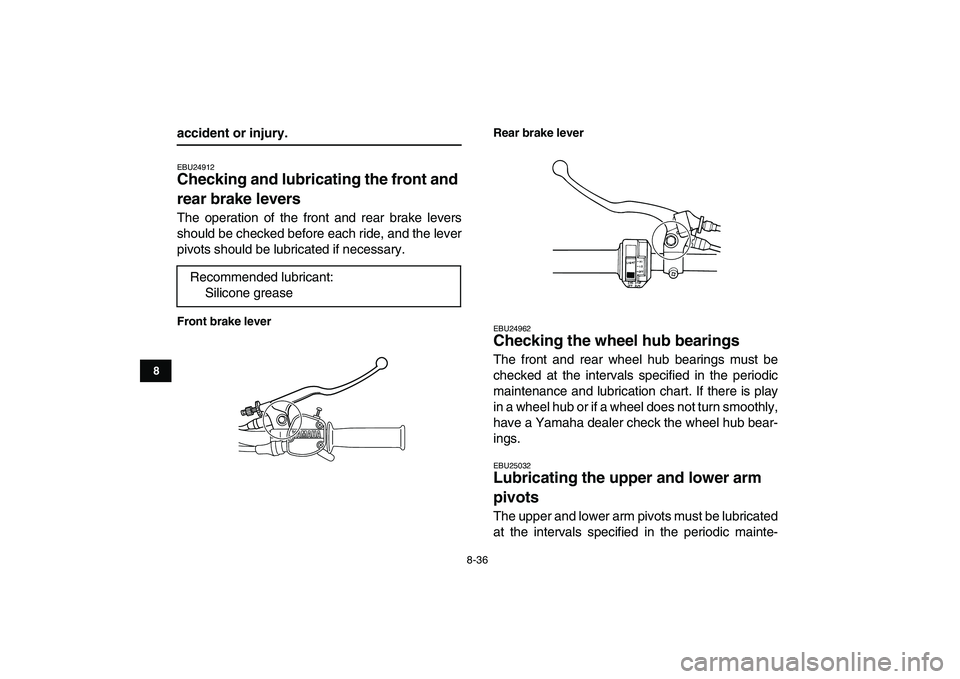

8-36
1
2
3
4
5
6
78
9
10
11

accident or injury.
EBU24912
Checking and lubricating the front and
rear brake levers
The operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
Front brake leverRear brake lever
EBU24962
Checking the wheel hub bearings
The front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel hub bear-
ings.
EBU25032
Lubricating the upper and lower arm
pivots
The upper and lower arm pivots must be lubricated
at the intervals specified in the periodic mainte- Recommended lubricant:
Silicone grease
