OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
ugh,
ll
Hood release
Engine maintenance
Windshield washer and rear window washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Pull Pull up latch
and raise hood
Engage
support rod
412782M2.qxd:_412782M2 8/18/08 2:06 PM Page 7

8
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
* The ignition switch must be “ON” and the brake pedal depressed to shiftfrom Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
P
R
N
D
3
2
L
Tilt steering wheel
Angle
Hold wheel, push lever down, set angle and return lever.
Note: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Parking brake
Sea
Sea
Non
Pull (2) Push
Set
Release
(1) Pull slightly
(3) Lower
Spli
Seat
Lig
412782M2.qxd:_412782M2 8/18/08 2:06 PM Page 8

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
shift
ays
Seat adjustments-Front
Seat adjustments-Rear
Non-split seat
Seatback angle
Seat position
Angle
htly
Split seat(type A)Split seat(type B)
Position
Seatback angle/FoldSeatback angle
Light control-Instrument panel
Brightness
control
+
-
412782M2.qxd:_412782M2 8/18/08 2:07 PM Page 9

10
FEATURES/OPERATIONS

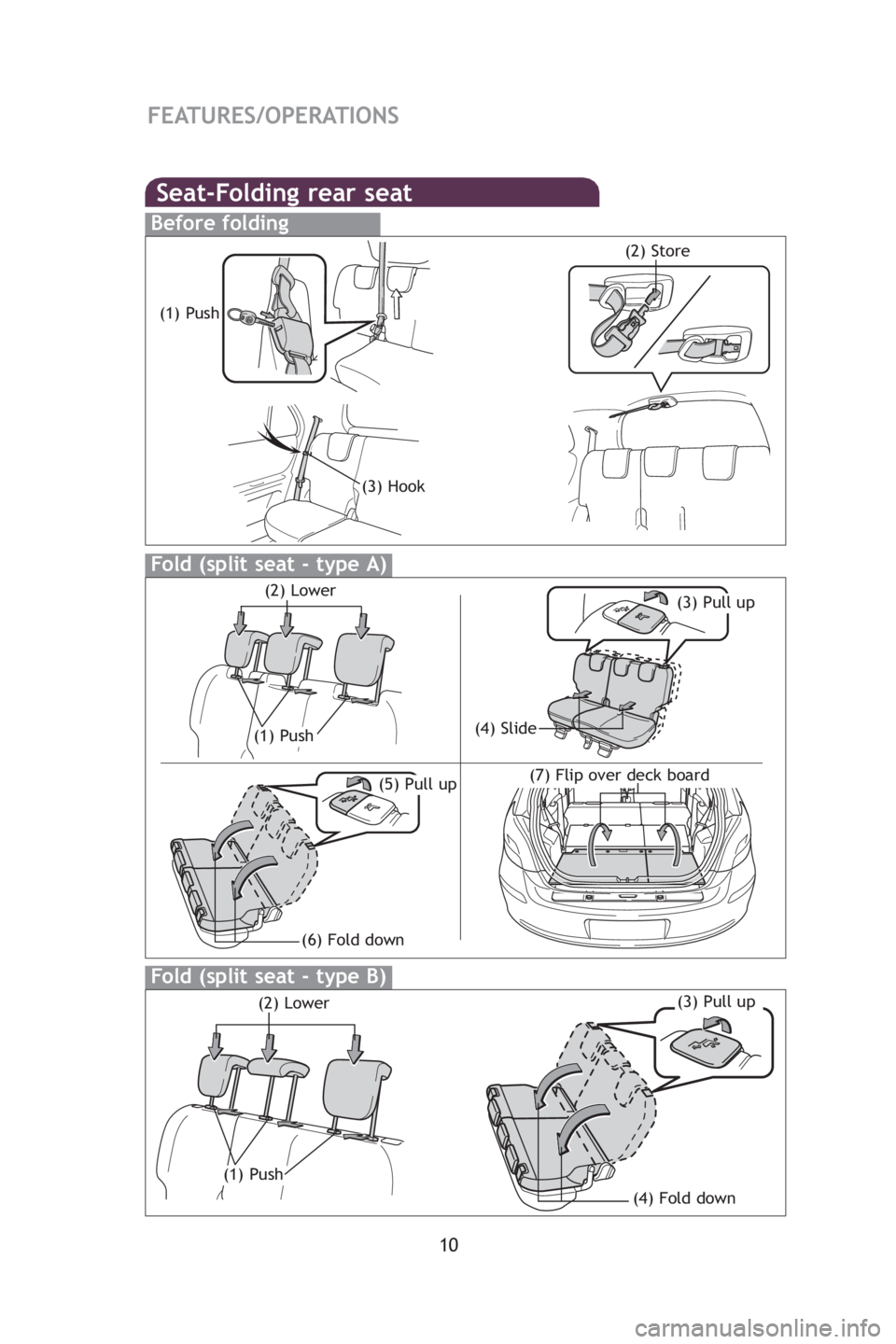

Seat-Folding rear seat
Before folding
(1) Push
(3) Hook
(2) Store
Fold (split seat - type A)
(1) Push
(3) Pull up(2) Lower
(4) Slide
(5) Pull up(7) Flip over deck board
Fold (split seat - type B)
(1) Push
(3) Pull up(2) Lower
(4) Fold down
(6) Fold down
Lig
Hea
-Day
on
Tu rn
Fro
Fron
Fold
412782M2.qxd:_412782M2 8/18/08 2:07 PM Page 10

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
p
p
Lights & turn signals
Headlights
High beam flasher
Low beam
Headlights
Parking lights
High beam
-Daytime Running Light system (DRL)(if equipped) Automatically turns
on the headlights at a reduced intensity.
Turn signals
Right turn
Lane change
Lane change Left turn
Front fog lights (if equipped)
Tu r n
Front fog lights turn on only when the headlights are on low beam.
Fold (non-split seat)
(1) Push
(3) Pull up(2) Lower
(4) Fold down
412782M2.qxd:_412782M2 8/18/08 2:07 PM Page 11

12
FEATURES/OPERATIONS
Windows-Power (if equipped)
Window operation
Automatic operation (driver’s window only)Push the switch completely
down and release to fully open. To stop window midway, lightly pull the
switch up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Window
lock switch
Up
Driver side
Down
Door-Back
Open/Close
Unlock Lock
Push to open
Wi
Rea
Fro
Air
*Inwi(ifRowi
Lock release button
Lock release buttonHeight
Rear seat (split seat - type A)
Front seats
Rear seat (split seat - type B)
Lock release button
Seats-Head restraints
Rear seats (non-split seat)
Lock release button
412782M2.qxd:_412782M2 8/18/08 2:07 PM Page 12

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
elyhe
ow
Windshield wipers & washers
Wipe
Wash and wipe
Wa s h
Rear
Front
Single wipe
Interval wipeSlow
Fast
Pull to wash and wipe
Fresh or recirculated cabin air
Fan speed
Airflow vent
In “ ” or “ ” mode, use fresh air to reduce window fogging.
Air Conditioning ON/OFF (if equipped)
Temperature selector
Outside rear view mirror/Rear window defogger (if equipped)
Air Conditioning (if equipped)/Heating
Adjust frequency*
* Intermittent windshield wiper frequency adjustment
(if equipped)
Rotate to increase/decrease
wipe frequency.
B)
412782M2.qxd:_412782M2 8/18/08 2:08 PM Page 13

14
FEATURES/OPERATIONS
Audio (if equipped)
To scan tracks on a discPush and hold “SCAN.” Push again to hold
selection.
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.
CD PLAYER
Preset buttons - functions in other
modes indicated above number.
View CD text
Push to skip up
/down folder
Eject CD
Push to turn
ON/OFF Push to adjust tone & balance
Mode
Seek station/
CD track select
Station/CD
track scan
By in
AUX
thro
u
AUX
Lu
Ope
Cruise control (if equipped)
1The set speed may also be cancelled by depressing the brake pedal.2Unless vehicle speed drops below 10 mph, the set speed may be resumed
once vehicle exceeds 25 mph.
Refertothe Owner’s Manual for more details.
Turning system ON/OFFFunctions
Resume2/
Increase speed
Set/Decrease speed
Cancel1
System ON/OFFClo
Press
adju
Refe
Pow
Desig
posit
412782M2.qxd:_412782M2 8/18/08 2:08 PM Page 14
