2009 TOYOTA YARIS HATCHBACK fog light bulb

286
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
nPrepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( →P
. 352)

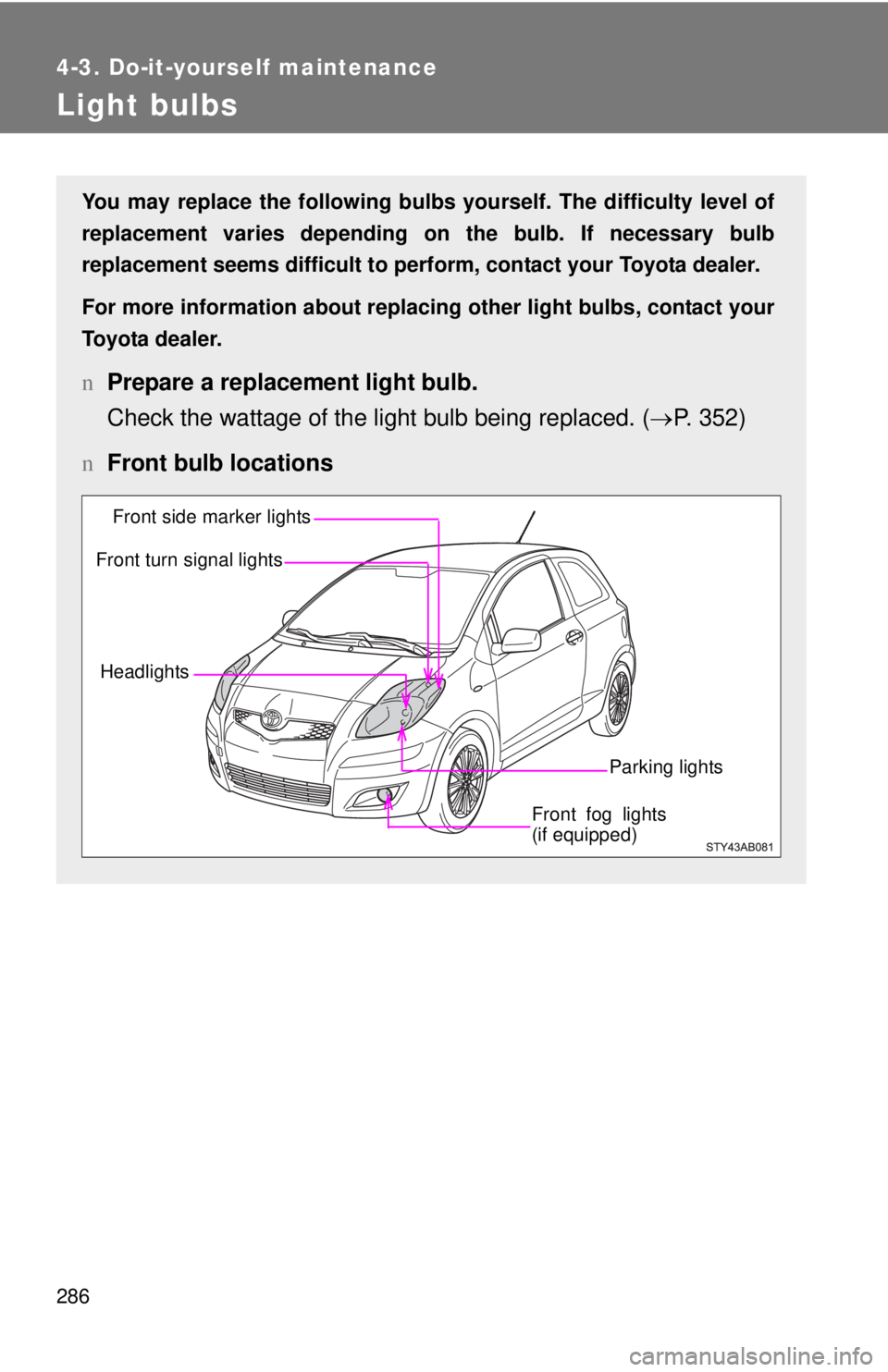

n Front bulb locations
Headlights
Front fog lights
(if equipped)
Front side marker lights
Front turn signal lights
Parking lights

288 4-3. Do-it-yourself maintenance

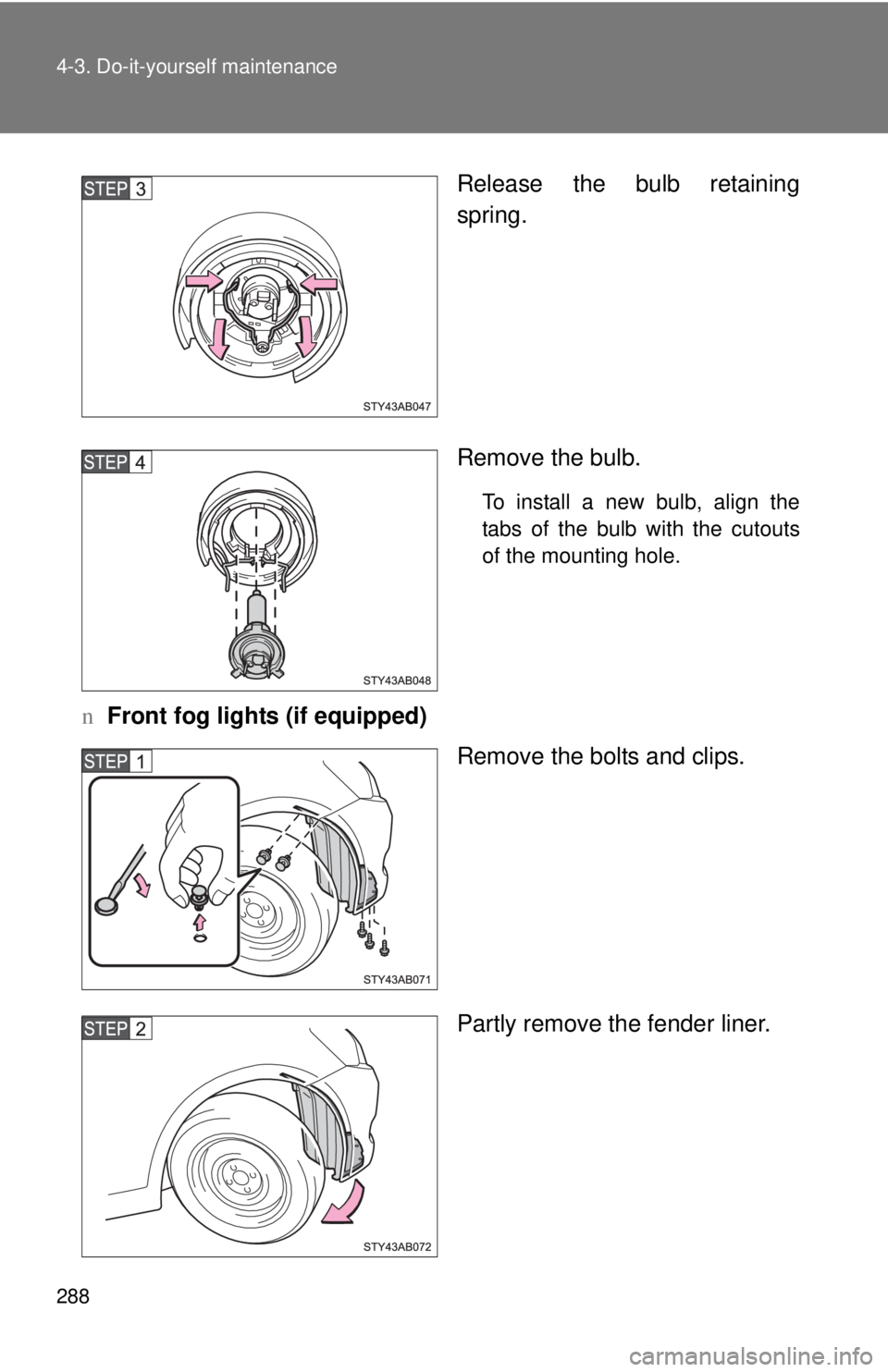

Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
nFront fog lights (if equipped)
Remove the bolts and clips.
Partly remove the fender liner.

352 6-1. Specifications
Light bulbs
A: HB2 halogen bulbs
B: H11 halogen bulbs
C: Single end bulbs
D: Single end bulbs (amber)
E: Wedge base bulbs
F: Wedge base bulbs (amber)
G: Double end bulbs
Light BulbsBulb NoWTy p e
ExteriorHeadlights 9003 60/55 A
Parking lights 168 5 E
Front fog lights

(if equipped) —55 B
Front side marker
lights 168 5 E
Front turn signal lights — 21 D
Side turn signal lights — 5 F
Rear turn signal lights 7440 21 E
Stop/tail and rear side
marker lights 7443 21/5 E
Back-up lights 921 16 E
License plate light 168 5 E
Interior Interior light — 8 G
Personal lights — 8 E
Luggage compart-
ment light
—5 G

383
