2009 TOYOTA YARIS HATCHBACK Owners Manual

43
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Folding down rear seatbacks
nBefore folding down rear seatbacks
Insert the key into the hole on
the
center seat belt buckle to
release tab (with hooked end),
and allow the belt to retract.
Stow the seat belt tabs in the
cover se
t in the roof as shown.

44 1-3. Adjustable components (seats, mirrors, steering wheel)
Use the seat belt hangers to pre -
vent the belts from being tan -
gled.
n Folding
down rear seatbacks (split rear seats: type A)
LLower the head restraints to the
lowest position.
Pull the seat position adjustment
le

ver up. Then slide the rear seat
fully forward.
Pull the seatback angle adjust -
ment lever up and fold the seat -
back down.
Each seatback may be folded
separately.

45
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Flip over the deck board.
n Folding
down rear seatbacks (split rear seats: type B)
Lower the head restraints to the
lowest
position.
Pull the seatback angle adjust -
ment lever up and fold the seat -
back down.

46 1-3. Adjustable components (seats, mirrors, steering wheel)
nFolding down rear seatback (non-split rear seat)
Lower the head restraints to the
lowest
position.
Pull the seatback angle adjust -
ment lever up and fold the seat -
back down.

47
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
CAUTION
nSeat adjustment
lDo not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt. If the seat is too reclined,
the lap belt may slide past the hips and apply restraint forces directly to the
abdomen or your neck may contact the shoulder belt, increasing the risk of
death or serious injury in the event of an accident.
l After adjusting the seat, make sure that the seat is locked in position.
n After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
lMake sure that the seatback is securely locked in position by lightly rock-
ing it back and forth.
l Check that the seat belts and buckles are not twisted or caught under the
seat.
l Arrange the seat belts in the proper positions for ready use.
NOTICE
nStowing the seat belts
The seat belts and the buckles must be stowed before you fold down the
rear seat backs.
n When returning the seatback to the upright position
Do not pull the pocket that stores the seat belt comfort guide.

48
1-3. Adjustable components (seats, mirrors, steering wheel)

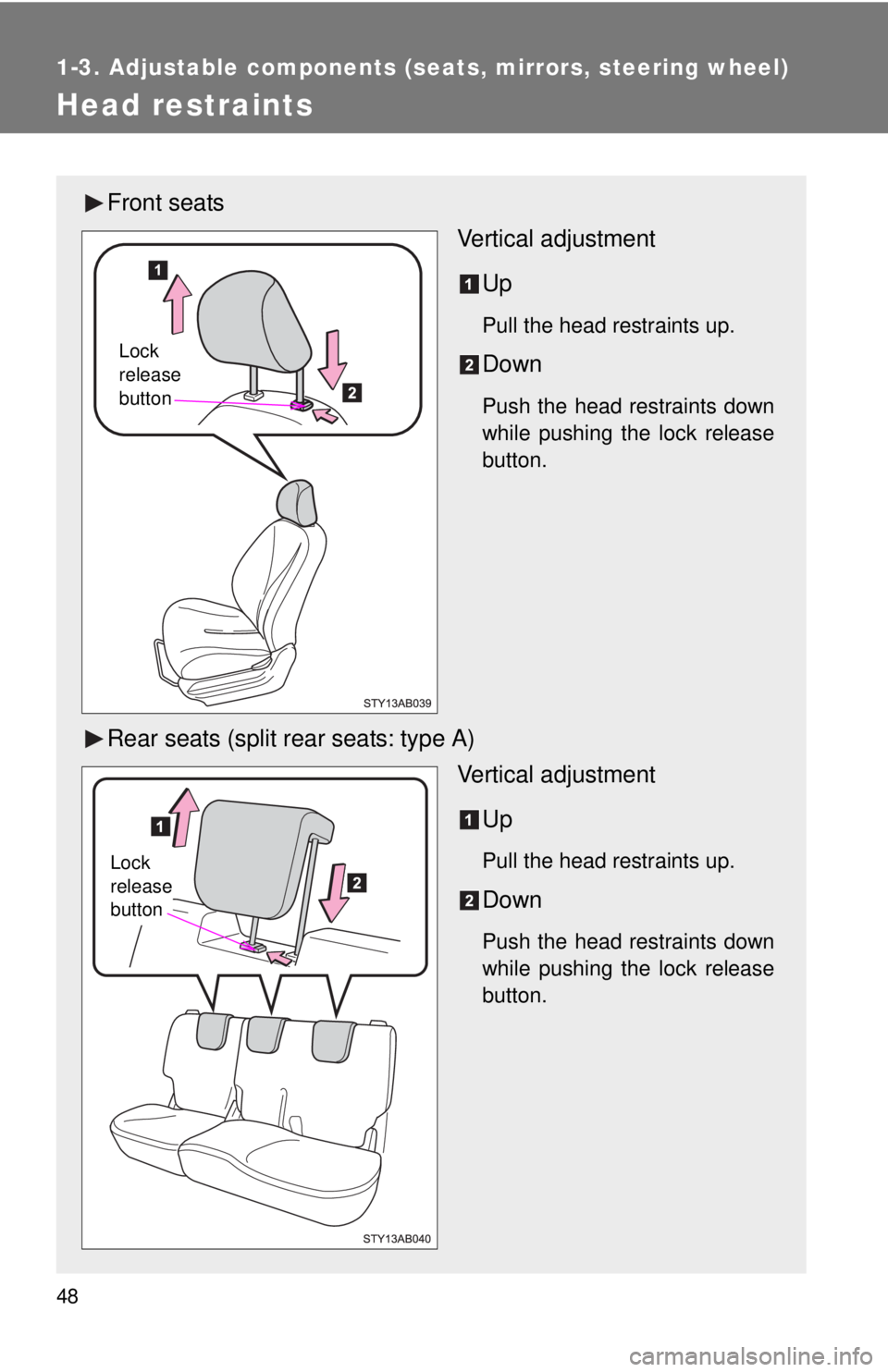

Head restraints
Front seats
Vertical adjustmentUp
Pull the head restraints up.
Down
Push the head restraints down
while pushing the lock release
button.
Rear seats (split rear seats: type A) Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraints down
while pushing the lock release
button.
Lock
release
button
Lock
release
button

49
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

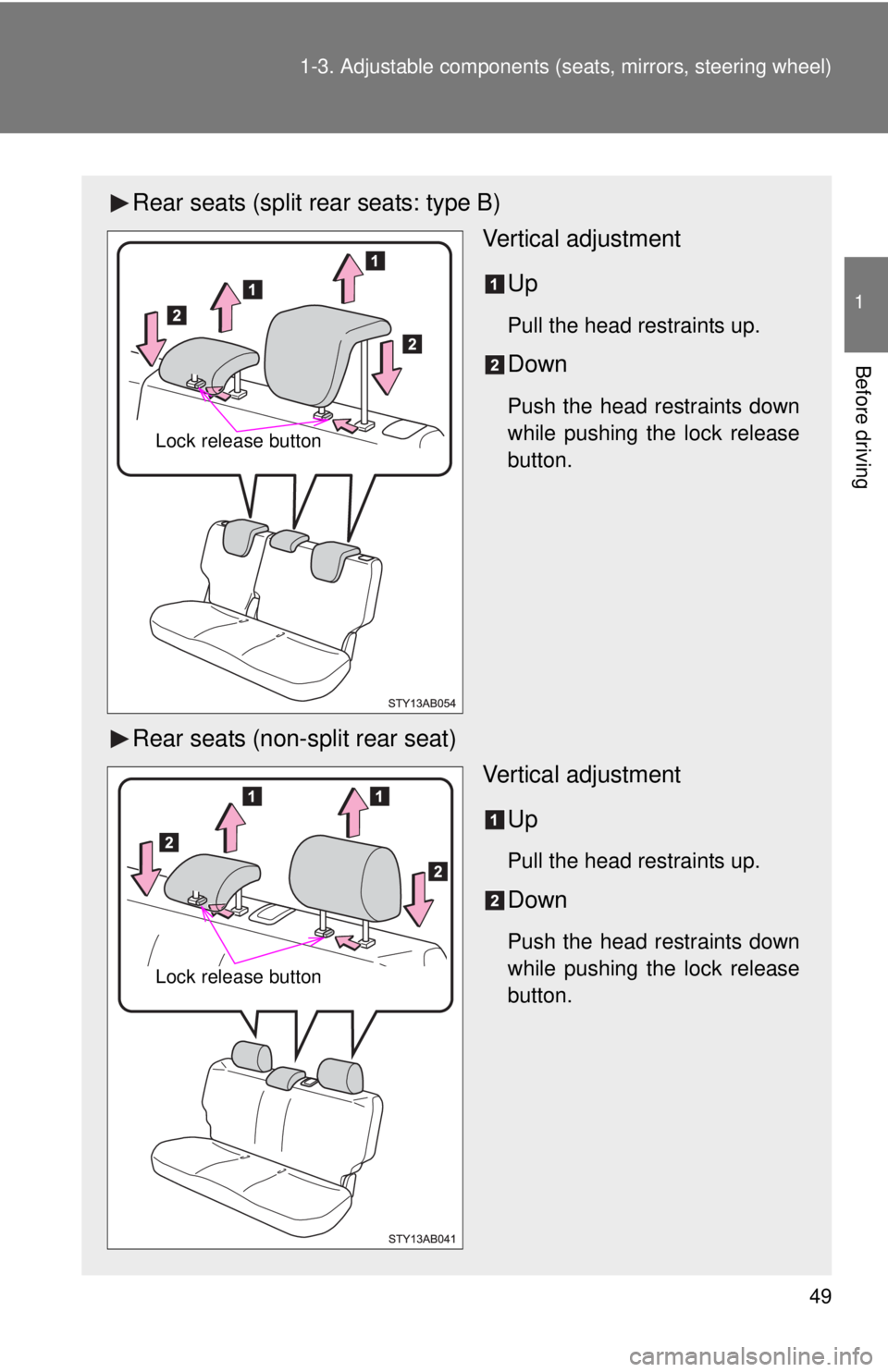

Rear seats (split rear seats: type B)
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraints down
while pushing the lock release
button.
Rear seats (non-split rear seat) Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraints down
while pushing the lock release
button.
Lock release button
Lock release button

50 1-3. Adjustable components (seats, mirrors, steering wheel)
nRemoving the head restraints
Front seats
Rear seats (split rear seats: type A)
Rear seats (split rear seats: type B)
Rear seats (non-split rear seat)
Pull the head restraint up while pushing
the lock release button.
Pull the head restraint up while pushing
the lock release button.
Pull the head restraint up while pushing
the lock release button.
Pull the head restraint up while pushing
the lock release button.
