2009 TOYOTA YARIS HATCHBACK Owners Manual

5
When trouble arises
303
5-1. Essential information

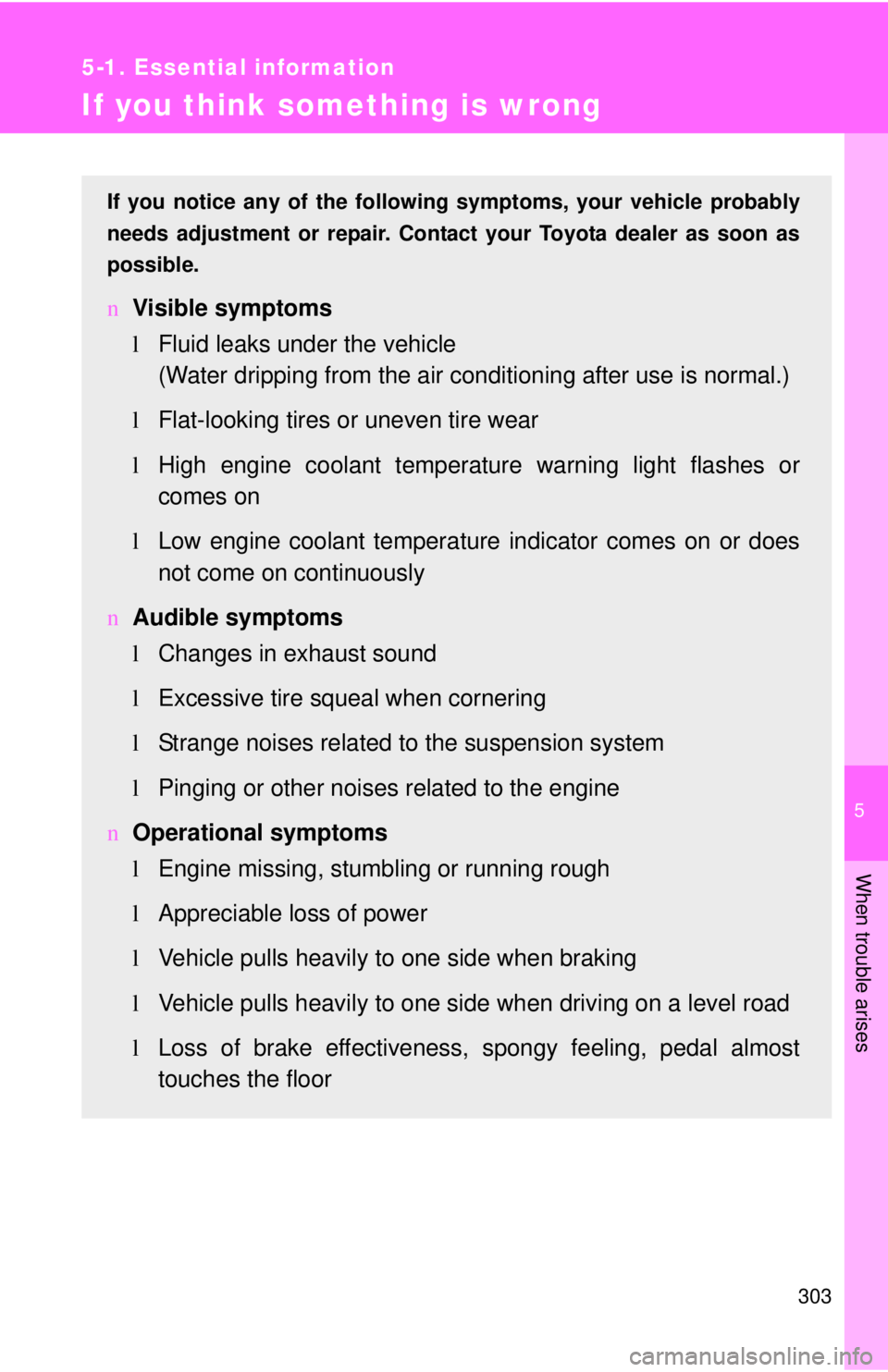

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Toyota dealer as soon as
possible.
n Visible symptoms
lFlu
id leaks under the vehicle
(Water dripping from the air cond ition
ing after use is normal.)
l Fla
t-looking tires or uneven tire wear
lHigh
engine coolant temperatur e warning light flashes or
comes on
l Low
engine coolant temperature indicator comes on or does
not come on continuously
n Audible sy
mptoms
l Cha
nges in exhaust sound
lEx
cessive tire squeal when cornering
lS
trange noises related to the suspension system
l Pin
ging or other noises related to the engine
n Operat
ional symptoms
lEn
gine missing, stumbling or running rough
lAp
preciable loss of power
lV
ehicle pulls heavily to one side when braking
lV
ehicle pulls heavily to one side when driving on a level road
lLoss o
f brake effectiveness, s pongy feeling, pedal almost
touches the floor

304
5-1. Essential information
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is
activated.Turn the engine switch to the ACC or LOCK position.
Restart the engine.
NOTICE
nBefore starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an air-
bag inflates upon collision, the fuel pump s
hut off system stops sup-
plying fuel to the engine.

5
When trouble arises
305
5-1. Essential information
Event data recorder
In a crash or a near car crash event
The SRS airbag sensor assembly contains the EDR. In a crash or a
near car crash event, this device may record some or all of the follow-
ing information:
l Engine
speed
lWhe
ther the brake pedal was applied or not
lV
ehicle speed
lT
o what extent the accelerator pedal was depressed
lPosition of the
transmission shift lever
l Whe
ther the driver and front passenger wore seat belts or not
lDr
iver’s seat position
lSRS a
irbag deployment data
lSRS a
irbag system diagnostic data
lFron
t passenger’s occupant classification
The information above is intended to be used for the purpose of
improving vehicle safety performan ce. Unlike general data recorders,
the EDR does not record sound data such as conversation between
passengers.
Your vehicle has computers that monitor and control certain aspects
of your vehicle. These computers assi st in driving and maintaining
optimal vehicle performance.
Besides storing data useful for tr oubleshooting, there is an event
data recorder (EDR) that records data in a crash or a near car
crash event.

306 5-1. Essential information
Disclosure of the data
Toyota will not disclose the data recorded in an EDR to a third party
except when:
l An agr
eement from the vehicle’s ow ner (or the leasing company for
a leased vehicle) is obtained
l Of
ficially requested by the police or other authorities
lUsed as
a defense for Toyota in a law suit
l Or
dered by a court of law
However, if necessary Toyota will:
lUse th
e data for research on Toyota vehicle safety performance
lDisclose the
data to a third party for research purposes without dis -
closing details of the vehicle ow ner
, and only when it is deemed
necessary
l Disclose summarized da
ta cleared of vehicle identification informa -
tion to a non-Toyota organization for research purposes

5
When trouble arises
307
5-2. Steps to take in an emergency
If a war ning light turns on or a war ning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in
a safe place and contact your
Toyota dealer.
*: Parking brake engaged warning buzzer:
The buzzer sounds to indicate that parking brake is still engaged (with the
vehicle having reach a speed of approximately 3 mph [5 km/h])
Warning lightWarning light/Details
(except Canada)
(Canada) Brake system warning li
ght (warning buzzer)*
• Low brake fluid
• Malfunction in the brake system
(vehicles with the ABS)
This light also comes on when the parking brake is
not released. If the light turns off after the parking
brake is fully released, the system is operating nor-
mally.
Calmly perform the following actions if any of the warning lights turn
on or flash. If a light turns on or flashes, but then turns off, this does
not necessarily indicate a malfunction in the system.

308 5-2. Steps to take in an emergency
Stop the vehicle immediately.
The following warnings indicate the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
sa
fe place and contact your Toyota dealer.
*: The light may come on when the oil level is extremely low. It is not designed to indicate low oil level, and the oil level must be checked using the engine
oil level dipstick.
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning lightWarning light/Details
Charging system warning light Indicates a malfunction in the vehicle’s charging sys-
tem.
Low engine oil pressure warning light Indicates that the engine oil pressure is too low*.
High engine coolant temperature warning light Indicate a engine is almost overheating.( →P. 337)
Warning lightWarning light/Details
(except Canada)
(Canada) Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system;
• The electronic automatic transmission control sys-tem; or
• Emission control system.

5
When trouble arises
309
5-2. Steps to take in an emergency
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system.
(except Canada)
(Canada) ABS warning light (if equipped)
Indicates a malfunction in the ABS.
Electric power steering warning light Indicates a malfunction in the EPS (Electric Power
Steering) system.
Warning lightWarning light/Details

310 5-2. Steps to take in an emergency
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light Indicates that a door is
not fully closed. Check that all doors
are closed.
(On the instrument cluster) Driver’s seat belt

reminder light
(warning buzzer)
*1
Warns the driver to fas-
ten his/her seat belt. Fasten the seat belt.
(On the center panel) Front passenger’s seat
belt reminder light

(warning buzzer)
*2
Warns the front passen-
ger to fasten his/her seat
belt. Fasten the seat belt.
(except Canada)Tire pressure warning
light
• When the light comes on:
Indicates low tire inflation
pressure. Adjust the tire
inflation pressure.

• When the light comes on after blinking for 1
minute: Malfunction in
the tire pressure warning
system. Have the system
checked by your
Toyota dealer.

(if equipped)
Low washer fluid warn-
ing light
Low level of washer fluid Fill the tank.
