2009 SUBARU TRIBECA ac 25 procedure

5AT(diag)-100
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
3CHECK TCM OUTPUT SIGNAL.
1) Turn the ignition switch to ON. (Engine
OFF)
2) Measure the voltage between TCM con-
nector and chassis ground.
Connector & terminal
(B54) No. 16 (+) — Chassis ground (–):
Is the voltage 10 — 13 V? Go to step 4.Go to step 5.
4CHECK HARNESS CONNECTOR BETWEEN
TCM AND TRANSMISSION.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from TCM and
transmission.
3) Measure the resistance of harness
between TCM connector and transmission
connector.
Connector & terminal
(B54) No. 12 — (B11) No. 9:
(B54) No. 21 — (B11) No. 10:
(B54) No. 6 — (B11) No. 11:
Is the resistance less than 1
Ω?
Go to step 5.Repair the open
circuit of harness
between TCM and
transmission con-
nector, or poor
contact of connec-
tor.
5CHECK HARNESS CONNECTOR BETWEEN
TCM AND TRANSMISSION.
Measure the resistance of harness between
TCM connector and chassis ground.
Connector & terminal
(B54) No. 12 — Chassis ground:
(B54) No. 21 — Chassis ground:
(B54) No. 6 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 6.Repair the short
circuit of harness
between TCM and
transmission con-
nector.
6CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION CONNECTOR AND CON-
TROL VALVE BODY CONNECTOR.
Measure the resistance between transmission
connector and control valve body connector.
Connector & terminal
(B11) No. 9 — (T5) No. 10:
(B11) No. 10 — (T5) No. 9:
(B11) No. 11 — (T5) No. 8:
Is the resistance less than 1
Ω?
Go to step 7.Repair the open
circuit of harness
between transmis-
sion connector
and control valve
body connector.
7CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION CONNECTOR AND CON-
TROL VALVE BODY CONNECTOR.
Measure the resistance between transmission
connector and chassis ground.
Connector & terminal
(B11) No. 9 — Chassis ground:
(B11) No. 10 — Chassis ground:
(B11) No. 11 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 8.Repair the short
circuit of harness
between transmis-
sion connector
and control valve
body connector.
8CHECK POOR CONTACT.
NOTE:
Data communication malfunction is detected
when the malfunction occurred on inspection
area above while transmission assembly is re-
placing or “Clear Memory 2” is performing.
When the repair is performed with following di-
agnosis above, perform the “Clear Memory 2”,
and then recheck that the DTC of TCM data
communication malfunction is not detected.
Is there any open or poor con-
tact of connector (loosing ter-
minal, entering foreign matter,
damaging connector body)?
Repair the poor
contact.
Replace the trans-
mission assembly.
Automatic Trans-
mission Assem-
bly.>
Step Check Yes No

5AT(diag)-101
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
AH:DTC P1706 AT VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION (REAR
WHEEL)
DTC DETECTING CONDITION:
Input signal circuit of TCM is open or shorted.
TROUBLE SYMPTOM:
•Shifting quality malfunction
•Tight corner braking phenomenon is occurred.
WIRING DIAGRAM:
AT-03298
12341011 121920 21135614 1578916 17 1822 23 24
B54B55B:A:
A:
B:A:
B:
A:
B:
12345678
A16
A7B11
B12
TCM
B54
B55
12789563410 11 1219 20 2113 14 15 16 17 18222324
B11
B12
B18
B5
125678
131415169101112
34
17181920
E
REAR VEHICLESPEED SENSOR

5AT(diag)-102
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
Step Check Yes No
1CHECK HARNESS CONNECTOR BETWEEN
TCM AND TRANSMISSION.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from TCM and
transmission.
3) Measure the resistance of harness
between TCM connector and transmission
connector.
Connector & terminal
(B54) No. 16 — (B11) No. 7:
(B55) No. 18 — (B12) No. 5:
Is the resistance less than 1
Ω?
Go to step 2.Repair the open
circuit of harness
between TCM and
transmission con-
nector.
2CHECK HARNESS CONNECTOR BETWEEN
TCM AND TRANSMISSION.
Measure the resistance of harness between
TCM connector and chassis ground.
Connector & terminal
(B54) No. 16 — Chassis ground:
(B55) No. 18 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 3.Repair the short
circuit of harness
between TCM and
chassis ground.
3CHECK TCM POWER SUPPLY OUTPUT.
1) Connect the connector to TCM. (Transmis-
sion connector is disconnected)
2) Turn the ignition switch to ON. (Engine
OFF)
3) Measure the voltage between TCM con-
nector and chassis ground.
Connector & terminal
(B54) No. 16 (+) — Chassis ground (–):
Is the voltage 10 — 13 V? Go to step 4.Go to step 5.
4CHECK TURBINE SPEED SENSOR INPUT
CIRCUIT OF TCM.
Measure the voltage between TCM connector
terminals.
Connector & terminal
(B55) No. 18 (+) — (B54) No. 19 (–):
Is the voltage 4 — 6 V? Go to step 6.Go to step 5.
5CHECK TCM I/O SIGNAL.
Check TCM I/O signal of power supply, ground
and PVIGN power supply relay. 5AT(diag)-11, ELECTRICAL SPECIFICA-
TION, Transmission Control Module (TCM) I/O
Signal.>
Is TCM I/O signal OK? Replace the TCM.
Tr a n s m i s s i o n C o n -
trol Module
(TCM).>
Repair the open or
short circuit for
power supply and
ground. Perform
the diagnosis
according to DTC
for PVIGN power
supply relay.
6CHECK HARNESS ASSEMBLY (TURBINE
SPEED SENSOR GROUND).
Check the installing condition of ground con-
necting harness (used for both of turbine
speed sensor 1, rear vehicle speed sensor).
Is the ground connecting har-
ness installed to transmission
body correctly, or the harness
and connector terminals not
damaged?
Go to step 7.When the poor
installation of
ground connect-
ing harness, install
it securely.
Replace the trans-
mission assembly
when the harness
is damaged. to 5AT-34, Auto-
matic Transmis-
sion Assembly.>

5AT(diag)-103
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
7CHECK INPUT SIGNAL FOR TCM USING
SUBARU SELECT MONITOR.
1) Connect all the connectors.
2) Lift-up the vehicle and support with rigid
racks.
NOTE:
Raise all wheels off floor.
3) Start the engine, and drive the vehicle.
4) Read the current data of front wheel speed
using Subaru Select Monitor. 5AT(diag)-15, OPERATION, Subaru Select
Monitor.>
NOTE:
The speed difference between front and rear
wheels may light the ABS warning light, but this
indicates no malfunction. When AT control di-
agnosis is finished, perform the VDC memory
clearance procedure of on-board diagnostics
system. ORY MODE, OPERATION, Subaru Select
Monitor.>
Does the value of the front
wheel speed depending on the
acceleration and deceleration
of the vehicle?
Even if the SPORT
indicator light
blinks, the system
is in normal condi-
tion. A temporary
poor contact of
connector or har-
ness may be the
cause. Repair poor
contact of har-
ness in ATF tem-
perature sensor
and transmission
connector.
Replace the trans-
mission harness.
Step Check Yes No

5AT(diag)-104
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
AI: DTC P1707 AT AWD SOLENOID VALVE CIRCUIT MALFUNCTION
DTC DETECTING CONDITION:
Output signal circuit of transfer solenoid is open or shorted.
TROUBLE SYMPTOM:
•Tight corner braking phenomenon is occurred.
•Drivability getting worse.

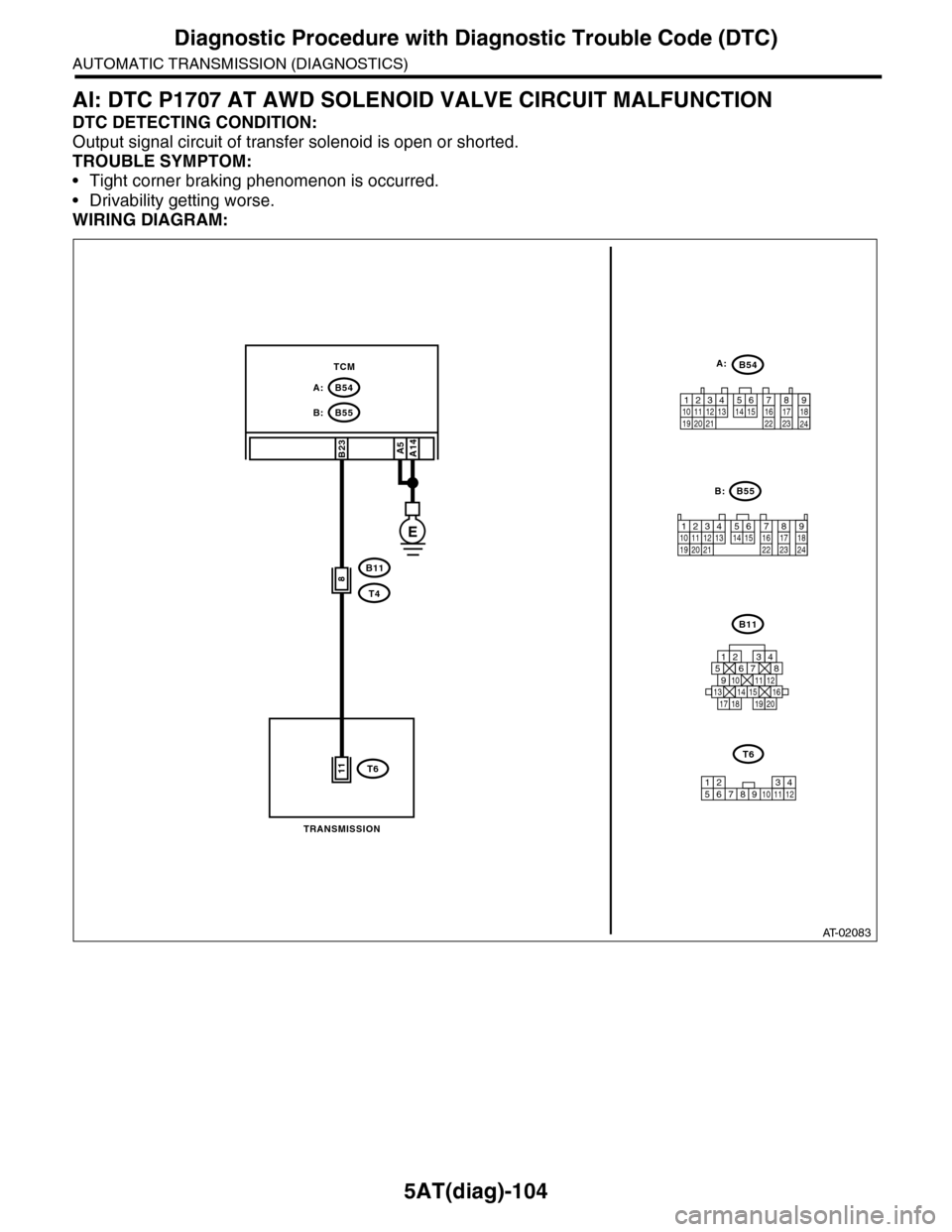

WIRING DIAGRAM:
AT-02083
A5A14
E
B23
B11
B54
B11
125678
131415169101112
34
17181920
TRANSMISSION
12789563410 11 1219 20 2113 14 15 16 17 18222324
T4
11T612586910 113412
T6
7
8
12341011 121920 21135614 1578916 17 1822 23 24
B55B:
A:
B54
B55
A:
B:
TCM

5AT(diag)-105
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)

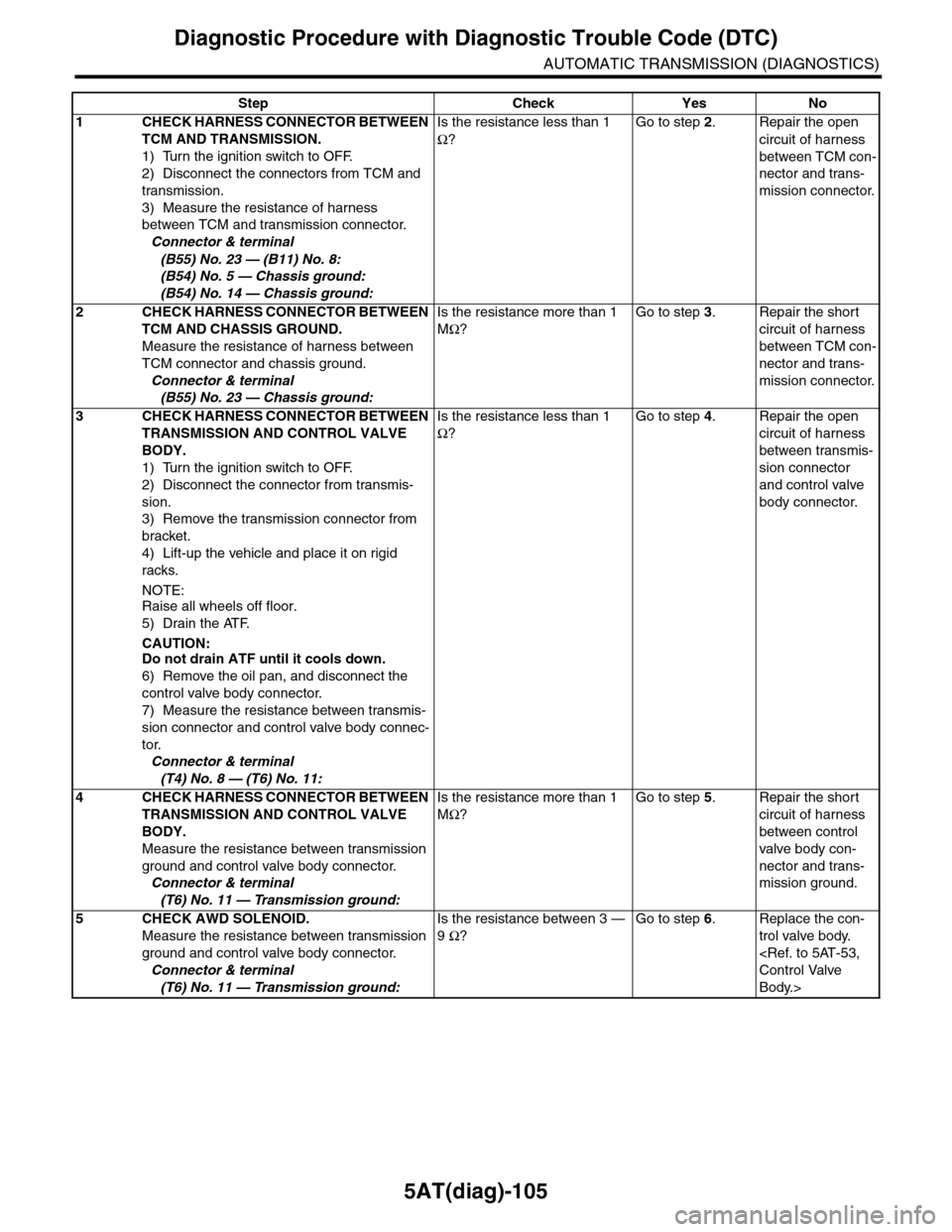

Step Check Yes No
1CHECK HARNESS CONNECTOR BETWEEN
TCM AND TRANSMISSION.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from TCM and
transmission.
3) Measure the resistance of harness
between TCM and transmission connector.
Connector & terminal
(B55) No. 23 — (B11) No. 8:
(B54) No. 5 — Chassis ground:
(B54) No. 14 — Chassis ground:
Is the resistance less than 1
Ω?
Go to step 2.Repair the open
circuit of harness
between TCM con-
nector and trans-
mission connector.
2CHECK HARNESS CONNECTOR BETWEEN
TCM AND CHASSIS GROUND.
Measure the resistance of harness between
TCM connector and chassis ground.
Connector & terminal
(B55) No. 23 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 3.Repair the short
circuit of harness
between TCM con-
nector and trans-
mission connector.
3CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION AND CONTROL VALVE
BODY.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from transmis-
sion.
3) Remove the transmission connector from
bracket.
4) Lift-up the vehicle and place it on rigid
racks.
NOTE:Raise all wheels off floor.
5) Drain the ATF.
CAUTION:Do not drain ATF until it cools down.
6) Remove the oil pan, and disconnect the
control valve body connector.
7) Measure the resistance between transmis-
sion connector and control valve body connec-
tor.
Connector & terminal
(T4) No. 8 — (T6) No. 11:
Is the resistance less than 1
Ω?
Go to step 4.Repair the open
circuit of harness
between transmis-
sion connector
and control valve
body connector.
4CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION AND CONTROL VALVE
BODY.
Measure the resistance between transmission
ground and control valve body connector.
Connector & terminal
(T6) No. 11 — Transmission ground:
Is the resistance more than 1
MΩ?
Go to step 5.Repair the short
circuit of harness
between control
valve body con-
nector and trans-
mission ground.
5CHECK AWD SOLENOID.
Measure the resistance between transmission
ground and control valve body connector.
Connector & terminal
(T6) No. 11 — Transmission ground:
Is the resistance between 3 —
9 Ω?
Go to step 6.Replace the con-
trol valve body.
Control Valve
Body.>

5AT(diag)-106
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)

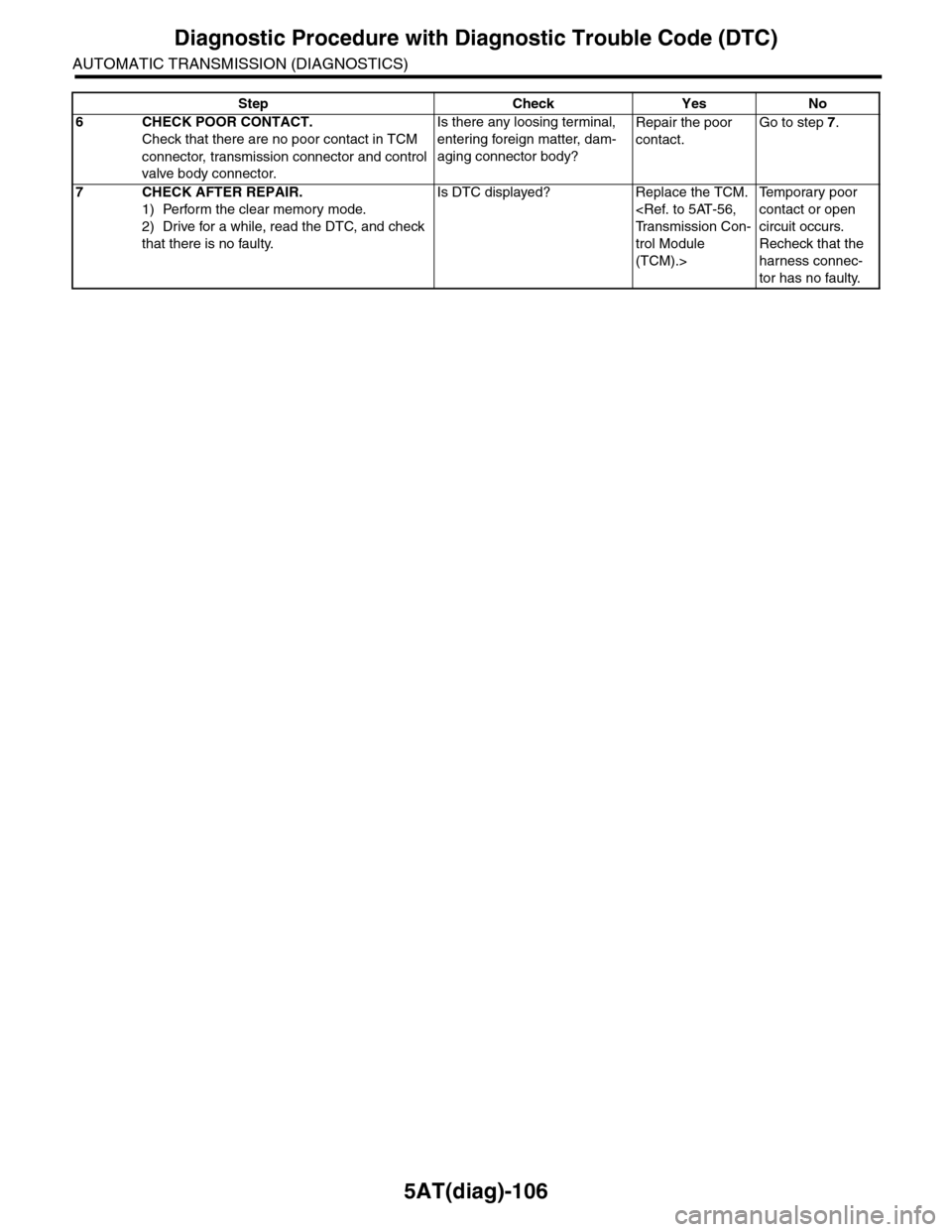

6CHECK POOR CONTACT.
Check that there are no poor contact in TCM
connector, transmission connector and control
valve body connector.
Is there any loosing terminal,
entering foreign matter, dam-
aging connector body?
Repair the poor
contact.
Go to step 7.
7CHECK AFTER REPAIR.
1) Perform the clear memory mode.
2) Drive for a while, read the DTC, and check
that there is no faulty.
Is DTC displayed? Replace the TCM.
Tr a n s m i s s i o n C o n -
trol Module
(TCM).>
Te m p o r a r y p o o r
contact or open
circuit occurs.
Recheck that the
harness connec-
tor has no faulty.
Step Check Yes No

5AT(diag)-107
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
AJ:DTC P1710 TORQUE CONVERTER TURBINE 2 SPEED SIGNAL CIRCUIT 2
MALFUNCTION
DTC DETECTING CONDITION:
Input signal circuit of TCM is open or shorted.
TROUBLE SYMPTOM:
•Excessive shift shock
•Does not shift to 5th
WIRING DIAGRAM:
AT-02997
12341011 121920 21135614 1578916 17 1822 23 24
12345678
B54
B55
12789563410 11 1219 20 2113 14 15 16 17 18222324
B11
B12
125678
131415169101112
34
17181920
B54A:B55B:
A16
7B11
T4
B12
T3
TCM
TURBINE SPEED SENSOR 2
TRANSMISSION
B22
6
E
B:
A:
T5T6
123 68910 11 12 13 14451516
T5
7
12586910 113412
T6
7
315
