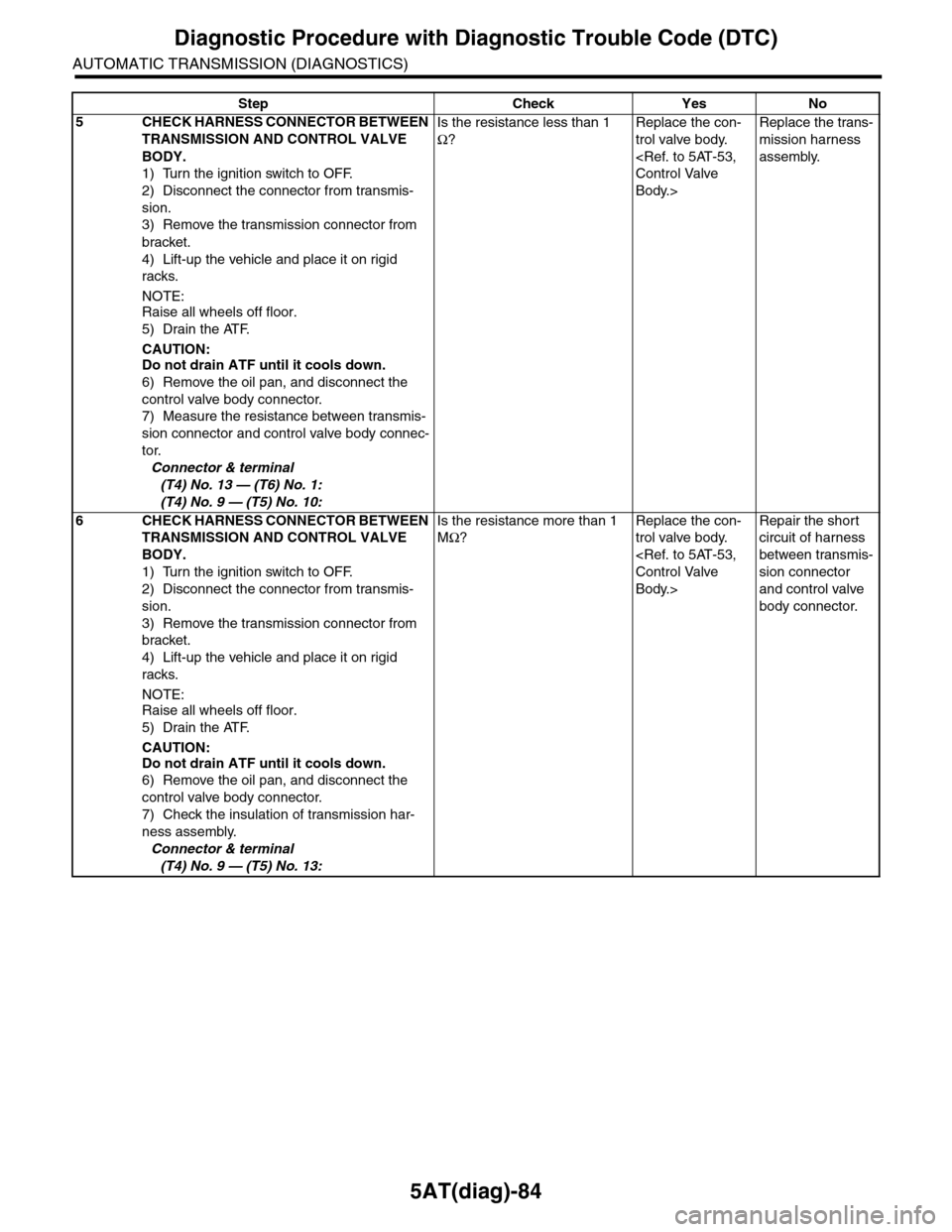

5AT(diag)-84
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
5CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION AND CONTROL VALVE
BODY.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from transmis-
sion.
3) Remove the transmission connector from
bracket.
4) Lift-up the vehicle and place it on rigid
racks.
NOTE:Raise all wheels off floor.
5) Drain the ATF.
CAUTION:Do not drain ATF until it cools down.
6) Remove the oil pan, and disconnect the
control valve body connector.
7) Measure the resistance between transmis-
sion connector and control valve body connec-
tor.
Connector & terminal
(T4) No. 13 — (T6) No. 1:
(T4) No. 9 — (T5) No. 10:
Is the resistance less than 1
Ω?
Replace the con-
trol valve body.
Control Valve
Body.>
Replace the trans-
mission harness
assembly.
6CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION AND CONTROL VALVE
BODY.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from transmis-
sion.
3) Remove the transmission connector from
bracket.
4) Lift-up the vehicle and place it on rigid
racks.
NOTE:Raise all wheels off floor.
5) Drain the ATF.
CAUTION:
Do not drain ATF until it cools down.
6) Remove the oil pan, and disconnect the
control valve body connector.
7) Check the insulation of transmission har-
ness assembly.
Connector & terminal
(T4) No. 9 — (T5) No. 13:
Is the resistance more than 1
MΩ?
Replace the con-
trol valve body.
Control Valve
Body.>
Repair the short
circuit of harness
between transmis-
sion connector
and control valve
body connector.
Step Check Yes No

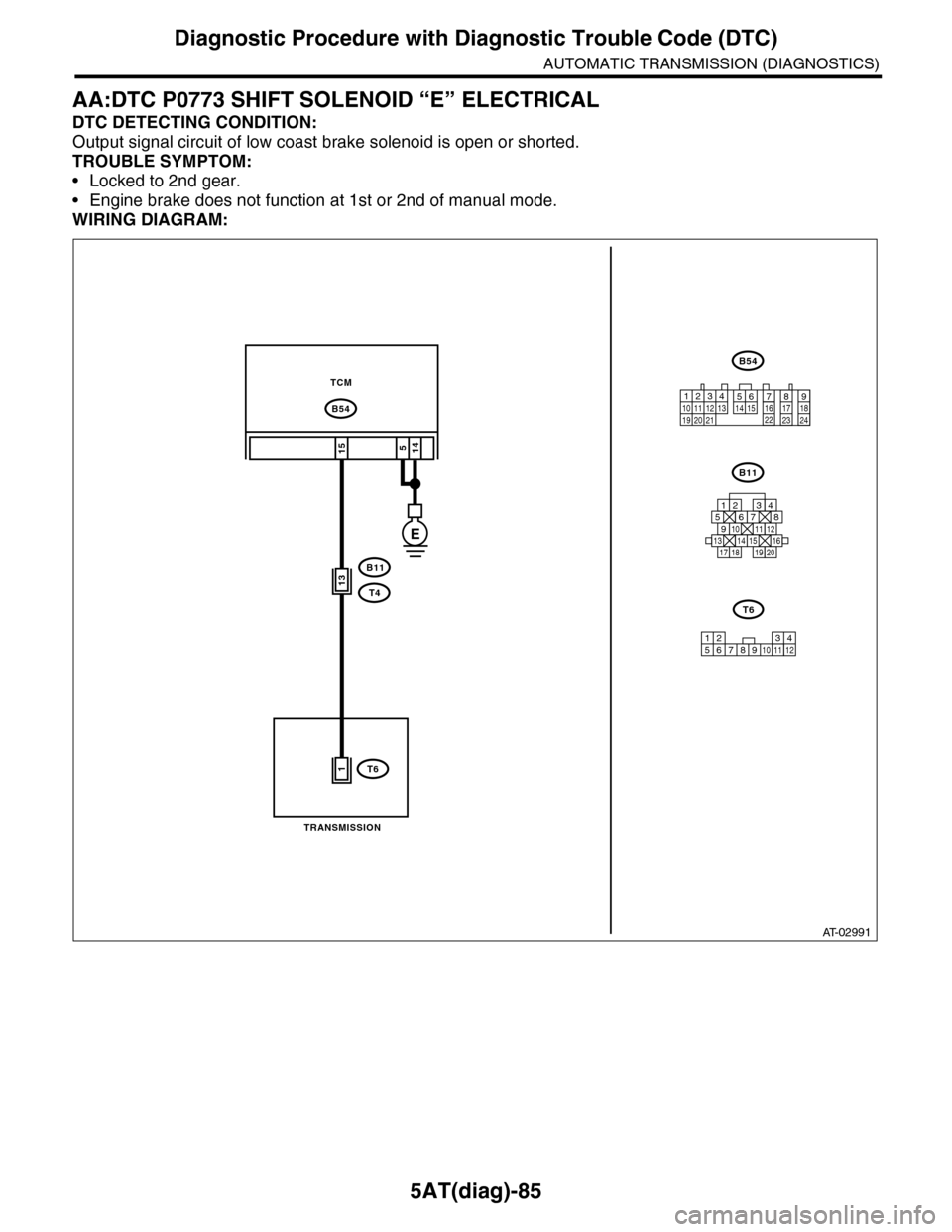

5AT(diag)-85
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
AA:DTC P0773 SHIFT SOLENOID “E” ELECTRICAL
DTC DETECTING CONDITION:
Output signal circuit of low coast brake solenoid is open or shorted.
TROUBLE SYMPTOM:
•Locked to 2nd gear.
•Engine brake does not function at 1st or 2nd of manual mode.
WIRING DIAGRAM:
AT-02991
B54
15
B11
TCM
B54
B11
125678
131415169101112
34
17181920
TRANSMISSION
12789563410 11 1219 20 2113 14 15 16 17 18222324
T4
T6
12586910 113412
T6
7
E
514
1
13

5AT(diag)-86
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
Step Check Yes No
1CHECK DTC OF TCM.Is DTC (P0802) of the PVIGN
relay detected?
Pe r for m t h e d ia g -
nosis according to
DTC.
Go to step 2.
2CHECK HARNESS CONNECTOR BETWEEN
TCM AND TRANSMISSION.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from TCM and
transmission.
3) Measure the resistance of harness
between TCM and transmission connector.
Connector & terminal
(B54) No. 15 — (B11) No. 13:
(B54) No. 5 — Chassis ground:
(B54) No. 14 — Chassis ground:
Is the resistance less than 1
Ω?
Go to step 3.Repair the open
circuit of harness
between TCM con-
nector and trans-
mission connector.
3CHECK HARNESS CONNECTOR BETWEEN
TCM AND BODY HARNESS.
Measure the resistance of harness between
TCM connector and body harness.
Connector & terminal
(B54) No. 15 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 4.Repair the short
circuit of harness
between TCM con-
nector and trans-
mission connector.
4CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION AND CONTROL VALVE
BODY.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from transmis-
sion.
3) Remove the transmission connector from
bracket.
4) Lift-up the vehicle and place it on rigid
racks.
NOTE:Raise all wheels off floor.
5) Drain the ATF.
CAUTION:
Do not drain ATF until it cools down.
6) Remove the oil pan, and disconnect the
control valve body connector.
7) Measure the resistance between transmis-
sion connector and control valve body connec-
tor.
Connector & terminal
(T4) No. 13 — (T6) No. 1:
Is the resistance less than 1
Ω?
Go to step 5.Repair the open
circuit of harness
between transmis-
sion connector
and control valve
body connector.
5CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION AND CONTROL VALVE
BODY.
Measure the resistance between chassis
ground and control valve body connector.
Connector & terminal
(T6) No. 1 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 6.Repair the short
circuit of harness
between control
valve body con-
nector and trans-
mission ground.
6CHECK LOW COAST BRAKE SOLENOID.
Measure the resistance of harness connector
between control valve body connector and
transmission ground.
Connector & terminal
(T6) No. 1 — Transmission ground:
Is the resistance between 5 —
17 Ω?
Go to step 7.Replace the con-
trol valve body.
Control Valve
Body.>

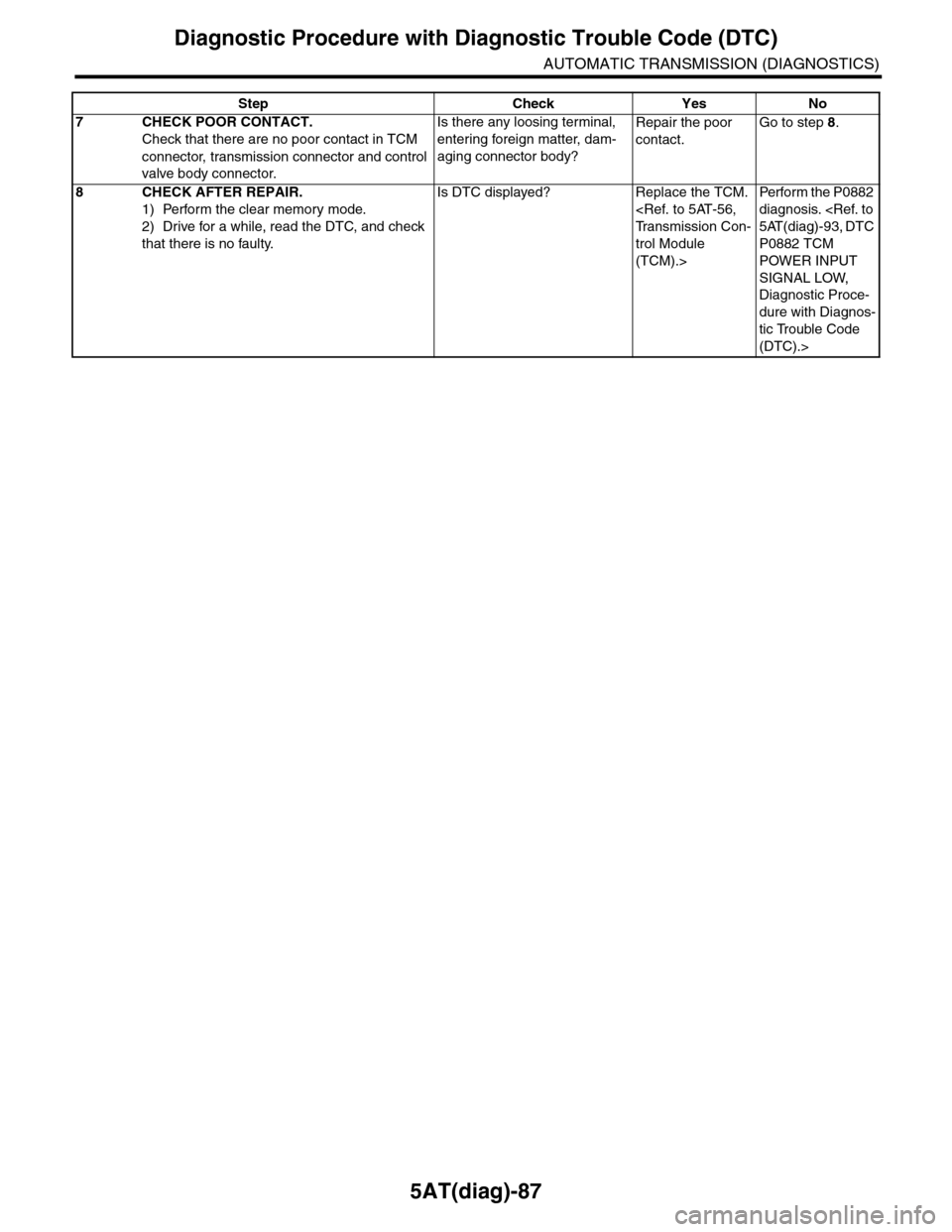

5AT(diag)-87
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
7CHECK POOR CONTACT.
Check that there are no poor contact in TCM
connector, transmission connector and control
valve body connector.
Is there any loosing terminal,
entering foreign matter, dam-
aging connector body?
Repair the poor
contact.
Go to step 8.
8CHECK AFTER REPAIR.
1) Perform the clear memory mode.
2) Drive for a while, read the DTC, and check
that there is no faulty.
Is DTC displayed? Replace the TCM.
Tr a n s m i s s i o n C o n -
trol Module
(TCM).>
Per fo r m t he P 0 88 2
diagnosis. 5AT(diag)-93, DTC
P0882 TCM
POWER INPUT
SIGNAL LOW,
Diagnostic Proce-
dure with Diagnos-
tic Trouble Code
(DTC).>
Step Check Yes No

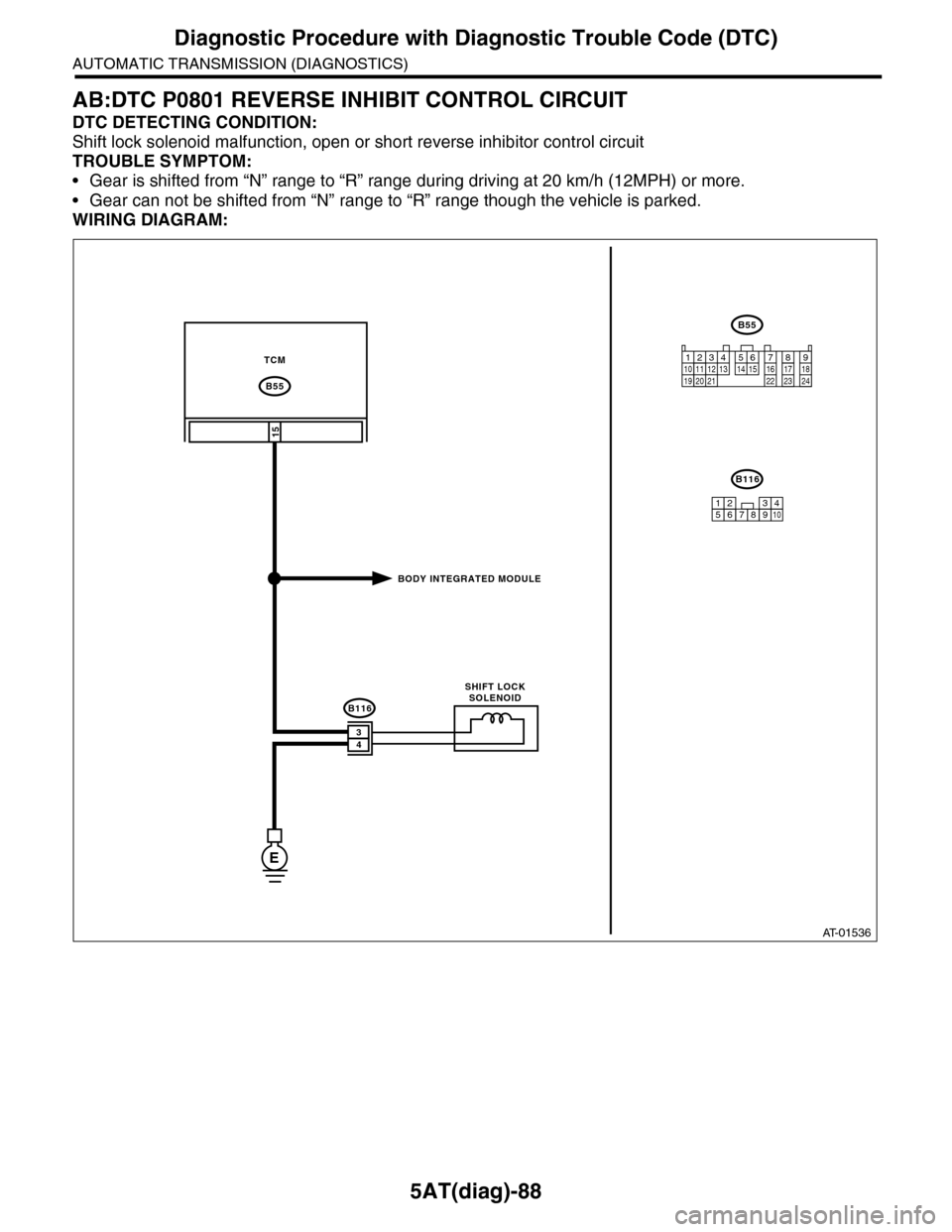

5AT(diag)-88
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
AB:DTC P0801 REVERSE INHIBIT CONTROL CIRCUIT
DTC DETECTING CONDITION:
Shift lock solenoid malfunction, open or short reverse inhibitor control circuit
TROUBLE SYMPTOM:
•Gear is shifted from “N” range to “R” range during driving at 20 km/h (12MPH) or more.
•Gear can not be shifted from “N” range to “R” range though the vehicle is parked.
WIRING DIAGRAM:
AT-01536
TCM
15
B55
E
B116
B55
B116
34
BODY INTEGRATED MODULE
SHIFT LOCKSOLENOID
12341011 121920 21135614 1578916 17 1822 23 24
12345678910

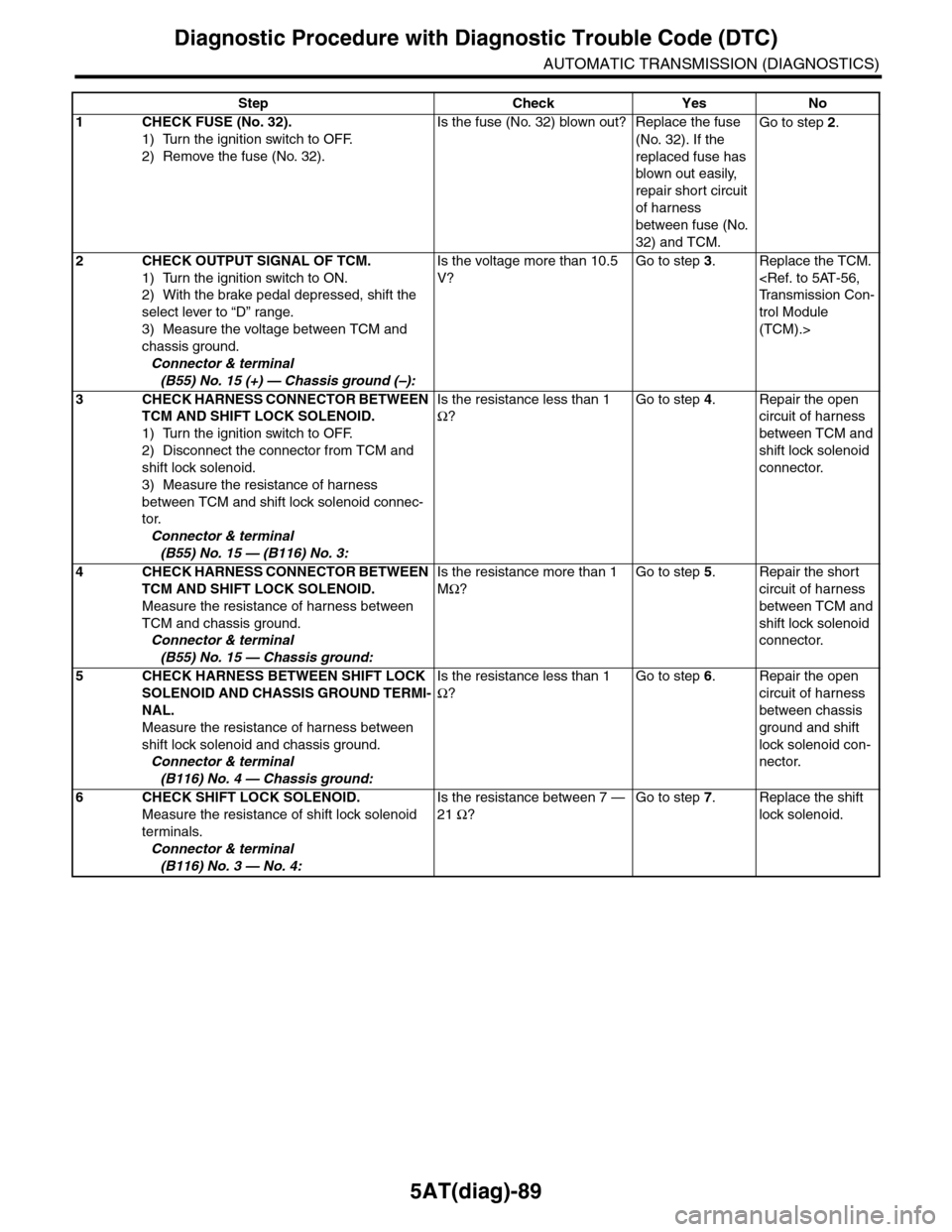

5AT(diag)-89
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
Step Check Yes No
1CHECK FUSE (No. 32).
1) Turn the ignition switch to OFF.
2) Remove the fuse (No. 32).
Is the fuse (No. 32) blown out? Replace the fuse
(No. 32). If the
replaced fuse has
blown out easily,
repair short circuit
of harness
between fuse (No.
32) and TCM.
Go to step 2.
2CHECK OUTPUT SIGNAL OF TCM.
1) Turn the ignition switch to ON.
2) With the brake pedal depressed, shift the
select lever to “D” range.
3) Measure the voltage between TCM and
chassis ground.
Connector & terminal
(B55) No. 15 (+) — Chassis ground (–):
Is the voltage more than 10.5
V?
Go to step 3.Replace the TCM.
Tr a n s m i s s i o n C o n -
trol Module
(TCM).>
3CHECK HARNESS CONNECTOR BETWEEN
TCM AND SHIFT LOCK SOLENOID.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from TCM and
shift lock solenoid.
3) Measure the resistance of harness
between TCM and shift lock solenoid connec-
tor.
Connector & terminal
(B55) No. 15 — (B116) No. 3:
Is the resistance less than 1
Ω?
Go to step 4.Repair the open
circuit of harness
between TCM and
shift lock solenoid
connector.
4CHECK HARNESS CONNECTOR BETWEEN
TCM AND SHIFT LOCK SOLENOID.
Measure the resistance of harness between
TCM and chassis ground.
Connector & terminal
(B55) No. 15 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 5.Repair the short
circuit of harness
between TCM and
shift lock solenoid
connector.
5CHECK HARNESS BETWEEN SHIFT LOCK
SOLENOID AND CHASSIS GROUND TERMI-
NAL.
Measure the resistance of harness between
shift lock solenoid and chassis ground.
Connector & terminal
(B116) No. 4 — Chassis ground:
Is the resistance less than 1
Ω?
Go to step 6.Repair the open
circuit of harness
between chassis
ground and shift
lock solenoid con-
nector.
6CHECK SHIFT LOCK SOLENOID.
Measure the resistance of shift lock solenoid
terminals.
Connector & terminal
(B116) No. 3 — No. 4:
Is the resistance between 7 —
21 Ω?
Go to step 7.Replace the shift
lock solenoid.

5AT(diag)-90
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
7CHECK OUTPUT SIGNAL OF TCM.
1) Lift-up the vehicle and support with rigid
racks.
NOTE:Raise all wheels off floor.
2) Start the engine.
3) Shift the select lever to “D” range and
slowly increase vehicle speed to 20 km/h (12
MPH).
NOTE:
The speed difference between front and rear
wheels may light the ABS warning light, but this
indicates no malfunction. When AT control di-
agnosis is finished, perform the VDC memory
clearance procedure of on-board diagnostics
system. ORY MODE, OPERATION, Subaru Select
Monitor.>
4) Measure the voltage between TCM and
chassis ground.
Connector & terminal
(B55) No. 15 (+) — Chassis ground (–):
Is the voltage less than 1 V? Even if the SPORT
indicator light up,
the circuit has
returned to nor-
mal condition at
this time. A tempo-
rary poor contact
of connector or
harness may be
the cause. Repair
the harness or
connector in
reverse inhibitor
control circuit.
Go to step 8.
8CHECK POOR CONTACT.Is there poor contact in the
reverse inhibitor control circuit?
Repair the poor
contact.
Replace the TCM.
Tr a n s m i s s i o n C o n -
trol Module
(TCM).>
Step Check Yes No

5AT(diag)-91
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AUTOMATIC TRANSMISSION (DIAGNOSTICS)
AC:DTC P0817 STARTER DISABLE CIRCUIT
DTC DETECTING CONDITION:
Open or short in P/N signal output circuit
TROUBLE SYMPTOM:
•Engine can be started on other than “P” or “N” range
•Engine can not be started on “P” or “N” range.
WIRING DIAGRAM:
AT-03288
B136
B55
31
19
ECM
TCM
B55
12341011 121920 21135614 1578916 17 1822 23 24
B136
16101112131415252430
9871718192028212223293231
123456
2726333435
Step Check Yes No
1CHECK DTC OF TCM.Is DTC of Transmission Range
Sensor Circuit (PRNDL Input)
detected?
Pe r for m t h e d ia g -
nosis according to
DTC.
Go to step 2.
2CHECK ECM.Is the communication between
Subaru Select Monitor and
ECM normal?
Go to step 3.Perform the diag-
nosis according to
DTC concerning
ECM.
