2009 SUBARU TRIBECA Actuator

SL-12
Keyless Entry System
SECURITY AND LOCKS
Description Terminal No. Measuring condition
Ignition switch (ON) A1 (INPUT) Battery voltage is present when ignition switch is turned ON.
Keyless buzzer A6 (OUTPU T)12 V is present when pressing the LOCK or UNLOCK button of transmit-
ter.
Driver’s side front door lock actuator A7 (OUTPUT) Battery voltage is present when pressing the transmitter LOCK button.
Door and rear gate lock actuator A8 (OUTPUT)Battery voltage is present when pressing the transmitter UNLOCK but-
ton.
Keyless entr y control module A9 (INPUT) Communication line (Cannot be measured because of digital signal)
Rear gate latch switch A17 (INPUT) 0 V is present when opening the rear gate.
Rear door switch RH A18 (INPUT) 0 V is present when opening the rear door RH.
Fr o nt d oo r swi tc h L H A 19 ( I NP UT ) 0 V i s pr e se n t wh e n o p en in g th e f r o n t d oo r L H.
Ground A21 0 V is constantly present.
Rear gate release switch C22 (OUTPUT) 0 V is present when pressing the rear gate release switch.
Rear gate release actuator A22 (OUTPUT)The battery voltage is detected for 0.6 seconds when operating the rear
gate release switch.
Driver’s side front door lock actuator A23 (OUTPUT)Battery voltage is present when pressing the transmitter UNLOCK but-
ton.
Driver’s side power window main
switch (door lock switch)
Passenger’s side door lock sw itch
A15 0 V is present when pressing the door lock switch to the LOCK side.
A29 0 V is present when pressing the door lock switch to the UNLOCK side.
Rear door switch LH A31 (INPUT) 0 V is present when opening the rear door LH.
Fr o nt d oo r swi tc h RH A 32 ( I NP UT ) 0 V i s pr e se n t wh e n o p en in g th e f r o n t d oo r RH.
Pow er s up p ly A 34 B at t e r y vol t ag e i s c on s ta n tl y p r e se nt .
Room light B3 (INPUT)•0 V is present when pressing the UNLOCK button of transmitter.
•0 V is present when opening the door.
Pow er s up p ly B 7 B at t e r y vol t ag e i s c on s ta n tl y p r e se nt .
Horn circuit B11 (INPUT) 0 V is present when pressing the panic button of transmitter
Tu r n s i g n a l & h a z a r d c i r c u i t B 1 2 ( O U T P U T )0 V is present when pressing the LOCK or UNLOCK button of transmit-
ter.
Ground B22 0 V is constantly present.
Pow er s up p ly C 1 B at t e r y vol t ag e i s c on s ta n tl y p r e se nt .
Pow er s up p ly C 2 B at t e r y vol t ag e i s c on s ta n tl y p r e se nt .
Key war ning switch C7 (INPUT) Batter y voltage is present when inser ting the key into ignition switch.
Ground C8 0 V is constantly present.
Ground C9 0 V is constantly present.

SL-21
Keyless Entry System
SECURITY AND LOCKS
10.CHECK REAR GATE RELEASE ACTUATOR OPERATION
Step Check Yes No
1CHECK REAR GATE RELEASE ACTUATOR
OPERATION.
1) Turn the ignition switch to OFF.
2) Disconnect the key warning switch harness
connector.
3) Connect the Subaru Select Monitor to data
link connector.
4) Turn the ignition switch to ON.
5) Select {Integ. unit} from main menu.
6) Select the {Current Data Display & Save}.
7) Check the rear gate release output signal of
body integrated unit when operating the LOCK/
UNLOCK button of keyless transmitter.
Is output signal is present
when operating the transmitter
LOCK/UNLOCK button?
Go to step 2.Check the body
integrated unit.
LAN(diag)-2, Basic
Diagnostic Proce-
dure.>
2CHECK THE CIRCUIT OF REAR GATE RE-
LEASE ACTUATOR.
1) Disconnect the harness connector of body
integrated unit.
2) Disconnect the rear gate release actuator
harness connector.
3) Measure the resistance between harness
connectors.
Connector & terminal
(i84) No. 22 — (D140) No. 1:
Is the resistance less than 10
Ω?
Go to step 3.Repair the har-
ness.
3CHECK CIRCUIT OF HAZARD LIGHT.
1) Check the ground circuit of rear gate
release actuator
2) Disconnect the rear gate release actuator
harness connector.
3) Measure the resistance between harness
connector terminal and chassis ground.
Connector & terminal
(D140) No. 2 — Chassis ground:
Is the resistance less than 10
Ω?
Check the trunk lid
lock actuator.
INSPECTION,
Rear Gate Latch
Assembly.>
Repair the har-
ness.

SL-34
Front Inner Remote
SECURITY AND LOCKS
5. Front Inner Remote
A: REMOVAL
1) Remove the door trim. AL, Door Trim.>
2) Remove the cable from the cable holder.
3) Remove the screw, move the inner remote to the
rear, and remove from the panel.
4) Remove the cable (1).
5) Remove the cable end (2), and remove the inner
remote.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Make sure the inner remote works correctly after in-
stallation.
C: INSPECTION
1) Check the cable of the remote handle and lock
knob for deformation. When it is deformed, straight-
en it because failure operations may occur. When it
is unrepairable, replace the front door latch and
door lock actuator assembly.
2) Check that the remote handle and lock knob op-
erates smoothly.
SL-00441
(2)
(1)

SL-36
Front Door Latch and Door Lock Actuator Assembly
SECURITY AND LOCKS
7. Front Door Latch and Door
Lock Actuator Assembly
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Raise the rear door glass to the top position.
3) Remove the front door trim. MOVAL, Door Trim.>
4) Remove the cable from the front inner remote.

5) Remove the sealing cover. MOVAL, Front Sealing Cover.>
6) Remove the door sash. MOVAL, Front Regulator and Motor Assembly.>
7) Remove the connection rod of the key cylinder
lever. (Driver’s side only)
8) Remove the three screws and one bolt.
9) Remove the front door latch and actuator as-
sembly, and disconnect the connector.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Make sure lock and unlock works correctly after in-
stallation.
C: INSPECTION
1) Check the rod and cable for deformation. When
it is deformed, straighten it because failure opera-
tions may occur. When it is unrepairable, replace
the front door latch and actuator assembly.
2) Check the lever, rod and cable for smooth oper-
ation.
SL-00443

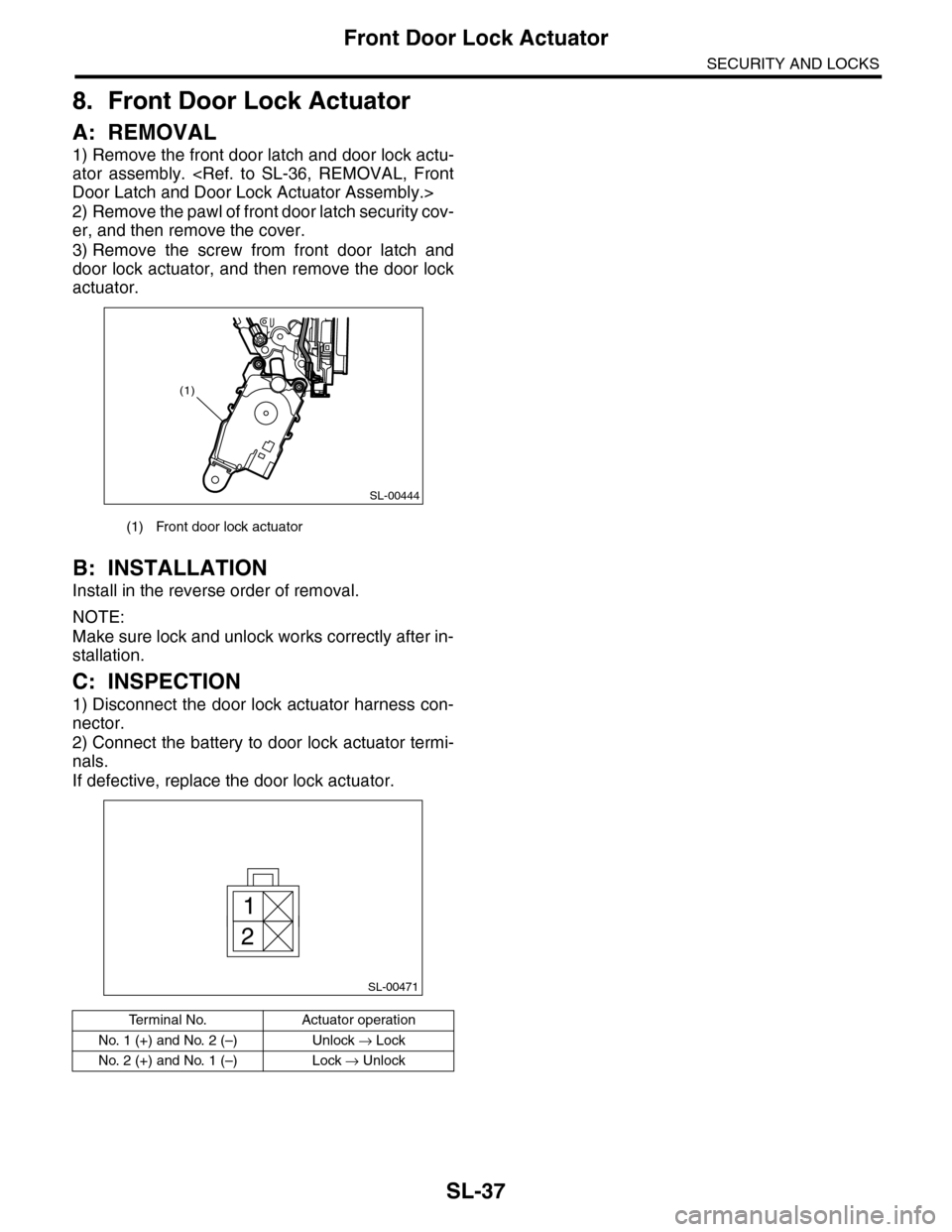

SL-37
Front Door Lock Actuator
SECURITY AND LOCKS
8. Front Door Lock Actuator
A: REMOVAL
1) Remove the front door latch and door lock actu-
ator assembly. Door Latch and Door Lock Actuator Assembly.>
2) Remove the pawl of front door latch security cov-
er, and then remove the cover.
3) Remove the screw from front door latch and
door lock actuator, and then remove the door lock
actuator.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Make sure lock and unlock works correctly after in-
stallation.
C: INSPECTION
1) Disconnect the door lock actuator harness con-
nector.
2) Connect the battery to door lock actuator termi-
nals.
If defective, replace the door lock actuator.
(1) Front door lock actuator
Te r m i n a l N o . A c t u a t o r o p e r a t i o n
No. 1 (+) and No. 2 (–) Unlock → Lock
No. 2 (+) and No. 1 (–) Lock → Unlock
SL-00444
(1)
SL-00471
1
2

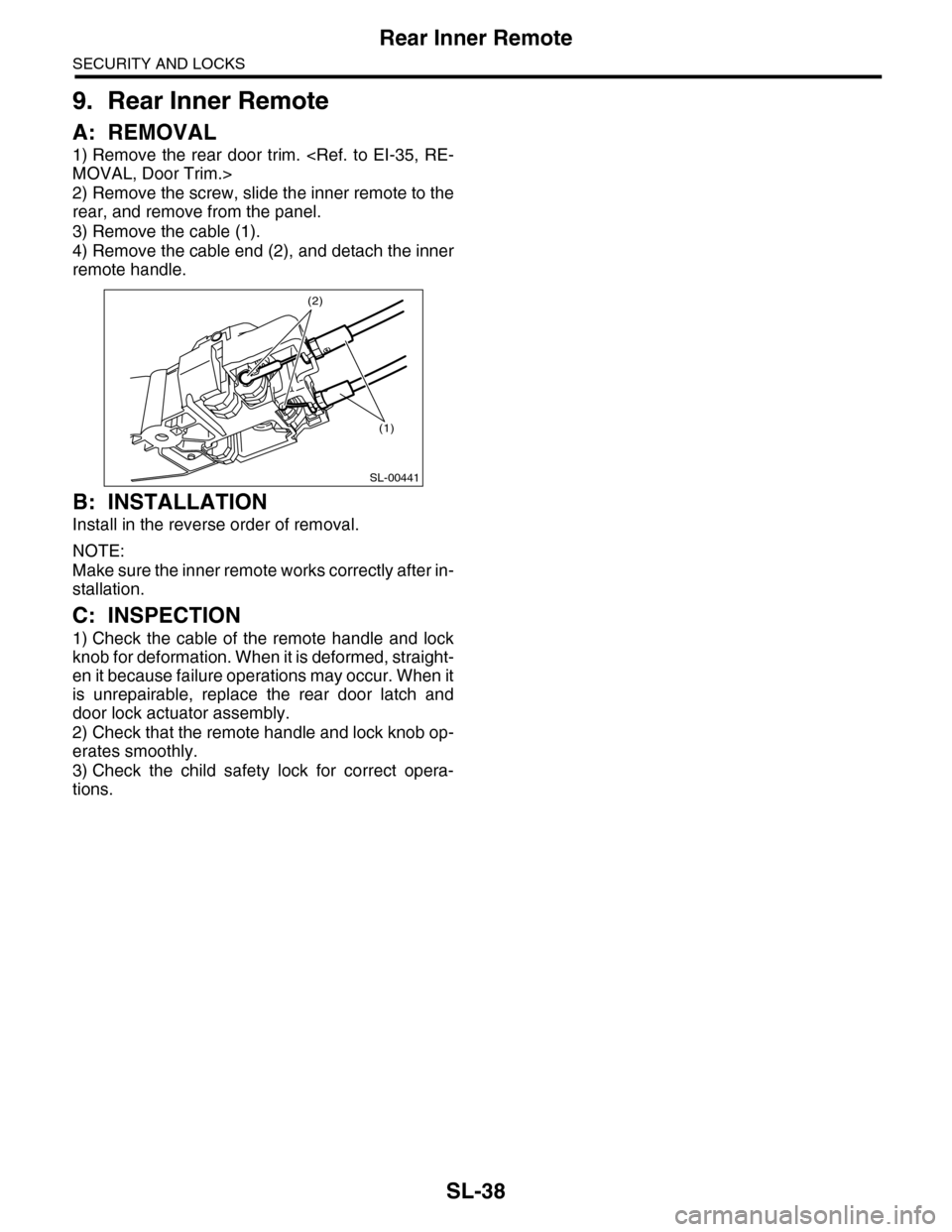

SL-38
Rear Inner Remote
SECURITY AND LOCKS
9. Rear Inner Remote
A: REMOVAL
1) Remove the rear door trim. MOVAL, Door Trim.>
2) Remove the screw, slide the inner remote to the
rear, and remove from the panel.
3) Remove the cable (1).
4) Remove the cable end (2), and detach the inner
remote handle.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Make sure the inner remote works correctly after in-
stallation.
C: INSPECTION
1) Check the cable of the remote handle and lock
knob for deformation. When it is deformed, straight-
en it because failure operations may occur. When it
is unrepairable, replace the rear door latch and
door lock actuator assembly.
2) Check that the remote handle and lock knob op-
erates smoothly.
3) Check the child safety lock for correct opera-
tions.
SL-00441
(2)
(1)

SL-40
Rear Door Latch and Door Lock Actuator Assembly
SECURITY AND LOCKS
11.Rear Door Latch and Door
Lock Actuator Assembly
A: REMOVAL
1) Raise the door glass to the top position.
2) Disconnect the ground cable from battery.
3) Remove the rear door trim. MOVAL, Door Trim.>
4) Remove the cable from rear inner remote. to SL-38, REMOVAL, Rear Inner Remote.>
5) Remove the sealing cover. MOVAL, Rear Sealing Cover.>
6) Remove the rear sash. MOVAL, Rear Regulator and Motor Assembly.>
7) Pull out the cable from the cable clamp of the
outer handle.
8) Remove the three screws and one bolt.
9) Disconnect the connectors, and then remove the
rear door latch and door lock actuator assembly.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Make sure lock and unlock works correctly after in-
stallation.
C: INSPECTION
1) Check the cable for deformation. When it is de-
formed, straighten it because failure operations
may occur. When it is unrepairable, replace the
rear door latch and door lock actuator assembly.
2) Check that the lever and cable operates smooth-
ly.
SL-00443

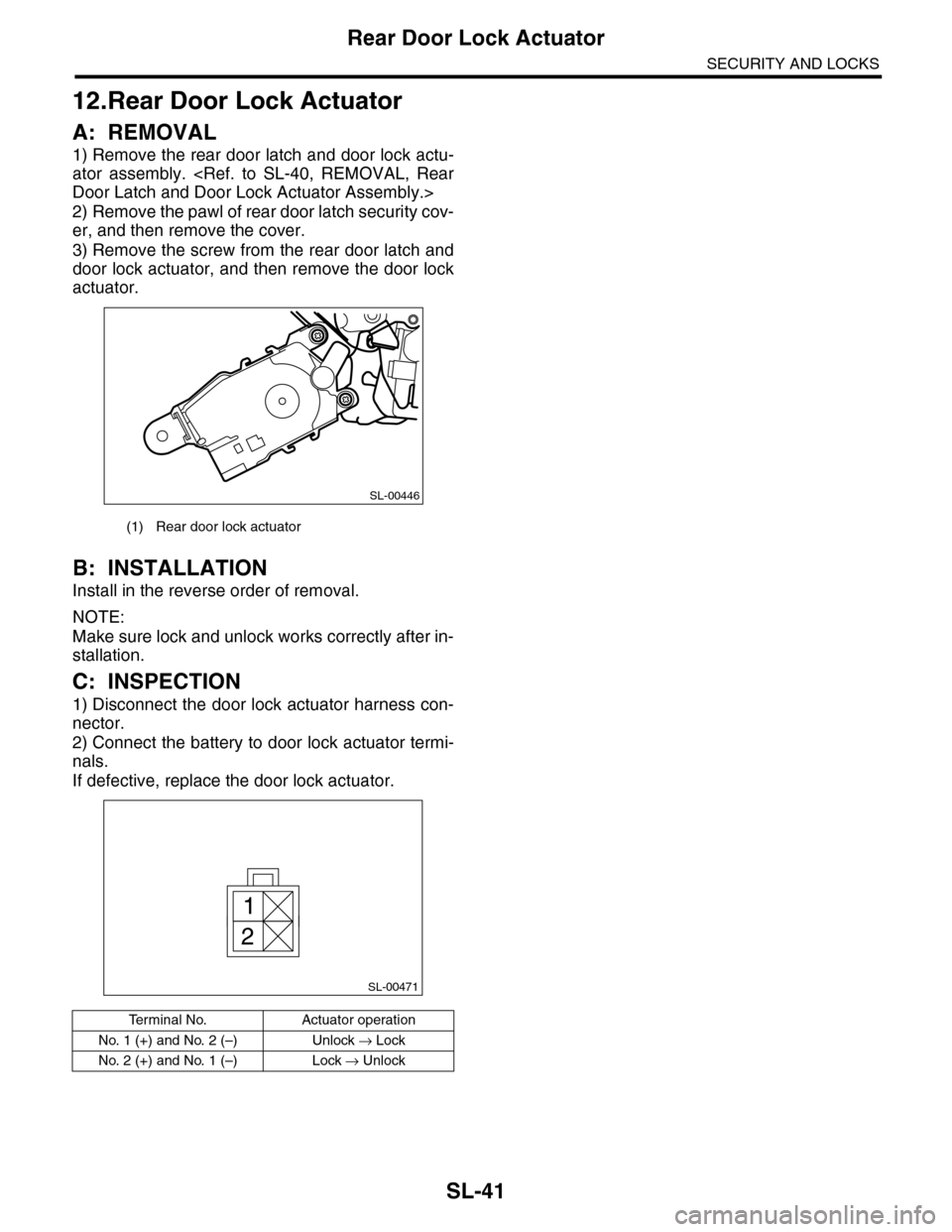

SL-41
Rear Door Lock Actuator
SECURITY AND LOCKS
12.Rear Door Lock Actuator
A: REMOVAL
1) Remove the rear door latch and door lock actu-
ator assembly. Door Latch and Door Lock Actuator Assembly.>
2) Remove the pawl of rear door latch security cov-
er, and then remove the cover.
3) Remove the screw from the rear door latch and
door lock actuator, and then remove the door lock
actuator.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Make sure lock and unlock works correctly after in-
stallation.
C: INSPECTION
1) Disconnect the door lock actuator harness con-
nector.
2) Connect the battery to door lock actuator termi-
nals.
If defective, replace the door lock actuator.
(1) Rear door lock actuator
Te r m i n a l N o . A c t u a t o r o p e r a t i o n
No. 1 (+) and No. 2 (–) Unlock → Lock
No. 2 (+) and No. 1 (–) Lock → Unlock
SL-00446
SL-00471
1
2
