2009 SUBARU TRIBECA diagram

AB(diag)-101
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AH:DTC 57 CURTAIN AIRBAG SENSOR LH FAILURE
DTC DETECTING CONDITION:
•Curtain airbag sensor (LH) is faulty.
•Curtain airbag harness (LH) is faulty.
•Airbag control module is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag main harness, disconnect the airbag module connectors of driver's
and passenger's seats for safety reasons.
•When inspecting the airbag rear harness, disconnect the side airbag module connector, curtain
airbag module connector and seat belt pretensioner connector for safety reasons.
WIRING DIAGRAM:
AB-00672
AB3212
1112
AB31
AB39
1511413
3412
AB31
12
AB17
AB17
789101112
13141516171819
56
20
1234
AIRBAG CONTROL MODULE
INFLATOR(CURTAIN LH)
CURTAIN AIRBAGSENSOR LH
AB32
1234

AB(diag)-104
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AK:DTC 61 BELT PRETENSIONER RH FAILURE
DTC DETECTING CONDITION:
•Seat belt pretensioner (RH) circuit is open, shorted or shorted to ground.
•Airbag control module is faulty.
•Pretensioner is faulty.
•Pretensioner harness is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag rear harness, disconnect the side airbag module connector, curtain
airbag module connector and seat belt pretensioner connector for safety reasons.
WIRING DIAGRAM:
AB-00925
12
AB18
AB26
AB26
12
1112
AB18
789101112
13141516171819
56
20
1234
AIRBAG CONTROL MODULE
PRETENSIONER RH

AB(diag)-107
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)

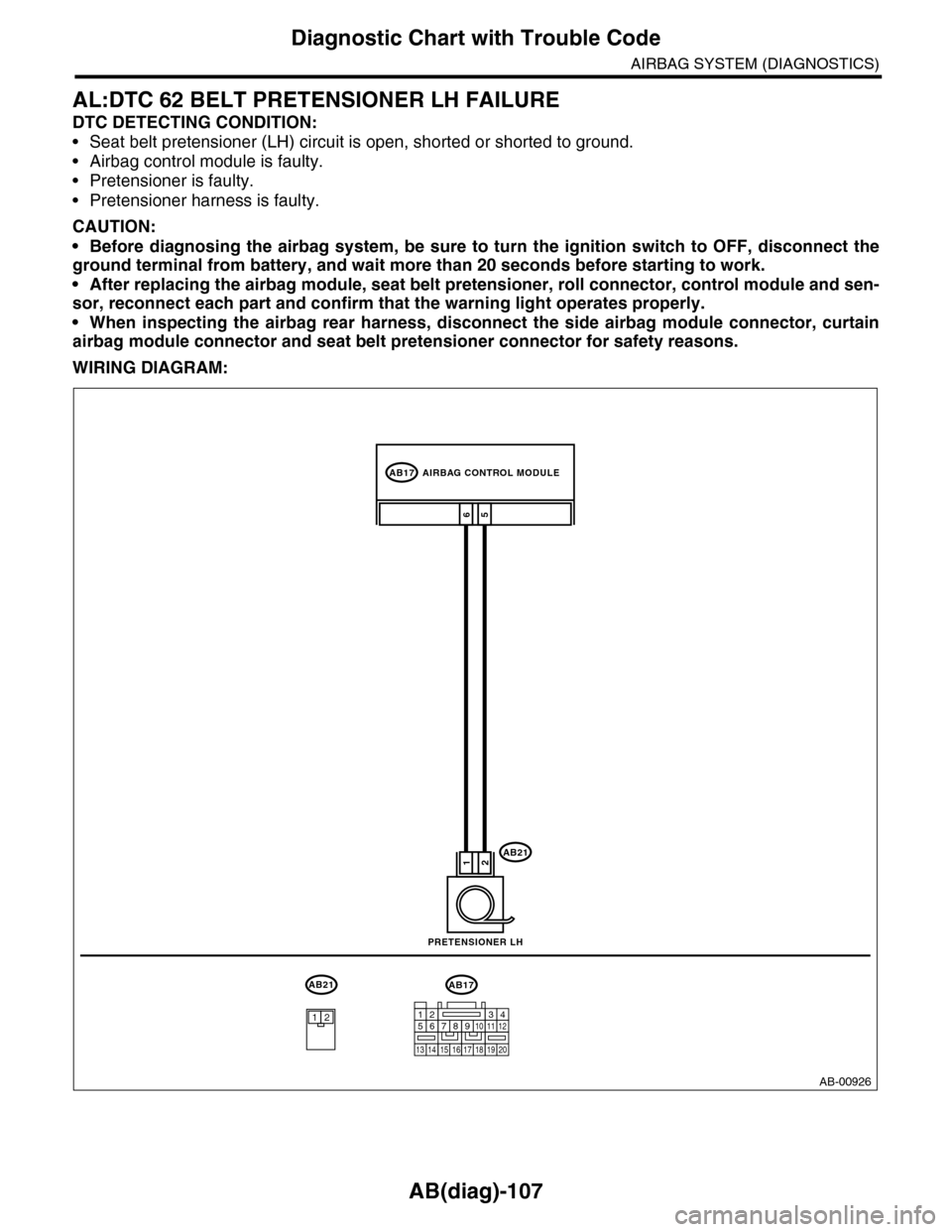

AL:DTC 62 BELT PRETENSIONER LH FAILURE
DTC DETECTING CONDITION:
•Seat belt pretensioner (LH) circuit is open, shorted or shorted to ground.
•Airbag control module is faulty.
•Pretensioner is faulty.
•Pretensioner harness is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag rear harness, disconnect the side airbag module connector, curtain
airbag module connector and seat belt pretensioner connector for safety reasons.
WIRING DIAGRAM:
AB-00926
12
AB17
AB21
AB21
12
65
AB17
789101112
13141516171819
56
20
1234
AIRBAG CONTROL MODULE
PRETENSIONER LH

AB(diag)-110
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AM:DTC 65 BELT PRETENSIONER RH FAILURE
DTC DETECTING CONDITION:
•Seat belt pretensioner (RH) circuit is shorted to power supply.
•Pretensioner is faulty.
•Pretensioner harness is faulty.
•Airbag control module is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag rear harness, disconnect the side airbag module connector, curtain
airbag module connector and seat belt pretensioner connector for safety reasons.
WIRING DIAGRAM:
AB-00925
12
AB18
AB26
AB26
12
1112
AB18
789101112
13141516171819
56
20
1234
AIRBAG CONTROL MODULE
PRETENSIONER RH

AB(diag)-112
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AN:DTC 66 BELT PRETENSIONER LH FAILURE
DTC DETECTING CONDITION:
•Seat belt pretensioner (LH) circuit is shorted to power supply.
•Pretensioner is faulty.
•Pretensioner harness is faulty.
•Airbag control module is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag rear harness, disconnect the side airbag module connector, curtain
airbag module connector and seat belt pretensioner connector for safety reasons.
WIRING DIAGRAM:
AB-00926
12
AB17
AB21
AB21
12
65
AB17
789101112
13141516171819
56
20
1234
AIRBAG CONTROL MODULE
PRETENSIONER LH

AB(diag)-114
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AO:DTC 71 DRIVER'S AIRBAG FAILURE
DTC DETECTING CONDITION:
•Airbag main harness circuit is open, shorted or shorted to ground.
•Airbag module harness (driver's side) circuit is open, shorted or shorted to ground.
•Roll connector circuit is open, shorted or shorted to ground.
•Driver's airbag module is faulty.
•Airbag control module is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag main harness, disconnect the airbag module connectors and seat belt
pretensioners of the driver’s and passenger’s seats for safety reasons.
NOTE:
Prior to starting work, prepare two airbag resistors (98299PA040).
WIRING DIAGRAM:
AB-01300
16171314
AB6
AB2
AB2
AB71234
AB6
AB381212
21
AB38
AB37
123421
AB37
1234567891011121314151617
1819202122232425262728
AIRBAG CONTROL MODULE
STEERINGROLL CONNECTOR
INFLATOR(DRIVER SIDE)

AB(diag)-117
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)

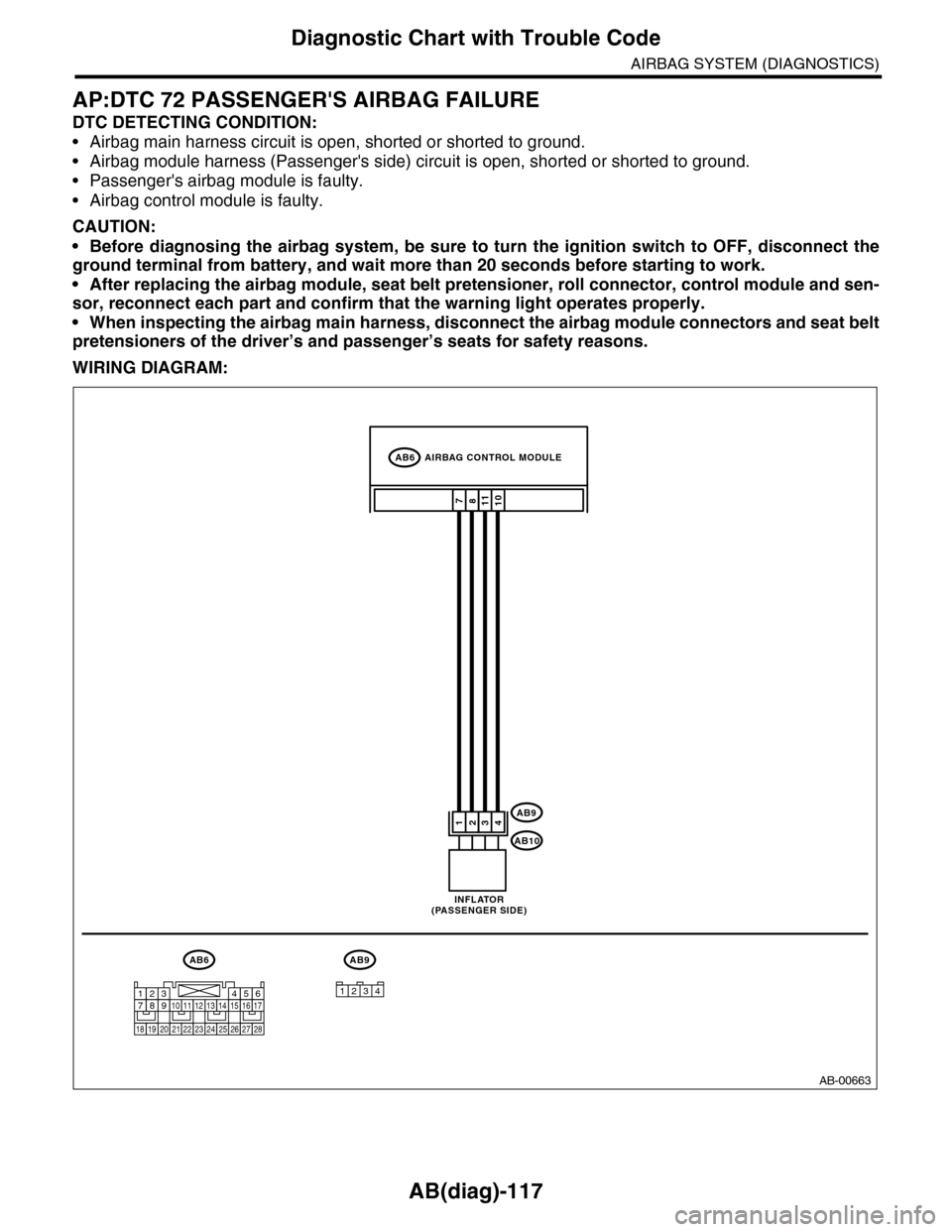

AP:DTC 72 PASSENGER'S AIRBAG FAILURE
DTC DETECTING CONDITION:
•Airbag main harness circuit is open, shorted or shorted to ground.
•Airbag module harness (Passenger's side) circuit is open, shorted or shorted to ground.
•Passenger's airbag module is faulty.
•Airbag control module is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag main harness, disconnect the airbag module connectors and seat belt
pretensioners of the driver’s and passenger’s seats for safety reasons.
WIRING DIAGRAM:
AB-00663
AB6
AB9
AB9
AB10
1110
34
78
12
AB6
1234567891011121314151617
1819202122232425262728
INFLATOR(PASSENGER SIDE)
AIRBAG CONTROL MODULE
1234

AB(diag)-120
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AQ:DTC 75 DRIVER'S AIRBAG FAILURE
DTC DETECTING CONDITION:
•Airbag main harness circuit (Driver's side) is shorted to power supply.
•Airbag module harness circuit (Driver's side) is shorted to power supply.
•Roll connector is shorted to power supply.
•Driver's airbag module is faulty.
•Airbag control module is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag main harness, disconnect the airbag module connectors and seat belt
pretensioners of the driver’s and passenger’s seats for safety reasons.
NOTE:
Prior to starting work, prepare two airbag resistors (98299PA040).
WIRING DIAGRAM:
AB-01300
16171314
AB6
AB2
AB2
AB71234
AB6
AB381212
21
AB38
AB37
123421
AB37
1234567891011121314151617
1819202122232425262728
AIRBAG CONTROL MODULE
STEERINGROLL CONNECTOR
INFLATOR(DRIVER SIDE)
