2009 SUBARU TRIBECA relay

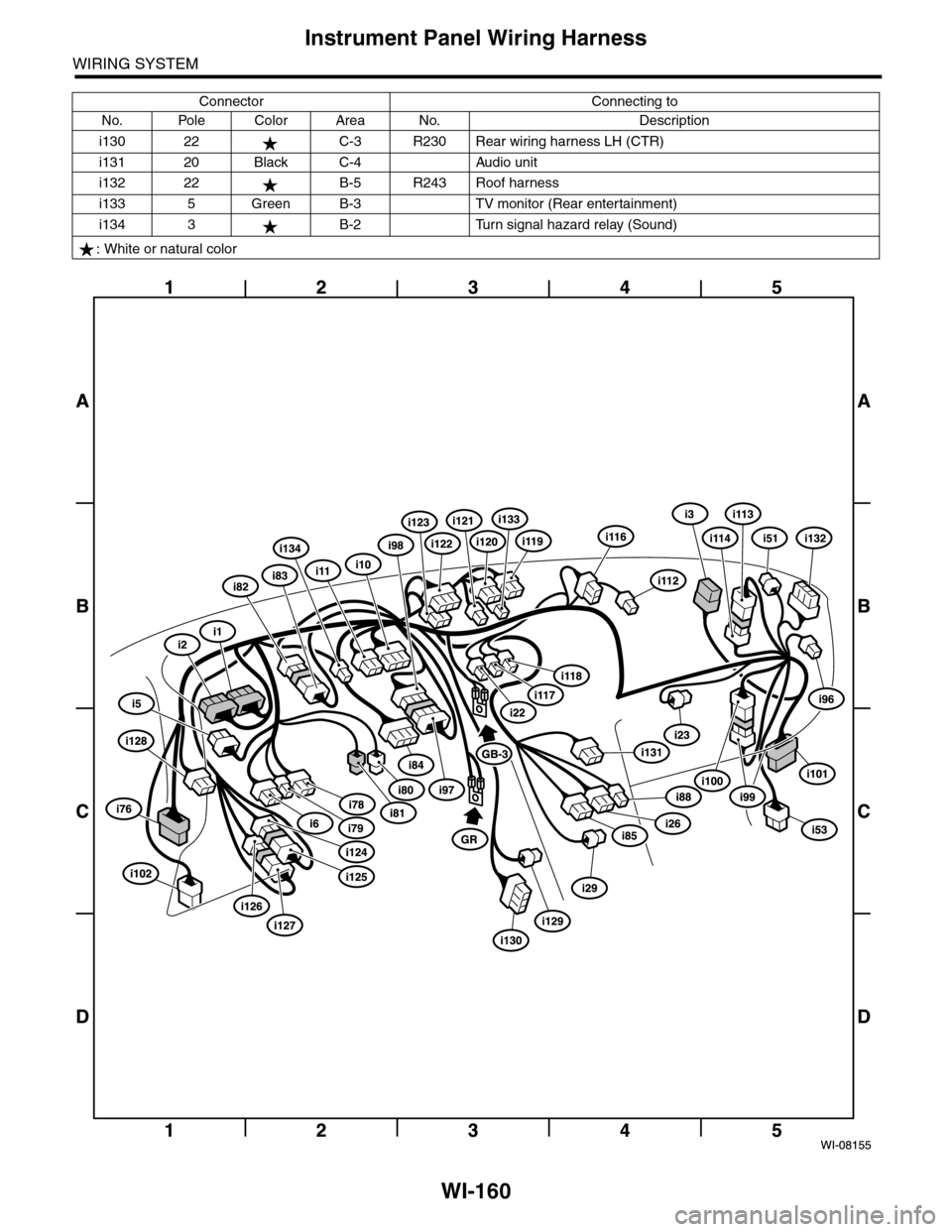

WI-160
Instrument Panel Wiring Harness
WIRING SYSTEM
i130 22 C-3 R230 Rear wiring harness LH (CTR)
i131 20 Black C-4 Audio unit
i132 22 B-5 R243 Roof harness
i133 5 Green B-3 TV monitor (Rear entertainment)
i134 3 B-2 Turn signal hazard relay (Sound)
: White or natural color
Connector Connecting to
No. Pole Color Area No. Description

WI-161
Rear Wiring Harness
WIRING SYSTEM
60.Rear Wiring Harness
A: LOCATION
1. RIGHT HAND
Connector Connecting to
No. Pole Color Area No. Description
R1 24 Black C-1 B98 Bulkhead wiring harness
R10 10 B-3 D22 Rear door cord (Passenger’s side)
R12 3 B-2 Front door switch RH
R15 14 C-3 R60 Fuel cord 1
R16 3 B-3 Rear door switch RH
R44 6 C-3 Seat heater & second-row seat foot light RH
R47 3 Black C-5 Fuel tank pressure sensor
R50 12 C-1 B90 Bulkhead wiring harness
R51 2 Black B-2 Vanity mirror illumination light RH
R52 3 B-3 Room light
R55 10 Gray B-4 Sunroof control unit & motor
R56 6 Gray B-3 Spot map light
R57 3 B-3 Rearview mirror
R58 6 Gray C-4 Fuel gauge main unit
R59 2 C-4 Fuel gauge sub unit
R60 14 C-3 R15 Rear wiring harness
R98 22 Blue C-1 i53 Instrument panel wiring harness
R109 2 Black C-3 Power seat RH
R117 2 A-4 Super woofer
R122 10 Black B-4 Fuel pump relay control unit
R128 5 B-3 Open/Close switch
R143 2 Gray C-5 Drain valve
R187 5 Black B-3 Tilt switch
R233 4 C-3 Joint connector
R234 1 Black C-5 Rear differential gear oil temperature switch
R235 10 A-5 R245 Tail harness
R236 24 B-4 Rear seat entertainment
R237 4 B-3
Joint connector
R238 4 B-3
R239 4 B-4
R240 4 B-4
R241 4 B-2
R243 22 C-1 i132 Instrument panel wiring harness
R249 2 Gray C-3 Rear ABS wheel speed sensor RH
R250 3 B-4 Room light
R251 4 B-2
Joint connector
R252 12 Gray C-2
R253 12 Gray C-2
R255 4 C-2
R256 4 C-2
R257 2 B-3 Rear tweeter RH

WI-164
Rear Wiring Harness
WIRING SYSTEM
2. LEFT HAND
Connector Connecting to
No. Pole Color Area No. Description
R2 20 Black D-2 B98 Bulkhead wiring harness
R8 4 C-2 Front seat belt switch LH
R9 3 C-3 Front door cord switch LH
R13 10 C-3 D28 Rear door cord (Driver’s side)
R22 3 C-4 Rear door switch LH
R28 4 B-5 Rear combination light LH
R41 6 C-2 Seat heater & second-row seat foot light LH
R167 20 Blue D-2 i102 Instrument panel wiring harness (Driver’s seat)
R168 20 D-1 Fuse & relay box (F/B)
R188 2 Black C-2 Power seat LH
R211 12 D-2 TPM control module
R215 14 B-5 R247 Tail harness
R216 12 Black B-5 R246 Tail harness (Joint connector)
R217 10 B-5 R248 Tail harness (Rear entertainment)
R218 4 B-5 Rear cooler relay
R219 4 B-5 Blower fan resistor
R220 2 B-5 Blower motor
R221 4 C-3
Joint connectorR222 4 C-3
R224 12 D-2
R225 12 D-2
R226 10 Black C-2 Navigation module
R227 12 D-2Joint connectorR228 12 D-2
R229 11 C-1 R272 Console pocket
R230 22 C-1 i130 Instrument panel wiring harness (Center)
R232 2 Gray C-4 Rear ABS wheel speed sensor LH
R254 14 B-4 Adapter code
R272 11 C-1 R229 Rear harness
R273 2 B-1 Cup holder illumination
R274 2 B-2Fr o nt a cc es so r y p ower s up pl y s ocke tR275 2 B-2
R276 10 B-2 Blower fan switch
: White or natural color
Connector Connecting to
No. Pole Color Area No. Description
AB17 20 Yellow C-1 Airbag control module
AB19 2 Yellow C-2 Inflator (Side) LH
AB21 2 Black C-3 Pretensioner LH
AB23 4 Yellow C-3 Side airbag sensor LH
AB31 2 Yellow B-4 Inflator (Curtain) LH
AB32 4 Yellow C-4 Curtain airbag sensor LH
AB51 2 Yellow C-2 Buckle switch
AB52 2 Yellow C-2 Seat position sensor LH
