2009 SUBARU TRIBECA sensor

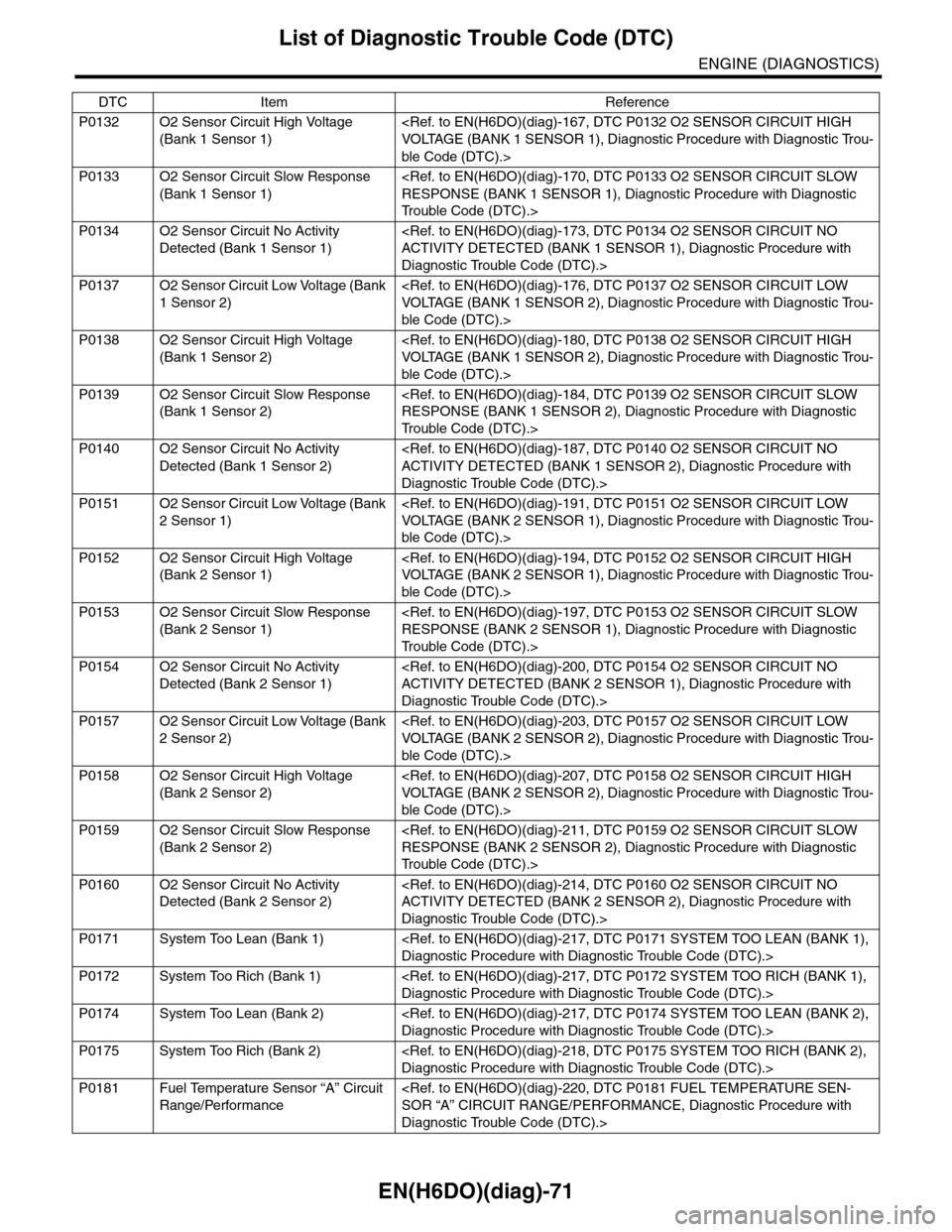

EN(H6DO)(diag)-71
List of Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
P0132 O2 Sensor Circuit High Voltage
(Bank 1 Sensor 1)
VOLTAGE (BANK 1 SENSOR 1), D iagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P0133 O2 Sensor Circuit Slow Response
(Bank 1 Sensor 1)
RESPONSE (BANK 1 SENSOR 1), Diagnostic Procedure with Diagnostic
Tr o u b l e C o d e ( D T C ) . >
P0134 O2 Sensor Circuit No Activity
Detected (Bank 1 Sensor 1)
ACTIVITY DETECTED (BANK 1 SENSOR 1), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0137 O2 Sensor Circuit Low Voltage (Bank
1 Sensor 2)
VOLTAGE (BANK 1 SENSOR 2), D iagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P0138 O2 Sensor Circuit High Voltage
(Bank 1 Sensor 2)
VOLTAGE (BANK 1 SENSOR 2), D iagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P0139 O2 Sensor Circuit Slow Response
(Bank 1 Sensor 2)
RESPONSE (BANK 1 SENSOR 2), Diagnostic Procedure with Diagnostic
Tr o u b l e C o d e ( D T C ) . >
P0140 O2 Sensor Circuit No Activity
Detected (Bank 1 Sensor 2)
ACTIVITY DETECTED (BANK 1 SENSOR 2), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0151 O2 Sensor Circuit Low Voltage (Bank
2 Sensor 1)
VOLTAGE (BANK 2 SENSOR 1), D iagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P0152 O2 Sensor Circuit High Voltage
(Bank 2 Sensor 1)
VOLTAGE (BANK 2 SENSOR 1), D iagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P0153 O2 Sensor Circuit Slow Response
(Bank 2 Sensor 1)
RESPONSE (BANK 2 SENSOR 1), Diagnostic Procedure with Diagnostic
Tr o u b l e C o d e ( D T C ) . >
P0154 O2 Sensor Circuit No Activity
Detected (Bank 2 Sensor 1)
ACTIVITY DETECTED (BANK 2 SENSOR 1), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0157 O2 Sensor Circuit Low Voltage (Bank
2 Sensor 2)
VOLTAGE (BANK 2 SENSOR 2), D iagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P0158 O2 Sensor Circuit High Voltage
(Bank 2 Sensor 2)
VOLTAGE (BANK 2 SENSOR 2), D iagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P0159 O2 Sensor Circuit Slow Response
(Bank 2 Sensor 2)
RESPONSE (BANK 2 SENSOR 2), Diagnostic Procedure with Diagnostic
Tr o u b l e C o d e ( D T C ) . >
P0160 O2 Sensor Circuit No Activity
Detected (Bank 2 Sensor 2)
ACTIVITY DETECTED (BANK 2 SENSOR 2), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0171 System Too Lean (Bank 1) Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0172 System Too Rich (Bank 1) Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0174 System Too Lean (Bank 2) Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0175 System Too Rich (Bank 2) Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0181 Fuel Temperature Sensor “A” Circuit
Range/Performance
SOR “A” CIRCUIT RANGE/PERFORMANCE, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
DTC Item Reference

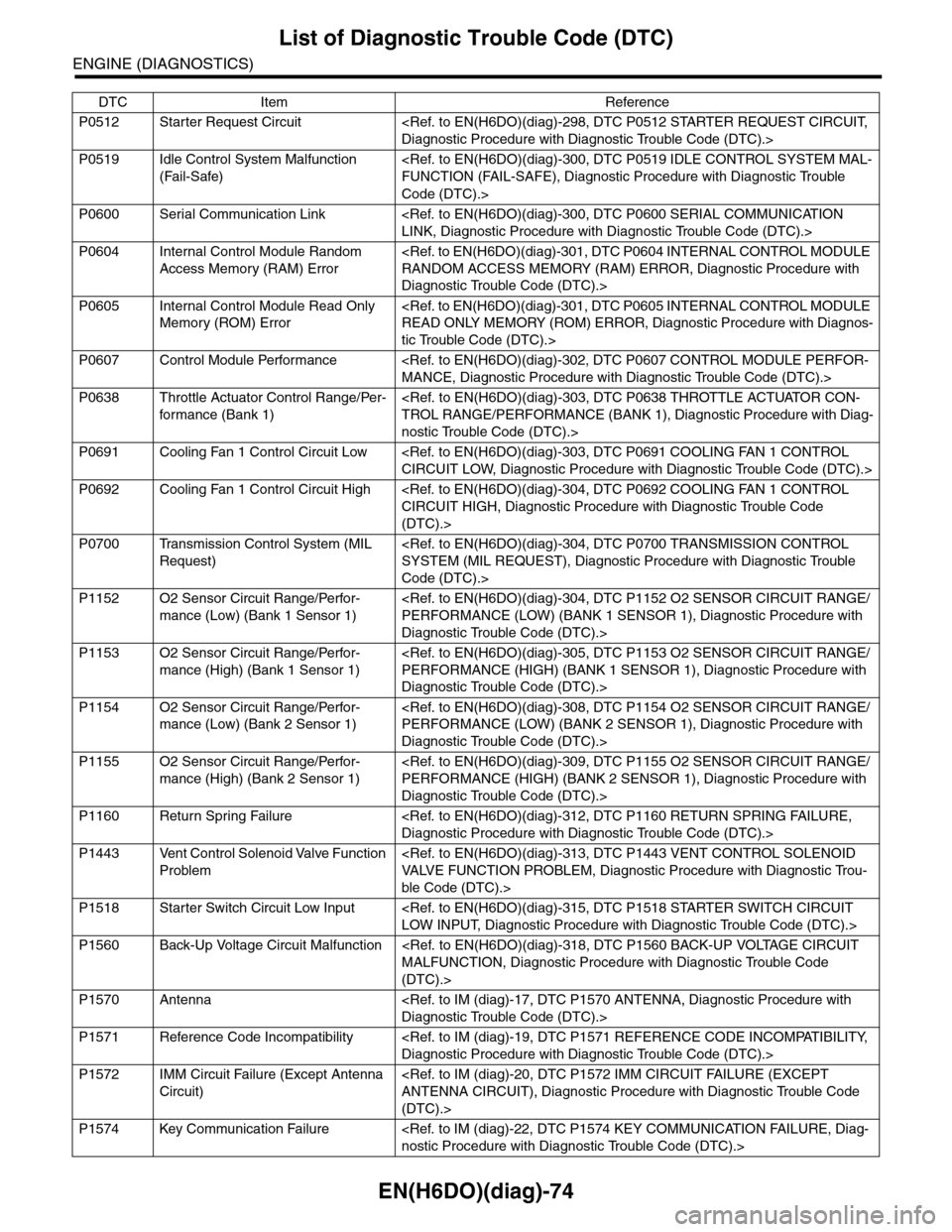

EN(H6DO)(diag)-72
List of Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
P0182 Fuel Temperature Sensor “A” Circuit
Low Input
SOR “A” CIRCUIT LOW INPUT, Diagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P0183 Fuel Temperature Sensor “A” Circuit
High Input
SOR “A” CIRCUIT HIGH INPUT, Diagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P0196 Engine Oil Temperature Sensor Cir-
cuit Range/Performance
SENSOR CIRCUIT RANGE/PERFORMANCE, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0197 Engine Oil Temperature Sensor Cir-
cuit Low
SENSOR CIRCUIT LOW, Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P0198 Engine Oil Temperature Sensor Cir-
cuit High
SENSOR CIRCUIT HIGH, Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P0222 Throttle/Pedal Position Sensor/
Switch “B” Circuit Low Input
SENSOR/SWITCH “B” CIRCUIT LOW INPUT, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0223 Throttle/Pedal Position Sensor/
Switch “B” Circuit High Input
SENSOR/SWITCH “B” CIRCUIT HIGH INPUT, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0230 Fuel Pump Primary Circuit CUIT, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0301 Cylinder 1 Misfire Detected DETECTED, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0302 Cylinder 2 Misfire Detected DETECTED, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0303 Cylinder 3 Misfire Detected DETECTED, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0304 Cylinder 4 Misfire Detected DETECTED, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0305 Cylinder 5 Misfire Detected DETECTED, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0306 Cylinder 6 Misfire Detected DETECTED, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0327 Knock Sensor 1 Circuit Low Input
(Bank 1 or Single Sensor)
LOW INPUT (BANK 1 OR SINGLE SENSOR), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0328 Knock Sensor 1 Circuit High Input
(Bank 1 or Single Sensor)
HIGH INPUT (BANK 1 OR SINGLE SENSOR), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0332 Knock Sensor 2 Circuit Low Input
(Bank 2)
LOW INPUT (BANK 2), Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0333 Knock Sensor 2 Circuit High Input
(Bank 2)
HIGH INPUT (BANK 2), Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0335 Crankshaft Position Sensor “A” Cir-
cuit
SOR “A” CIRCUIT, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0336 Crankshaft Position Sensor “A” Cir-
cuit Range/Performance
SOR “A” CIRCUIT RANGE/PERFORMANCE, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0340 Camshaft Position Sensor “A” Circuit
(Bank 1 or Single Sensor)
SOR “A” CIRCUIT (BANK 1 OR SINGLE SENSOR), Diagnostic Procedure
with Diagnostic Trouble Code (DTC).>
DTC Item Reference

EN(H6DO)(diag)-73
List of Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
P0345 Camshaft Position Sensor “A” Circuit
(Bank 2)
SOR “A”CIRCUIT (BANK 2), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P0420 Catalyst System Efficiency Below
Threshold (Bank 1)
CIENCY BELOW THRESHOLD (BANK 1), Diagnostic Procedure with Diag-
nostic Trouble Code (DTC).>
P0442 Evaporative Emission Control Sys-
tem Leak Detected (Small Leak)
CONTROL SYSTEM LEAK DETECTED (SMALL LEAK), Diagnostic Proce-
dure with Diagnostic Trouble Code (DTC).>
P0447 Evaporative Emission Control Sys-
tem Vent Control Circuit Open
CONTROL SYSTEM VENT CONTROL CIRCUIT OPEN, Diagnostic Proce-
dure with Diagnostic Trouble Code (DTC).>
P0448 Evaporative Emission Control Sys-
tem Vent Control Circuit Shorted
CONTROL SYSTEM VENT CONTROL CIRCUIT SHORTED, Diagnostic
Procedure with Diagnostic Trouble Code (DTC).>
P0451 Evaporative Emission Control Sys-
tem Pressure Sensor
CONTROL SYSTEM PRESSURE SENSOR, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0452 Evaporative Emission Control Sys-
tem Pressure Sensor Low Input
CONTROL SYSTEM PRESSURE SENSOR LOW INPUT, Diagnostic Proce-
dure with Diagnostic Trouble Code (DTC).>
P0453 Evaporative Emission Control Sys-
tem Pressure Sensor High Input
CONTROL SYSTEM PRESSURE SENSOR HIGH INPUT, Diagnostic Proce-
dure with Diagnostic Trouble Code (DTC).>
P0456 Evaporative Emission Control Sys-
tem Leak Detected (Very Small
Leak)
CONTROL SYSTEM LEAK DETECTED (VERY SMALL LEAK), Diagnostic
Procedure with Diagnostic Trouble Code (DTC).>
P0457 Evaporative Emission Control Sys-
tem Leak Detected (Fuel Cap Loose/
Off)
CONTROL SYSTEM LEAK DETECTED (FUEL CAP LOOSE/OFF), Diag-
nostic Procedure with Diagnostic Trouble Code (DTC).>
P0458 Evaporative Emission Control Sys-
tem Purge Control Valve Circuit Low
CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT LOW, Diagnostic
Procedure with Diagnostic Trouble Code (DTC).>
P0459 Evaporative Emission Control Sys-
tem Purge Control Valve Circuit High
CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT HIGH, Diagnostic
Procedure with Diagnostic Trouble Code (DTC).>
P0461 Fuel Level Sensor Circuit Range/Per-
for mance
CUIT RANGE/PERFORMANCE, Diagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P0462 Fuel Level Sensor Circuit Low Input CUIT LOW INPUT, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0463 Fuel Level Sensor Circuit High Input CUIT HIGH INPUT, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0464 Fuel Level Sensor Circuit Intermittent CUIT INTERMITTENT, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0483 Cooling Fan Rationality Check CHECK, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0500 Vehicle Speed Sensor Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0506 Idle Control System RPM Lower
Than Expected
LOWER THAN EXPECTED, Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P0507 Idle Control System RPM Higher
Than Expected
HIGHER THAN EXPECTED, Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
DTC Item Reference

EN(H6DO)(diag)-74
List of Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
P0512 Starter Request Circuit Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0519 Idle Control System Malfunction
(Fail-Safe)
FUNCTION (FAIL-SAFE), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P0600 Serial Communication Link LINK, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0604 Internal Control Module Random
Access Memory (RAM) Error
RANDOM ACCESS MEMORY (RAM) ERROR, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P0605 Internal Control Module Read Only
Memory (ROM) Error
READ ONLY MEMORY (ROM) ERROR, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
P0607 Control Module Performance MANCE, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0638 Throttle Actuator Control Range/Per-
for mance (Bank 1)
TROL RANGE/PERFORMANCE (BANK 1), Diagnostic Procedure with Diag-
nostic Trouble Code (DTC).>
P0691 Cooling Fan 1 Control Circuit Low CIRCUIT LOW, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P0692 Cooling Fan 1 Control Circuit High CIRCUIT HIGH, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P0700 Transmission Control System (MIL
Request)
SYSTEM (MIL REQUEST), Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
P1152 O2 Sensor Circuit Range/Perfor-
mance (Low) (Bank 1 Sensor 1)
PERFORMANCE (LOW) (BANK 1 SENSOR 1), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1153 O2 Sensor Circuit Range/Perfor-
mance (High) (Bank 1 Sensor 1)
PERFORMANCE (HIGH) (BANK 1 SENSOR 1), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1154 O2 Sensor Circuit Range/Perfor-
mance (Low) (Bank 2 Sensor 1)
PERFORMANCE (LOW) (BANK 2 SENSOR 1), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1155 O2 Sensor Circuit Range/Perfor-
mance (High) (Bank 2 Sensor 1)
PERFORMANCE (HIGH) (BANK 2 SENSOR 1), Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P1160 Return Spring Failure Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P1443 Vent Control Solenoid Valve Function
Problem
VA LV E F U N C T I O N P R O B L E M , D i a g n o s t i c P r o c e d u r e w i t h D i a g n o s t i c Tr o u -
ble Code (DTC).>
P1518 Starter Switch Circuit Low Input LOW INPUT, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P1560 Back-Up Voltage Circuit Malfunction MALFUNCTION, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P1570 Antenna Diagnostic Trouble Code (DTC).>
P1571 Reference Code Incompatibility Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P1572 IMM Circuit Failure (Except Antenna
Circuit)
ANTENNA CIRCUIT), Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P1574 Key Communication Failure nostic Procedure with Diagnostic Trouble Code (DTC).>
DTC Item Reference

EN(H6DO)(diag)-75
List of Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
P1576 EGI Control Module EEPROM Diagnostic Procedure with Diagnostic Trouble Code (DTC).>

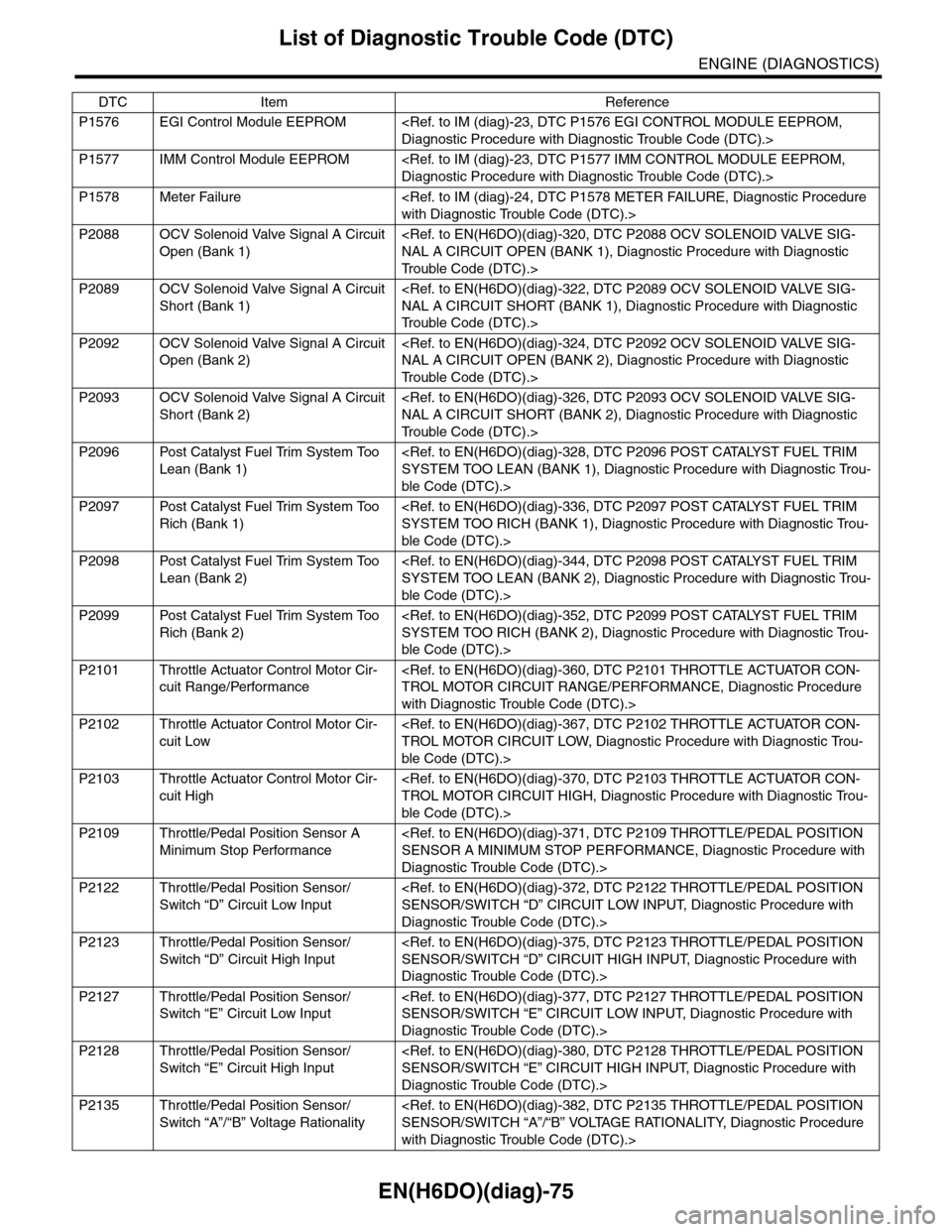

P1577 IMM Control Module EEPROM Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
P1578 Meter Failure with Diagnostic Trouble Code (DTC).>
P2088 OCV Solenoid Valve Signal A Circuit
Open (Bank 1)
NAL A CIRCUIT OPEN (BANK 1), Diagnostic Procedure with Diagnostic
Tr o u b l e C o d e ( D T C ) . >
P2089 OCV Solenoid Valve Signal A Circuit
Short (Bank 1)
NAL A CIRCUIT SHORT (BANK 1), Diagnostic Procedure with Diagnostic
Tr o u b l e C o d e ( D T C ) . >
P2092 OCV Solenoid Valve Signal A Circuit
Open (Bank 2)
NAL A CIRCUIT OPEN (BANK 2), Diagnostic Procedure with Diagnostic
Tr o u b l e C o d e ( D T C ) . >
P2093 OCV Solenoid Valve Signal A Circuit
Short (Bank 2)
NAL A CIRCUIT SHORT (BANK 2), Diagnostic Procedure with Diagnostic
Tr o u b l e C o d e ( D T C ) . >
P2096 Post Catalyst Fuel Trim System Too
Lean (Bank 1)
SYSTEM TOO LEAN (BANK 1), Diagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P2097 Post Catalyst Fuel Trim System Too
Rich (Bank 1)
SYSTEM TOO RICH (BANK 1), Diagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P2098 Post Catalyst Fuel Trim System Too
Lean (Bank 2)
SYSTEM TOO LEAN (BANK 2), Diagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P2099 Post Catalyst Fuel Trim System Too
Rich (Bank 2)
SYSTEM TOO RICH (BANK 2), Diagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P2101 Throttle Actuator Control Motor Cir-
cuit Range/Performance
TROL MOTOR CIRCUIT RANGE/PERFORMANCE, Diagnostic Procedure
with Diagnostic Trouble Code (DTC).>
P2102 Throttle Actuator Control Motor Cir-
cuit Low
TROL MOTOR CIRCUIT LOW, Diagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P2103 Throttle Actuator Control Motor Cir-
cuit High
TROL MOTOR CIRCUIT HIGH, Diagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
P2109 Throttle/Pedal Position Sensor A
Minimum Stop Performance
SENSOR A MINIMUM STOP PERFORMANCE, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P2122 Throttle/Pedal Position Sensor/
Switch “D” Circuit Low Input
SENSOR/SWITCH “D” CIRCUIT LOW INPUT, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P2123 Throttle/Pedal Position Sensor/
Switch “D” Circuit High Input
SENSOR/SWITCH “D” CIRCUIT HIGH INPUT, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P2127 Throttle/Pedal Position Sensor/
Switch “E” Circuit Low Input
SENSOR/SWITCH “E” CIRCUIT LOW INPUT, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P2128 Throttle/Pedal Position Sensor/
Switch “E” Circuit High Input
SENSOR/SWITCH “E” CIRCUIT HIGH INPUT, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
P2135 Throttle/Pedal Position Sensor/
Switch “A”/“B” Voltage Rationality
SENSOR/SWITCH “A”/“B” VOLTAGE RATIONALITY, Diagnostic Procedure
with Diagnostic Trouble Code (DTC).>

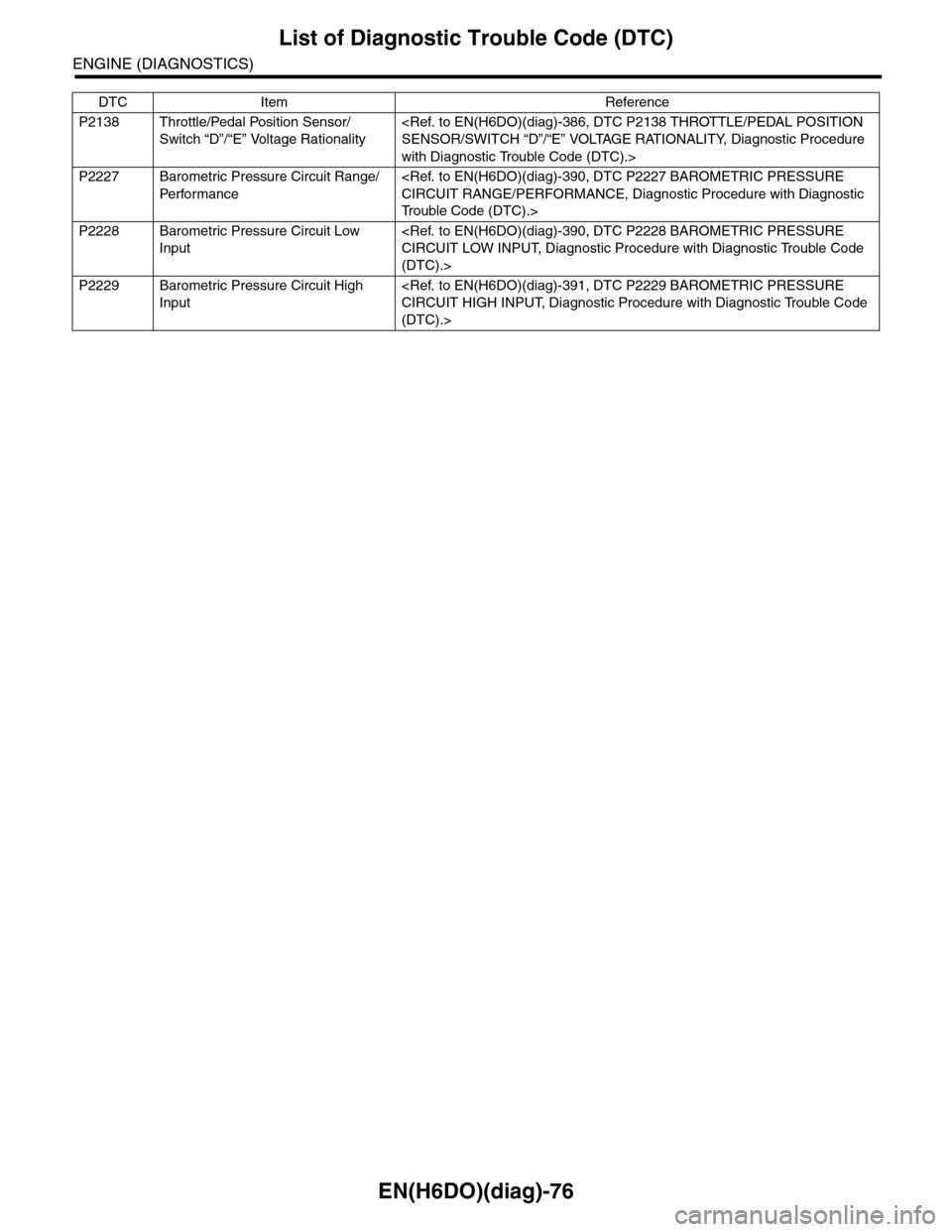

DTC Item Reference

EN(H6DO)(diag)-76
List of Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
P2138 Throttle/Pedal Position Sensor/
Switch “D”/“E” Voltage Rationality
SENSOR/SWITCH “D”/“E” VOLTAGE RATIONALITY, Diagnostic Procedure
with Diagnostic Trouble Code (DTC).>
P2227 Barometric Pressure Circuit Range/
Pe r fo r ma nc e
CIRCUIT RANGE/PERFORMANCE, Diagnostic Procedure with Diagnostic
Tr o u b l e C o d e ( D T C ) . >
P2228 Barometric Pressure Circuit Low
Input
CIRCUIT LOW INPUT, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
P2229 Barometric Pressure Circuit High
Input
CIRCUIT HIGH INPUT, Diagnostic Procedure with Diagnostic Trouble Code
(DTC).>
DTC Item Reference

EN(H6DO)(diag)-85
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
G: DTC P0030 HO2S HEATER CONTROL CIRCUIT (BANK 1 SENSOR 1)
DTC DETECTING CONDITION:
•Detected when two consecutive driving cycles with fault occur.
•GENERAL DESCRIPTION (BANK 1 SENSOR 1), Diagnostic Trouble Code (DTC) Detecting Criteria.>
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.

EN(H6DO)(diag)-86
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
WIRING DIAGRAM:
EN-03737
SBF-5
B47
12
35
46
A3D1D7D2A5D3
2
3736353452B21
E2
ECM
B11B1B10B6B7C2C3B8B9
413
E24
2
431
E47
E3B22
8
56E3
B222134
B47
3456
12
B22
1234567891011 121314 15 16
3412
E47E24
B135
567821943102422 23 2511 12 13 14 1526 2728
16 17 18 1920 2129 30 31 32 33 34 35
B:
B21
123412131415567816171819910 1120212223 24 25 2627 28 29 3031 32 33
3534 37363938 41404342 4445 47464948 51505352 54
EE
B135B:B136C:B137D:B134A:
7
FRONTOXYGEN(A/F)SENSOR LH
FRONTOXYGEN(A/F)SENSOR RH
MAIN RELAYBATTERY
B136
16101112131415252430
9871718192028212223293231
123456
2726333435
C:
B137
85610 11 12 13 14 157213416
3019 20 2228 29
91718 2521 23 243126 27
D:B122
34561278
*: TERMINAL NO. OPTIONAL ARRANGEMENT
**
B122
A:B134
85610 11 12 13 14 157213416
3019 20 2228 29
91718252123 24323126 2733 34
