2009 SUBARU TRIBECA connector

ET-25
GPS Antenna
ENTERTAINMENT
20.GPS Antenna
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the combination meter. REMOVAL, Combination Meter.>
3) Remove the audio. Audio.>
4) Remove the navigation display. REMOVAL, Navigation Display.>
5) Remove the screw to remove the GPS bracket.
6) Remove the GPS antenna cord connector from
the steering support beam stay (on the driver’s
side).
B: INSTALLATION
Install in the reverse order of removal.
ET-00187

ET-28
Rear Entertainment
ENTERTAINMENT
23.Rear Entertainment
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Insert a flat tip screw driver in the section, and
remove the room lamp lens.
3) Remove the bolts, and then remove the monitor
cover.
4) Remove the 4 mounting bolts.
5) Remove the temporary screws and remove the
monitor body.
NOTE:
Always support with one hand to prevent the unit
from falling.
6) Remove the temporary clips from the roof brace.
B: INSTALLATION
1) Attach the temporary clip and temporary screw
to the rear entertainment system body.
NOTE:
When installing a new rear entertainment system, a
clip is supplied on the unit, and this step can be
omitted.
2) Place the hook of the rear entertainment unit on
the roof brace section.
3) Affix the temporary fixture clips on the roof
brace.
4) Tighten the 4 attachment bolts, and connect the
connector.
5) Connect the room lamp connector, attach the
cover and affix with the bolts.
6) Attach the room lamp lens from the outside of
the vehicle and snap into place.
Install in the reverse order of removal.
(A) Cutout
(A) Clip
ET-00188
(A)
ET-00189
(A)
ET-00199
ET-00190

ET-30
Front Accessory Power Supply Socket
ENTERTAINMENT
25.Front Accessory Power Sup-
ply Socket
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the console box. MOVAL, Center Console.>
3) Disconnect the harness connector, and remove
the accessory power supply socket.
NOTE:
The socket can be pulled out by unlocking the ac-
cessory socket lock in 2 locations and turning the
socket to the left.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Confirm that the accessory socket is locked and
can not be pulled out.
ET-00191
(A)

ET-31
Rear Accessory Power Supply Socket
ENTERTAINMENT
26.Rear Accessory Power Sup-
ply Socket
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the console box. MOVAL, Center Console.>
3) Disconnect the harness connector, and remove
the accessory power supply socket.
NOTE:
The socket can be pulled out by unlocking the ac-
cessory socket lock in 2 locations and turning the
socket to the left.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Confirm that the accessory socket is locked and
can not be pulled out.
ET-00191
(A)

ET-33
Steering Satellite Switch
ENTERTAINMENT
C: INSPECTION
ET-00193
12345
Step Check Yes No
1MUTE SWITCH CONTINUITY CHECK.
1) Press the mute switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance approx. 22 Ω?Go to step 2.Replace the satel-
lite switch.
2VOLUME SWITCH CONTINUITY CHECK.
1) Press the volume switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2: Volume up
No. 1 — No. 2: Volume down
Is the resistance approx. 90 Ω?
(Volume up) And is the resis-
tance approx. 190 Ω? (Volume
down)
Go to step 3.Replace the satel-
lite switch.
3MODE SWITCH CONTINUITY CHECK.
1) Press the MODE switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance approx. 330
Ω?
Go to step 4.Replace the satel-
lite switch.
4SEEK SWITCH CONTINUITY CHECK.
1) Press the seek switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2: Seek up
No. 1 — No. 2: Seek down
Is the resistance approx. 600
Ω? (Seek up) And is the resis-
tance approx. 1.1 kΩ? (Seek
down)
Go to step 5.Replace the satel-
lite switch.
5CHECK SATELLITE SWITCH INSULATION.
1) Not to operate the satellite switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance approx. 4.7
kΩ?
Satellite switch is
normal.
Replace the satel-
lite switch.

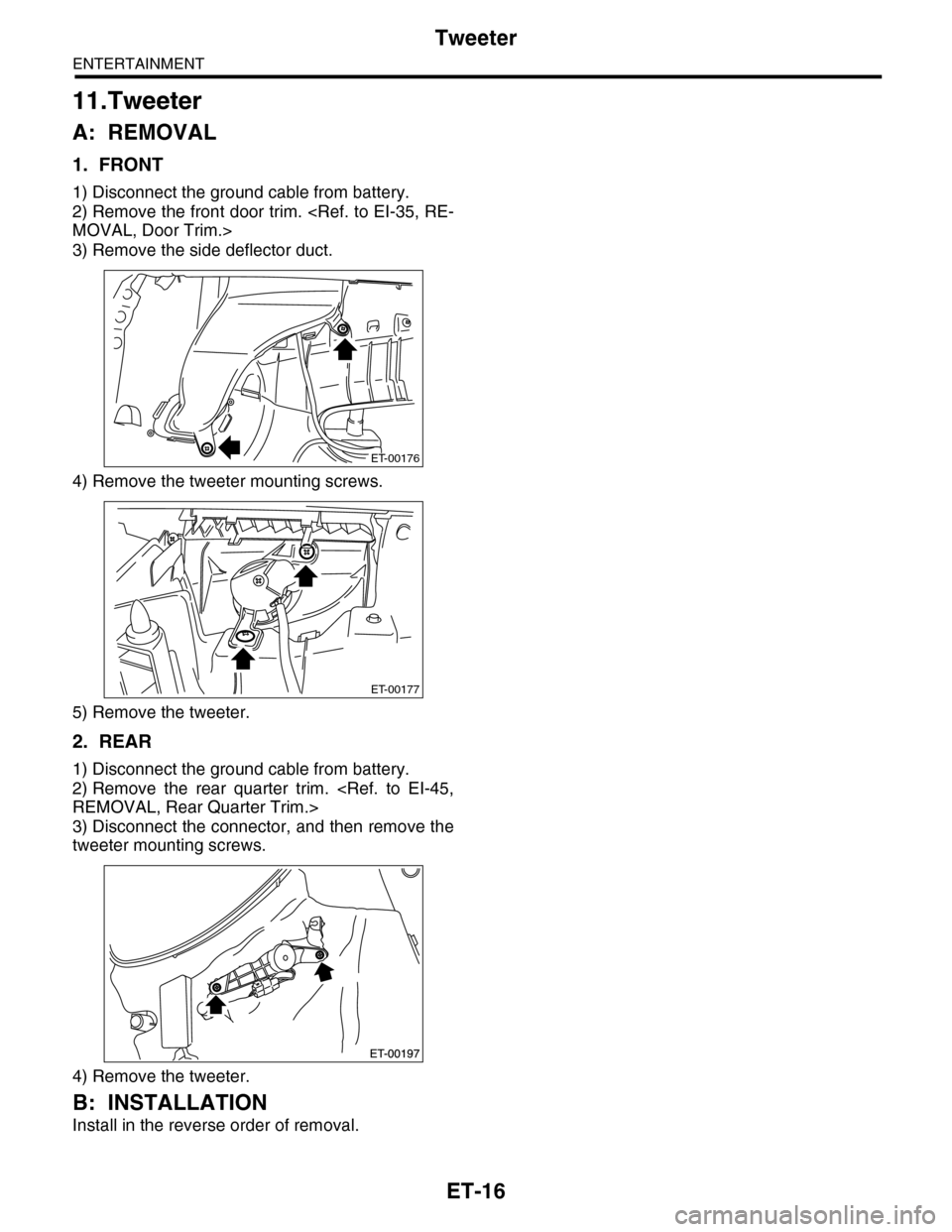

ET-16
Tweeter
ENTERTAINMENT
11.Tweeter
A: REMOVAL
1. FRONT
1) Disconnect the ground cable from battery.
2) Remove the front door trim. MOVAL, Door Trim.>
3) Remove the side deflector duct.
4) Remove the tweeter mounting screws.
5) Remove the tweeter.
2. REAR
1) Disconnect the ground cable from battery.
2) Remove the rear quarter trim. REMOVAL, Rear Quarter Trim.>
3) Disconnect the connector, and then remove the
tweeter mounting screws.
4) Remove the tweeter.
B: INSTALLATION
Install in the reverse order of removal.
ET-00176
ET-00177

EB-16
Front Door
EXTERIOR BODY PANELS
4. Front Door
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the front door trim. MOVAL, Door Trim.>
3) Remove the outer mirror assembly. GW-13, REMOVAL, Outer Mirror Assembly.>
4) Remove the front door speaker. REMOVAL, Front Speaker.>
5) Remove the sealing cover. MOVAL, Front Sealing Cover.>
6) Remove the front door glass. REMOVAL, Front Door Glass.>
7) Remove the door sash, and remove the front
door regulator and motor assemblies. 10, REMOVAL, Front Regulator and Motor Assem-
bly.>
8) Remove the front inner remote. REMOVAL, Front Inner Remote.>
9) Remove the front door latch assembly. SL-36, REMOVAL, Front Door Latch and Door
Lock Actuator Assembly.>
10) Remove the front outer handle. REMOVAL, Front Outer Handle.>
11) Remove the front door weather strip.
NOTE:
If the weather strip clip is removed with excessive
force, the weather strip may be damaged. Be sure
to use clip remover to remove.
12) Remove the bolts and nuts to remove the door
checker.
13) Remove the instrument panel lower cover or
glove box lower cover. Instrument Panel Lower Cover.> or REMOVAL, Glove Box.>
14) Disconnect the connector of door harness from
body harness.
15) Put a wooden block on jack and place jack un-
der the front door. Support the door with a jack to
protect it from damage.
16) Remove the door-side bolts for upper and low-
er hinges to remove front door panel.
17) Remove the door hinge from vehicle.
EB-00141
EB-00154
EB-00151
EB-00013
EB-00015

EB-17
Front Door
EXTERIOR BODY PANELS
B: INSTALLATION
1) Put a wooden block on jack and place the front
door on that.
2) Apply grease to the sliding area of door hinges,
and install the door hinge to vehicle.
3) Install the front door to upper hinge and lower
hinge adjusting by jack.
4) Tighten bolt of door checker.
5) Connect door harness connector, and install the
instrument panel lower cover.
6) Install the front pillar lower trim.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
PONENT, General Description.>
C: ADJUSTMENT
1) Using the ST, loosen the body-side bolts of up-
per and lower hinges to align the position for verti-
cal and horizontal direction of the front door panel.
ST 925610000 DOOR HINGE WRENCH
2) Loosen the screw (A) and tap striker (B) using
plastic hammer to adjust the gap between rear end
surface of front door panel and front end surface of
rear door.
CAUTION:
Do not use an impact wrench. Welding area on
the striker nut plate is easily broken.
EB-00013
EB-00016
ST
EB-00017
(B)(A)
