1. Open the liftgate.
2. Remove the two screws holding
in the taillamp assembly.
3. Slide the taillamp assembly
rearward and away from the
vehicle.
4. Turn the bulb socket being
replaced counterclockwise
to disconnect it.
5. Pull the bulb out of the bulb
socket.
6. Push the new bulb into the
bulb socket.
7. Reverse Steps 2 through 4 to
reinstall the taillamp assembly.License Plate Lamp
To replace one of these bulbs:
1. Remove the two screws holding
each of the license plate lamps
to the fascia.
2. Turn and pull the license plate
lamp forward through the
fascia opening.
3. Turn the bulb socket
counterclockwise and pull the
bulb straight out of the socket.4. Push the new bulb into the bulb
socket and turn it clockwise to
lock it into place.
5. Push and turn the license plate
back through the fascia opening.
6. Reinstall the two screws holding
the license plate lamps to the
fascia.
Replacement Bulbs
Exterior Lamp Bulb
Number
Back-up Lamp 3156
Front Turn
Signal/Parking3157K
Headlamps
High-beam9005 or
HB3
Low-beam/DRL9006 or
HB4
Rear Turn Signal,
Stoplamp and
Taillamp3057
For replacement bulbs not listed
here, contact your dealer/retailer.
Service and Appearance Care 5-37
ProCarManuals.com

Windshield Wiper
Blade Replacement
Windshield wiper blades should be
inspected for wear and cracking.
SeeScheduled Maintenance
on page 6-3for more information.
Replacement blades come in
different types and are removed in
different ways. For proper type
and length, seeMaintenance
Replacement Parts on page 6-12.
To replace the windshield wiper
blade:
1. Lift the wiper arm away from the
windshield.2. Push the release lever (B) to
disengage the hook and push the
wiper arm (A) out of the blade (C).
3. Push the new wiper blade
securely on the wiper arm until
you hear the release lever click
into place.
To replace the rear wiper blade, lift
the rear wiper arm from the
window and pull the blade.
Tires
Your new vehicle comes with
high-quality tires made by a
leading tire manufacturer. If you
ever have questions about your
tire warranty and where to obtain
service, see your vehicle
Warranty booklet for details.
For additional information refer
to the tire manufacturer.
{CAUTION
Poorly maintained and
improperly used tires are
dangerous.
Overloading your
vehicle’s tires can cause
overheating as a result
of too much exing. You
could have an air-out and
a serious accident. See
Loading the Vehicle on
page 4-18.
(Continued)
5-38 Service and Appearance Care
ProCarManuals.com

CAUTION (Continued)
Underinated tires pose
the same danger as
overloaded tires. The
resulting accident could
cause serious injury.
Check all tires frequently to
maintain the recommended
pressure. Tire pressure
should be checked when
your vehicle’s tires are
cold. SeeInflation - Tire
Pressure on page 5-43.
Overinated tires are more
likely to be cut, punctured,
or broken by a sudden
impact — such as when
you hit a pothole. Keep
tires at the recommended
pressure.
Worn, old tires can cause
accidents. If the tire’s tread
is badly worn, or if your
vehicle’s tires have been
damaged, replace them.
Tire Sidewall Labeling
Useful information about a tire is
molded into its sidewall. The
example below shows a typical
passenger (p-metric) tire
sidewall.
(A) Tire Size
:The tire size is a
combination of letters and
numbers used to dene a
particular tire’s width, height,
aspect ratio, construction
type, and service description.See the “Tire Size” illustration
later in this section for more
detail.
(B) TPC Spec (Tire
Performance Criteria
Specication)
:Original
equipment tires designed to
GM’s specic tire performance
criteria have a TPC specication
code molded onto the sidewall.
GM’s TPC specications meet or
exceed all federal safety
guidelines.
(C) DOT (Department of
Transportation)
:The
Department of Transportation
(DOT) code indicates that the tire
is in compliance with the U.S.
Department of Transportation
Motor Vehicle Safety Standards.
(D) Tire Identication Number
(TIN)
:The letters and numbers
following DOT code are the
Tire Identication Number (TIN).
The TIN shows the manufacturer
and plant code, tire size, and
date the tire was manufactured.
Passenger (P-Metric) Tire
Example
Service and Appearance Care 5-39
ProCarManuals.com

The TIN is molded onto both
sides of the tire, although
only one side may have the date
of manufacture.
(E) Tire Ply Material
:The type
of cord and number of plies
in the sidewall and under
the tread.
(F) Uniform Tire Quality
Grading (UTQG)
:Tire
manufacturers are required to
grade tires based on three
performance factors: treadwear,
traction and temperature
resistance. For more information
seeUniform Tire Quality
Grading on page 5-54.
(G) Maximum Cold Ination
Load Limit
:Maximum load that
can be carried and the
maximum pressure needed to

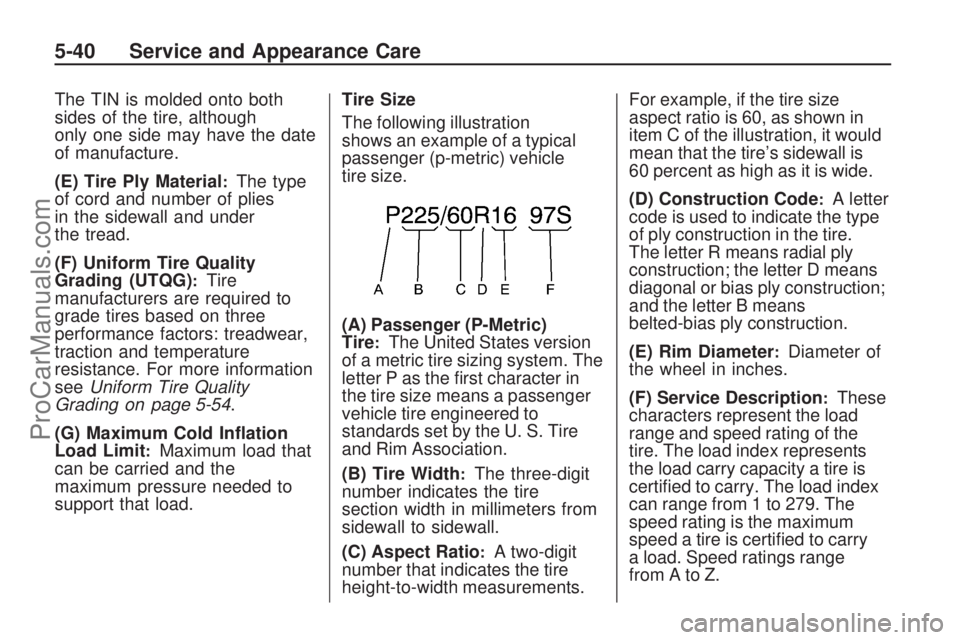

support that load.Tire Size
The following illustration
shows an example of a typical
passenger (p-metric) vehicle
tire size.
(A) Passenger (P-Metric)
Tire
:The United States version
of a metric tire sizing system. The
letter P as the rst character in
the tire size means a passenger
vehicle tire engineered to
standards set by the U. S. Tire
and Rim Association.
(B) Tire Width
:The three-digit
number indicates the tire
section width in millimeters from
sidewall to sidewall.
(C) Aspect Ratio
:A two-digit
number that indicates the tire
height-to-width measurements.For example, if the tire size
aspect ratio is 60, as shown in
item C of the illustration, it would
mean that the tire’s sidewall is
60 percent as high as it is wide.
(D) Construction Code
:A letter
code is used to indicate the type
of ply construction in the tire.
The letter R means radial ply
construction; the letter D means
diagonal or bias ply construction;
and the letter B means
belted-bias ply construction.
(E) Rim Diameter
:Diameter of
the wheel in inches.
(F) Service Description
:These
characters represent the load
range and speed rating of the
tire. The load index represents
the load carry capacity a tire is
certied to carry. The load index
can range from 1 to 279. The
speed rating is the maximum
speed a tire is certied to carry
a load. Speed ratings range
fromAtoZ.
5-40 Service and Appearance Care
ProCarManuals.com

Tire Terminology and
Denitions
Air Pressure:The amount of
air inside the tire pressing
outward on each square inch of
the tire. Air pressure is
expressed in pounds per square
inch (psi) or kilopascal (kPa).
Accessory Weight
:This means
the combined weight of
optional accessories. Some
examples of optional
accessories are, automatic
transmission, power steering,
power brakes, power windows,
power seats, and air
conditioning.
Aspect Ratio
:The relationship
of a tire’s height to its width.
Belt
:A rubber coated layer of
cords that is located between the
plies and the tread. Cords
may be made from steel or other
reinforcing materials.Bead
:The tire bead contains
steel wires wrapped by steel
cords that hold the tire onto
the rim.
Bias Ply Tire
:A pneumatic tire
in which the plies are laid at
alternate angles less than
90 degrees to the centerline of
the tread.
Cold Tire Pressure
:The
amount of air pressure in a tire,
measured in pounds per
square inch (psi) or kilopascals
(kPa) before a tire has built
up heat from driving. See
Inflation - Tire Pressure on
page 5-43.
Curb Weight
:The weight of a
motor vehicle with standard
and optional equipment including
the maximum capacity of fuel,
oil, and coolant, but without
passengers and cargo.DOT Markings
:A code molded
into the sidewall of a tire
signifying that the tire is in
compliance with the U.S.
Department of Transportation
(DOT) motor vehicle safety
standards. The DOT code
includes the Tire Identication
Number (TIN), an alphanumeric
designator which can also
identify the tire manufacturer,
production plant, brand, and date
of production.
GVWR
:Gross Vehicle Weight
Rating. SeeLoading the Vehicle
on page 4-18.
GAWR FRT
:Gross Axle Weight
Rating for the front axle. See
Loading the Vehicle on
page 4-18.
GAWR RR
:Gross Axle Weight
Rating for the rear axle. See
Loading the Vehicle on
page 4-18.
Service and Appearance Care 5-41
ProCarManuals.com

Intended Outboard
Sidewall:The side of an
asymmetrical tire, that must
always face outward when
mounted on a vehicle.
Kilopascal (kPa)
:The metric
unit for air pressure.
Light Truck (LT-Metric) Tire
:A
tire used on light duty trucks
and some multipurpose
passenger vehicles.
Load Index
:An assigned
number ranging from 1 to 279
that corresponds to the load
carrying capacity of a tire.
Maximum Ination
Pressure
:The maximum air
pressure to which a cold tire can
be inated. The maximum air
pressure is molded onto the
sidewall.
Maximum Load Rating
:The
load rating for a tire at the
maximum permissible ination
pressure for that tire.Maximum Loaded Vehicle
Weight
:The sum of curb
weight, accessory weight,
vehicle capacity weight, and
production options weight.
Normal Occupant Weight
:The
number of occupants a vehicle
is designed to seat multiplied by
150 lbs (68 kg). SeeLoading
the Vehicle on page 4-18.
Occupant
Distribution
:Designated
seating positions.
Outward Facing Sidewall
:The
side of an asymmetrical tire
that has a particular side
that faces outward when
mounted on a vehicle. The side
of the tire that contains a
whitewall, bears white lettering,
or bears manufacturer, brand,
and/or model name molding that
is higher or deeper than the
same moldings on the
other sidewall of the tire.Passenger (P-Metric) Tire
:A
tire used on passenger cars and
some light duty trucks and
multipurpose vehicles.
Recommended Ination
Pressure
:Vehicle
manufacturer’s recommended
tire ination pressure as
shown on the tire placard. See
Inflation - Tire Pressure on
page 5-43andLoading
the Vehicle on page 4-18.
Radial Ply Tire
:A pneumatic
tire in which the ply cords
that extend to the beads are laid
at 90 degrees to the centerline
of the tread.
Rim
:A metal support for a tire
and upon which the tire
beads are seated.
Sidewall
:The portion of a tire
between the tread and the bead.
Speed Rating
:An alphanumeric
code assigned to a tire
indicating the maximum speed
at which a tire can operate.
5-42 Service and Appearance Care
ProCarManuals.com

Traction:The friction between
the tire and the road surface.
The amount of grip provided.
Tread
:The portion of a tire that
comes into contact with the road.
Treadwear Indicators
:Narrow
bands, sometimes called wear
bars, that show across the tread
of a tire when only 1/16 inch
(1.6 mm) of tread remains. See
When It Is Time for New Tires on
page 5-51.
UTQGS (Uniform Tire Quality
Grading Standards)
:A tire
information system that provides
consumers with ratings for a tire’s
traction, temperature, and
treadwear. Ratings are
determined by tire manufacturers
using government testing
procedures. The ratings are
molded into the sidewall of the
tire. SeeUniform Tire Quality
Grading on page 5-54.Vehicle Capacity Weight
:The
number of designated seating
positions multiplied by 150 lbs
(68 kg) plus the rated cargo load.
SeeLoading the Vehicle on
page 4-18.
Vehicle Maximum Load on the
Tire
:Load on an individual
tire due to curb weight,
accessory weight, occupant
weight, and cargo weight.
Vehicle Placard
:A label
permanently attached to a
vehicle showing the vehicle’s
capacity weight and the original
equipment tire size and
recommended ination pressure.
See “Tire and Loading
Information Label” under
Loading the Vehicle on
page 4-18.
Ination - Tire Pressure
Tires need the correct amount
of air pressure to operate
effectively.Notice:Do not let anyone tell
you that under-ination or
over-ination is all right. It is
not. If your tires do not have
enough air (under-ination),
you can get the following:
Too much exing
Too much heat
Tire overloading
Premature or irregular wear
Poor handling
Reduced fuel economy
If your tires have too much air
(over-ination), you can get
the following:
Unusual wear
Poor handling
Rough ride
Needless damage from road
hazards
A vehicle specic Tire and
Loading Information label is
attached to your vehicle.
Service and Appearance Care 5-43
ProCarManuals.com

This label shows your vehicle’s
original equipment tires and
the correct ination pressures for
your tires when they are cold.
The recommended cold tire
ination pressure, shown on the
label, is the minimum amount
of air pressure needed to
support your vehicle’s maximum
load carrying capacity.
For additional information
regarding how much weight
your vehicle can carry, and an
example of the Tire and Loading
Information label, seeLoading
the Vehicle on page 4-18. How
you load your vehicle affects
vehicle handling and ride
comfort. Never load your vehicle
with more weight than it was
designed to carry.When to Check
Check your tires once a month
or more.
How to Check
Use a good quality pocket-type
gage to check tire pressure.
You cannot tell if your tires are
properly inated simply by
looking at them. Radial tires may
look properly inated even when
they are under-inated. Check
the tire’s ination pressure when
the tires are cold. Cold means
your vehicle has been sitting for
at least three hours or driven no
more than 1 mile (1.6 km).
Remove the valve cap from
the tire valve stem. Press the tire
gage rmly onto the valve to
get a pressure measurement.If the cold tire ination pressure
matches the recommended
pressure on the Tire and
Loading Information label, no
further adjustment is necessary.
If the ination pressure is
low, add air until you reach the
recommended amount.
If you overll the tire, release air
by pushing on the metal stem in
the center of the tire valve.
Re-check the tire pressure with
the tire gage.
Be sure to put the valve caps
back on the valve stems.
They help prevent leaks by
keeping out dirt and moisture.
5-44 Service and Appearance Care
ProCarManuals.com
