Take care, the bottle of fl uid con-
tains ethylene-glycol. This product
is harmful if swallowed and causes
irritation to the eyes. Keep it out of
reach of children.
The expiry date of the fl uid is indi-
cated on the base of the bottle.
The bottle is designed for a sin-
gle use; even if only partly used, it
must be replaced.
After use, do not discard the bot-
tle into the environment, take it to a
PEUGEOT dealer or to an organi-
sation responsible for its collection.
Do not forget to obtain a new bot-
tle of fi lling product, available from
PEUGEOT dealers.

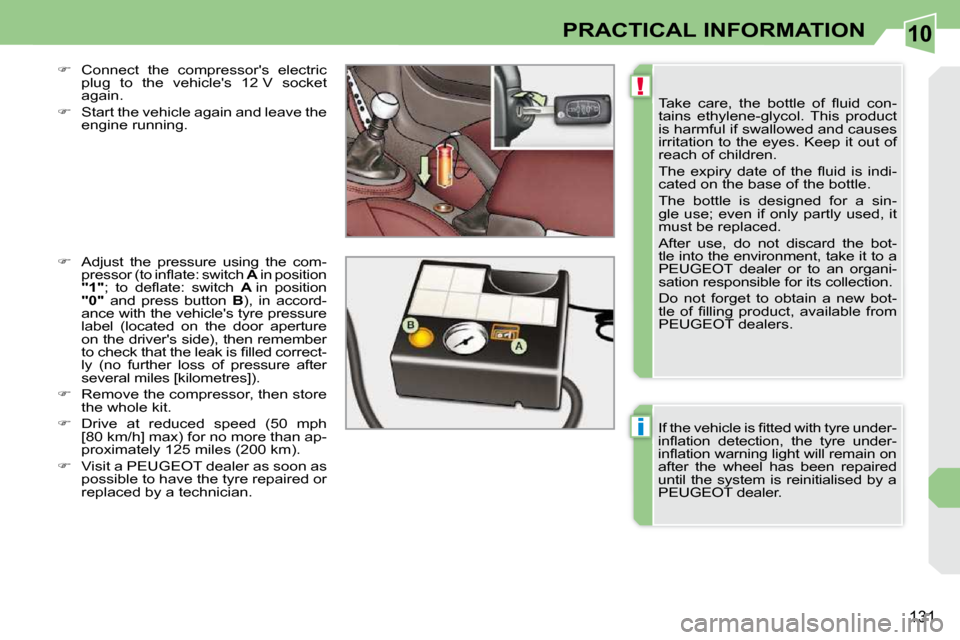

 Connect the compressor's electric
plug to the vehicle's 12 V socket
again.

 Start the vehicle again and leave the
engine running.

 Adjust the pressure using the com-
pressor (to infl ate: switch A in position

"1" ; to defl ate: switch A in position

"0" and press button B ), in accord-
ance with the vehicle's tyre pressure
label (located on the door aperture
on the driver's side), then remember
to check that the leak is fi lled correct-
ly (no further loss of pressure after
several miles [kilometres]).

 Remove the compressor, then store
the whole kit.

 Drive at reduced speed (50 mph
[80 km/h] max) for no more than ap-
proximately 125 miles (200 km).

 Visit a PEUGEOT dealer as soon as
possible to have the tyre repaired or
replaced by a technician. If the vehicle is fi tted with tyre under-
infl ation detection, the tyre under-
infl ation warning light will remain on
after the wheel has been repaired
until the system is reinitialised by a
PEUGEOT dealer.

10
i
132
PRACTICAL INFORMATION

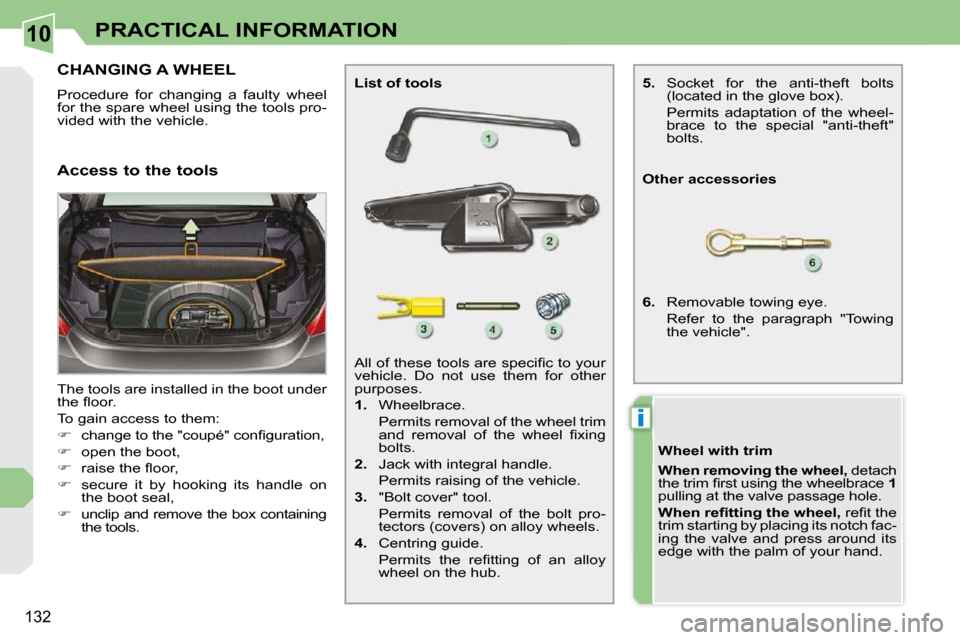

CHANGING A WHEEL
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
The tools are installed in the boot under
the fl oor.
To gain access to them:

 change to the "coupé" confi guration,

 open the boot,

 raise the fl oor,

 secure it by hooking its handle on
the boot seal,

 unclip and remove the box containing
the tools. All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.

1. Wheelbrace.
Permits removal of the wheel trim and removal of the wheel fi xing
bolts.

2. Jack with integral handle.
Permits raising of the vehicle.

3. "Bolt cover" tool.
Permits removal of the bolt pro- tectors (covers) on alloy wheels.

4. Centring guide.
Permits the refi tting of an alloy wheel on the hub.
List of tools
Other accessories

6. Removable towing eye.
Refer to the paragraph "Towing the vehicle".
Access to the tools
Wheel with trim

When removing the wheel
, detach
the trim fi rst using the wheelbrace 1
pulling at the valve passage hole.

When refi tting the wheel
, refi t the
trim starting by placing its notch fac-
ing the valve and press around its
edge with the palm of your hand.

5. Socket for the anti-theft bolts
(located in the glove box).
Permits adaptation of the wheel- brace to the special "anti-theft"
bolts.

10
i
i
133
PRACTICAL INFORMATION
Fixing the steel spare wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice, when
tightening the bolts on fi tting, that the
washers do not come into contact
with the steel spare wheel. The wheel
is secured by the conical contact of
each bolt.

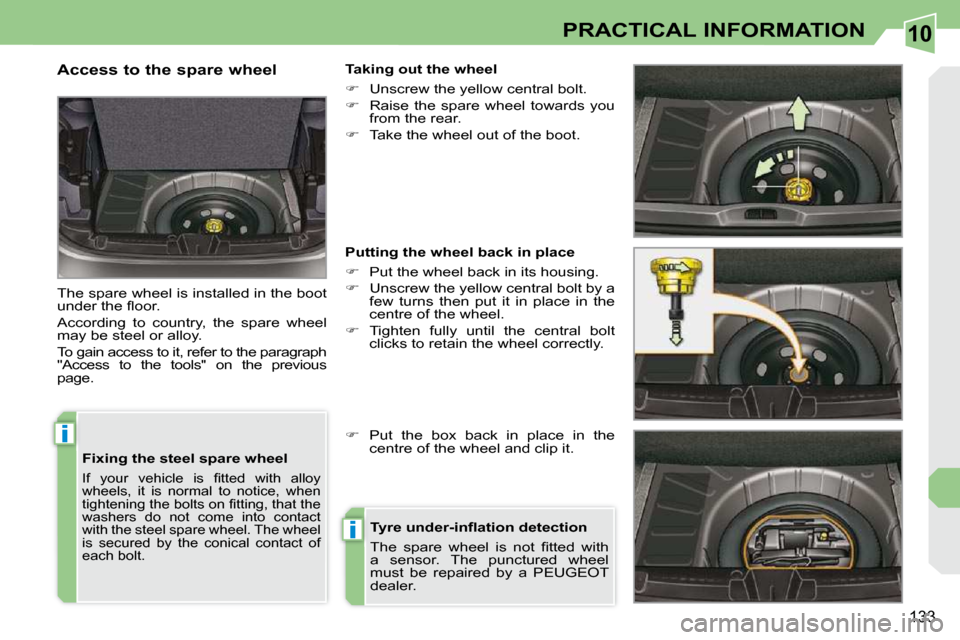

Access to the spare wheel
The spare wheel is installed in the boot
under the fl oor.
According to country, the spare wheel
may be steel or alloy.
To gain access to it, refer to the paragraph
"Access to the tools" on the previous
page. Taking out the wheel

 Unscrew the yellow central bolt.

 Raise the spare wheel towards you
from the rear.

 Take the wheel out of the boot.
Putting the wheel back in place

 Put the wheel back in its housing.

 Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.

 Tighten fully until the central bolt
clicks to retain the wheel correctly.

 Put the box back in place in the
centre of the wheel and clip it.
Tyre under-infl ation detection
The spare wheel is not fi tted with
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.

10
i
134
PRACTICAL INFORMATION
Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: the ground
must be level, stable and non-slip-
pery ground.
Apply the handbrake, switch off the
ignition and engage fi rst gear * to
lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
It is imperative that you ensure that
the occupants get out of the vehicle
and wait where they are safe.
Never go underneath a vehicle
raised using a jack; use an axle
stand.

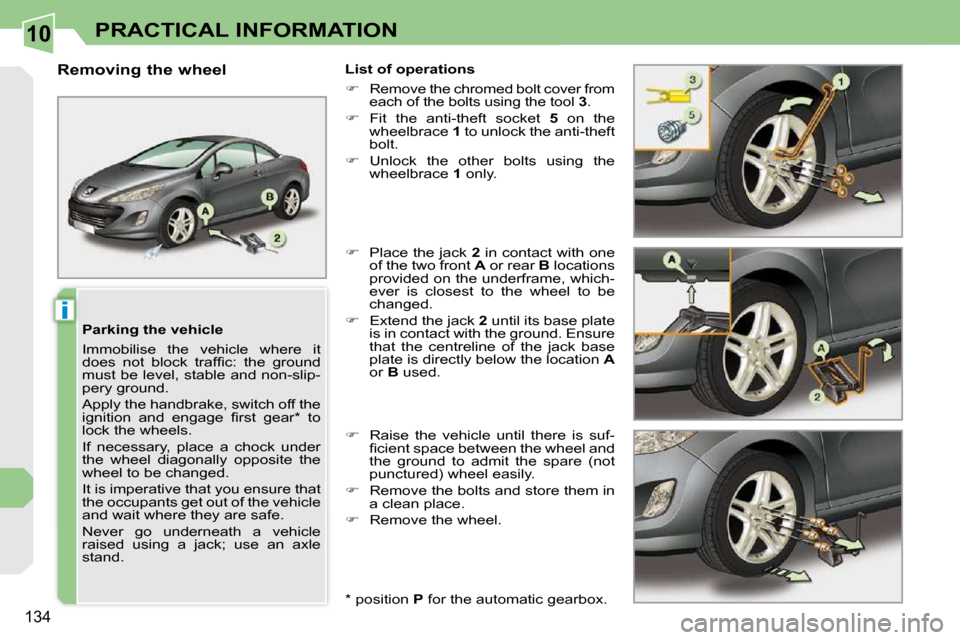

Removing the wheel
List of operations

 Remove the chromed bolt cover from
each of the bolts using the tool 3 .

 Fit the anti-theft socket 5 on the
wheelbrace 1 to unlock the anti-theft
bolt.

 Unlock the other bolts using the
wheelbrace 1 only.

 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.

 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.

 Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

 Remove the bolts and store them in
a clean place.

 Remove the wheel.
* position P for the automatic gearbox.

10
i
135
PRACTICAL INFORMATION
After changing a wheel
To store the punctured wheel in the
boot correctly, fi rst remove the cen-
tral cover.
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
without delay and replace it on the
vehicle as soon as possible.
When the spare wheel is different
from the other wheels, we strongly
recommend that your drive with
particular care.
Fitting the wheel
List of operations

 Put the wheel in place on the hub
using the centring guide 4 .

 Screw in the bolts by hand to the
stop.

 Pre-tighten the anti-theft bolt using
the wheelbrace 1 fi tted with the anti-
theft socket 5.

 Pre-tighten the other bolts using the
wheelbrace 1 only.

 Lower the vehicle fully.

 Fold the jack 2 and detach it.

 Lock the anti-theft bolt using the
wheelbrace 1 fi tted with the anti-
theft socket 5 .

 Lock the other bolts using the wheel-
brace 1 only.

 Refi t the chromed bolt covers on
each of the bolts.

 Store the tools in the box.

10
i
!
!
!
136
PRACTICAL INFORMATION
Risk of electrocution
Xenon bulbs (D1S-35 W) must be
replaced by a PEUGEOT dealer.
CHANGING A BULB
Procedure for replacing a faulty bulb with
a new bulb without the use of tools. Model with halogen lights

1. Direction indicators
(PY 21 W amber).

2. Dipped headlamps (H7

-

55 W).

3. Main beam headlamps
(H1

-

55 W).

4. Daytime/side lights (P21/5 W).

5. Fog lamps (H8

-

35 W).
1. Direction indicators
(PY 21 W SV silver).

2. Dipped/main beam headlamps
(D1S-35 W).

3. Additional main beam
headlamps (H1-55 W).

4. Daytime/side lights (P21/5 W).

5. Fog lamps (H8-35 W).
Model with xenon lights and
directional headlamps
In some climatic conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.
The headlamps are fi tted with poly-
carbonate glass with a protective
coating:


do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,

 use a sponge and soapy water,

 when using a high pressure
washer on persistent marks, do
not direct at the lamps or their
outlines for too long, so as not
to damage their coating and
their seals.


 Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a halogen bulb should
only be done after the headlamp
has been switched off for a few
minutes (risk of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Front lights

10
i
!
137
PRACTICAL INFORMATION
Changing main beam headlamp
bulbs

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Compress the springs to release the
bulb.

 Remove the bulb and change it.
To refi t, carry out these operations in
reverse order.
Changing daytime/side light bulbs

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Turn the bulb holder a quarter of a
turn and extract it.

 Pull the bulb and change it.
To refi t, carry out these operations in
reverse order.
Changing dipped headlamp bulbs

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Compress the springs to release the
bulb.

 Extract the bulb and change it.
To refi t, carry out these operations in
reverse order.

Changing direction indicator bulbs
Amber or silver coloured bulbs,
such as the direction indicators,
must be replaced with bulbs of
identical specifi cations and colour.
When refi tting, close the plastic
cover carefully to guarantee the
sealing of the headlamp.

 Turn the bulb holder a quarter of a
turn and extract it.

 Pull the bulb and change it.
To refi t, carry out these operations in re-
verse order.

10
138
PRACTICAL INFORMATION
Changing integrated direction
indicator side repeaters

 Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

 Tilt the screwdriver to extract the re-
peater and remove it.

 Disconnect the repeater connector.
To refi t, carry out these operations in
reverse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters. Changing fog lamp bulbs
To replace these bulbs consult a
PEUGEOT dealer.

Changing the lateral spotlights
For the replacement of this type of di-
odes bulb, contact a PEUGEOT dealer.
