PRACTICAL INFORMATION
Rear lights

1. Brake lights (diodes).

2. Side lights (diodes).

3. Direction indicators (diodes).

4. Fog lamp (P21 W).

5. Reversing light (P21 W). Changing the fog lamp and
reversing light
These two bulbs are changed from
outside the rear bumper:
On the left-hand side, take care
not to touch the silencer; risk of
burns, if you change the bulb after
switching off the ignition.

 turn the bulb holder one quarter of a
turn and remove it,

 turn the bulb one quarter of a turn
and change it.
To refi t, carry out these operations in
reverse order.
Changing brake lights, side lights
and direction indicators
For the replacement of this type of diodes
light, contact a PEUGEOT dealer.

10
!
140
PRACTICAL INFORMATION

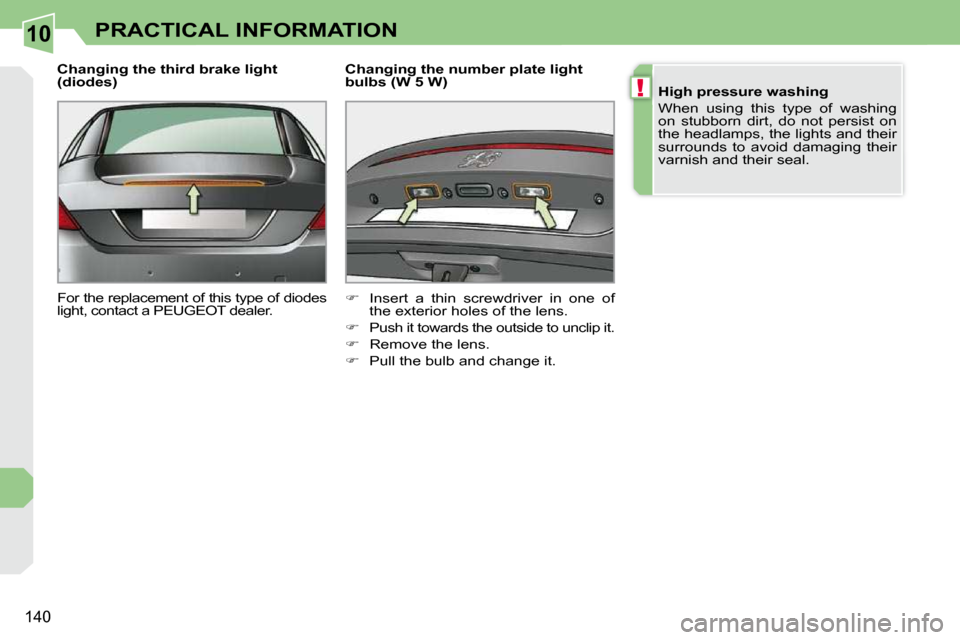

Changing the third brake light
(diodes)
For the replacement of this type of diodes
light, contact a PEUGEOT dealer. Changing the number plate light
bulbs (W 5 W)

 Insert a thin screwdriver in one of
the exterior holes of the lens.

 Push it towards the outside to unclip it.

 Remove the lens.

 Pull the bulb and change it.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
surrounds to avoid damaging their
varnish and their seal.

10
!
i
141
PRACTICAL INFORMATION
PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes.
Installing electrical accessories
Your vehicle’s electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The extraction pliers and the spare
fuses are installed on the back of the
fascia fuse box cover.
To gain access to them:

 open the glove box lid,

 push the opening guide to the left
past the fi rst notch,

 open the glove box lid fully,

 turn the screw a quarter of a turn to
the left, Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.

 Identify the faulty fuse by checking
the condition of its fi lament.

 Use the special pliers to extract the
fuse from its housing.

 Always replace the faulty fuse with a
fuse of the same rating.

 Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the
tables below.
Correct Incorrect

 unclip the fuse box cover by pulling
at the top right,

 remove the cover completely,

 remove the pliers.

10PRACTICAL INFORMATION
Fascia fuses
The fuse box is placed in the lower sec-
tion of the fascia (left-hand side).
Access to the fuses

 refer to the paragraph "Access to
the tools". Fuse tables

Fuse N° Rating Functions

G36 30 A Driver and passenger heated seats.

G37 5 A Trailer fuse box.

G38 30 A Driver’s seat memory unit.

G39 - Not used.

G40 30 A Hi-Fi amplifi er, passenger’s seat memory unit.

Fuse N° Rating Functions

F1 - Not used.

F2 - Not used.

F3 5 A Air bags and pretensioners control unit.

F4 10 A Clutch pedal and dual-function brake switches,
electrochromatic interior mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.

F5 30 A Front one-touch electric windows, folding mirrors
supply.

F6 30 A Rear one-touch electric windows, exterior door
opening controls.

F7 5 A Front and rear courtesy lights, map reading lights,
sun visor lighting, glove box lighting.

10
143
PRACTICAL INFORMATION

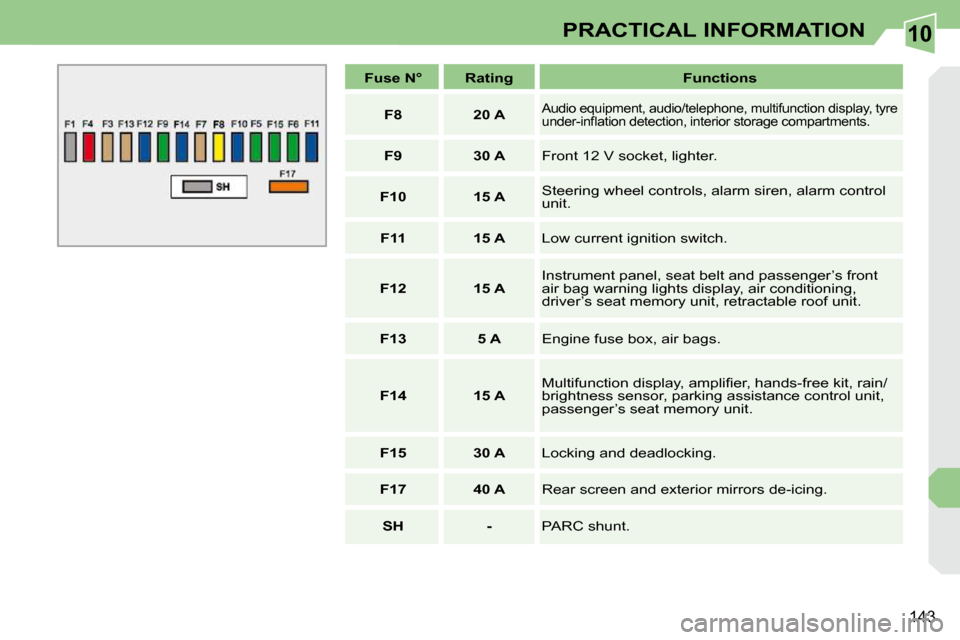

Fuse N° Rating Functions

F8 20 A
Audio equipment, audio/telephone, multifunction di splay, tyre
under-infl ation detection, interior storage compart ments.

F9 30 A Front 12 V socket, lighter.

F10 15 A Steering wheel controls, alarm siren, alarm control
unit.

F11 15 A Low current ignition switch.

F12 15 A Instrument panel, seat belt and passenger’s front
air bag warning lights display, air conditioning,
driver’s seat memory unit, retractable roof unit.

F13 5 A Engine fuse box, air bags.

F14 15 A Multifunction display, amplifi er, hands-free kit, rain/
brightness sensor, parking assistance control unit,
passenger’s seat memory unit.

F15 30 A Locking and deadlocking.

F17 40 A Rear screen and exterior mirrors de-icing.

SH - PARC shunt.

10
144
PRACTICAL INFORMATION
Engine compartment fuses
The fuse box is placed in the engine
compartment near the battery (left-hand
side).
Access to the fuses

 Unclip the cover.

 Change the fuse (see corresponding
paragraph).

 When you have fi nished, close the
cover carefully to guarantee the
sealing of the fuse box. Fuse table

Fuse N° Rating Functions

F1 20 A Engine control unit supply, injection pump and EGR
solenoid valves (2 l HDI 16V), injectors
(2 l HDI 16V).

F2 15 A Horn.

F3 10 A Front wash-wipe.

F4 20 A Headlamp wash.

F5 15 A Purge canister, turbine discharge and Turbo pressu
re
regulation solenoid valves (1.6 l THP 16V), oil vap our
heater (1.6 l THP 16V), diesel heater (1.6 l HDI 16 V).

F6 10 A Vehicle speed sensor, ABS/ESP control unit.

F7 10 A Power steering control unit, automatic gearbox,
engine coolant level detector.

F8 25 A Starter control.

F9 10 A Diagnostic socket, directional headlamps, air
fl ow sensor (Diesel), particle emission fi lter pump
(Diesel), exterior mirror controls.

F10 30 A Engine control unit actuators (petrol: ignition coils,
solenoid valves, oxygen sensors, injectors, heaters,
fuel pump, controlled thermostat) (Diesel: solenoid
valves, heaters).

F11 40 A Air conditioning blower.

10
145
PRACTICAL INFORMATION

Fuse N° Rating Functions

F12 30 A Windscreen wipers slow/fast speed.

F13 40 A Built-in systems interface supply (ignition positive).

F14 - Not used.

F15 10 A Right-hand main beam headlamp.

F16 10 A Left-hand main beam headlamp.

F17 15 A Left-hand dipped headlamp.

F18 15 A Right-hand dipped headlamp.

F19 15 A Oil vapour heater (1.6 l VTi 16V), purge canister
solenoid valve (1.6 l VTi 16V), oxygen sensors
(petrol), air cooling solenoid valves (Diesel).

F20 10 A Controlled thermostat, variable timing solenoid
valves, Turbo pressure regulation solenoid valve
(Diesel), engine coolant level detector (Diesel).

F21 5 A Fan assembly relay supply, Valvetronic relay control
(1.6 l VTi 16V), Turbo cooling (1.6 l THP 16V), air
fl ow sensor (1.6 l HDI 16V).

10
146
PRACTICAL INFORMATION
Table of mini and midi-fuses above the battery
* The maxi-fuses provide additional pro- tection for the electrical systems. All
work on the maxi-fuses must be carried
out by a PEUGEOT dealer.
Fuse N° Rating Functions

F1 15 A Automatic gearbox.

F2 15 A Diagnostic socket, daytime lights.

F3 5 A Dual-function brake switch.

F4 - Not used.

F5 * 80 A Power steering electropump assembly.

F6 * 70 A Heating unit (Diesel).

F7 * 100 A Switching and protection unit.

F8 *
50 A Driver and passenger "AIRWAVE" systems.

F9 - Not used.

F10 * 30 A Valvetronic electric motor (1.6 l THP 16V).
Table of maxi-fuses
Fuse N° Rating Functions

MF1 * 50 A Retractable roof electropump assembly and unit.

MF2 * 50 A Passenger compartment fuse box.

MF3 * 50 A Fan assembly.

MF4 * 80 A Built-in systems interface.

MF5 * 80 A Built-in systems interface.

MF6 * 40 A ABS/ESP control unit.

MF7 * 30 A ABS/ESP solenoid valves.

MF8 * - Not used.
