2009 Peugeot 308 CC Owner's Manual

4
!
i
i
64
ACCESS
Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
If one of the doors or the boot is still
open, the central locking does not
take place.
After unlocking the vehicle, if none
of the accesses - door or boot - are
opened within thirty seconds, the
vehicle will re-lock automatically.
Deadlocking using the remote
control Deadlocking using the key
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.
 Press the closed padlock to
lock the vehicle completely.

 Press the closed padlock
again within fi ve seconds to
deadlock the vehicle.
Locking the vehicle

 Press the closed padlock to
lock the vehicle completely.
Normal locking using the key

 Turn the key to the right in the
driver's door lock to lock the vehicle
completely.
Normal locking using the remote
control
Deadlocking is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior mirrors
fold at the same time.

Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
The central locking also locks the
glove box and the front armrest
compartment.
According to version, the exterior mirrors
fold at the same time.

Turn the key to the right in the driver's
door lock to lock the vehicle completely.

 Turn the key to the right again within
fi ve seconds to deadlock the vehicle.

4
65
ACCESS

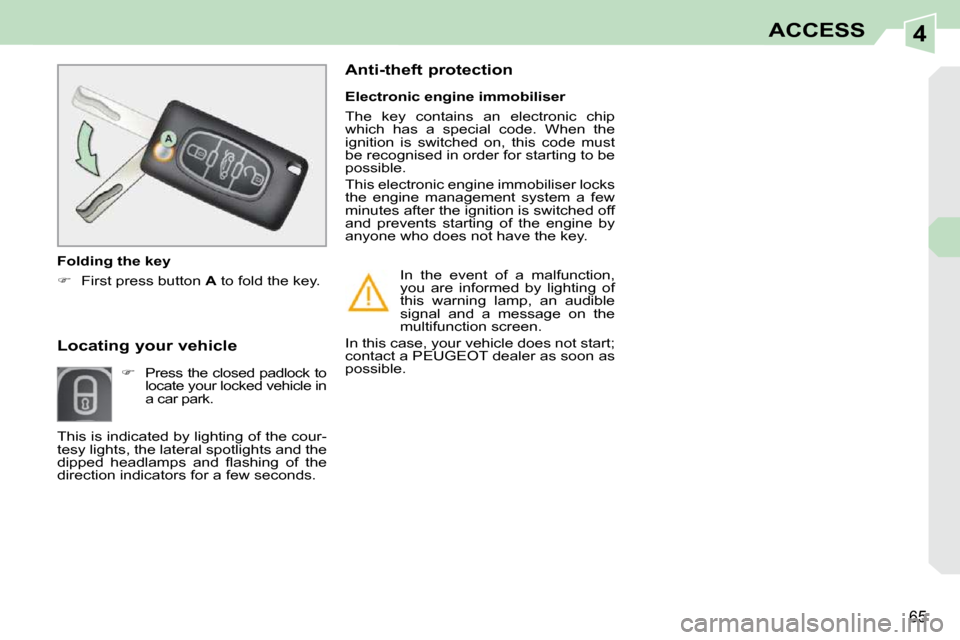

Locating your vehicle

 Press the closed padlock to
locate your locked vehicle in
a car park. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Folding the key
 First press button A to fold the key.
This is indicated by lighting of the cour-
tesy lights, the lateral spotlights and the
dipped headlamps and fl ashing of the
direction indicators for a few seconds.

4
!
67
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the trans-
ponder code required to order a replacement key. Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the i gnition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
by the emergency services more diffi cult in an emer gency.
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .

4
65
ACCESS
Locating your vehicle

 Press the closed padlock to
locate your locked vehicle in
a car park. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Folding the key
 First press button A to fold the key.
This is indicated by lighting of the cour-
tesy lights, the lateral spotlights and the
dipped headlamps and fl ashing of the
direction indicators for a few seconds.

4
!
67
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the trans-
ponder code required to order a replacement key. Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the i gnition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
by the emergency services more diffi cult in an emer gency.
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .

4
i
66
ACCESS
Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the fascia
to position 3 (Starting) .

 When the engine starts, release the
key.
Switching the vehicle off

 Immobilise the vehicle.

 Turn the key fully towards you to po-
sition 1 (Stop) .

 Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote control
battery or in the event of a remote control
malfunction, you can no longer unlock,
lock or locate your vehicle.

 First of all, use the key in the lock to
unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR 1620/3 volts.
Reinitialisation

 Switch off the ignition.

 Turn the key to position 2 (Ignition) .

 Press the closed padlock immediately
for a few seconds.

 Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its location.

 Slide the new battery into its location
observing the original direction.

 Clip the casing.

 Reinitialise the remote control.
This replacement battery is available
from PEUGEOT dealers.

If the battery is fl at, you are
informed by lighting of this warning
light, an audible signal and a
message on the multifunction
display.
Key left in the "Ignition"
position
If the key has been left in the
ignition switch, the ignition will be
switched off automatically after
one hour.
To switch the ignition back on, turn
the key to position
1 (Stop) , then
back to position 2 (Ignition) .

4
!
i
68
ACCESS

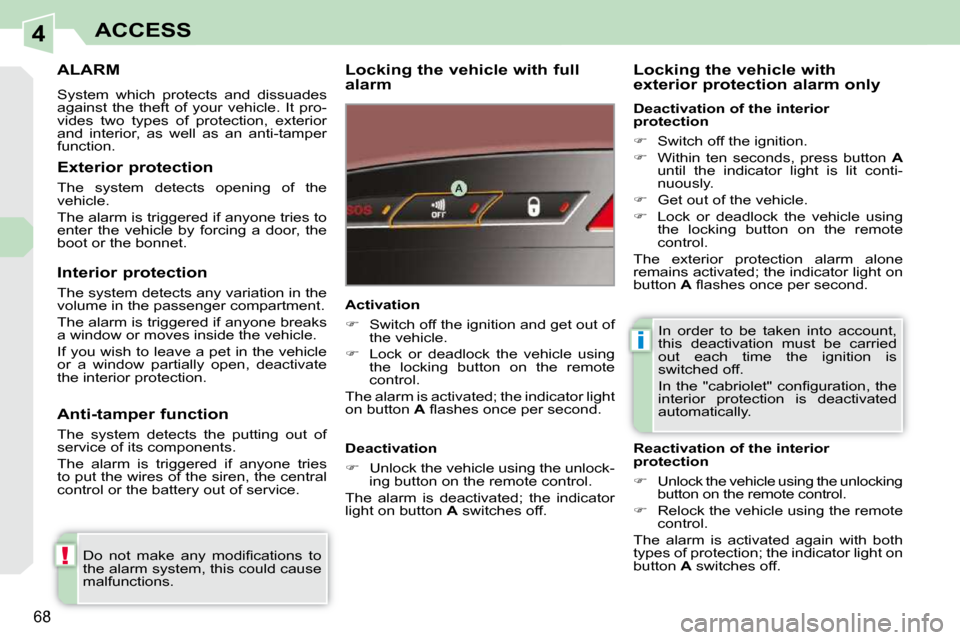

ALARM
System which protects and dissuades
against the theft of your vehicle. It pro-
vides two types of protection, exterior
and interior, as well as an anti-tamper
function. Locking the vehicle with full
alarm
Do not make any modifi cations to
the alarm system, this could cause
malfunctions. In order to be taken into account,
this deactivation must be carried
out each time the ignition is
switched off.
In the "cabriolet" confi guration, the
interior protection is deactivated
automatically.
Reactivation of the interior
protection

 Unlock the vehicle using the unlocking
button on the remote control.

 Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator light on
button A switches off.
Locking the vehicle with
exterior protection alarm only
Activation

 Switch off the ignition and get out of
the vehicle.

 Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator light
on button A fl ashes once per second.
Exterior protection
The system detects opening of the
vehicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation

 Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
light on button A switches off. Deactivation of the interior
protection

 Switch off the ignition.

 Within ten seconds, press button A
until the indicator light is lit conti-
nuously.

 Get out of the vehicle.

 Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone
remains activated; the indicator light on
button A fl ashes once per second.

4
!
69
ACCESS

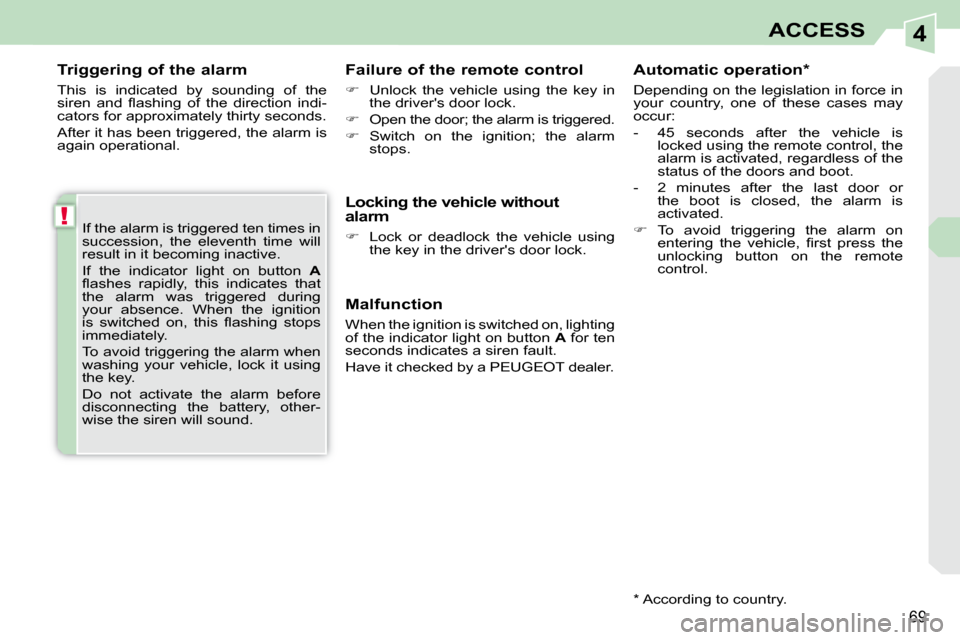

Triggering of the alarm
This is indicated by sounding of the
siren and fl ashing of the direction indi-
cators for approximately thirty seconds.
After it has been triggered, the alarm is
again operational. If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator light on button A
fl ashes rapidly, this indicates that
the alarm was triggered during
your absence. When the ignition
is switched on, this fl ashing stops
immediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key.
Do not activate the alarm before
disconnecting the battery, other-
wise the siren will sound. Failure of the remote control

 Unlock the vehicle using the key in
the driver's door lock.

 Open the door; the alarm is triggered.

 Switch on the ignition; the alarm
stops.
* According to country.
Malfunction
When the ignition is switched on, lighting
of the indicator light on button
A for ten
seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.
Locking the vehicle without
alarm

 Lock or deadlock the vehicle using
the key in the driver's door lock. Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.
- 2 minutes after the last door or the boot is closed, the alarm is
activated.

 To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.
