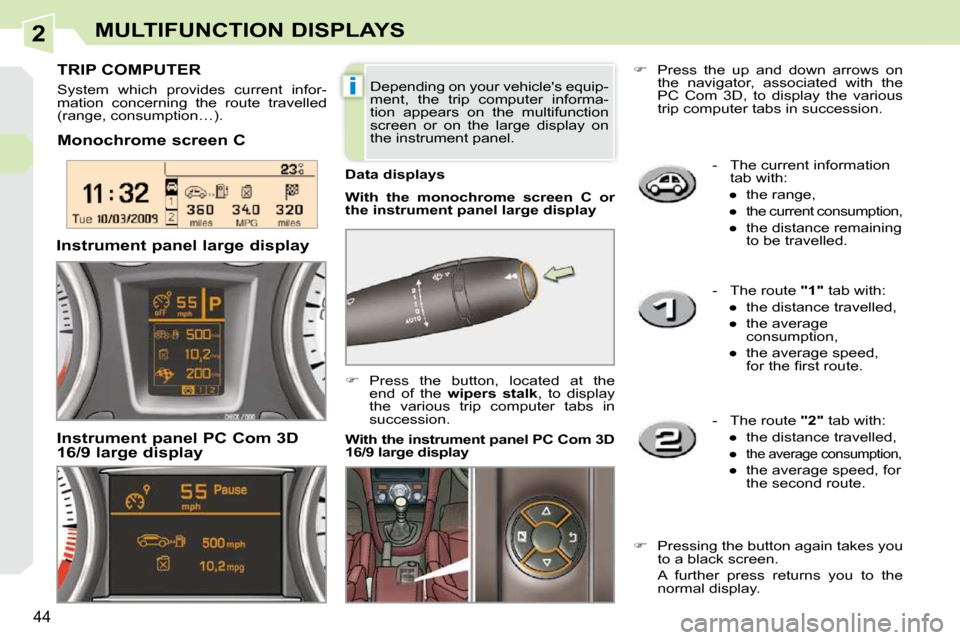

MULTIFUNCTION DISPLAYS
- The current information tab with:

2
!
i
i
45
MULTIFUNCTION DISPLAYS

 When the route required is dis-
played, press the control for more
than two seconds.
Route zero reset

With the monochrome screen C or
the instrument panel large display A few definitions…
When the range falls below 20 miles (30 km), dashes are displayed. After fi ll-ing with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
If dashes are displayed continu-ously while driving in place of the digits, contact a PEUGEOT dealer.
This function is only displayed from 20 mph (30 km/h).
This fi gure may vary following a change in the style of driving or the relief, resulting in a signifi cant change in the current consumption.
Range
(km or miles)
This indicates the distance which can still be travelled with the fuel remaining in the tank in relation to the average consumption over the last few miles (kilometres) trav-elled.
Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed during the last few seconds.
Average consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed since the last trip computer zero reset.
Average speed
(km/h or mph)
This is the average speed calculated since the last trip computer zero reset (igni-tion on).
Distance travelled
(km or miles)
This indicates the distance travel-led since the last trip computer zero reset.
Distance remaining
to destination
(km or miles)
This is the distance remaining to be tra-
velled to the fi nal destination. It is either
calculated instantly by the navigation
system, if guidance is activated, or en-
tered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

With the instrument panel PC Com 3D
16/9 large display

 When the required route is dis-
played, press the "OK" button on
the navigator, associated with the
PC Com 3D.
Routes "1" and "2" are independent
but their use is identical.
Route "1" permits, for example, daily
calculations, and route "2" monthly
calculations.

3
46
COMFORT
VENTILATION
System which creates and maintains
comfortable conditions in the vehicle's
passenger compartment. Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits. The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
The air fl ow control enables you to
increase or reduce the speed of the
ventilation blower.
Air intake
The air circulating in the passenger com-
partment is fi ltered and originates either
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the centre
console. Depending on the model, the
functions offered are:
- the level of comfort required,
- the air fl ow,
- the air distribution,
- the de-icing and demisting,
- the manual or automatic air condi- tioning controls.
Air diffusion

1. Windscreen de-icing or demisting
vents.

2. Front side window de-icing or
demisting vents.

3. Side adjustable and closing vents.

4. Central adjustable and closing vents.

5. Air outlets to the front footwells.

6. Adjustable and closing vents for the
rear passengers.

7. Air outlets to the rear footwells.

3
i
47
COMFORT
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer. RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the operation and main-
tenance rules below:

 If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
Place the air fl ow control at a suffi cient level to provide an adequate
renewal of air in the passenger compartment.

 To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.

 Do not cover the sunshine sensor, located on the fascia; th is is used for
regulation of the air conditioning system.

 Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.

 Ensure that the passenger compartment fi lter is in good condit ion and
have the fi lter elements replaced regularly (refer to the "Checks" section).

 We recommend the use of a combined passenger compartment fi lter .
Thanks to its second special active fi lter, it contributes to t he purifi cation
of the air breathed by the occupants and the cleanness of th e passenger
compartment (reduction of allergic symptoms, bad odours and greasy de-
posits).

 To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.

 If the system does not produce cold air, do not use it and contact a
PEUGEOT dealer.
In the "cabriolet" confi guration, installing the windstop and using the "AIRWAVE" systems improves comfort.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.

3
i
48
COMFORT
2. Air fl ow adjustment

Turn the dial from position 1
to position 5 to obtain a com-
fortable air fl ow.
Windscreen, side windows
and footwells.
Footwells.
(vents closed) Central and side vents.

 Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your
requirements. Windscreen and side windows.
1. Temperature adjustment The air distribution can be
adapted by placing the dial in
an intermediate position.
The air conditioning can only operate
with the engine running. 4. Air intake/Air recirculation
The intake of exterior air prevents misting
of the windscreen and side windows.
The recirculation of interior air insulates
the passenger compartment from exte-
rior odours and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
the air quality and avoid misting.

 If you place the air fl ow control
in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfort-
able level. However, a slight
fl ow of air, due to the movement
of the vehicle, can still be felt.
3. Air distribution adjustment

 Press the button to recir-
culate the interior air. The
indicator light comes on to
confi rm this.

 Press the button again to permit the
intake of exterior air. The indicator
light switches off to confi rm this.

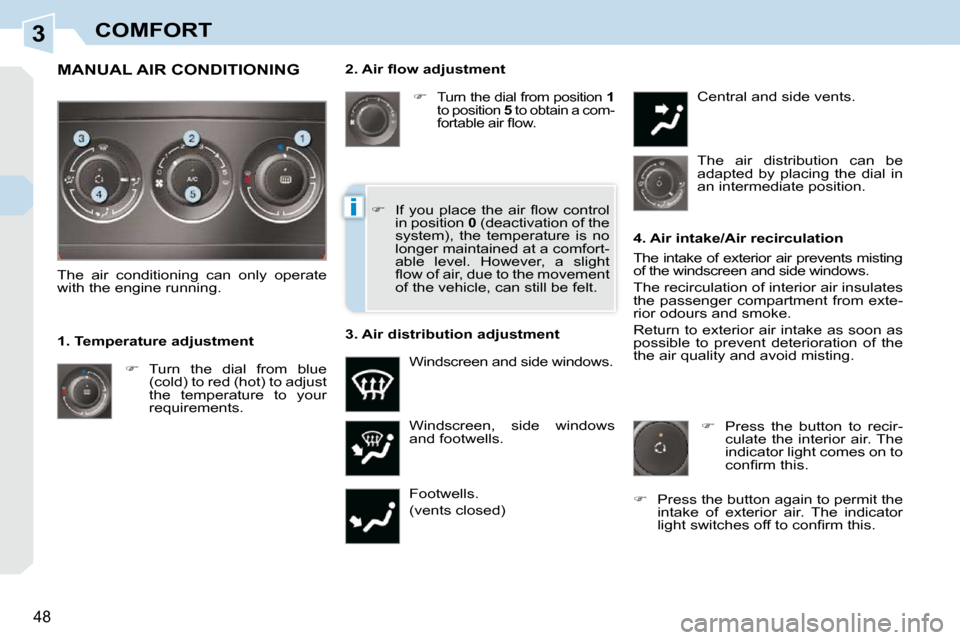

MANUAL AIR CONDITIONING

3
i
49
COMFORT

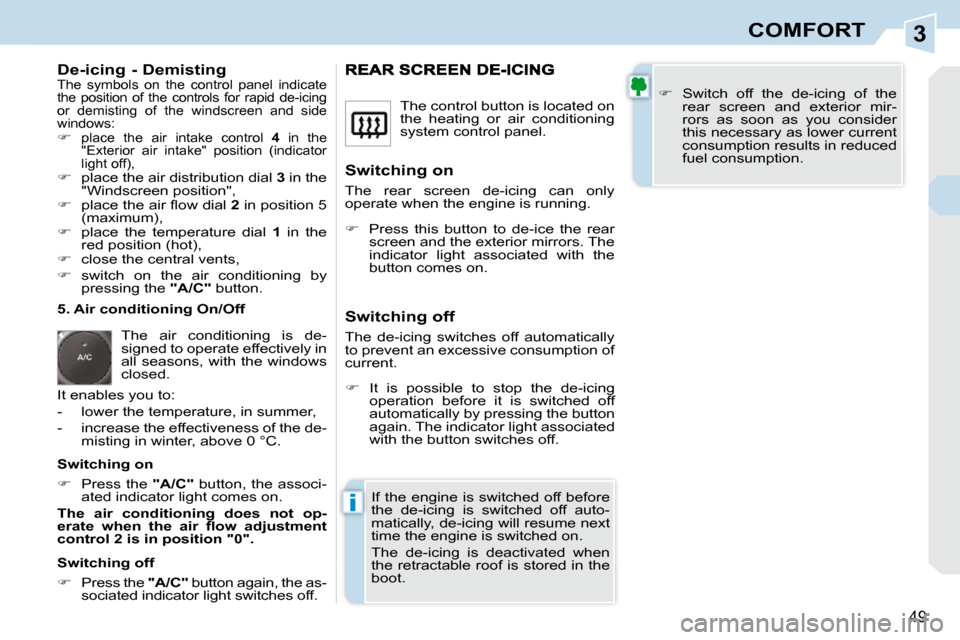

De-icing - Demisting The symbols on the control panel indicate
the position of the controls for rapid de-icing
or demisting of the windscreen and side
windows:

 place the air intake control 4 in the
"Exterior air intake" position (indicator
light off),

 place the air distribution dial 3 in the
"Windscreen position",

 place the air fl ow dial 2 in position 5
(maximum),

 place the temperature dial 1 in the
red position (hot),

 close the central vents, The control button is located on
the heating or air conditioning
system control panel.

 Switch off the de-icing of the
rear screen and exterior mir-
rors as soon as you consider
this necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the de-icing is switched off auto-
matically, de-icing will resume next
time the engine is switched on.
The de-icing is deactivated when
the retractable roof is stored in the
boot.
Switching on
The rear screen de-icing can only
operate when the engine is running.
Switching off
The de-icing switches off automatically
to prevent an excessive consumption of
current.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de- misting in winter, above 0 °C.
Switching on

 Press the "A/C" button, the associ-
ated indicator light comes on.

The air conditioning does not op-
erate when the air fl ow adjustment
control 2 is in position "0".
Switching off

 Press the "A/C" button again, the as-
sociated indicator light switches off.

 switch on the air conditioning by
pressing the "A/C" button.
 Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
 It is possible to stop the de-icing
operation before it is switched off
automatically by pressing the button
again. The indicator light associated
with the button switches off.

3
i
49
COMFORT
De-icing - Demisting The symbols on the control panel indicate
the position of the controls for rapid de-icing
or demisting of the windscreen and side
windows:

 place the air intake control 4 in the
"Exterior air intake" position (indicator
light off),

 place the air distribution dial 3 in the
"Windscreen position",

 place the air fl ow dial 2 in position 5
(maximum),

 place the temperature dial 1 in the
red position (hot),

 close the central vents, The control button is located on
the heating or air conditioning
system control panel.

 Switch off the de-icing of the
rear screen and exterior mir-
rors as soon as you consider
this necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the de-icing is switched off auto-
matically, de-icing will resume next
time the engine is switched on.
The de-icing is deactivated when
the retractable roof is stored in the
boot.
Switching on
The rear screen de-icing can only
operate when the engine is running.
Switching off
The de-icing switches off automatically
to prevent an excessive consumption of
current.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de- misting in winter, above 0 °C.
Switching on

 Press the "A/C" button, the associ-
ated indicator light comes on.

The air conditioning does not op-
erate when the air fl ow adjustment
control 2 is in position "0".
Switching off

 Press the "A/C" button again, the as-
sociated indicator light switches off.

 switch on the air conditioning by
pressing the "A/C" button.
 Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
 It is possible to stop the de-icing
operation before it is switched off
automatically by pressing the button
again. The indicator light associated
with the button switches off.

3
ii
50
COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will reach its optimum
level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only. On entering the vehicle, if the inte-
rior temperature is much colder or
warmer than the comfort value, there
is no need to change the value dis-
played in order to obtain the comfort
required. The system corrects the
difference in temperature automati-
cally and as quickly as possible.
The air conditioning only operates when
the engine is running. The driver and his front
passenger can each adjust
the temperature to their
requirements.
 Turn control
2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right
setting difference of more than 3. 4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or de-ice the
windscreen and side windows
(humidity, several passengers,
ice, etc.).
 In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distri bution
of the ventilation to the windscreen and
side windows.
Automatic operation
 Press the
"AUTO" button.
The indicator light on the
button comes on. 2. Driver's side adjustment
DUAL ZONE AUTOMATIC AIR CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised
adjustment of all of the functions, pas-
senger compartment temperature,
air fl ow, air distribution and air recircu-
lation, in accordance with the comfort
value that you have chosen.
This system is designed to operate
effectively in all seasons, with auto matic
adaptation in the "cabriolet" confi guration. The value indicated on the display
corresponds to a level of comfort and
not to a temperature in degrees Celsius
or Fahrenheit.
 To switch it off, press the
"visibility"
button again or press the "AUTO"
button, the indicator light on the button
switches off and the indicator light on
the "AUTO" button comes on.
1. Automatic comfort programme
3. Passenger side adjustment
