5-1. Essential information
Emergency flashers
NOTICE
■To prevent 12 volt battery discharge
Do not leave the emergency flashers on longer than necessary when the engine is
not running.
Use the emergency flashers if the vehicle malfunctions or is involved in an
accident.
Press the switch to flash all the
turn signal lights. To turn them
off, press the switch once again.
GS_U_G.book Page 496 Monday, April 27, 2009 10:50 AM

5
When trouble arises
497
5-1. Essential information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your automatic transmission.
Contact your Lexus dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet. This should only be attempted on hard, surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to s teer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
If towing from the rear, the wheels and axle on the ground must be in good
condition.
If they are damaged, use a to wing dolly or flat bed truck.
GS_U_G.book Page 497 Monday, April 27, 2009 10:50 AM

498
5-1. Essential information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Towing eyelet
■Emergency towing procedureRelease the parking brake.
Put the shift lever in “N”.
The “ENGINE START STOP” switch must be in the ACCESSORY mode
(engine off) or the IGNITION ON mode (engine on).
CAUTION
■While towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelet and the cable or chain.
●If the engine is not running, the power assist for the brakes and steering will not
function, making steering and braking more difficult.
NOTICE
■To prevent causing serious damage to the automatic transmission
Never tow this vehicle from the front with the rear wheels (2WD models) or four
wheels (4WD models) on the ground.
This may cause serious damage to the automatic transmission.
STEP1
STEP2
STEP3
GS_U_G.book Page 498 Monday, April 27, 2009 10:50 AM

5
When trouble arises
499
5-1. Essential information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

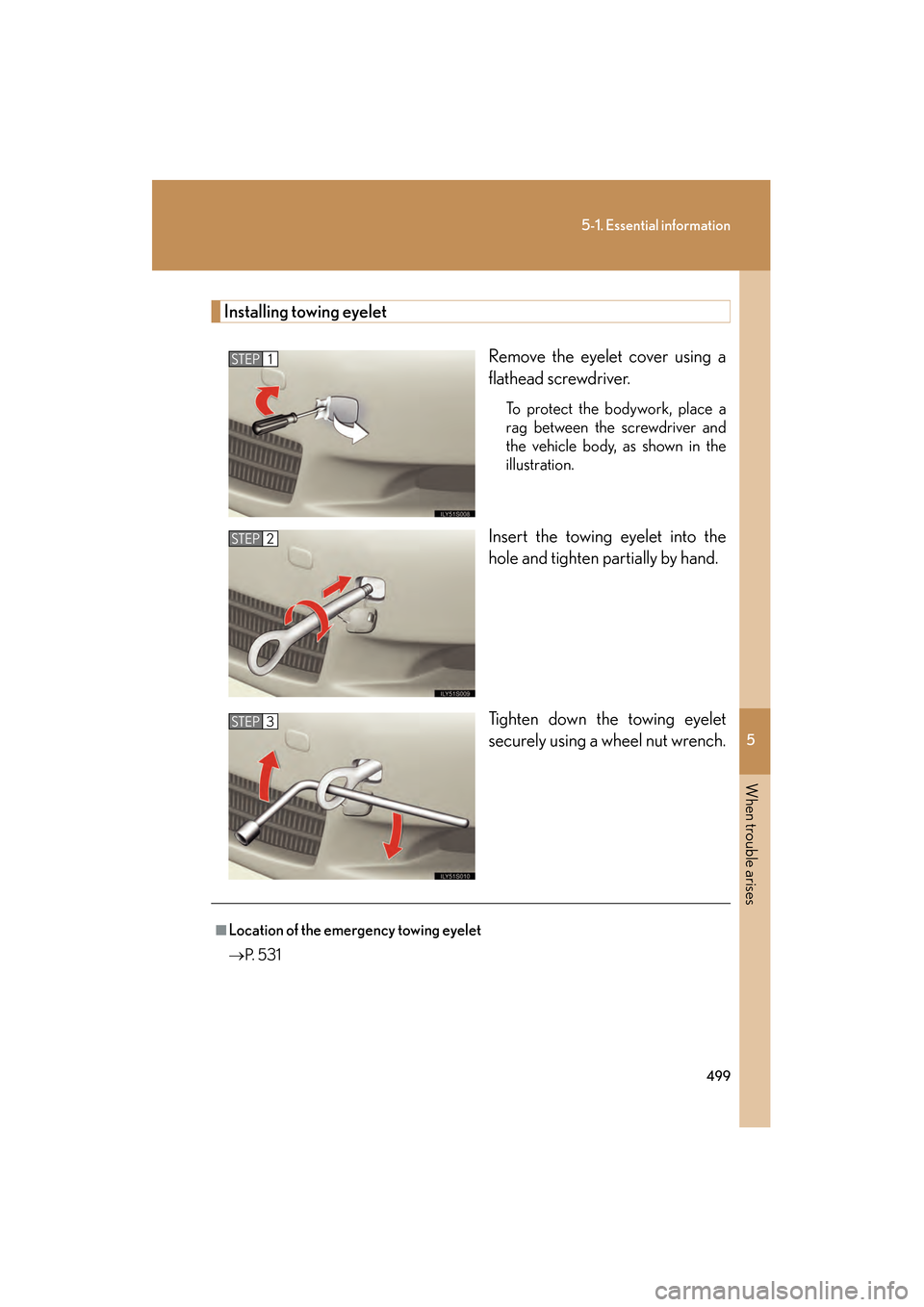

Installing towing eyeletRemove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut wrench.
STEP1
STEP2
STEP3
■Location of the emergency towing eyelet
→P. 5 3 1
GS_U_G.book Page 499 Monday, April 27, 2009 10:50 AM

500
5-1. Essential information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

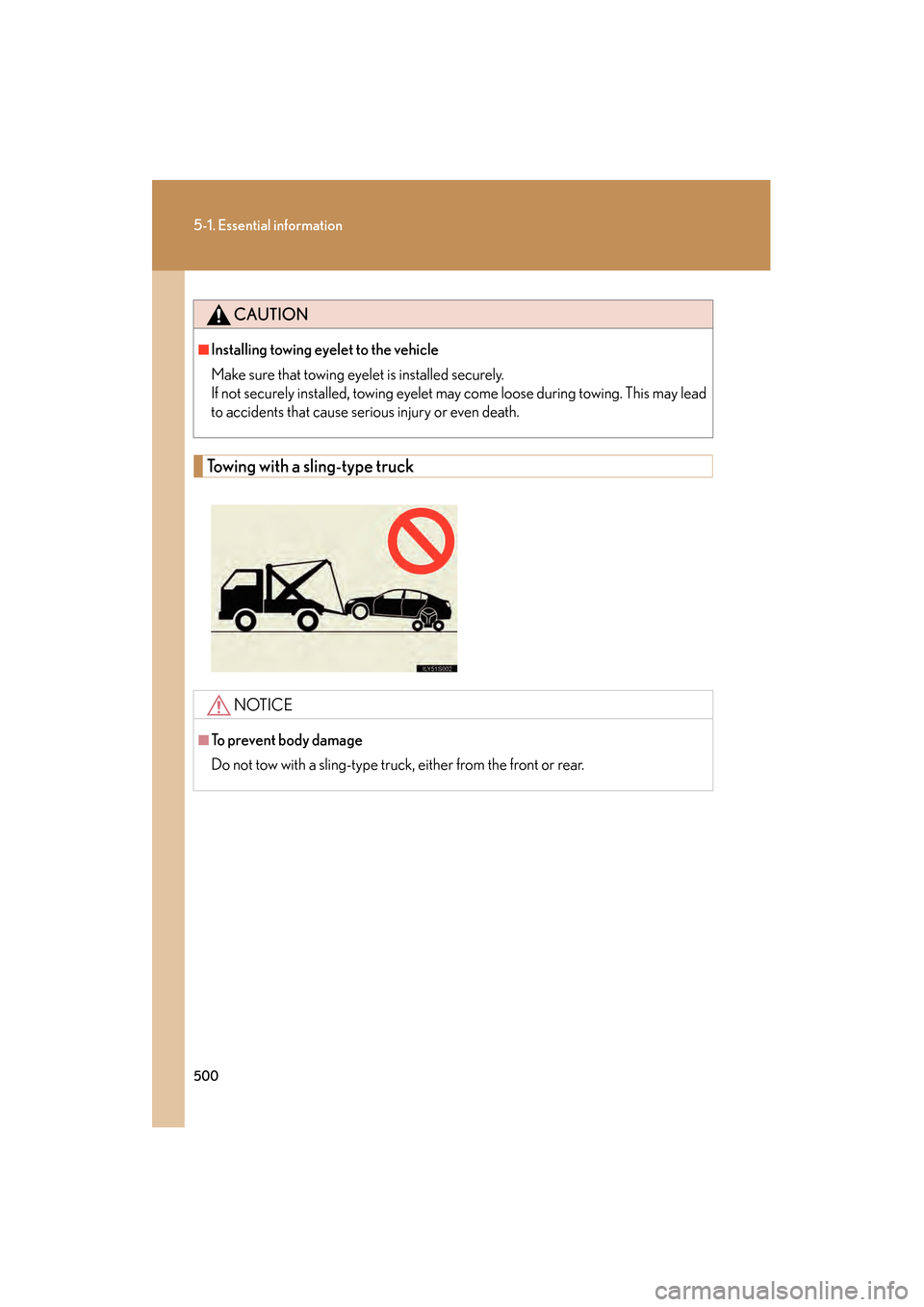

Towing with a sling-type truck
CAUTION
■Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing. This may lead
to accidents that cause serious injury or even death.
NOTICE
■To prevent body damage
Do not tow with a sling-type truck, either from the front or rear.
GS_U_G.book Page 500 Monday, April 27, 2009 10:50 AM

5
When trouble arises
501
5-1. Essential information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Towing with a wheel lift-type truckFrom front Use a towing dolly under the rear
wheels.
From rear (2WD models) Turn the “ENGINE START STOP”
switch to the ACCESSORY mode
so that the steering wheel is
unlocked.
From rear (4WD models) Use a towing dolly under the front
wheels.
GS_U_G.book Page 501 Monday, April 27, 2009 10:50 AM

502
5-1. Essential information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Using a flat bed truckIf your Lexus is transported by a
flat bed truck, it should be tied
down at the locations shown in the
illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45 °.
Do not overly tighten the tie-
downs or the vehicle may be dam-
aged.
NOTICE
■To prevent causing serious damage to the automatic transmission
Never tow this vehicle from the front with the rear wheels on the ground.
■To prevent damaging the vehicle
●Do not tow the vehicle with the “ENGINE START STOP” switch is OFF.
The steering lock mechanism is not st rong enough to hold the front wheel
straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Wi thout adequate clearance, the vehicle
could be damaged while being towed.
GS_U_G.book Page 502 Monday, April 27, 2009 10:50 AM

5
When trouble arises
503
5-1. Essential information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temper ature gauge needle continually points
higher than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor
