2009 Lexus GS350 Owner's Manual

480
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
FuseAmpereCircuit
9IGN10
Multi-port fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, stop/tail
lights, steering lock system, electroni-
cally controlled brake system, Lexus
link system ECU, occupant classifica-
tion system ECU
10ACC7. 5
Multiplex communication system,
smart access system with push-but-
ton start, rear view monitor system,
audio system, air conditioning system,
Lexus link system ECU
11CIG15Cigarette lighter
12PWR OUTLET15Po w e r o u t l e t
13AIR SUS20Adaptive variable suspension system
14RR DOOR RH20
Rear right door control system
(power door lock system, door cour-
tesy light, power window)
15FR DOOR RH20
Front right door control system
(power door lock system, power rear
view mirror control system, door
courtesy light, outside rear view mir-
ror heater, power window), multiplex
communication system
GS_U_G.book Page 480 Monday, April 27, 2009 10:50 AM

481
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
FuseAmpereCircuit
16AM27. 5Starting system
17RH-IG7. 5
Seat heater switches, front right door
control system, rear right door con-
trol system, capacitor, combination
switch, seat belt pretensioners, shift
lever switch, power window
18FR S/HTR RH15Seat heaters and ventilators
19ECU-IG RH10
Tilt and telescopic steering, combina-
tion switch, multiplex communication
system, power seat, smart entry &
start system, air conditioning system,
audio system, shift lock system
GS_U_G.book Page 481 Monday, April 27, 2009 10:50 AM

482
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Luggage compartment
FuseAmpereCircuit
1RR S/SHADE7. 5Rear sunshade
2PSB30Pre-collision seat belt
3RR-IG210
4RR-IG110Pre-collision seat belt, seat belt pre-
tensioners, A/P UNIT, rear sunshade
5RR-B10Trunk light, noise filter
6RR FOG7. 5
7STOP LP L10Stoplights, back-up light
8STOP LP R10High mounted stoplights
9RR TAIL10Tail lights, license plate lights, rear
side marker lights
GS_U_G.book Page 482 Monday, April 27, 2009 10:50 AM

483
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Luggage compartment
(vehicles with active stabilizer suspension system)
FuseAmpereCircuit
1STB FR50Front stabilizer
2STB RR30Rear stabilizer
3STB DC/DC30DC/DC converter
■After a fuse is replaced
●If the lights do not turn on even afte r the fuse has been replaced, a bulb may
need replacement. ( →P. 488)
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
GS_U_G.book Page 483 Monday, April 27, 2009 10:50 AM

484
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
GS_U_G.book Page 484 Monday, April 27, 2009 10:50 AM

485
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

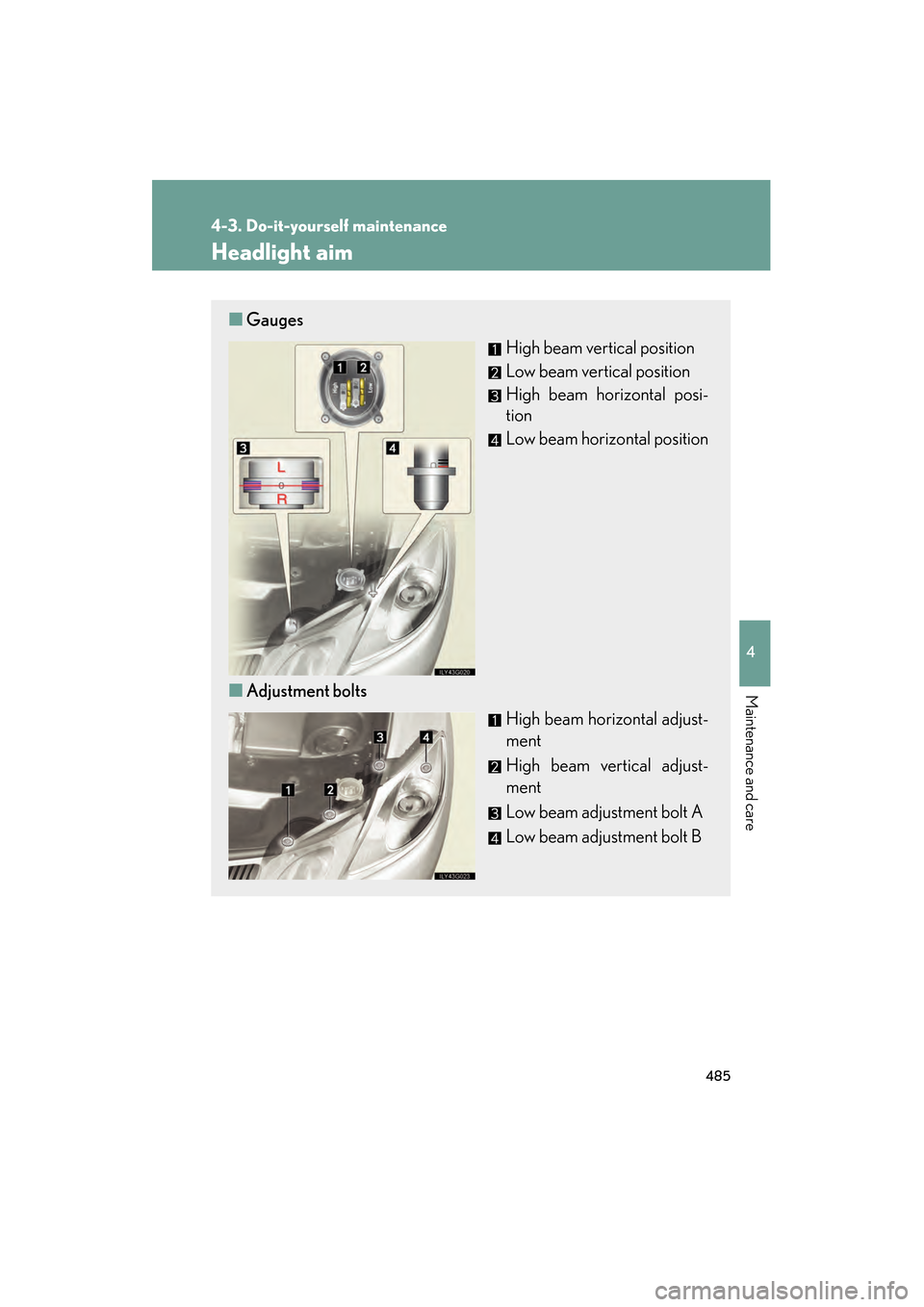

Headlight aim
■Gauges
High beam vertical position
Low beam vertical position
High beam horizontal posi-
tion
Low beam horizontal position
■ Adjustment bolts
High beam horizontal adjust-
ment
High beam vertical adjust-
ment
Low beam adjustment bolt A
Low beam adjustment bolt B
GS_U_G.book Page 485 Monday, April 27, 2009 10:50 AM

486
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

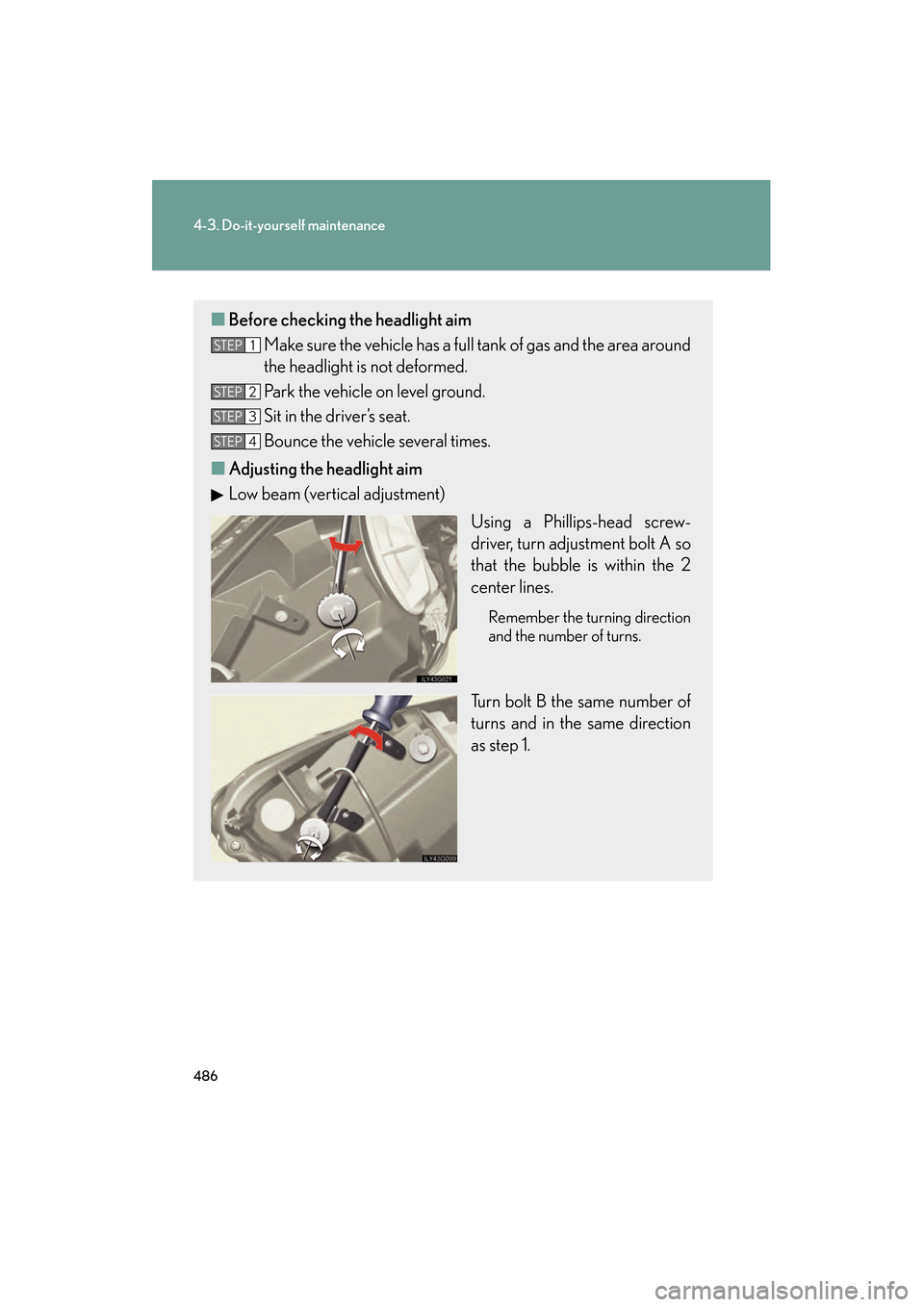

■Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
■ Adjusting the headlight aim
Low beam (vertical adjustment)
Using a Phillips-head screw-
driver, turn adjustment bolt A so
that the bubble is within the 2
center lines.
Remember the turning direction
and the number of turns.
Turn bolt B the same number of
turns and in the same direction
as step 1.
STEP1
STEP2
STEP3
STEP4
GS_U_G.book Page 486 Monday, April 27, 2009 10:50 AM

487
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

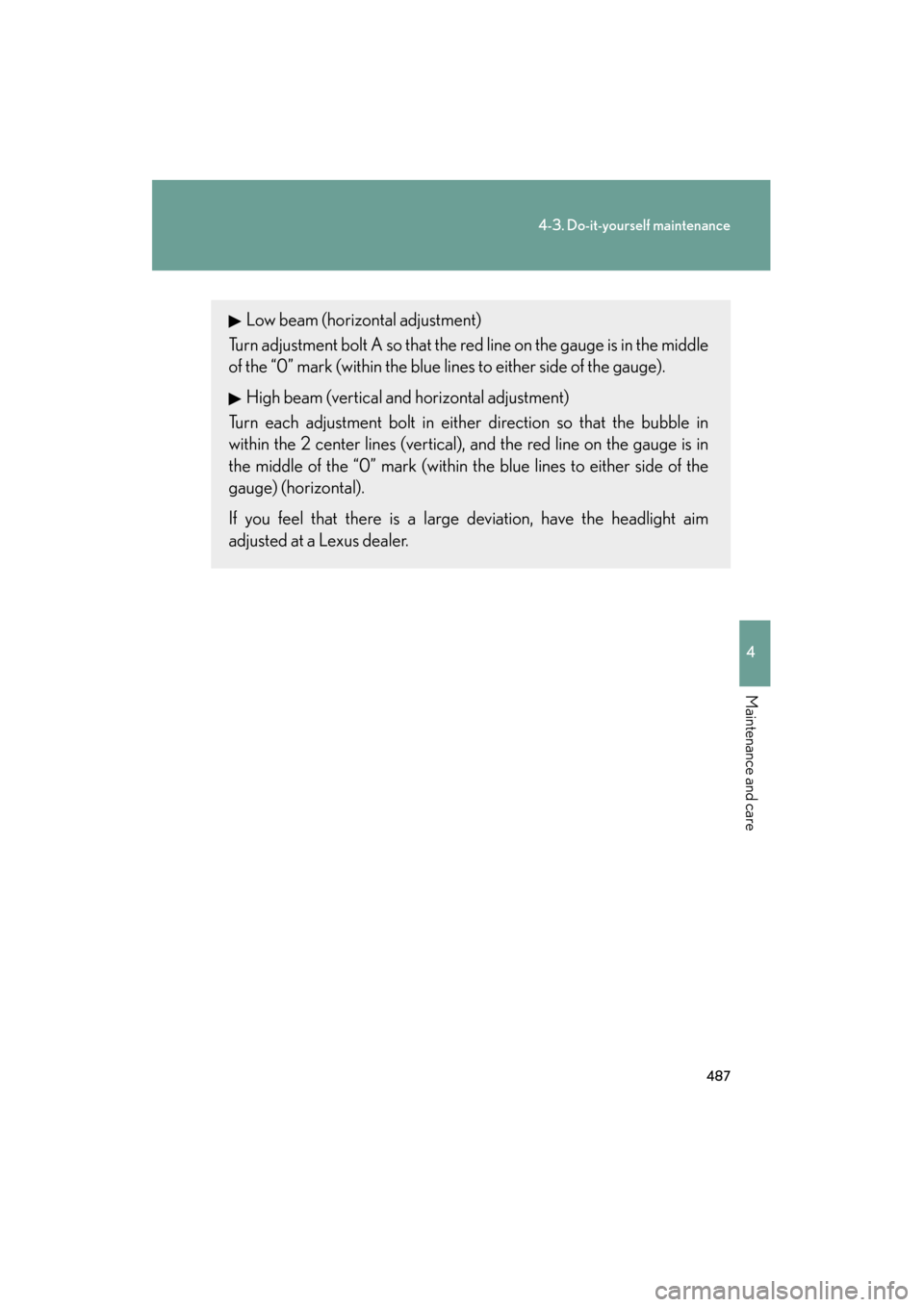

Low beam (horizontal adjustment)
Turn adjustment bolt A so that the re d line on the gauge is in the middle
of the “0” mark (within the blue lines to either side of the gaug\
e).
High beam (vertical and horizontal adjustment)
Turn each adjustment bolt in eith er direction so that the bubble in
within the 2 center lines (vertical), an d the red line on the gauge is in
the middle of the “0” mark (within th e blue lines to either side of the
gauge) (horizontal).
If you feel that there is a larg e deviation, have the headlight aim
adjusted at a Lexus dealer.
