2009 Lexus GS350 Owner's Manual

504
5-1. Essential information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is acti-
vated.
Turn the “ENGINE START STOP ” switch to the ACCESSORY
mode or OFF.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to th e ground, the fuel system has been damaged
and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an airbag
inflates upon collision, the fuel pump shut off system stops supplying fuel to
the engine.
STEP1
STEP2
GS_U_G.book Page 504 Monday, April 27, 2009 10:50 AM

5
When trouble arises
505
5-1. Essential information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Event data recorder
In a crash or a near car crash eventThe SRS airbag sensor assembly cont ains the EDR. In a crash or a near
car crash event, this devic e may record some or all of the following infor-
mation:
● Engine speed
● Whether the brake pedal was applied or not
● Vehicle speed
● To what extent the accelerator pedal was depressed
● Position of the automatic transmission shift lever
● Whether the driver and front passenger wore seat belts or not
● Driver’s seat position
● SRS airbag deployment data
● SRS airbag system diagnostic data
● Front passenger’s occupant classification
Your vehicle has computers that monitor and control certain aspects of
your vehicle. These computers assist in driving and maintaining optimal
vehicle performance.
Besides storing data useful for troubles hooting, there is a system to record
data in a crash or a near car crash event. This is called an Event Data
Recorder (EDR).
GS_U_G.book Page 505 Monday, April 27, 2009 10:50 AM

506
5-1. Essential information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

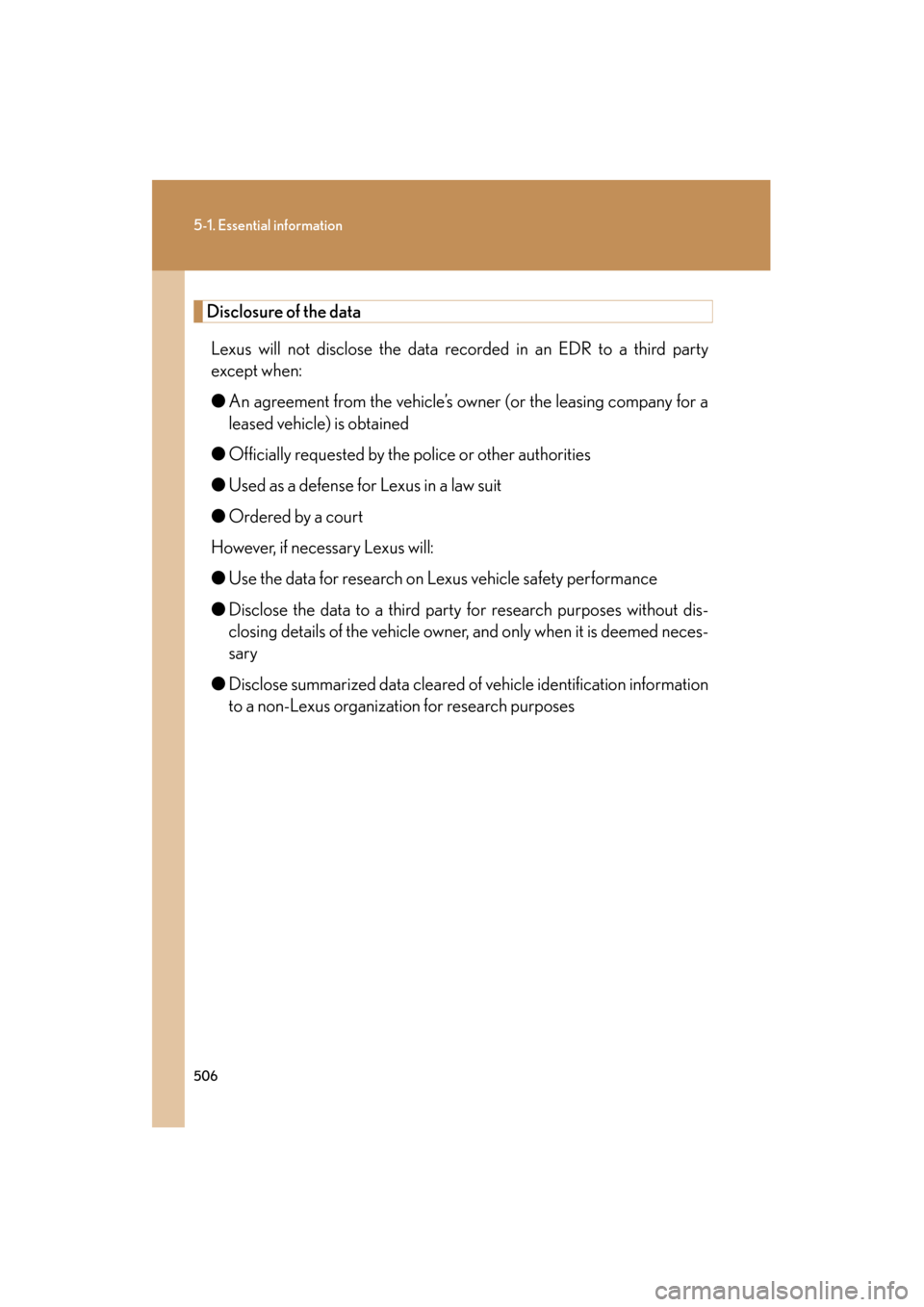

Disclosure of the dataLexus will not disclose the data re corded in an EDR to a third party
except when:
● An agreement from the vehicle’s ow ner (or the leasing company for a
leased vehicle) is obtained
● Officially requested by the police or other authorities
● Used as a defense for Lexus in a law suit
● Ordered by a court
However, if necessary Lexus will:
● Use the data for research on Le xus vehicle safety performance
● Disclose the data to a third party for research purposes without dis-
closing details of the vehicle owner, and only when it is deemed neces-
sary
● Disclose summarized data cleared of vehicle identification information
to a non-Lexus organization for research purposes
GS_U_G.book Page 506 Monday, April 27, 2009 10:50 AM

5
When trouble arises
507
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds...
Stop the vehicle immediately. Continui ng to drive the vehicle may be
dangerous.
The following warning in dicates a possible problem in the brake system.
Immediately stop the vehi cle in a safe place and contact your Lexus
dealer.
*1: Parking brake engaged warning buzzer:
→ P. 5 2 2
Stop the vehicle immediately.
The following warning indicates the po ssibility of damage to the vehicle
that may lead to an ac cident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Brake system warning light (warning buzzer) *1
•Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released, the system is operating normally.
Warning lightWarning light/Details
Charging system warning lightMalfunction in the vehicle’s charging system.
Calmly perform the following actions if any of the warning lights turn on or
flash. If a light turns on or flashes, bu t then turns off, this does not necessar-
ily indicate a malfunction in the system.
GS_U_G.book Page 507 Monday, April 27, 2009 10:50 AM

508
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Have the vehicle inspected immediately.Failure to investigate th e cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Malfunction indicator lamp
Malfunction in:
• The emission control system;
• The electronic engine control system;
• The electronic throttle control system; or
• The automatic transmission control system.
SRS warning lightMalfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system.
(U.S.A.)

(Canada)
ABS warning lightMalfunction in:
•The ABS; or
• The brake assist system.
(GS460)
ECB (Electronically controlled brake system) warning light Malfunction in the electronically controlled brake system.
Electric power steering system warning lightMalfunction in the EPS.
“PCS” warning light (if equipped)Malfunction in the pre-collision system.
Slip indicatorMalfunction in the Enhanced VSC.
The indicator will blink when Enhanced VSC, TRAC or hill-
start assist control is operational. ( →P. 2 0 1 )
GS_U_G.book Page 508 Monday, April 27, 2009 10:50 AM

5
When trouble arises
509
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Have the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, check
that the warning light turns off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)*2
A door or the trunk is not
fully closed.
Check that all doors and the
trunk are closed.
Low fuel level warning light
Remaining fuel
(Approximately 3.2 gal. [12
L, 2.6 Imp.gal.] or less)
Refuel the vehicle.
Driver’s seat belt reminder
light (warning buzzer)*3
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.
(on the center panel)
Front passenger’s seat belt
reminder light
(warning buzzer)*
3
Warns the front passenger to
fasten his/her seat belt.
Fasten the seat belt.
Tire pressure warning light
When the light comes on:
Low tire inflation pressure.Adjust the tire inflation pres-
sure.
When the light comes on after
blinking for 1 minute:
Malfunction in the tire pres-
sure warning system.
Have the system checked by
your Lexus dealer.
GS_U_G.book Page 509 Monday, April 27, 2009 10:50 AM

510
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
*2: Open door warning buzzer:
→P. 5 2 1
*
3: Driver’s and front passenger’s seat belt reminder buzzer:
The driver’s and front passenger’s seat belts reminder sounds to alert the driver
and front passenger that his or her seat belt is not fastened. The buzzer sounds
intermittently for 10 seconds after the vehicle has reached a speed of at least 12
mph (20 km/h). Then, if the seat belt is still unfastened, the buzzer will sound in
a different tone for 20 more seconds.
Warning lightWarning light/DetailsCorrection procedure
Master warning light
A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
Take appropriate action in
accordance with the message
displayed on the multi-infor-
mation display.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is your vehicle low on gas?
If it is, refuel the vehicle immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after taking several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
GS_U_G.book Page 510 Monday, April 27, 2009 10:50 AM

5
When trouble arises
511
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Front passenger detection sensor and passenger seat belt reminder
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash, even if a passenger is not sitting in
the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■SRS warning light
This warning light system monitors the following:
●The airbag sensor assembly
●Front airbag sensors
●The curtain shield and rear side airbag sensors
●The side and curtain shield airbag sensors
●The front passenger occupant classification ECU
●“AIR BAG ON” and “AIR BAG OFF” indicator lights
●The pressure sensor
●The belt tension sensor
●The seat belt buckle switches
●The driver’s seat position sensor
●The inflators
●The warning light
●The interconnecting wiring and power sources
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch does not turn off the tire pressure warning light.
GS_U_G.book Page 511 Monday, April 27, 2009 10:50 AM
