2009 Lexus GS350 Owner's Manual

136
2-1. Driving procedures
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
CAUTION
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not press the accelera-
tor pedal while starting the engine under any circumstances.
Doing so may cause an accident resu lting in death or serious injury.
■Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle, push and
hold the “ENGINE START STOP” switch for more than 3 seconds.
However, do not touch the “ENGINE START STOP” switch while driving except in
an emergency. If the engine stops while the vehicle is being driven, this could lead to
an unexpected accident.
NOTICE
■To prevent 12 volt battery discharge
Do not leave the “ENGINE START STOP” switch in ACCESSORY or IGNITION
ON mode for long periods if the engine is not running.
■When starting the engine
●Do not race the engine.
●If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.
GS_U_G.book Page 136 Monday, April 27, 2009 10:50 AM

137
2-1. Driving procedures
2
When driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Automatic transmission
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever
While the “ENGINE START ST OP” switch is in IGNITION
ON mode, depress the brake pedal and move the shift lever.
■ Shift position uses
*1: To improve fuel consumption and reduce noises, set the shift lever in the
“D” position for normal driving.
*
2: By selecting shift ranges using “S” mode, you can control engine braking
forces.
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NNeutral
DNormal driving*1
S“S” mode driving*2 ( → P. 1 3 9 )
GS_U_G.book Page 137 Monday, April 27, 2009 10:50 AM

138
2-1. Driving procedures
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

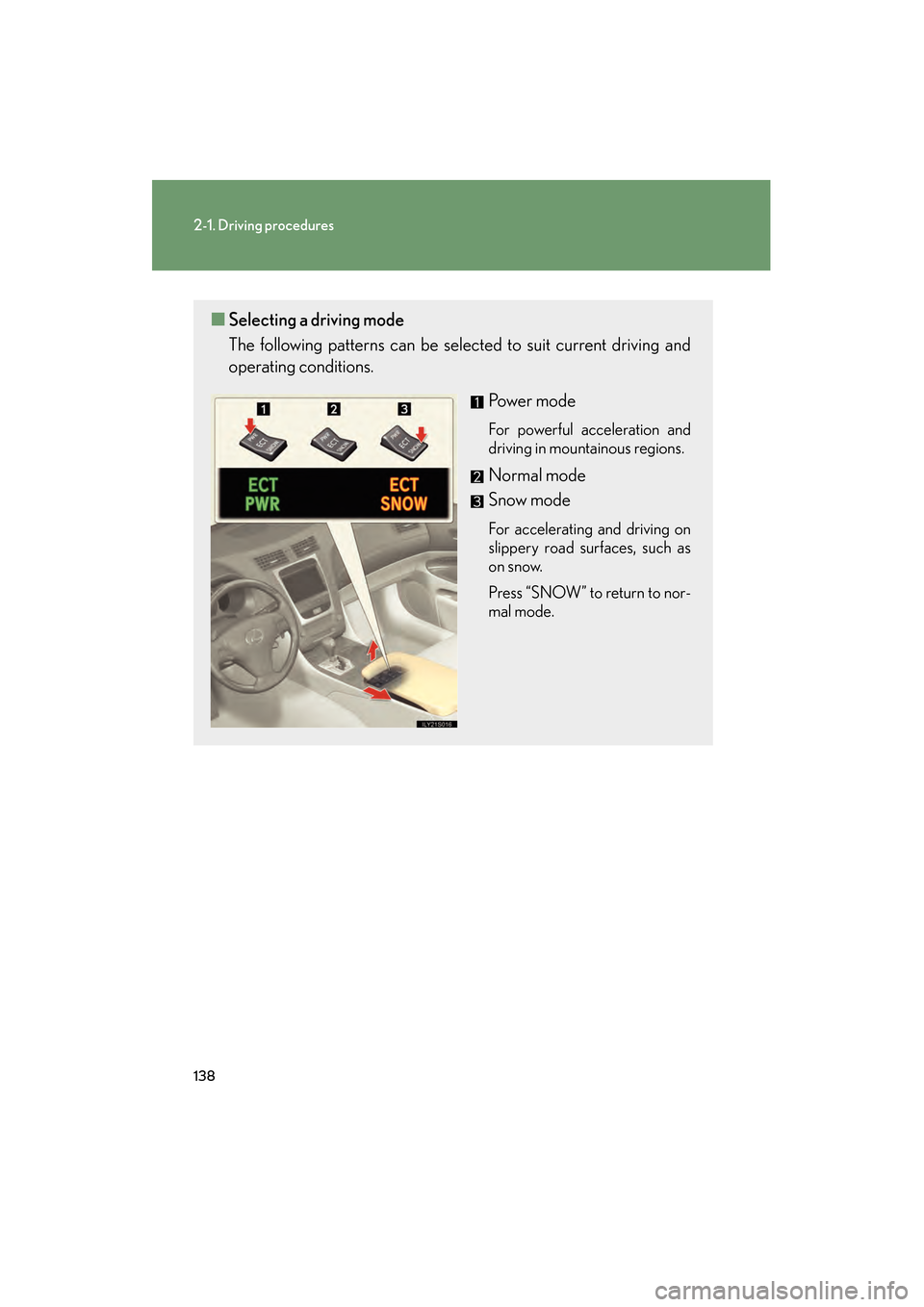

■Selecting a driving mode
The following patterns can be selec ted to suit current driving and
operating conditions.
Power mode
For powerful acceleration and
driving in mountainous regions.
Normal mode
Snow mode
For accelerating and driving on
slippery road surfaces, such as
on snow.
Press “SNOW” to return to nor-
mal mode.
GS_U_G.book Page 138 Monday, April 27, 2009 10:50 AM

139
2-1. Driving procedures
2
When driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

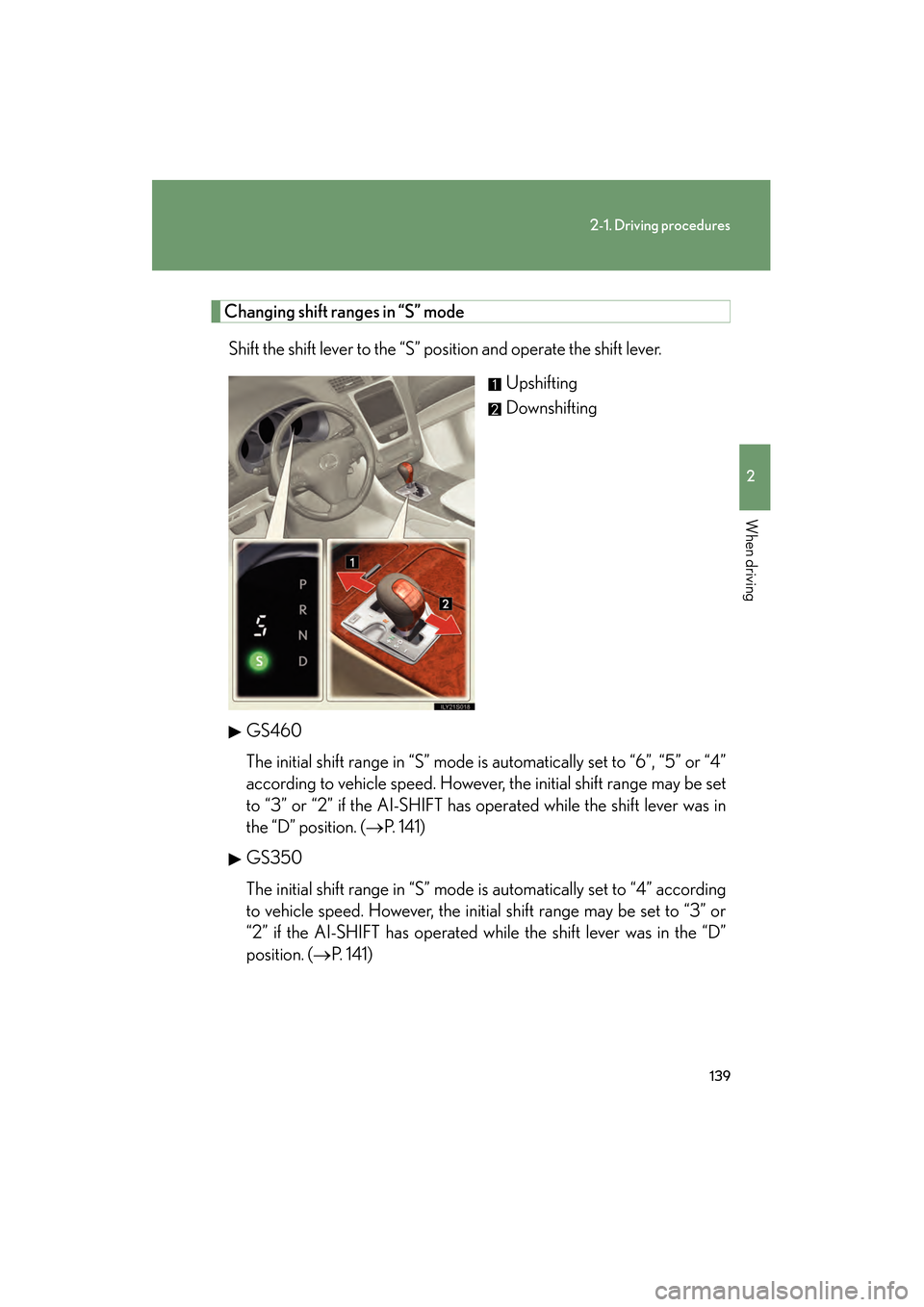

Changing shift ranges in “S” modeShift the shift lever to the “S” position and operate the shift lever. Upshifting
Downshifting
GS460
The initial shift range in “S” mode is au tomatically set to “6”, “5” or “4”
according to vehicle speed . However, the initial shift range may be set
to “3” or “2” if the AI-SHIFT has operated while the shift lever was in
the “D” position. ( →P. 141)
GS350
The initial shift range in “S” mode is automatically set to “4” according
to vehicle speed. However, the initial shift range may be set to “3” or
“2” if the AI-SHIFT has operated wh ile the shift lever was in the “D”
position. ( →P. 141)
GS_U_G.book Page 139 Monday, April 27, 2009 10:50 AM

140
2-1. Driving procedures
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Shift ranges and their functions
●You can choose from 8 levels (GS460) or 6 levels (GS350) of
engine braking force.
● A lower shift range will provide gr eater engine braking force than a
higher shift range, and the engine revolutions will also increase.
● If you accelerate while in ranges “1” to “7” (GS460) or “1” to “5”
(GS350), the shift range may auto matically range up in accordance
with the vehicle’s speed.
■“S” mode
When the shift range is “6” (GS460) or “4” (GS350) or lower, holding the shift
lever toward “+” sets the shift range to “8” (GS460) or “6” (GS350).
■Downshifting restrictions warning buzzer (in the “S” mode)
To help ensure safety and driving perfor mance, downshifting operation may some-
times be restricted. In some circumstance s, downshifting may not be possible even
when the shift lever is operated. (The warning buzzer will sound twice.)
■When driving with the cruise control syst em (or dynamic radar cruise control sys-
tem)
The engine brake will not operate in the “S” mode, even when downshifting to “7”,
“6”, “5” or “4” (GS460) or “5” or “4” (GS350). ( →P. 165, 169)
■Snow mode automatic deactivation
Snow mode is automatically deactivated if the “ENGINE START STOP” switch is
turned to ACCESSORY or IGNITION ON mode after driving in snow mode.
■If the shift lever cannot be shifted from “P”
→P. 5 4 3
GS_U_G.book Page 140 Monday, April 27, 2009 10:50 AM

141
2-1. Driving procedures
2
When driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■If the indicator does not come on even after shifting the shift lever to “S”
This may indicate a malfunction in the automatic transmission. Have the vehicle
inspected by your Lexus dealer immediately.
(In this situation, the vehicle will operate as if the shift lever is in “D”.)
■AI-SHIFT
The AI-SHIFT automatically shifts the gear to the optimal position according to the
driver’s input and driving conditions.
GS460: The AI-SHIFT automatically operates when the shift lever is in the “D” or
“S” position.
GS350: The AI-SHIFT automatically operat es when the shift lever is in the “D”
position. (Shifting the shift lever to the “S” position cancels the function.)
GS_U_G.book Page 141 Monday, April 27, 2009 10:50 AM

142
2-1. Driving procedures
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Turn signal lever
■Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
Right turn
Left turn
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.
GS_U_G.book Page 142 Monday, April 27, 2009 10:50 AM

143
2-1. Driving procedures
2
When driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

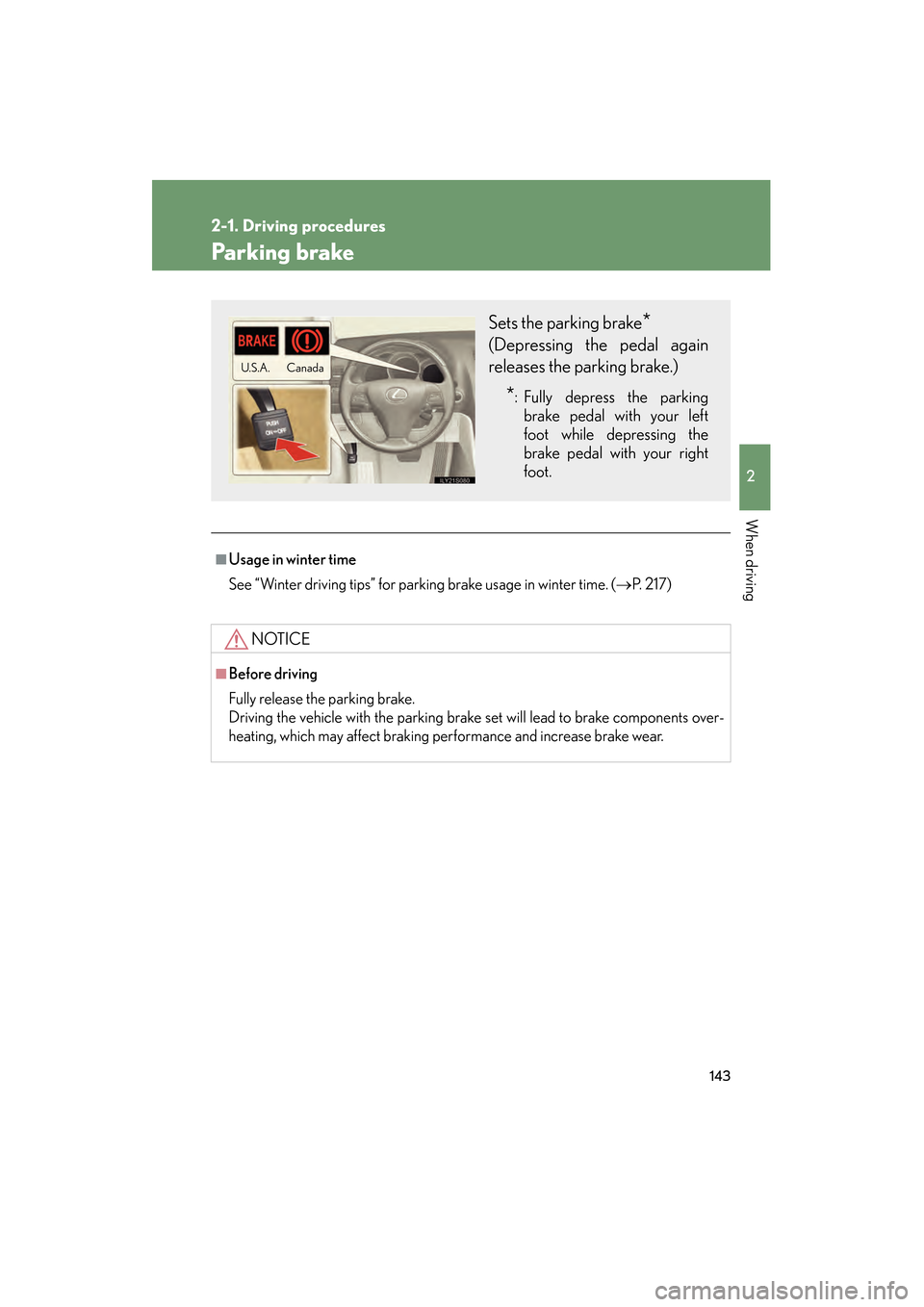

Parking brake
■Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. (→P. 2 1 7 )
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear.
Sets the parking brake*
(Depressing the pedal again
releases the parking brake.)
*: Fully depress the parking brake pedal with your left
foot while depressing the
brake pedal with your right
foot.
Canada
U.S.A.
GS_U_G.book Page 143 Monday, April 27, 2009 10:50 AM
