2009 Lexus GS350 Owner's Manual

560
6-1. Specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Engine number
GS460
GS350
The engine number is stamped on the location as shown.
GS_U_G.book Page 560 Monday, April 27, 2009 10:50 AM

561
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Engine
Fuel
GS460GS350
Model1UR-FSE2GR-FSE
Ty p e8-cylinder V type,
4-cycle, gasoline6-cylinder V type,
4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement281.2 cu.in. (4608 cm3)210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typePremium unleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity18.7 gal. (71 L, 15.6 Imp.gal.)
GS_U_G.book Page 561 Monday, April 27, 2009 10:50 AM

562
6-1. Specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Lubrication systemGS460
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-20 or 0W-20
SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE 0W-
20 is the best choice for good fuel
economy and good starting in cold
weather.
The 0W portion of the oil viscosity rating indicates the characteristic of the oil
which allows cold startability. Oils with a lower value before the W allow for
easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehicle
is operated at high speeds, or under extreme load conditions.
Oil capacity
Drain and refill
(Reference)
With filter
Without filter
9.1 q t . ( 8 .6 L , 7.6 I m p .q t . )
8.9 qt. (8.4 L, 7.4 Imp.qt.)
Outside temperature
GS_U_G.book Page 562 Monday, April 27, 2009 10:50 AM

563
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

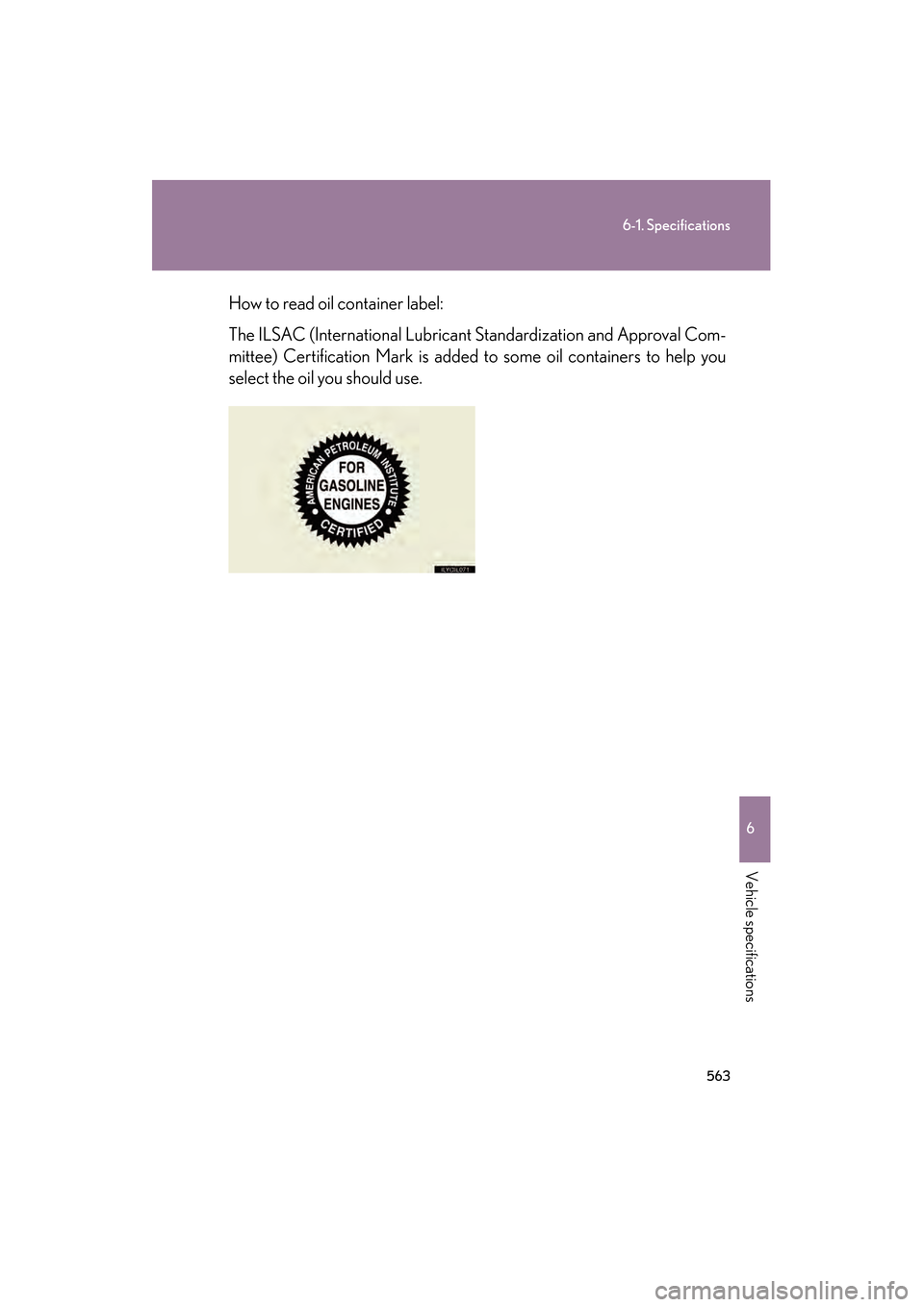

How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval Com-
mittee) Certification Mark is added to some oil containers to help you
select the oil you should use.
GS_U_G.book Page 563 Monday, April 27, 2009 10:50 AM

564
6-1. Specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
GS350
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
The 5W portion of the oil viscosity rating indicates the characteristic of the oil
which allows cold startability. Oils with a lower value before the W allow for
easier starting of the engine in cold weather.
The 30 in 5W-30 indicates the oil viscos ity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehicle
is operated at high speeds, or under extreme load conditions.
Oil capacity
Drain and refill
(Reference)
With filter
Without filter
2WD4WD
6.6 qt. (6.3 L, 5.5 Imp.qt.)
6.2 qt. (5.9 L, 5.2 Imp.qt.)6.7 qt. (6.4 L, 5.6 Imp.qt.)
6.3 qt. (6.0 L, 5.3 Imp.qt.)
Outside temperature
GS_U_G.book Page 564 Monday, April 27, 2009 10:50 AM

565
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval Com-
mittee) Certification Mark is added to some oil containers to help you
select the oil you should use.
GS_U_G.book Page 565 Monday, April 27, 2009 10:50 AM

566
6-1. Specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Cooling system
Ignition system
CapacityGS46011.7 qt. (11.0 L, 9.7 Imp.qt.)
GS3509.6 qt. (9.1 L, 8.0 Imp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make DENSOFK20HBR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
GS_U_G.book Page 566 Monday, April 27, 2009 10:50 AM

567
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Electrical system
Differential
Rear differential: “Toyota Genuine Di fferential Gear Oil” is filled in your
Lexus vehicle at factory fill. Use Lexus approved “Toyota Genuine Differen-
tial Gear Oil” or an equivalent of ma tching quality to satisfy the above spec-
ification. Please contact your Lexus dealer for further details.
12 volt battery
Specific gravity reading at
68°F (20 °C):1.250  1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates5A max.
GS460/
GS350 (2WD)GS350 (4WD)
FrontRear
Oil capacity1.42 qt.
(1.35 L, 1.19 Imp.qt.)0.73 qt.
(0.70 L, 0.61 Imp.qt.)1.42 qt.
(1.35 L, 1.19 Imp.qt.)
Oil type and
viscosity
Toyota Genuine Dif-
ferential Gear Oil LT
75W-85 GL-5 or
equivalent
Hypoid gear oil API
GL-5
Above 0°F (-18°C):
SAE 90
Below 0°F (-18°C):
SAE 80W or SAE
80W-90
Toyota Genuine Dif-
ferential Gear Oil LT
75W-85 GL-5 or
equivalent
GS_U_G.book Page 567 Monday, April 27, 2009 10:50 AM
