2009 Lexus GS350 brake fluid

132
2-1. Driving procedures
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
NOTICE
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually press the brak e pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds.
●The vehicle will behave abnormally.
Replace a flat tire with a new one. ( →P. 5 3 4 )
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause the
following serious damage to the vehicle.
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have your Lexus dealer check the following.
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, automatic
transmission, transfer (4WD models), differentials, etc.
●Lubricant condition for the propeller shaft, bearings and suspension joints (where
possible) and the function of all joints, bearings, etc.
GS_U_G.book Page 132 Monday, April 27, 2009 10:50 AM

217
2-5. Driving information
2
When driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■ Pre-winter preparations
●Use fluids that are appropria te to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the level and specific gravity of
battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
■ Before driving the vehicle
Perform the following according to the driving conditions.
● Do not try to forcibly open a window or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumu lated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumul ated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.
GS_U_G.book Page 217 Monday, April 27, 2009 10:50 AM

414
4-2. Maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
General maintenance
Engine compartment
ItemsCheck points
Brake fluid• At the correct level? (→P. 4 3 3 )
Engine coolant• At the correct level? ( →P. 4 3 1 )
Engine oil• At the correct level? ( →P. 4 2 7 )
Exhaust system• No fumes or strange sounds?
Radiator/condenser/hoses• Not blocked with foreign matter?
(→P. 4 3 2 )
Wa s h e r f l u i d• At the correct level? ( →P. 4 3 7 )
12 volt battery• Maintenance-free (→ P. 4 3 4 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide/Owner’s
Manual Supplement”. It is recomme nded that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.
GS_U_G.book Page 414 Monday, April 27, 2009 10:50 AM

418
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance yourself, be sure to follow the correct proce-
dure given in these sections.
ItemsPa r t s a n d t o o l s
12 volt battery condition (→P. 4 3 4)
•Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level (→ P. 4 3 3 )
• FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
•Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level (→P. 4 3 1 )
• “Toyota Super Long Life Coolant”
or similar high quality ethylene gly-
col based non-silicate, non-amine,
non-nitrite and non-borate coolant
with long-life hybrid organic acid
technology.
For the U.S.A.:
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life Coolant”
is pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding cool- ant)
GS_U_G.book Page 418 Monday, April 27, 2009 10:50 AM

424
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Engine compartment
GS460
Engine oil level dipstick(→P. 4 2 7 )
Engine oil filler cap (→P. 4 2 8 )
Brake fluid reservoir (→P. 433)
Fuse box ( →P. 460)
Washer fluid tank (→P. 4 3 7 )Engine coolant reservoir
(→P. 4 3 1 )
Electric cooling fans
Condenser ( →P. 4 3 2 )
Radiator ( →P. 4 3 2 )
Fuse box ( →P. 460)
12 volt battery ( →P. 4 3 4 )
GS_U_G.book Page 424 Monday, April 27, 2009 10:50 AM

425
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
GS350
Engine oil level dipstick(→P. 4 2 7 )
Engine oil filler cap (→P. 4 2 8 )
Brake fluid reservoir (→P. 433)
Fuse box ( →P. 460)
Washer fluid tank (→P. 4 3 7 )Engine coolant reservoir
(→P. 4 3 1 )
Electric cooling fans
Condenser ( →P. 4 3 2 )
Radiator ( →P. 4 3 2 )
Fuse box ( →P. 460)
12 volt battery ( →P. 4 3 4 )
GS_U_G.book Page 425 Monday, April 27, 2009 10:50 AM

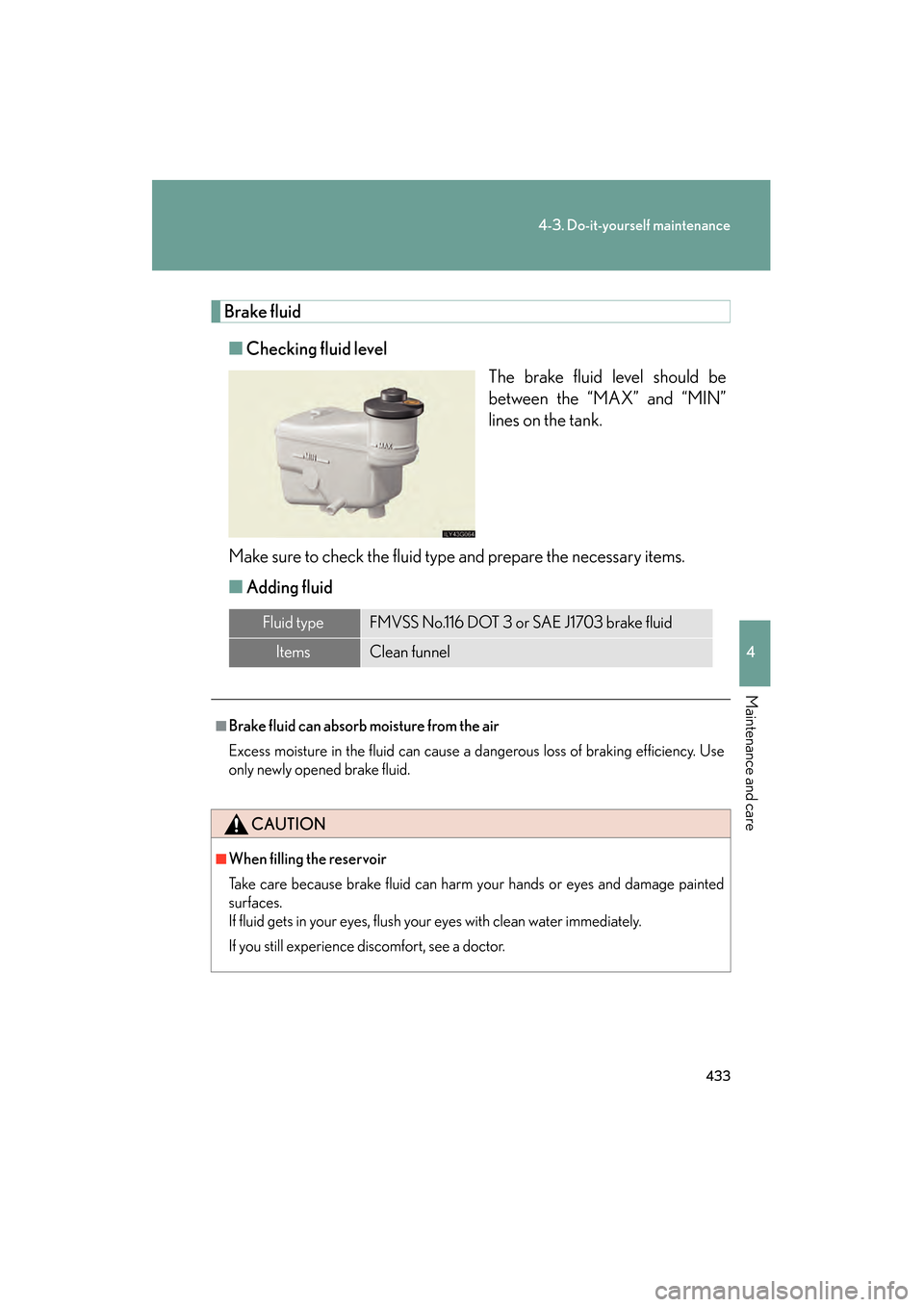

433
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Brake fluid■ Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.
Make sure to check the fluid type and prepare the necessary items.
■ Adding fluid
Fluid typeFMVSS No.116 DOT 3 or SAE J1703 brake fluid
ItemsClean funnel
■Brake fluid can absorb moisture from the air
Excess moisture in the fluid can cause a dangerous loss of braking efficiency. Use
only newly opened brake fluid.
CAUTION
■When filling the reservoir
Take care because brake fluid can harm your hands or eyes and damage painted
surfaces.
If fluid gets in your eyes, flush your eyes with clean water immediately.
If you still experience discomfort, see a doctor.
GS_U_G.book Page 433 Monday, April 27, 2009 10:50 AM

434
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
12 volt batteryCheck the battery as follows.
■ Exterior
Make sure that the battery terminals are not corroded and that there
are no loose connections, cracks, or loose clamps.
Terminals
Hold-down clamp
■ Check battery condition (if equipped)
Check the battery condition by the indicator color.
Blue: Good condition
White: Charging necessary
Have the battery checked by
your Lexus dealer.
Red: Not working properly,
have the battery checked by
your Lexus dealer.
NOTICE
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or
when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
GS_U_G.book Page 434 Monday, April 27, 2009 10:50 AM
