2009 JEEP COMMANDER Owners Manual

POWER INVERTER — IF EQUIPPED
There is a 115–Volt, 150–Watt inverter outlet located on
the back of the center console to convert DC current to
AC current. This outlet can be used to power small
appliances and electronics.Press the power inverter switch (located on the upper
switch bank) to turn the power on to the outlet. Press the
switch again to turn the power off.
Power Inverter
Power Inverter Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175
3

NOTE:When the power inverter switch is pressed,
there will be a delay of approximately one second before
the inverter status indicator turns ON. The status indica-
tor of the AC power inverter indicates whether the
inverter is producing AC power.
NOTE:Due to built-in overload protection, the inverter
will shut down if the power rating is exceeded.
WARNING!
To avoid serious injury or death:
•Do not use a three-prong adaptor.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled it may cause an electric
shock and failure.
CUPHOLDERS
Front Cupholders
In the center console, there are two cupholders for the
front seat passengers.
Front Cupholders
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:The cupholder insert is removable, from the
console, for cleaning. It can be reinstalled with the larger
cup depression towards the passenger seat, but the top
surface will not be flush with the console surface.
Cupholders (Second Row Seat)
The second row seat has two cupholders in the center
armrest. Lower the center armrest. Refer to “Seats” in this
section. Press the front of the cupholder, and the cup-
holder will come out of the armrest.
Cupholders (Second Row Seat)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177
3

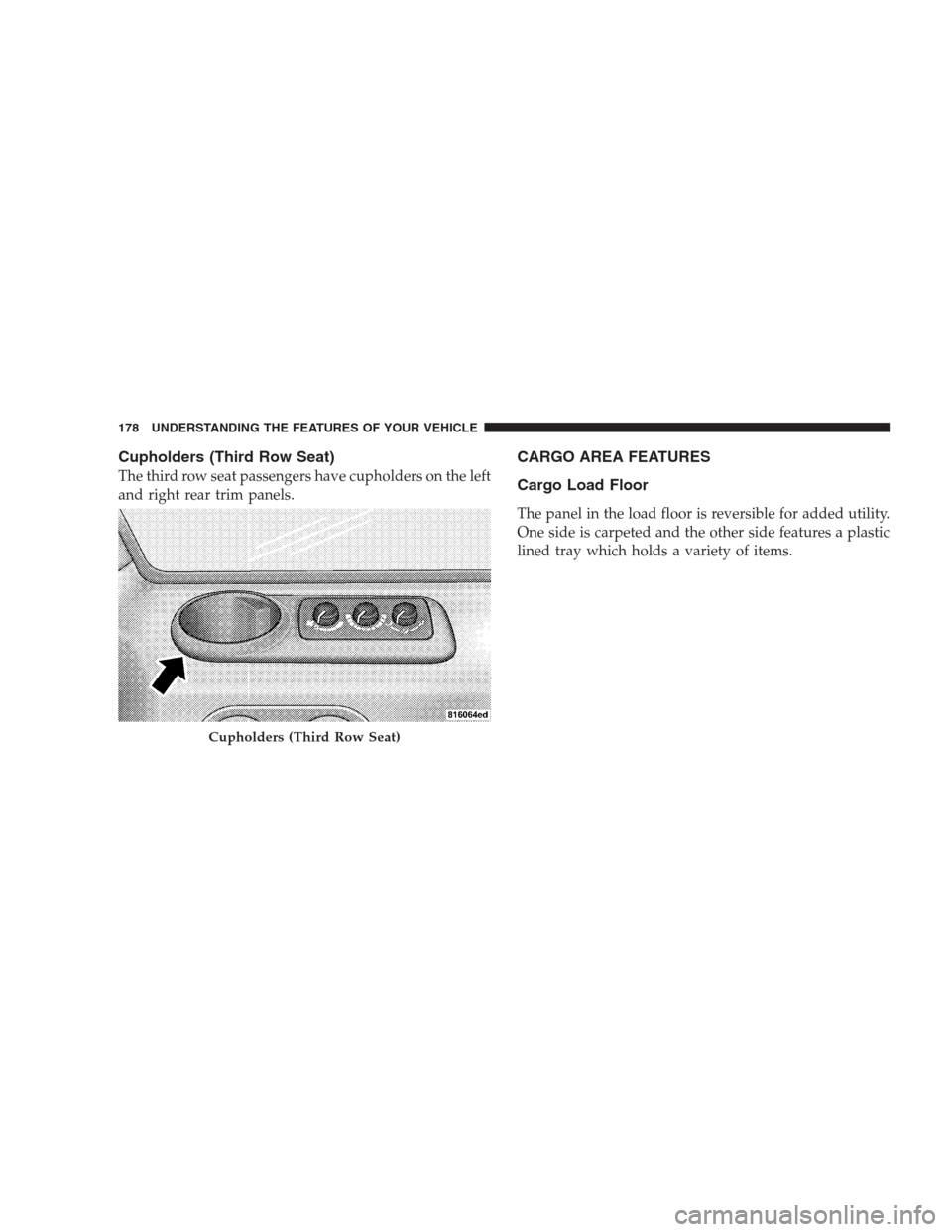

Cupholders (Third Row Seat)
The third row seat passengers have cupholders on the left
and right rear trim panels.
CARGO AREA FEATURES
Cargo Load Floor
The panel in the load floor is reversible for added utility.
One side is carpeted and the other side features a plastic
lined tray which holds a variety of items.
Cupholders (Third Row Seat)
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

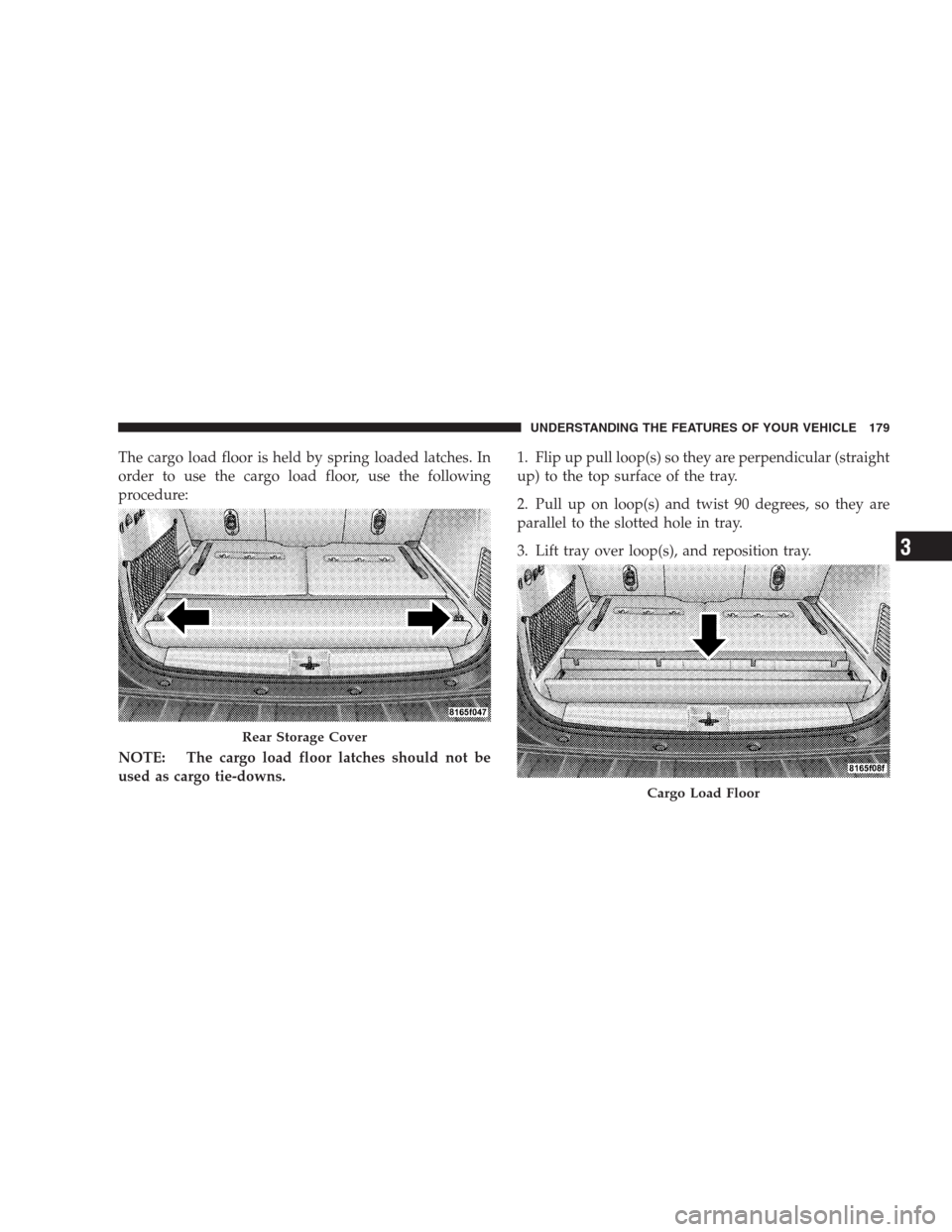

The cargo load floor is held by spring loaded latches. In
order to use the cargo load floor, use the following
procedure:
NOTE: The cargo load floor latches should not be
used as cargo tie-downs.1. Flip up pull loop(s) so they are perpendicular (straight
up) to the top surface of the tray.
2. Pull up on loop(s) and twist 90 degrees, so they are
parallel to the slotted hole in tray.
3. Lift tray over loop(s), and reposition tray.
Rear Storage Cover
Cargo Load Floor
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179
3

4. Pull up on loop(s) and twist 90 degrees, so they are
perpendicular (straight up) to the slotted hole in tray.
5. Push loop(s) back down, so they are parallel to the top
of the tray.
REAR WINDOW FEATURES
Rear Window Wiper/Washer
A switch on the right side of the steering column controls
operation of the rear wiper/washer function. Rotating
the center of the switch forward to the on position will
activate the wiper. The rear wiper operates in an inter-
mittent mode only. Rotating the center of the switch all
the way forward will turn on the wash function. The
wash pump will continue to operate as long as the button
is pressed. Upon release, the wipers will cycle two times
before returning to the set position.If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the “Park”
position if power accessory delay is active. Power acces-
sory delay can be cancelled by opening the door; if this
happens, the rear wiper will stop at its current position
and will not go to “Park”.
Windshield Wiper/Washer Switch
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If the liftgate flipper glass is open, connection to the rear
window wiper is interrupted preventing activation of the
rear wiper blade. When the liftgate flipper glass is closed,
the rear wiper switch or the ignition switch needs to be
turned off and on to restart the rear wiper.
Rear Window Defroster — If Equipped
Press this button (located on the climate control
panel) to turn on the rear window defroster and
the heated side mirrors (if equipped). An LED in the
button will illuminate to indicate the rear window de-
froster is on. The defroster automatically turns off after
about 10 minutes of operation.
CAUTION!
•To avoid damaging the electrical conductors of the
rear window defroster, do not use scrapers, sharp
instruments, or abrasive window cleaners on the
interior surface of the window.
•Labels can be peeled off after soaking with warm
water.
ROOF LUGGAGE RACK — IF EQUIPPED
External racks do not increase the total load carrying
capacity of the vehicle. Be sure that the total occupant
and luggage load inside the vehicle, plus the load on the
luggage rack, do not exceed the rated vehicle capacity.
This vehicle is not equipped with roof rack cross rails as
built, unless ordered as optional equipment. Cross rails
must be installed prior to carrying loads on the roof rack.
If not equipped, your authorized dealer can order and
install Moparcross rails built specifically for this roof
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181
3

rack system or a number of aftermarket rails that are
tailored to your life style or activities.
The optional cross rails have five specific locations iden-
tified by a feature on both the side rail and the cross rail.
Cross rails must be secured in one of the five detent
locations on the side rail to prevent movement with a
sudden stop. The cross rails must also be installed using
the correct orientation (the longer rail toward the front)
with the wind trip toward the front of the vehicle as
shown below. For improved windnoise performance
when cross rails are not in use, place them in detent
positions #1 (first detent from the front of the vehicle) and
#4 (second detent from the rear of the vehicle) as indi-
cated with a unique feature on the side rails.The grab
handles (A) on the back of the vehicle (if equipped) are
not to be used as a towing feature.
NOTE:If the rear cross rail (or any metallic object) is
placed over the satellite radio antenna (if equipped), youmay experience interruption of satellite radio reception.
For improved satellite radio reception, place the rear
cross rail in detent position #4 when not in use.
Cross Rail Positions
1 — Front of Vehicle
2 — Wind Trip 182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
