Underhood Fuses (Integrated Power Module)CavityCartridge
FuseMini-
FuseDescription
8 10 Amp
RedLt Park Lamps
9 10 Amp
RedTrailer-Tow Park
Lamps
10 10 Amp
RedRt Park Lamps
12 20 Amp
YellowFront Control Module
(FCM) Batt #4
13 20 Amp
YellowFront Control Module
(FCM) Batt #2
14 20 Amp
YellowAdjustable Pedal
15 20 Amp
YellowFt Fog Lamps
16 20 Amp
YellowHorn
Integrated Power Module
MAINTAINING YOUR VEHICLE 455
7

CavityCartridge
FuseMini-
FuseDescription
17 20 Amp
YellowRear Fog Lamps (Ex-
port Only)
18 20 Amp
YellowFront Control Module
(FCM) Batt #1
19 20 Amp
YellowLt Trailer-Tow Stop/
Turn
20 20 Amp
YellowFront Control Module
(FCM) Batt #3
21 20 Amp
YellowRt Trailer-Tow Stop/
Turn
22 30 Amp
PinkFinal Drive Control
Module (FDCM)
MOD
23 50 Amp
RedRadiator Fan
27 15 Amp
BlueIgnition Off Draw
(IOD) #1CavityCartridge
FuseMini-
FuseDescription
28 20 Amp
YellowIgnition Off Draw
(IOD) #2
29 10 Amp
RedOccupant Restraint
Controller (ORC) R/S
30 10 Amp
RedOccupant Restraint
Controller (ORC)
R/O
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days you may want to take steps to protect your
battery. You may:
•Remove fuse #27 in the Intelligent Power Module
labeled Ignition-Off Draw (IOD#1).
•Or, disconnect the negative cable from the battery.
456 MAINTAINING YOUR VEHICLE

•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Lights Bulb Type
Glove Box Light......................... 194
Grab Handle Light................L002825W5W
Overhead Console Reading Lights..........VT4976
Rear Cargo Light.......................214–2
Visor Vanity Light.....................V26377
Underpanel Courtesy Lights................. 906
Instrument Cluster (General Illumination)....... 103
Telltale/Hazard Light...................... 74
* Available only from authorized dealers.Exterior Lights Bulb Type
Backup Lights.........................3057K
Front Fog Lights........................9145
Front Park/Turn Light...................3157A
Front Side Marker...................... W5W
Headlights (Low Beam)...................9006
Headlights (High Beam)...................9005
Rear Turn/Stop/Tail Lights...............3057K
NOTE:Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
MAINTAINING YOUR VEHICLE 457
7

BULB REPLACEMENT
Head Light
1. Open the hood.
2. Remove the headlamp cover.
Insert a finger into each hole of the headlamp cover, and
pull upward to unsnap the rear edge of the cover from
the two upper lamp mounting brackets. Slide the cover
rearward to disengage the front edge from beneath the
tab on the top near the front of the lamp housing.
458 MAINTAINING YOUR VEHICLE

3. Disconnect the electrical connector.
4. Turn the low or high beam bulb 1/4 turn counterclock-
wise to unlock it from the housing.5. Pull the bulb and base straight out from the opening in
the reflector.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
1 — Low Beam Bulb
2 — High Beam Bulb
3 — Front Park/Turn Signal BulbMAINTAINING YOUR VEHICLE 459
7

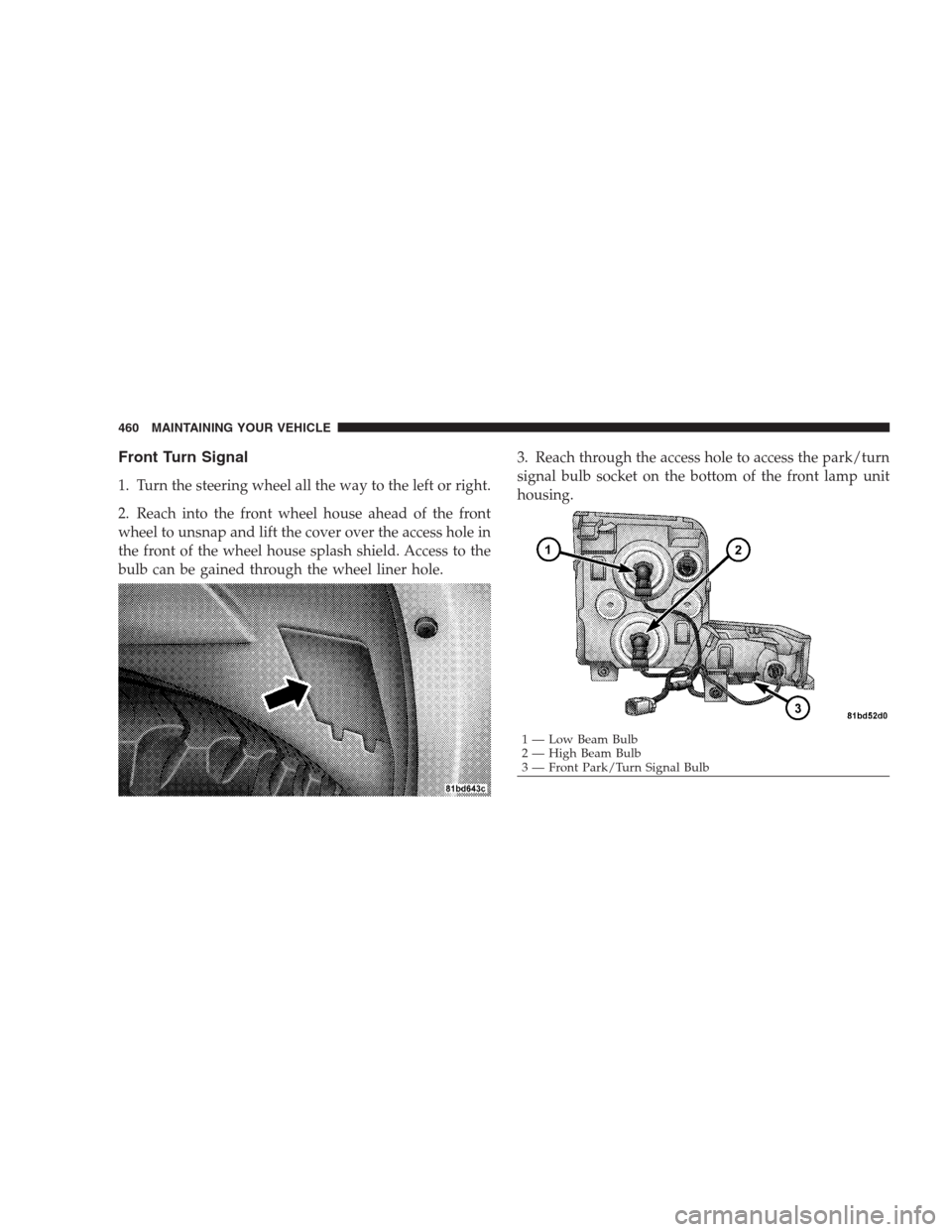

Front Turn Signal
1. Turn the steering wheel all the way to the left or right.
2. Reach into the front wheel house ahead of the front
wheel to unsnap and lift the cover over the access hole in
the front of the wheel house splash shield. Access to the
bulb can be gained through the wheel liner hole.3. Reach through the access hole to access the park/turn
signal bulb socket on the bottom of the front lamp unit
housing.
1 — Low Beam Bulb
2 — High Beam Bulb
3 — Front Park/Turn Signal Bulb 460 MAINTAINING YOUR VEHICLE

4. Turn the socket on the bottom of the front lamp unit
housing 1/4 turn counterclockwise to unlock it.
5. Pull the socket and bulb straight out from the opening
in the housing.
6. Disconnect the electrical connector.
7. Pull the base of the bulb straight out of the socket.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Front Fog Light
1. Turn the steering wheel all the way to the left or right.2. Reach into the front wheel house ahead of the front
wheel to unsnap and lift the cover over the access hole in
the front of the wheel house splash shield. Access to the
bulb can be gained through the wheel liner hole.
3. Reach through the access hole to access the back of the
front fog light housing on the back of the front fascia.
4. Disconnect the electrical connector.
MAINTAINING YOUR VEHICLE 461
7

5. Turn the socket on the back of the housing 1/4 turn
counterclockwise to unlock it.
6. Pull the socket and bulb straight out from the opening
in the housing.
7. Pull the base of the bulb straight out of the socket.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Rear Tail, Stop, Turn Signal, and Backup Lights
1. Raise the liftgate.
2. Remove the two push-pins that secure the rear lamp
unit to the side of the liftgate opening.3. Pull the outboard side of the rear lamp unit rearward
far enough to unsnap the two ball studs on the outboard
side of the lamp housing from the two plastic grommets
in the quarter outer panel. Pull the lamp unit rearward
far enough away to access the bulbs.
462 MAINTAINING YOUR VEHICLE
