2009 JEEP COMMANDER Owners Manual

When the High setting is selected, the heater will provide
a boosted heat level during the first four minutes of
operation. Then, the heat output will drop to the normal
High-temperature level. If the High setting is selected,
the system will automatically switch to Low after 30 min-
utes of continuous operation. At that time, the number of
illuminated LEDs changes from two to one, indicating
the change. The Low setting will turn Off automatically
after 30 minutes.
NOTE:Once a heat setting is selected, heat will be felt
within two to five minutes.WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at Low temperatures, especially if used for
long periods of time.
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. To avoid
heated seat surfaces coming in contact and poten-
tial seat overheating, always ensure that the seat
heater is in the Off position (amber lights indicate
High/Low/Off) before placing any of the seats into
a folded flat position (if equipped).
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
3

40/20/40 Second Row Folding Seat
Fold and Tumble Second Row Seat
The left, center, or right side of the second row seat can be
lowered to allow for extended cargo space, and still
maintain some rear seating room. In addition, the left and
right side of the second row seat can be lowered and
tumbled forward to allow access to the third row seat.
1. Pull up on the seatback lever located on the outboard
side of the seat.
NOTE:Also, pulling upward on this handle allows the
outboard seating positions to be reclined.
2. Fold the seatback down, and tumble the seat forward.
Seatback Release Lever
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Do not drive the vehicle with the outer second row
seats in the tumbled position. The outer second row
seats are only intended to be tumbled for entry and
exit to the third row seat. Failure to follow these
instructions could result in personal injury.

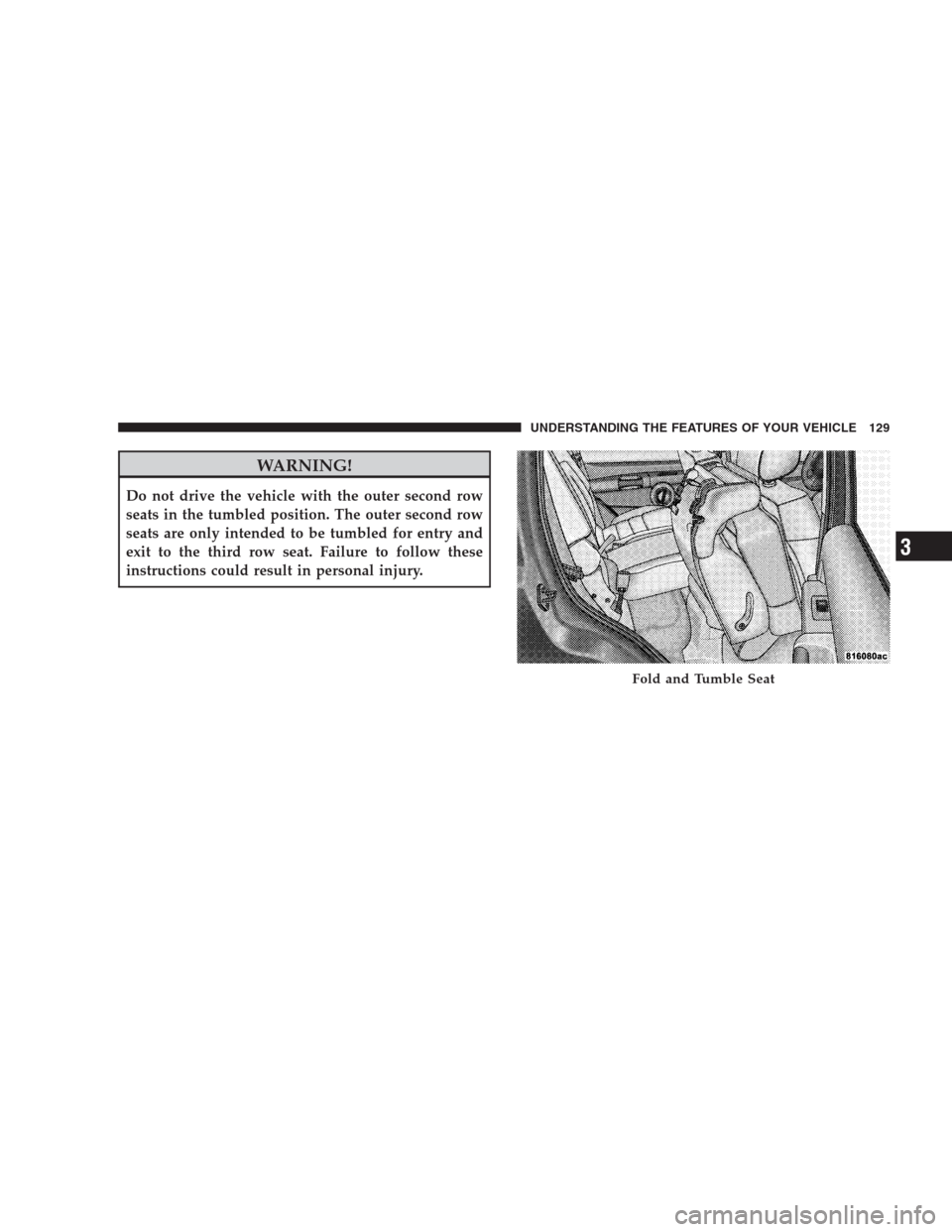

Fold and Tumble Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
3

NOTE:If sitting in the third row seat, pull rearward on
the release strap located at the rear of the seat and tumble
the seat forward.Folding Middle Seatback (Second Row Seat)
1. Pull the release strap.
Release StrapRelease Strap
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. Lower the center seatback.Center Seat Armrest (Second Row Seat) — If
Equipped
The second row center seat may be equipped with a
armrest. Pull strap to lower armrest.
Folding Center Seatback
Armrest (Second Row Seat)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

50/50 Third Row Folding Seat — If Equipped
To Lower Rear Seat
Either side of the third row seat can be lowered to allow
for extended cargo space, and still maintain some rear
seating room.
1. Open the tailgate.
2. Push the seatback release handle (toward rear of
vehicle), and lower the seatback using the pull strap.
3. Close the tailgate.
Seatback Release Handle
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To Raise Rear Seat
1. Open the tailgate.
2. Detach pull strap from back of seat, and pull seatback
upward until it locks into place. Reattach strap.3. Close the tailgate.WARNING!
The cargo area in the rear of the vehicle (with the rear
seatbacks in the locked-up or folded down position)
should not be used as a play area by children when
the vehicle is in motion. They could be seriously
injured in an accident. Children should be seated
and using the proper restraint system.
Pull Strap
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133
3

DRIVER MEMORY SEAT — IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver’s door panel can be used to recall the driver’s seat,
driver’s outside mirror, adjustable brake and accelerator
pedals, and radio station preset settings. Your Remote
Keyless Entry (RKE) transmitters can also be pro-
grammed to recall the same positions when the UN-
LOCK button is pressed.
Your vehicle is equipped with two RKE transmitters. One
or both RKE transmitters can be linked to either memory
position. The memory system can accommodate up to
four RKE transmitters, each one linked to either of the
two memory positions.
Driver Memory Switches
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
