NOTE:
•If you try to remove the key before you place the shift
lever in PARK, it may become trapped temporarily in
the ignition switch. If this occurs, rotate the key to the
right slightly, then remove the key as described. If a
malfunction occurs, the system will trap the key in the
ignition switch to warn you that this safety feature is
inoperable. The engine can be started and stopped, but
the key cannot be removed until you obtain service.
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, power sunroof (if equipped), and
power outlets will remain active for up to 60 minutes
after the ignition switch is turned to the LOCK posi-
tion. Opening either front door will cancel this feature.
The time for this feature is programmable. For details,
refer to “Key Off Power Delay,” under “PersonalSettings (Customer-Programmable Features)” under
“Electronic Vehicle Information Center (EVIC)” in
Section 4 of this manual.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Do not leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Release the Liftgate Flipper Glass
Press the FLIPPER GLASS/TRUNK RELEASE button
two times (the second press within 5 seconds of the first
press) to open liftgate flipper glass
WARNING!
Driving with the flipper glass open can allow poi-
sonous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the flipper glass closed when you are operating the
vehicle.
Express Down Window Feature — If Equipped
This feature allows you to remotely lower both front door
windows at the same time. To use this feature, press and
release the UNLOCK button on the RKE transmitter and
then immediately press and hold the UNLOCK button
until the windows lower to the level desired or until they
lower completely.
Using the Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time, or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.
NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON position while the Panic
Alarm is activated. However, the exterior lights and
horn will remain on.
•You may need to be less than 67 ft (20 m) from the
vehicle when using the RKE transmitter to turn off the
Panic Alarm due to the Radio Frequency (RF) noises
emitted by the system.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
•The belt and retractor assembly must be replaced
if the seat belt assembly Automatic Locking Re-
tractor (ALR) feature or any other seat belt func-
tion is not working properly when checked ac-
cording to the procedures in the Service Manual.
•Failure to replace the belt and retractor assembly
could increase the risk of injury in collisions.
Seat Belt Pretensioners
The driver and front passenger seat belts are equipped
with a pretensioning device that is designed to remove
any slack from the seat belt systems in the event of a
collision. This device improves the performance of the
seat belt by assuring that the belt is tight around the
occupant early in a collision. Pretensioners work for all
size occupants, including those in child restraints.NOTE:These devices are not a substitute for proper seat
belt placement by the occupant. The seat belt must still be
worn snugly and positioned properly.
The pretensioners are triggered by the Occupant Re-
straint Control (ORC). Like the front airbags, the preten-
sioners are a single use item. After a collision that is
severe enough to deploy the airbags and pretensioners,
they must be replaced.
Enhanced Seat Belt Use Reminder System
(BeltAlert)
If the driver’s seat belt has not been buckled within
60 seconds of starting the vehicle and if the vehicle speed
is greater than 5 mph (8 km/h), the Enhanced Warning
System (BeltAlert) will alert the driver to buckle their
seat belt. The driver should also instruct all other occu-
pants to buckle their seat belts. Once the warning is
triggered, BeltAlertwill continue to chime and flash the
Seat Belt Warning Light for 96 seconds or until the
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

driver’s seat belt is buckled. BeltAlertwill be reactivated
if the driver’s seat belt is unbuckled for more than
10 seconds and the vehicle speed is greater than 5 mph
(8 km/h).
BeltAlertcan be enabled or disabled by your authorized
dealer or by following these steps:
NOTE:The following steps must occur within the first
60 seconds of the ignition switch being turned to the ON
or START position. Chrysler LLC does not recommend
deactivating BeltAlert.
1. Turn the ignition switch to the OFF position, and
buckle the driver’s seat belt.
2. Turn the ignition key to the ACC/ON position (engine
does not need to be running), and wait for the Seat Belt
Warning Light to turn off.3. Within 60 seconds of starting the vehicle, unbuckle
and then re-buckle the driver’s seat belt at least three
times with 10 seconds, ending with the seat belt buckled.
4. Turn the ignition key to the OFF position. A single
chime will sound to signify that you have successfully
completed the programming.
BeltAlertcan be reactivated by repeating this procedure.
NOTE:Although BeltAlerthas been deactivated, the
Seat Belt Warning Light will continue to illuminate while
the driver’s seat belt remains unfastened.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51
2

Airbag System Components
The airbag system consists of the following:
•Occupant Restraint Control (ORC)
•Airbag Warning Light
•Driver Airbag
•Passenger Airbag
•Side Curtain Airbags above Side Windows
•Side Remote Acceleration Sensors
•Driver Side Seat Track Position Sensor
•Steering Wheel and Column
•Instrument Panel
•Interconnecting Wiring
•Knee Impact Bolsters
•Front Acceleration Sensors
•Driver and Front Passenger Seat Belt Pretensioners
How the Airbag System Works
•
TheOccupant Restraint Control (ORC)determines if
a frontal, side, or rollover collision is severe enough to
require the front and/or side airbags to inflate. The
front airbag inflators are designed to provide different
rates of airbag inflation from direction provided by the
ORC. The ORC will detect roll overs, not rear impacts.
The ORC also monitors the readiness of the electronic
parts of the system whenever the ignition switch is in
the START or ON positions. These include all of the
items listed above except the knee bolster, the instru-
ment panel, and the steering wheel and column. If the
key is in the LOCK position, in the ACC position, or
not in the ignition, the airbags are not on and will not
inflate.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57
2

•Tthe ORC also turns on the Airbag Warning
Light for 2.5 to 8 seconds for a self-check
when the ignition is first turned on. After the
self-check, the Airbag Warning Light will
turn off. If the ORC detects a malfunction in any part
of the system, it turns on the Airbag Warning Light
either momentarily or continuously. A single chime
will sound if the light comes on again after initial start
up.
WARNING!
Ignoring the Airbag Warning Light in your instru-
ment panel could mean you won’t have the airbags to
protect you in a collision. If the light does not come
on, stays on after you start the vehicle, or if it comes
on as you drive, have the airbag system checked right
away.
•TheDriver and Passenger Airbag/Inflator Unitsare
located in the center of the steering wheel and the right
side of the instrument panel. When the ORC detects a
collision requiring the airbags, it signals the inflator
units. A large quantity of nontoxic gas is generated to
inflate the front airbags. Different airbag inflation rates
are possible, based on collision severity and occupant
size. The steering wheel hub trim cover and the upper
right side of the instrument panel separate and fold
out of the way as the bags inflate to their full size. The
bags fully inflate in about 50 to 70 milliseconds. This is
about half of the time it takes to blink your eyes. The
bags then quickly deflate while helping to restrain the
driver and front passenger.
The driver front airbag gas is vented through the vent
holes in the sides of the airbag. The passenger front
airbag gas is vented through the vent holes in the sides
of the airbag. In this way, the airbags do not interfere
with your control of the vehicle.
58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•As the airbags deflate you may see some smoke-like
particles. The particles are a normal by-product of the
process that generates the nontoxic gas used for airbag
inflation. These airborne particles may irritate the skin,
eyes, nose, or throat. If you have skin or eye irritation,
rinse the area with cool water. For nose or throat
irritation, move to fresh air. If the irritation continues,
see your doctor. If these particles settle on your
clothing, follow the garment manufacturer’s instruc-
tions for cleaning.
•It is not advisable to drive your vehicle after the
airbags have deployed. If you are involved in another
collision, the airbags will not be in place to protect you.
WARNING!
Deployed airbags and seat belt pretensioners cannot
protect you in another collision. Have the airbags,
seat belt pretensioners, and seat belt retractor assem-
bly replaced by an authorized dealer as soon as
possible.
Enhanced Accident Response Feature
If the airbags deploy after an impact and the electrical
system remains functional, vehicles equipped with
power door locks will unlock automatically. The hazard
lights will flash and the fuel will be cut off to the engine.
In addition, after the vehicle has stopped moving, the
interior lights will illuminate to aid visibility and remain
lit until the ignition switch is turned off.
NOTE:The interior lights can only be deactivated if the
key is removed from the ignition switch or the vehicle is
driven.
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

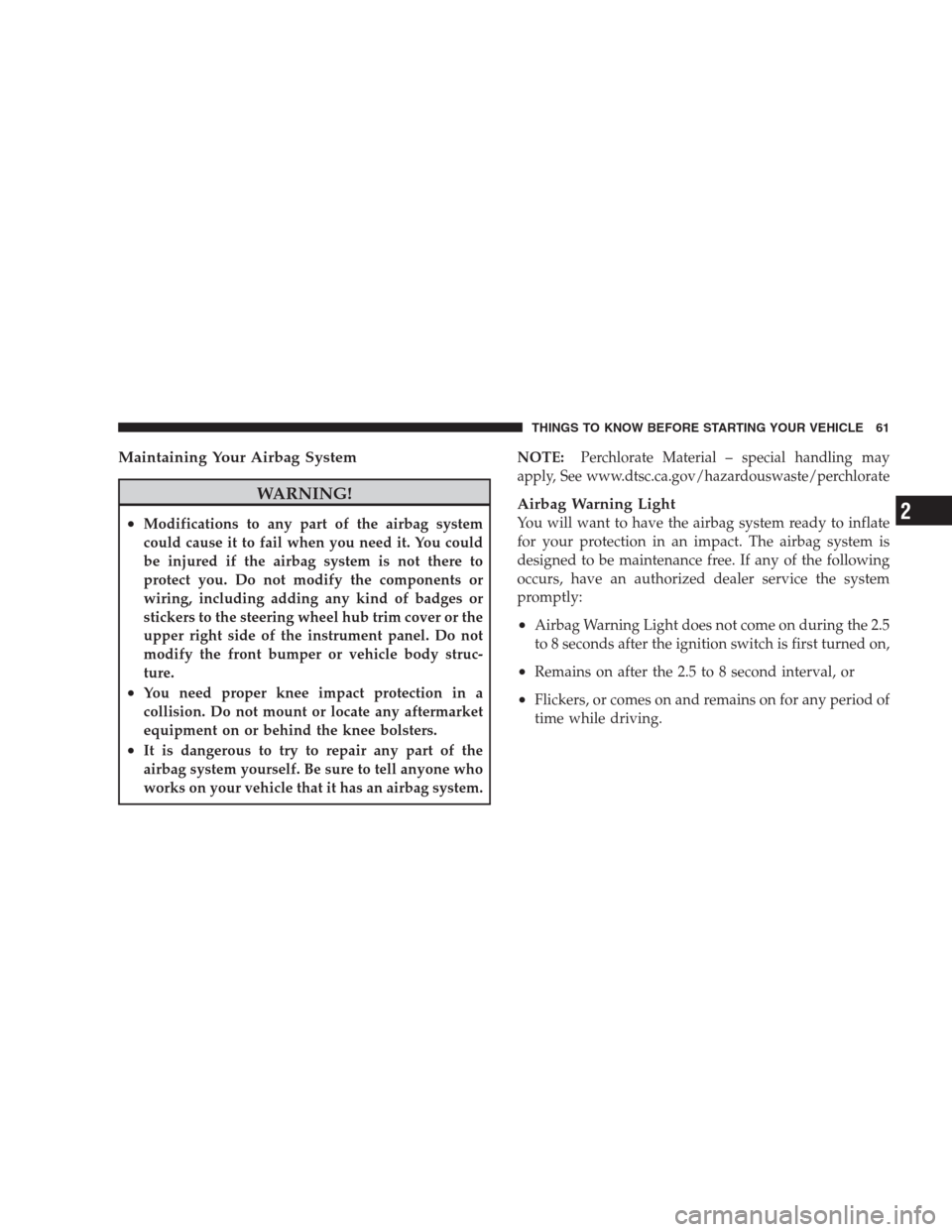

Maintaining Your Airbag System
WARNING!
•Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured if the airbag system is not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or the
upper right side of the instrument panel. Do not
modify the front bumper or vehicle body struc-
ture.
•You need proper knee impact protection in a
collision. Do not mount or locate any aftermarket
equipment on or behind the knee bolsters.
•It is dangerous to try to repair any part of the
airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has an airbag system.NOTE:
Perchlorate Material – special handling may
apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate
Airbag Warning Light
You will want to have the airbag system ready to inflate
for your protection in an impact. The airbag system is
designed to be maintenance free. If any of the following
occurs, have an authorized dealer service the system
promptly:
•Airbag Warning Light does not come on during the 2.5
to 8 seconds after the ignition switch is first turned on,
•Remains on after the 2.5 to 8 second interval, or
•Flickers, or comes on and remains on for any period of
time while driving.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61
2
