Page 25 of 33
•Do not mix with recycled coolant unless from a Ford-approved
recycling process (seeUse of recycled engine coolantsection).
WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
If you must remove the pressure relief cap or radiator cap (depending
upon engine application), follow these steps to avoid personal injury:
1. Before you remove the cap, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the cap. Slowly
turn cap counterclockwise until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
Engine coolant refill procedure
The following procedure should be used when refilling the cooling
system after it has been drained or become extremely low.
1. Remove the pressure relief cap from the engine coolant reservoir as
previously outlined.
2. Slowly add a50/50 mixtureof engine coolant and distilled water to
the engine coolant reservoir until the coolant level is at the “cold fill
level” as listed on the reservoir.
3. Reinstall the pressure relief cap.
4. Start and idle the engine until the upper radiator hose is warm (this
indicates the thermostat is open and coolant is flowing through the
entire system).
5. Shut the engine off and let it cool.
6. Remove the pressure relief cap from the engine coolant reservoir as
previously outlined.
7. Add a50/50 mixtureof engine coolant and distilled water to the
engine coolant reservoir until the coolant level is at the “cold fill range”
as listed on the reservoir.
8. Reinstall the pressure relief cap.
9. Check the coolant level in the reservoir before you drive your vehicle
the next few times (with the engine cool).
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
25
Page 26 of 33
10. If necessary, add a50/50 mixtureof engine coolant and distilled
water to the engine coolant reservoir until the coolant level is at the
“cold fill range” as listed on the reservoir.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolantin theOwner’s Guide).If the
concentration is not 50/50 (protection to –34°F/–36°C), drain some
coolant and adjust the concentration. It may take several drains and
additions to obtain a 50/50 coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your dealer check the engine cooling system. Your cooling
system may have a leak. Operating an engine with a low level of coolant
can result in engine overheating and possible engine damage.
OCTANE RECOMMENDATIONS
Your vehicle is designed to use
“Premium” unleaded gasoline with
an (R+M)/2 octane rating of 91 or
higher for optimum performance.
The use of gasolines with lower
octane ratings may degrade performance. We do not recommend the use
of gasolines labeled as “Premium” in high altitude areas that are sold
with octane ratings of less than 91.
If your engine knocks under most driving conditions while you are using
fuel with the recommended octane rating, see your authorized dealer to
prevent any engine damage.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
91(R+M)/2 METHOD
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
26
Page 27 of 33

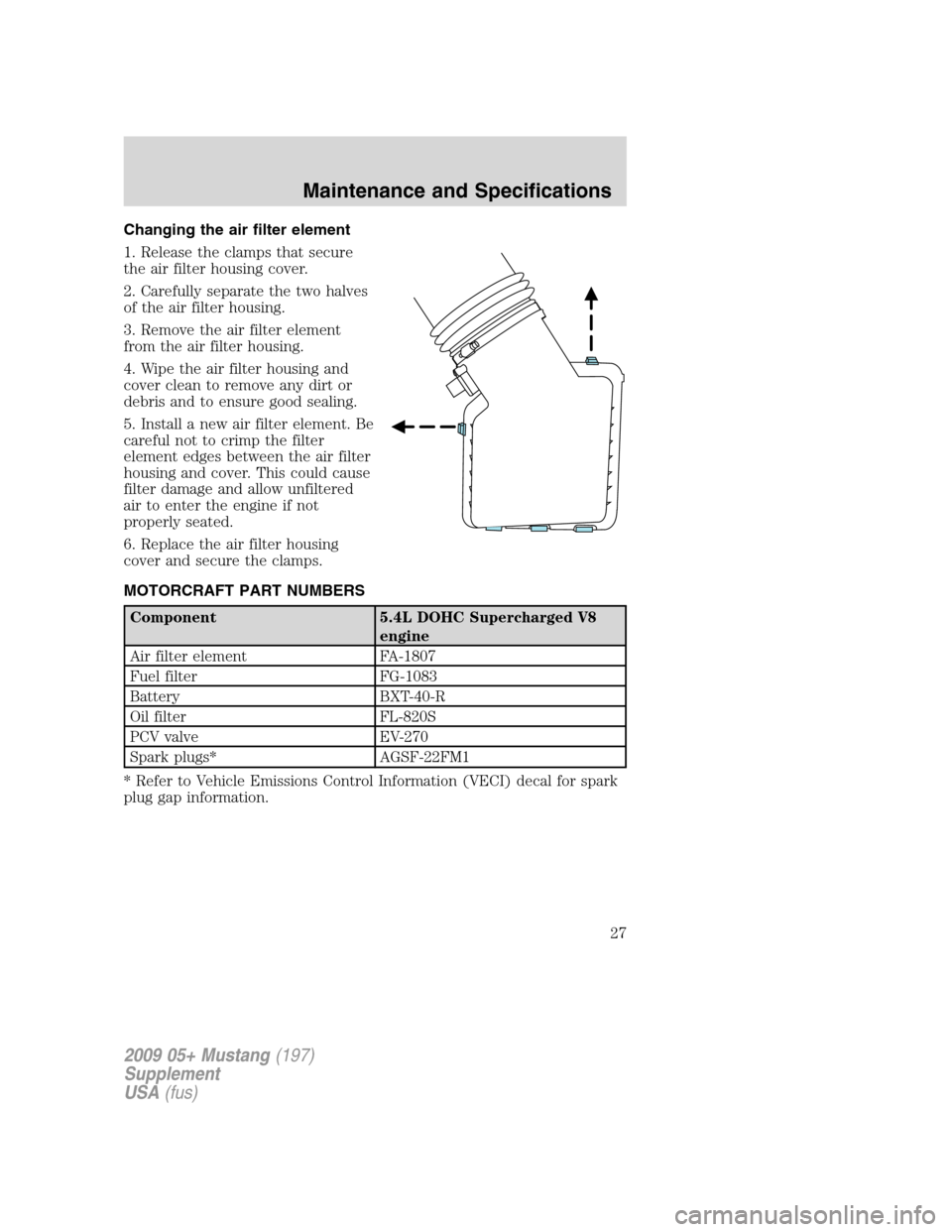

Changing the air filter element
1. Release the clamps that secure
the air filter housing cover.
2. Carefully separate the two halves
of the air filter housing.
3. Remove the air filter element
from the air filter housing.
4. Wipe the air filter housing and
cover clean to remove any dirt or
debris and to ensure good sealing.
5. Install a new air filter element. Be
careful not to crimp the filter
element edges between the air filter
housing and cover. This could cause
filter damage and allow unfiltered
air to enter the engine if not
properly seated.
6. Replace the air filter housing
cover and secure the clamps.
MOTORCRAFT PART NUMBERS
Component 5.4L DOHC Supercharged V8
engine
Air filter element FA-1807
Fuel filter FG-1083
Battery BXT-40-R
Oil filter FL-820S
PCV valve EV-270
Spark plugs* AGSF-22FM1
* Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
27
Page 28 of 33
MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord part name
or equivalentFord part
number / Ford
Specification
Brake fluidBetween MIN
and MAX
lines on
reservoirMotorcraft High
Performance DOT
3 Motor Vehicle
Brake FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Engine oil
(includes filter
change)6.5 quarts
(6.1L)Motorcraft 5W-50
Full Synthetic
Motor OilX0-5W50-QGT /
WSS-M2C931-B
Engine coolant
121.1 quarts
(20.0L)Motorcraft
Premium Gold
Engine Coolant
with bittering
agent
(yellow-colored)VC-7-B /
WSS-M97B51-A1
Intercooler
coolant
1
3.96 quarts
(3.75L)
(See your
authorized
dealer for
service)Motorcraft
Premium Gold
Engine Coolant
with bittering
agent
(yellow-colored)VC-7-B /
WSS-M97B51-A1
Power steering
fluidBetween MIN
and MAX
lines on
reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Rear axle
lubricant
24.25 pints
(2.0L)Motorcraft SAE
75W-140 High
Performance
Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192–A
Fuel tank15.7 gallons
(59.4L)——
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
28
Page 29 of 33
Item CapacityFord part name
or equivalentFord part
number / Ford
Specification
Transmission
fluid
36.35 pints
(3.5L)4Motorcraft
MERCONVATFXT-5-QM /
MERCONV
Windshield
washer fluid4.0 quarts
(3.8L)Motorcraft
Premium
Windshield
Washer
ConcentrateZC-32-A /
WSB-M8B16–A2
1Add the coolant type originally equipped in your vehicle.
2Rear axle lubricants do not need to be checked or changed unless a
leak is suspected, service is required or the axle assembly has been
submerged in water. The axle lubricant should be changed any time the
rear axle has been submerged in water, using SAE 75W-140 High
Performance rear axle lube, meeting Ford specification WSL-M2C192–A.
Fill 1/4-9/16 in. (6-14 mm) below bottom of fill hold. Add 4 oz. (118 ml)
of Additive Friction Modifier C3AZ-19B546-A or equivalent meeting Ford
specification EST-M2C118-A for complete refill of Traction-Lok axles.
3The Tremec TR-6060 6–Speed manual transmission on your Shelby
GT500 uses MERCONV automatic transmission fluid. Ensure that the
correct MERCONV ATF automatic transmission fluid is used as
indicated on the label on your transmission.
4Service refill capacity is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface.
USING THE RIGHT BULBS
Function Trade Number
Park lamp, turn lamp, side marker (front) 3156K
Luggage compartment lamp S211
Fog lamp PS24N
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
29
Page 30 of 33

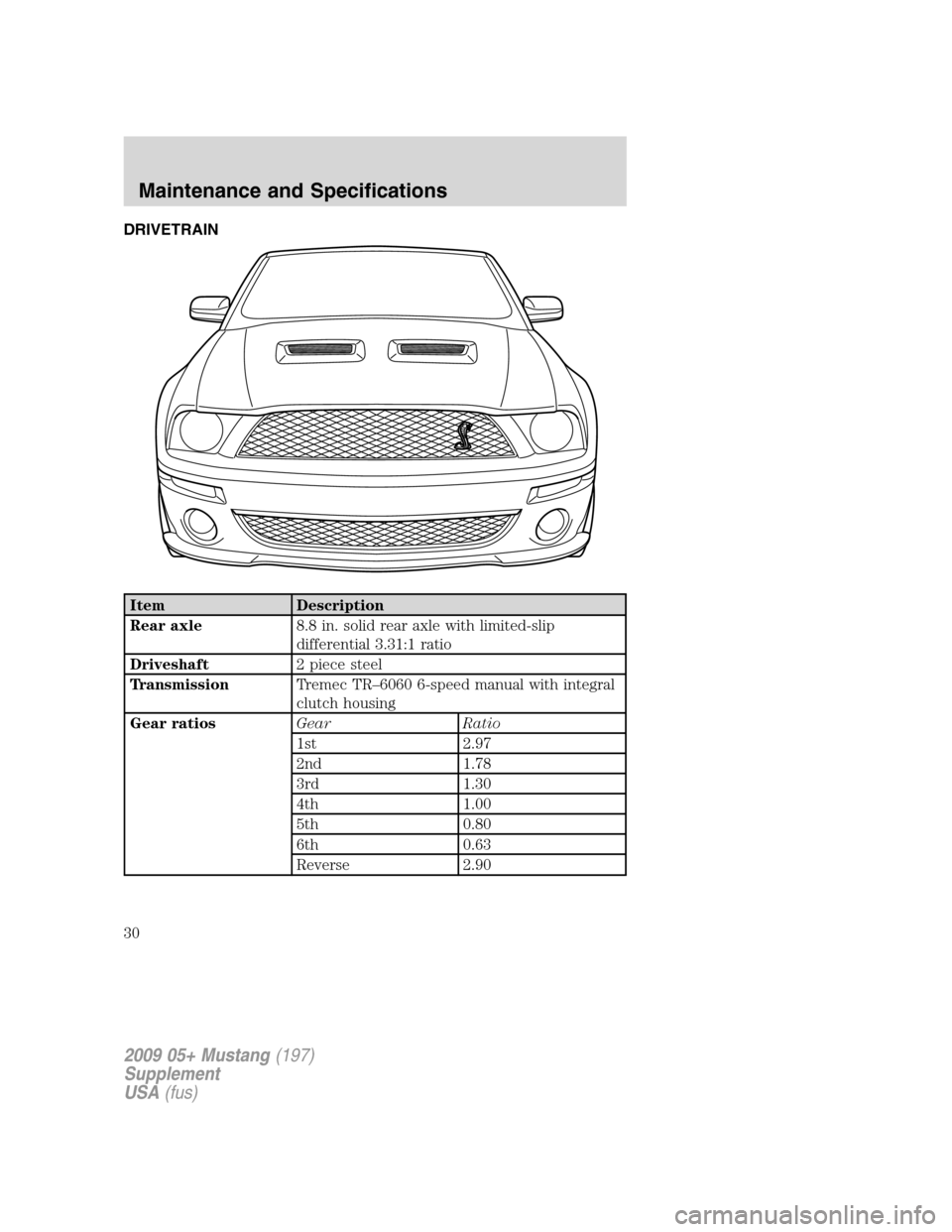

DRIVETRAIN
Item Description
Rear axle8.8 in. solid rear axle with limited-slip
differential 3.31:1 ratio
Driveshaft2 piece steel
TransmissionTremec TR–6060 6-speed manual with integral
clutch housing
Gear ratiosGear Ratio
1st 2.97
2nd 1.78
3rd 1.30
4th 1.00
5th 0.80
6th 0.63
Reverse 2.90
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
30
Page 31 of 33

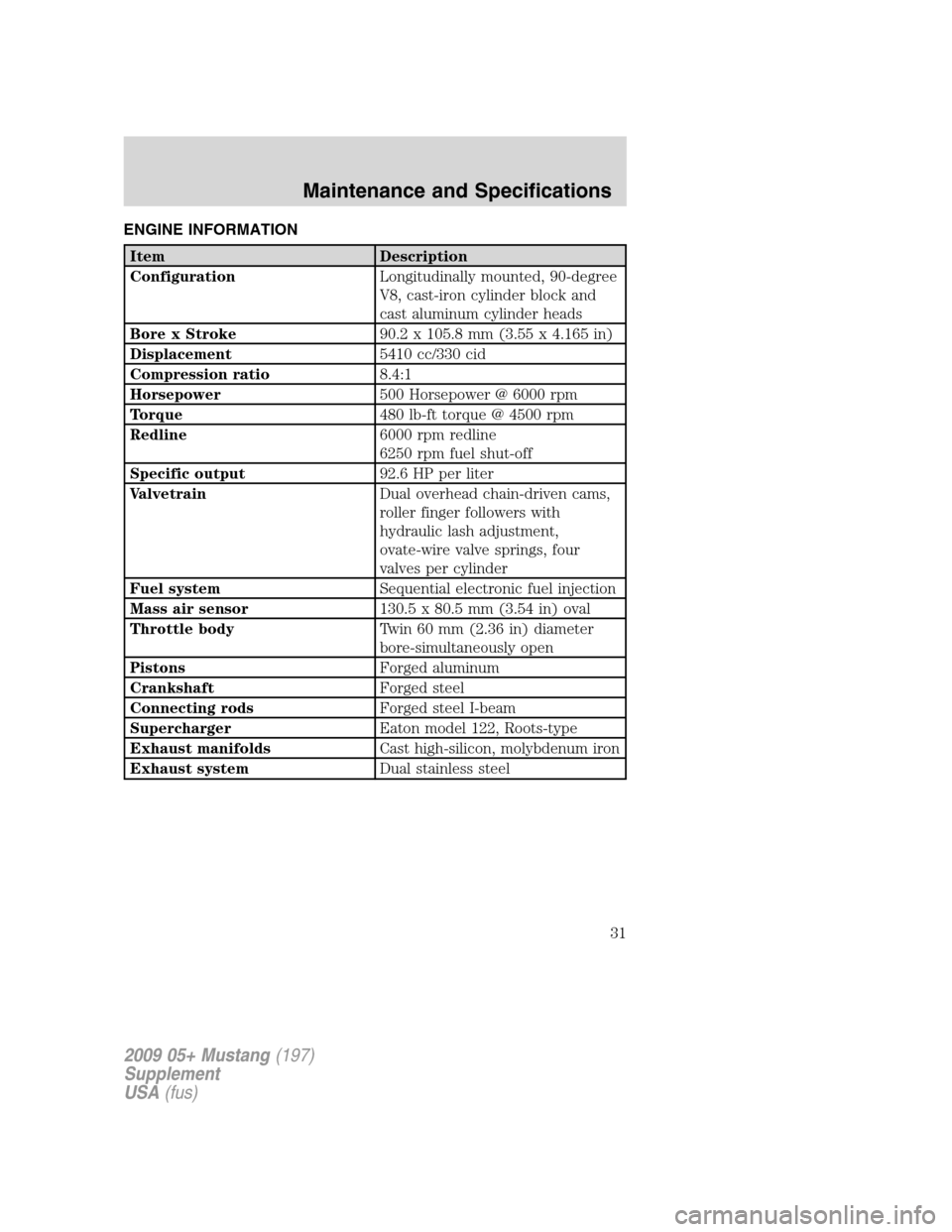

ENGINE INFORMATION
Item Description
ConfigurationLongitudinally mounted, 90-degree
V8, cast-iron cylinder block and
cast aluminum cylinder heads
Bore x Stroke90.2 x 105.8 mm (3.55 x 4.165 in)
Displacement5410 cc/330 cid
Compression ratio8.4:1
Horsepower500 Horsepower @ 6000 rpm
Torque480 lb-ft torque @ 4500 rpm
Redline6000 rpm redline
6250 rpm fuel shut-off
Specific output92.6 HP per liter
ValvetrainDual overhead chain-driven cams,
roller finger followers with
hydraulic lash adjustment,
ovate-wire valve springs, four
valves per cylinder
Fuel systemSequential electronic fuel injection
Mass air sensor130.5 x 80.5 mm (3.54 in) oval
Throttle bodyTwin 60 mm (2.36 in) diameter
bore-simultaneously open
PistonsForged aluminum
CrankshaftForged steel
Connecting rodsForged steel I-beam
SuperchargerEaton model 122, Roots-type
Exhaust manifoldsCast high-silicon, molybdenum iron
Exhaust systemDual stainless steel
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
31
Page 32 of 33

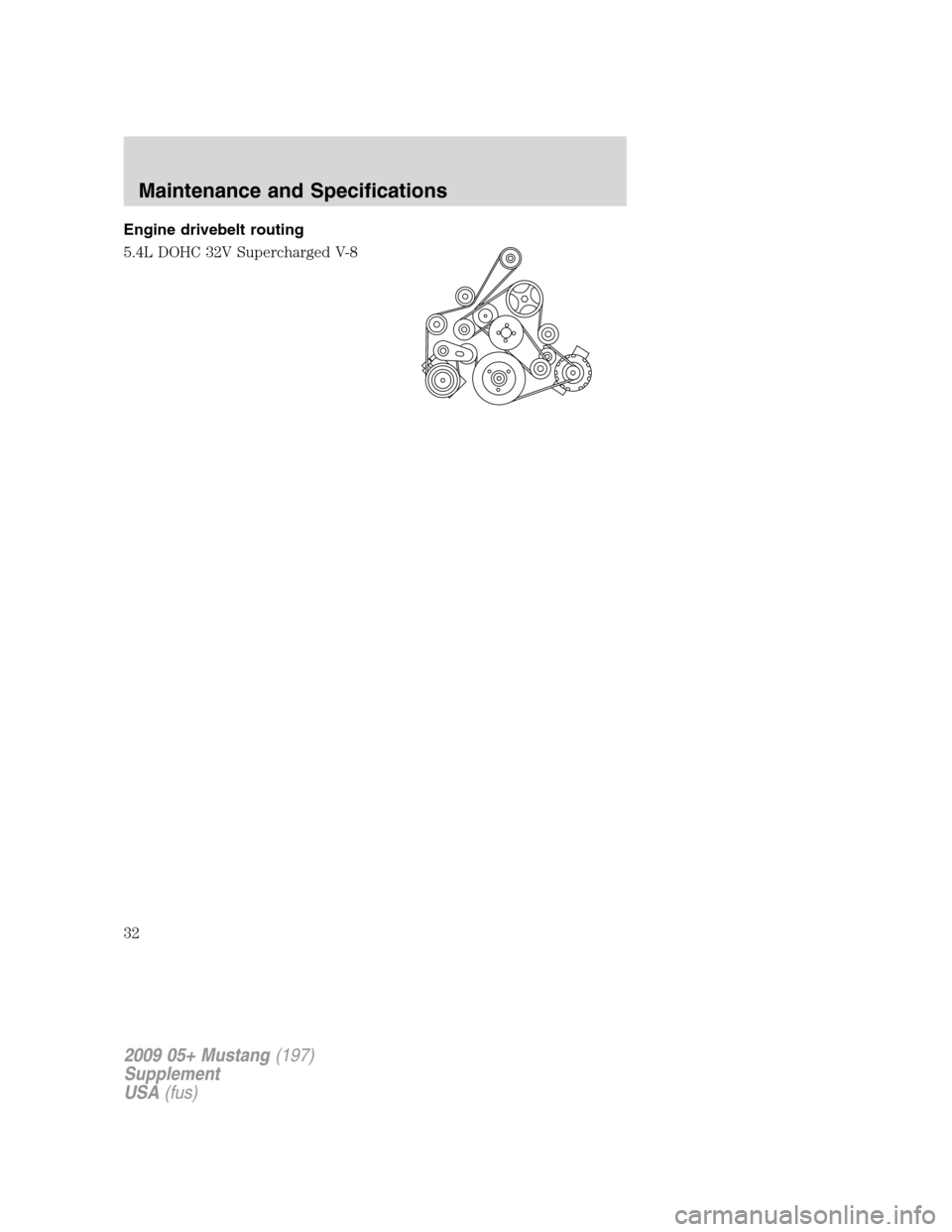

Engine drivebelt routing
5.4L DOHC 32V Supercharged V-8
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
32
