2009 FORD MUSTANG Shelby GT500 Supplement Manual

Your vehicle is equipped with a twin disc cera-metallic clutch. This
clutch incorporates racing technology to combine a low inertia clutch
assembly with a very durable friction material with high torque
capability. Depending on your driving technique, the smoothness of how
the vehicle reacts to clutch engagement may be different from other
vehicles you have driven. This behavior is typical of a cera-metallic
clutch and is not indicative of any abnormal issues with your vehicle.
DRIVING YOUR SHELBY GT500 THROUGH WATER
The Ford Shelby GT500 has aerodynamic devices attached to the
underbody designed to help control airflow for superior performance.
Therefore, the driver must be especially careful to avoid driving through
deep or standing water. If driving through deep or standing water is
unavoidable, proceed very slowly. Never drive through water that is
higher than the bottom of the wheel rims. Water may enter through the
air intake due to the vacuum generated in the engine. Damage caused by
the intake of water in the engine is not covered by the warranty.
GROUND CLEARANCE
Note: Because of low vehicle ground clearance, use caution when
approaching curbs/curb stops from the front and rear as vehicle
damage could occur.
2009 05+ Mustang(197)
Supplement
USA(fus)
Driving your Shelby GT500
9

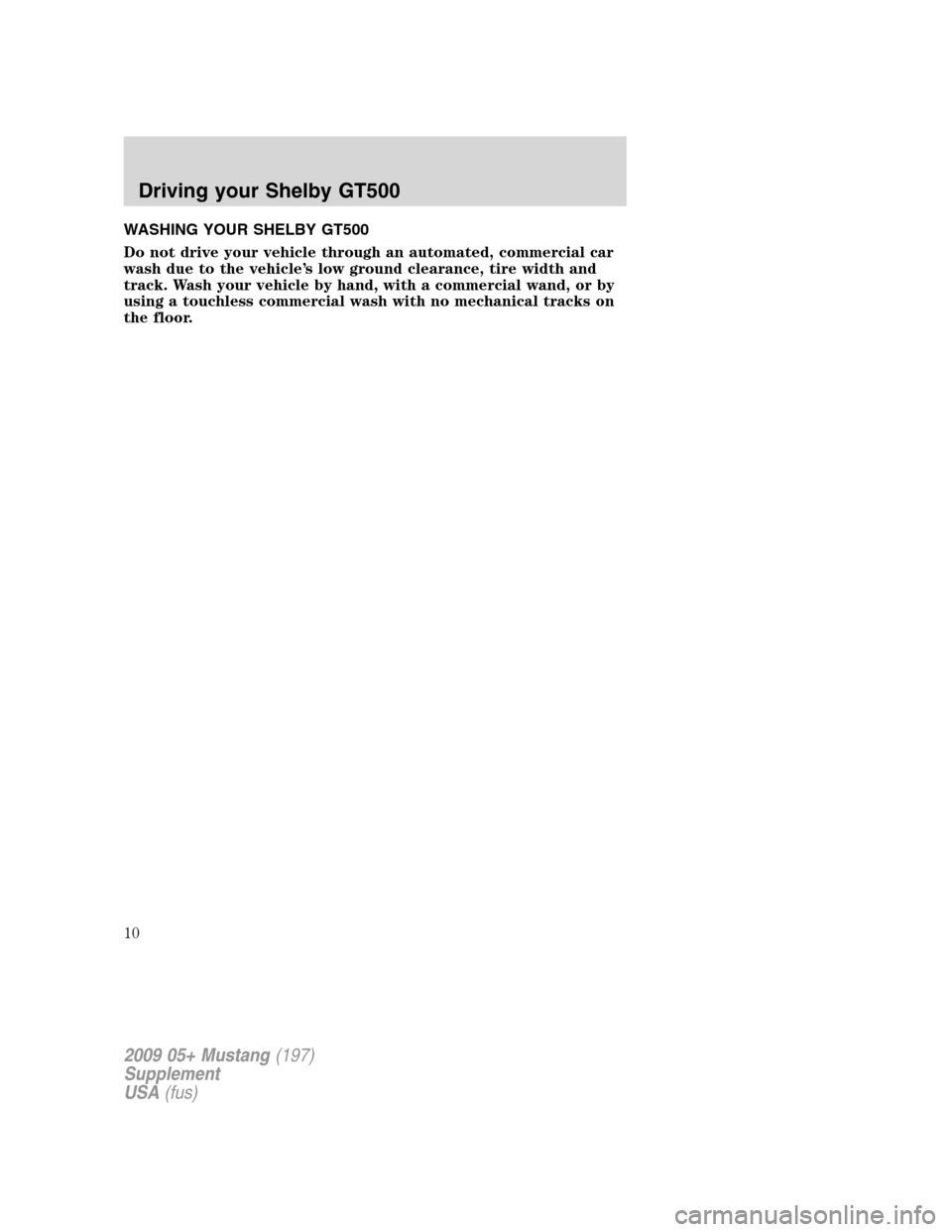

WASHING YOUR SHELBY GT500
Do not drive your vehicle through an automated, commercial car
wash due to the vehicle’s low ground clearance, tire width and
track. Wash your vehicle by hand, with a commercial wand, or by
using a touchless commercial wash with no mechanical tracks on
the floor.
2009 05+ Mustang(197)
Supplement
USA(fus)
Driving your Shelby GT500
10

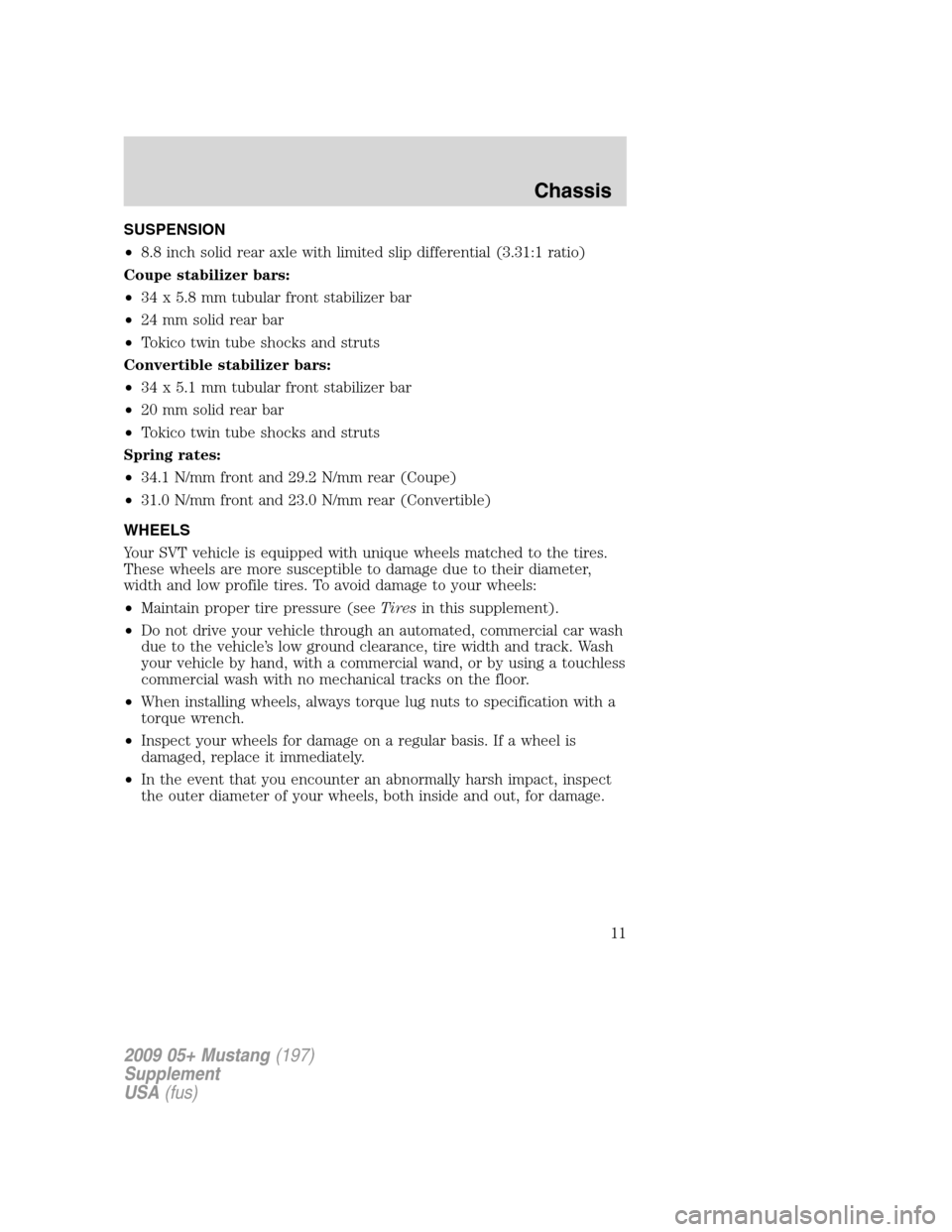

SUSPENSION
•8.8 inch solid rear axle with limited slip differential (3.31:1 ratio)
Coupe stabilizer bars:
•34 x 5.8 mm tubular front stabilizer bar
•24 mm solid rear bar
•Tokico twin tube shocks and struts
Convertible stabilizer bars:
•34 x 5.1 mm tubular front stabilizer bar
•20 mm solid rear bar
•Tokico twin tube shocks and struts
Spring rates:
•34.1 N/mm front and 29.2 N/mm rear (Coupe)
•31.0 N/mm front and 23.0 N/mm rear (Convertible)
WHEELS
Your SVT vehicle is equipped with unique wheels matched to the tires.
These wheels are more susceptible to damage due to their diameter,
width and low profile tires. To avoid damage to your wheels:
•Maintain proper tire pressure (seeTiresin this supplement).
•Do not drive your vehicle through an automated, commercial car wash
due to the vehicle’s low ground clearance, tire width and track. Wash
your vehicle by hand, with a commercial wand, or by using a touchless
commercial wash with no mechanical tracks on the floor.
•When installing wheels, always torque lug nuts to specification with a
torque wrench.
•Inspect your wheels for damage on a regular basis. If a wheel is
damaged, replace it immediately.
•In the event that you encounter an abnormally harsh impact, inspect
the outer diameter of your wheels, both inside and out, for damage.
2009 05+ Mustang(197)
Supplement
USA(fus)
Chassis
11

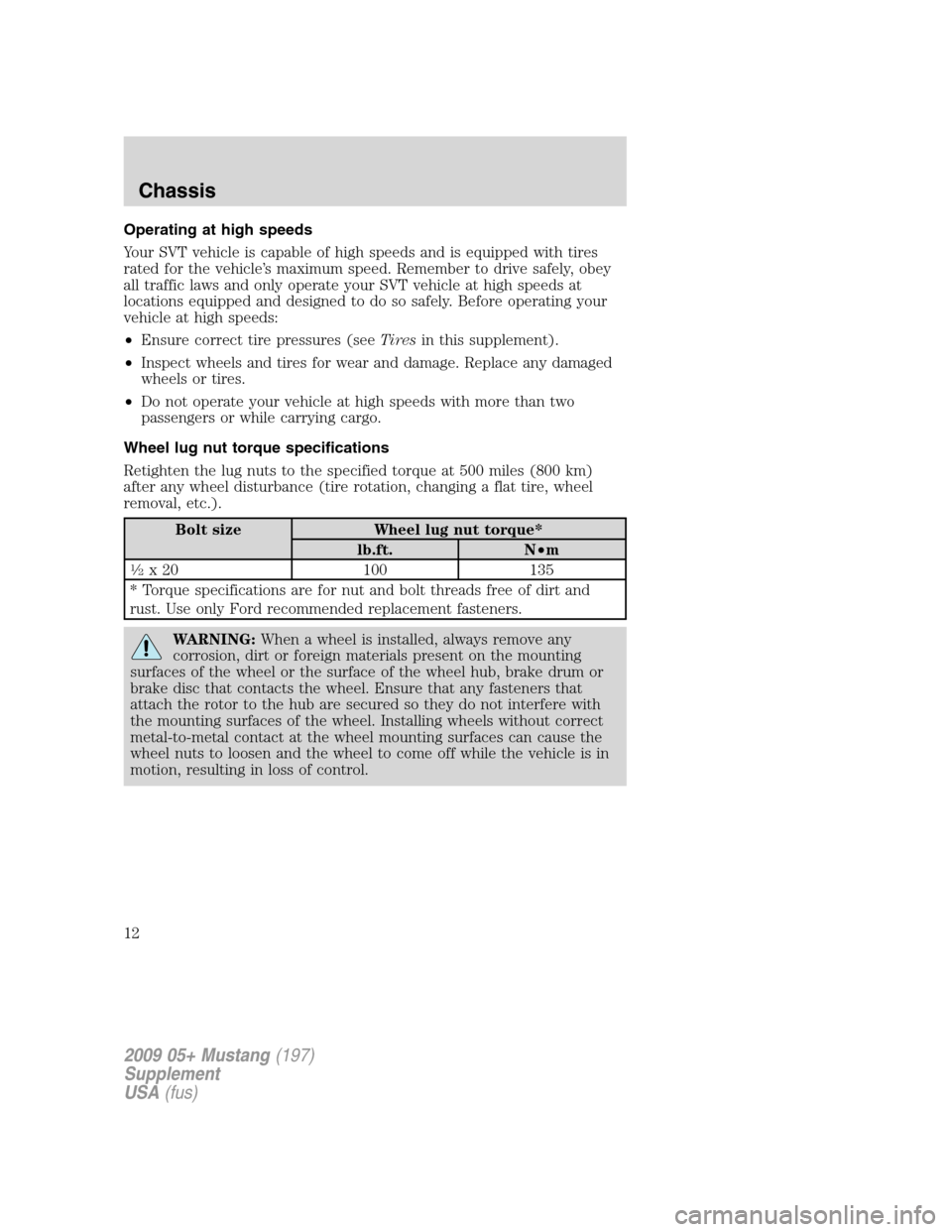

Operating at high speeds
Your SVT vehicle is capable of high speeds and is equipped with tires
rated for the vehicle’s maximum speed. Remember to drive safely, obey
all traffic laws and only operate your SVT vehicle at high speeds at
locations equipped and designed to do so safely. Before operating your
vehicle at high speeds:
•Ensure correct tire pressures (seeTiresin this supplement).
•Inspect wheels and tires for wear and damage. Replace any damaged
wheels or tires.
•Do not operate your vehicle at high speeds with more than two
passengers or while carrying cargo.
Wheel lug nut torque specifications
Retighten the lug nuts to the specified torque at 500 miles (800 km)
after any wheel disturbance (tire rotation, changing a flat tire, wheel
removal, etc.).
Bolt size Wheel lug nut torque*
lb.ft. N•m
12x 20 100 135
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Ensure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while the vehicle is in
motion, resulting in loss of control.
2009 05+ Mustang(197)
Supplement
USA(fus)
Chassis
12

IMPORTANT TIRE INFORMATION
Your SVT vehicle is equipped with unique wheels and tires designed to
enhance performance. To continue providing this performance, extra
care must be taken when operating and maintaining your vehicle.
Wheels and Tires
TiresFront: P255/45R18 Goodyear Eagle F1
Supercar
Rear: P285/40R18 Goodyear Eagle F1 Supercar
Wheels18 x 9.5 in. Aluminum Multispoke, + 45 mm
offset
Tires
Your SVT vehicle is equipped with low profile, high performance tires
that are designed to optimize the driving dynamics you expect in a SVT
vehicle. These tires are not optimized for off-road or winter (snow or
cold weather) performance, and their ride, noise and wear characteristics
are different than non-performance tires. Also, because of their lower
profile, the tires are more susceptible to damage due to potholes and
rough roads. To ensure that your tires perform as intended, it is
important that you maintain your tires properly:
•The Shelby GT500 original equipment tires are optimized for
performance in both wet and dry conditions. Ford does not
recommend using the original equipment tires when temperatures are
below 40°F (5°C) or in snow/ice conditions.
•Do not use tire chainson the P255/45R18 (front) or P285/40R18
(rear) tires supplied with your vehicle. The use of any type of tire
chain on these tires may damage your vehicle.
•For tire pressures, see the placard located on the B-pillar inside the
driver’s door.
•Always maintain your tire pressures according to the tire information
placard on the doorjamb, using an accurate gauge.
•Tire pressures are specified “cold” and should be checked after the
vehicle has been parked for at least 3 hours. Do not reduce pressure
of warm tires.
•Check your tire pressure often to maintain it properly. Tire pressure
can diminish over time and fluctuate with temperature.
•Do not overload your vehicle. Maximum vehicle and axle weights are
listed on the tire information placard.
2009 05+ Mustang(197)
Supplement
USA(fus)
Chassis
13

•Extra caution should be taken when operating the vehicle near its
maximum load, including assuring proper tire pressure and reducing
speeds.
•Extra caution should be taken when operating on rough roads to avoid
impacts that could cause tire damage.
•In the event that you encounter an abnormally harsh impact, inspect
your tires for damage.
•Inspect your tires for damage on a regular basis. If a tire is damaged,
replace it immediately.
•Proper suspension alignment is critical for maximum performance and
optimal tire wear. If you notice uneven tire wear, have your alignment
checked.
•Rotate tires as recommended in the following sectionTire rotation.
•When replacing tires, the only way to assure original performance is to
use the original equipment tire. If a different tire is used, it should be
the same size, speed rating and load rating and be replaced as a set of
four. Never mix tire brands.
Winter driving
The original equipment tires on your SVT vehicle are designed for
maximum performance in dry and wet summer conditions. They are not
designed for winter use on ice or snow and cannot be used with snow
chains. If you will be operating your vehicle in these conditions, winter
or all-season tires must be used.
•Use winter tires on all four wheels and use P255/45R18 tires with a
“V” speed rating and a 93 load index or higher.
•Winter tires must be of the proper speed and load ratings.
•Be aware that winter or all-season tires will not perform as well as the
original equipment tire in dry and wet conditions. Expect handling,
steering and braking to be degraded.
•Do not use a winter tire with less than a “V” speed rating, and even
with clear, dry driving conditions do not operate your vehicle above
posted speed limits while using winter tires. Never perform high speed
driving with winter tires.
2009 05+ Mustang(197)
Supplement
USA(fus)
Chassis
14

Tire rotation
Because your vehicle is equipped with unique larger tires on the rear
wheels, you can only rotate the tires side to side. You must not rotate
tires in a crisscross pattern or front to rear. If you notice that the tires
wear unevenly, have them checked.
Rotating your tires at the recommended interval (as indicated in the
scheduled maintenance informationwill help your tires wear more
evenly, providing better tire performance and longer tire life. Unless
otherwise specified, rotate the tires approximately every 5,000 miles
(8,000 km).
•Tire rotation (front tires at the
top of the diagram)
Sometimes irregular tire wear can be corrected by rotating the tires.
Note:If your tires show uneven wear, ask an authorized dealer to check
for and correct any wheel misalignment, tire imbalance or mechanical
problem involved before tire rotation.
Note:After having your tires rotated, inflation pressure must be checked
and adjusted to the vehicle requirements.
2009 05+ Mustang(197)
Supplement
USA(fus)
Chassis
15

AUXILIARY RELAY BOX
The relay box is located in the engine compartment by the power
distribution box.
Fuse/Relay
locationFuse amp
ratingDescription
1 — Not used
2 — Not used
3 — Not used
4 — Not used
5 10A Intercooler Pump
6 15A Fuel Pump Fuse #2
7 — Left HID
8 — Right HID
9 — Fuel Pump Relay #2
10 — S.C. Intercooler Pump
2009 05+ Mustang(197)
Supplement
USA(fus)
Roadside Emergencies
16
