2009 DODGE JOURNEY Owners Manual

you will prefer a higher position. When you release the
anchorage try to move it up and down to make sure that
it is locked in position.
In the rear seat, move toward the center of the seat to
position the belt away from your neck.
Lap/Shoulder Belt Untwisting Procedure
Use the following procedure to untwist a twisted lap/
shoulder belt.
1. Position the latch plate as close as possible to the
anchor point.
2. At about 6 to 12 in (15 to 30 cm) above the latch plate,
grasp and twist the belt webbing 180 degrees to create a
fold that begins immediately above the latch plate.
3. Slide the latch plate upward over the folded webbing.
The folded webbing must enter the slot at the top of the
latch plate.4. Continue to slide the latch plate up until it clears the
folded webbing.
Seat Belt Pretensioners
The driver and front passenger’s seat belts are equipped
with pretensioning devices that are designed to remove
any slack from the seat belt systems in the event of a
collision. These devices improve the performance of the
seat belt by assuring that the belt is tight around the
occupant early in a collision. Pretensioners work for all
size occupants, including those in child restraints.
NOTE:
These devices are not a substitute for proper seat
belt placement by the occupant. The seat belt must still be
worn snugly and positioned properly.
The pretensioners are triggered by the Occupant Re-
straint Controller (ORC). Like the front airbags, the
pretensioners are single use items. After a collision that is
severe enough to deploy the airbags and pretensioners,
both must be replaced.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47
2

Enhanced Seat Belt Reminder System (BeltAlert)
If the driver’s seat belt has not been buckled within 60
seconds of starting the vehicle and if the vehicle speed is
greater than 5 mph (8 km/h), the Enhanced Warning
System (BeltAlert) will alert the driver to buckle the seat
belt. The driver should also instruct all other occupants to
buckle their seat belts. Once the warning is triggered, the
BeltAlertwill continue to chime and flash the Seat Belt
Reminder Light for 96 seconds or until the driver’s seat
belt is buckled. The BeltAlert will be reactivated if the
driver’s seat belt is unbuckled for more than 10 seconds
and the vehicle speed is greater than 5 mph (8 km/h).
BeltAlert Programming
The BeltAlert can be enabled or disabled by your
authorized dealer or by performing the following steps:
NOTE: The manufacturer of this vehicle does not rec-
ommend deactivating the BeltAlert. 1. With all doors closed, and the ignition switch in any
position except ON or START, buckle the driver’s seat
belt.
2. Turn the ignition switch to the ON position, (engine
does not need to be running). Wait for the Seat Belt
Reminder Light to turn off and then proceed to the next
step.
NOTE:
You must perform the following steps within 60
seconds of turning the ignition switch to the ON position.
3. Unbuckle the driver’s seat belt, allow the seat belt to
retract, and then re-buckle the driver’s seat belt at least
three times, ending with the seat belt buckled.
NOTE: Watch for the Seat Belt Reminder Light to turn
on while the seat belt retracts and turn off while re-
buckling the seat belt. It may be necessary to completely
retract the seat belt each time.
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

4. Turn the ignition switch to the LOCK position. A
single chime will sound to signify that you have success-
fully completed the programming.
The BeltAlertcan be reactivated by repeating this pro-
cedure.
NOTE: When the BeltAlert is deactivated, the Seat Belt
Reminder Light will continue to illuminate as long as the
driver’s seat belt is unbuckled/retracted.
Automatic Locking Mode
In this mode, the shoulder belt is automatically pre-
locked. However, the belt will still retract to remove slack
in the shoulder belt. Use The Automatic Locking mode
any time a child safety seat is installed in a seating
position that has a seat belt with this feature. Children 12
years old and younger should be properly restrained in
the rear seat whenever possible.
How to Engage the Automatic Locking Mode
1. Buckle the combination lap and shoulder belt.
2. Grasp the shoulder portion and pull downward until
the entire belt is extracted.
3. Allow the belt to retract. As the belt retracts, you will
here a clicking sound. This indicates the safety belt is
now in the Automatic Locking mode.
How to Disengage the Automatic Locking Mode
Unbuckle the combination lap and shoulder belt and
allow it to retract completely to disengage the Automatic
Locking mode and activate the vehicle sensitive (emer-
gency) locking mode.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
2

Seat Belts and Pregnant Women
We recommend that pregnant women use the seat belts
throughout their pregnancy. Keeping the mother safe is
the best way to keep the baby safe.
Pregnant women should wear the lap part of the belt
across the thighs and as snug across the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is a collision.
Seat Belt Extender
If a seat belt is too short even when fully extended and
when the adjustable upper shoulder belt anchorage (if so
equipped) is in its lowest position, your authorized
dealer can provide you with a seat belt extender. This
extender should be used only if the existing belt is not
long enough. When it is not required, remove the ex-
tender and store it.
WARNING!
Using a seat belt extender when not needed can increase
the risk of injury in a collision. Only use when the seat
belt is not long enough when it is worn low and snug
and in the recommended seating positions. Remove and
store the extender when not needed.
Driver and Front Passenger Supplemental
Restraint System (SRS) - Airbag
This vehicle has front airbags for both the driver and
front passenger as a supplement to the seat belt restraint
systems. The driver’s airbag is mounted in the center of
the steering wheel. The passenger’s front airbag is
mounted in the top of the instrument panel. The words
SRS AIRBAG are embossed on the airbag covers.
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:The front airbags are certified to the Federal
regulations that allow less forceful deployment. The front airbags have a multistage inflator design. This
may allow the airbag to have different rates of inflation
that are based on collision severity.
WARNING!
•Do not put anything on or around the front airbag
covers or attempt to open them. You may damage
the airbags and you could be injured because the
airbags are no longer functional. These protective
covers for the airbag cushions are designed to
open only when the airbags are inflating.
•Do not drill, cut or tamper with the knee bolster in
any way.
•Do not mount any accessories to the knee bolster
such as alarm lights, stereos, citizens band radios
etc.
1 — Driver’s Airbag
2 — Front Passenger’s Airbag
3 — Knee Bolsters THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51
2

This vehicle also has supplemental side curtain airbags to
protect the driver and passengers sitting next to a win-
dow and supplemental front seat mounted side airbags.
The supplemental side curtain airbags are located above
the side windows. Their covers are also labeled SRS
AIRBAG.NOTE:
Airbag covers may not be obvious in the interior
trim, but they will open to allow airbag deployment.
The supplemental front seat mounted side airbags are
marked with an SRS label sewn into the outboard side of
the seat.
Supplemental Side Curtain Airbags
Seat Mounted Side Airbag Label
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
•Do not stack luggage or other cargo up high enough
to block the location of the side curtain airbag. The
area where the side curtain airbag is located should
remain free from any obstructions. Do not have any
accessory items installed which will alter the roof,
including adding a sunroof to your vehicle. Do not
add roof racks that require permanent attachments
(bolts or screws) for installation on the vehicle roof.
Do not drill into the roof of the vehicle for any reason.
• Do not use accessory seat covers or place objects
between you and the supplemental front seat
mounted side airbags; the performance could be
adversely affected and/or objects could be pushed
into you, causing serious injury.
• Do not attach cupholders or any other objects on or
around the door. The inflating supplemental front
seat mounted side airbags could drive the object into
occupants, causing serious injury.
NOTE: Do not use a clothing bar mounted to the coat
hooks in this vehicle. A clothing bar will impede the
proper performance of the curtain airbags.
Along with the seat belts, front airbags work with the
instrument panel knee bolsters to provide improved
protection for the driver and front passenger. Side curtain
and seat airbags also work with seat belts to improve
occupant protection.
While the seat belts are designed to protect you in many
types of collisions, the front airbags will deploy in
moderate to severe frontal collisions. The supplemental
side curtain airbag and supplemental front seat mounted
side airbag on the crash side of the vehicle will also
trigger in moderate to severe side collisions. However,
even in collisions where the airbags deploy, you need the
seat belts to keep you in the correct position for the
airbags to protect you properly.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53
2

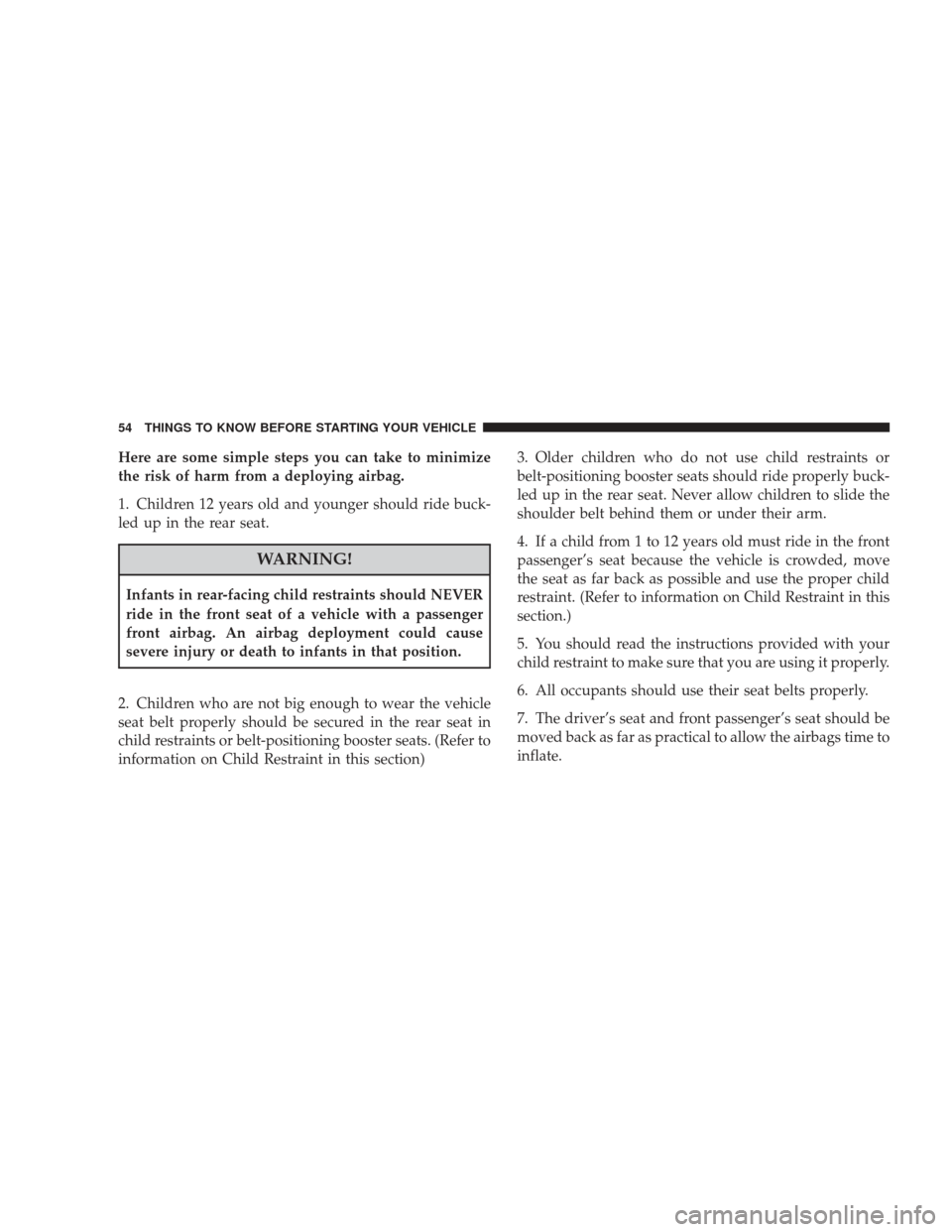

Here are some simple steps you can take to minimize
the risk of harm from a deploying airbag.
1. Children 12 years old and younger should ride buck-
led up in the rear seat.
WARNING!
Infants in rear-facing child restraints should NEVER
ride in the front seat of a vehicle with a passenger
front airbag. An airbag deployment could cause
severe injury or death to infants in that position.
2. Children who are not big enough to wear the vehicle
seat belt properly should be secured in the rear seat in
child restraints or belt-positioning booster seats. (Refer to
information on Child Restraint in this section) 3. Older children who do not use child restraints or
belt-positioning booster seats should ride properly buck-
led up in the rear seat. Never allow children to slide the
shoulder belt behind them or under their arm.
4. If a child from 1 to 12 years old must ride in the front
passenger’s seat because the vehicle is crowded, move
the seat as far back as possible and use the proper child
restraint. (Refer to information on Child Restraint in this
section.)
5. You should read the instructions provided with your
child restraint to make sure that you are using it properly.
6. All occupants should use their seat belts properly.
7. The driver’s seat and front passenger’s seat should be
moved back as far as practical to allow the airbags time to
inflate.
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
