2009 DODGE JOURNEY Owners Manual

ELECTRONIC SPEED CONTROL — IF EQUIPPED
When engaged, this device takes over the accelerator
operation at speeds greater than 25 mph (40 km/h).
Electronic Speed Control Operation
The speed control lever is located on the right side of the
steering wheel.
To Activate
Push and release the ON/OFF button located
on the end of the speed control lever. The
Cruise Indicator Light in the instrument cluster
will illuminate. To turn the system OFF, push
and release the ON/OFF button a second time. The
Cruise Indicator Light will turn off. Be sure to turn the
system OFF when not in use.
NOTE:
•The Electronic Speed Control System will automati-
cally turn off when the engine is turned OFF.
•The Electronic Speed Control System is designed to
shut down if you operate multiple speed control
switch-functions simultaneously (i.e., Set and Cancel).
If this occurs, push and release the ON/OFF button to
reactivate the system and then reestablish the desired
Set speed.
Speed Control Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159
3

WARNING!
Leaving the Electronic Speed Control system on
when not in use is dangerous. You could accidentally
set the system or cause it to go faster than you want.
You could lose control and have an accident. Always
leave the system OFF when you are not using it.
To Set At A Desired Speed
When the vehicle reaches the speed desired, press down-
ward on the lever to SET DECEL and release. Release the
accelerator pedal and the vehicle will operate at the
selected speed.
NOTE:
•The vehicle must be traveling at least 25 mph (40
km/h) for the speed control to set.
•The vehicle should be traveling at a steady speed and
on level ground before pressing the lever to SET
DECEL.
To Deactivate
A soft tap on the brake pedal, or pulling the speed control
lever toward you to CANCEL, or normal brake pressure
while slowing the vehicle will deactivate the speed
control without erasing the set speed from memory.
Pressing the ON/OFF button or turning OFF the ignition
erases the set speed from memory.
To Resume Speed
If you deactivate the speed control without erasing the
set speed from memory and your vehicle speed is above
20 mph (32 km/h) you can resume the previous set
speed. To do so, push the lever upward to RESUME
ACCEL and release, and then remove your foot from the
accelerator pedal.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To Vary the Speed Setting
When the speed control is set, you can increase speed by
pushing up and holding the lever in RESUME ACCEL.
Release the lever when the desired speed is reached, and
the new set speed will be established.
Tapping RESUME ACCEL once will result in a 1 mph (1.6
km/h) speed increase. Each time the lever is tapped,
speed increases so that tapping the lever three times will
increase speed by 3 mph (5 km/h), etc.
To decrease speed while the speed control is set, push
downward and hold the lever in SET DECEL. Release the
lever when the desired speed is reached, and the new set
speed will be established.
Tapping SET DECEL once will result in a 1 mph (1.6
km/h) speed decrease. Each time the lever is tapped,
speed decreases.
To Accelerate For Passing
Depress the accelerator pedal as you would normally.
When the pedal is released, the vehicle will return to the
set speed.
Using Speed Control on Hills
NOTE:The speed control system maintains speed up
and down hills. A slight speed change on moderate hills
is normal.
On steep hills, a greater speed loss or gain may occur so
it may be preferable to drive without speed control.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161
3

WARNING!
Speed Control can be dangerous where the system
can’t maintain a constant speed. Your vehicle could
go too fast for the conditions, and you could lose
control. An accident could be the result. Don’t use
Speed Control in heavy traffic or on roads that are
winding, icy, snow-covered, or slippery.
OVERHEAD CONSOLE
The overhead console contains courtesy/reading lights,
storage for sunglasses, an interior observation mirror,
and an optional power sunroof switch.
Courtesy/Reading Lights
Refer to “Courtesy/Reading Lights” under “Lights” in
Section 3.
Overhead Console
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Sunglasses Storage
To access the storage compartment, press on the raised
bars on the compartment door in the center of the console
and release and the door will swing downward.
Interior Observation Mirror
The convex interior observation mirror provides the
driver and front seat passenger a wide field of view to
conveniently view passengers sitting in the rear passen-
ger seats. To use the interior observation mirror, first,
press on the raised bars on the compartment door and
release. The door will swing downward. Then, raise the
door until it is almost closed and release. The door will
latch in position to use the interior observation mirror.
Power Sunroof Switch — If Equipped
Refer to “Power Sunroof” in Section 3.
GARAGE DOOR OPENER — IF EQUIPPED
HomeLinkreplaces up to three remote controls (hand-
held transmitters) that operate devices such as garage
door openers, motorized gates, lighting, or home security
systems. The HomeLink unit operates off your vehicle’s
battery.
The HomeLink buttons that are located in the sun visor
designate the three different HomeLink channels.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163
3

NOTE:HomeLink is disabled when the Vehicle Secu-
rity Alarm is active.
WARNING!
Your motorized door or gate will open and close while
you are training the Universal Transceiver. Do not train
the transceiver if people or pets are in the path of the
door or gate. Only use this transceiver with a garage
door opener that has a “stop and reverse” feature as
required by Federal safety standards. This includes
most garage door opener models manufactured after
1982. Do not use a garage door opener without these
safety features. Call toll-free 1–800–355–3515 or, on the
Internet at www.HomeLink.com for safety information
or assistance.
HomeLink Buttons
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

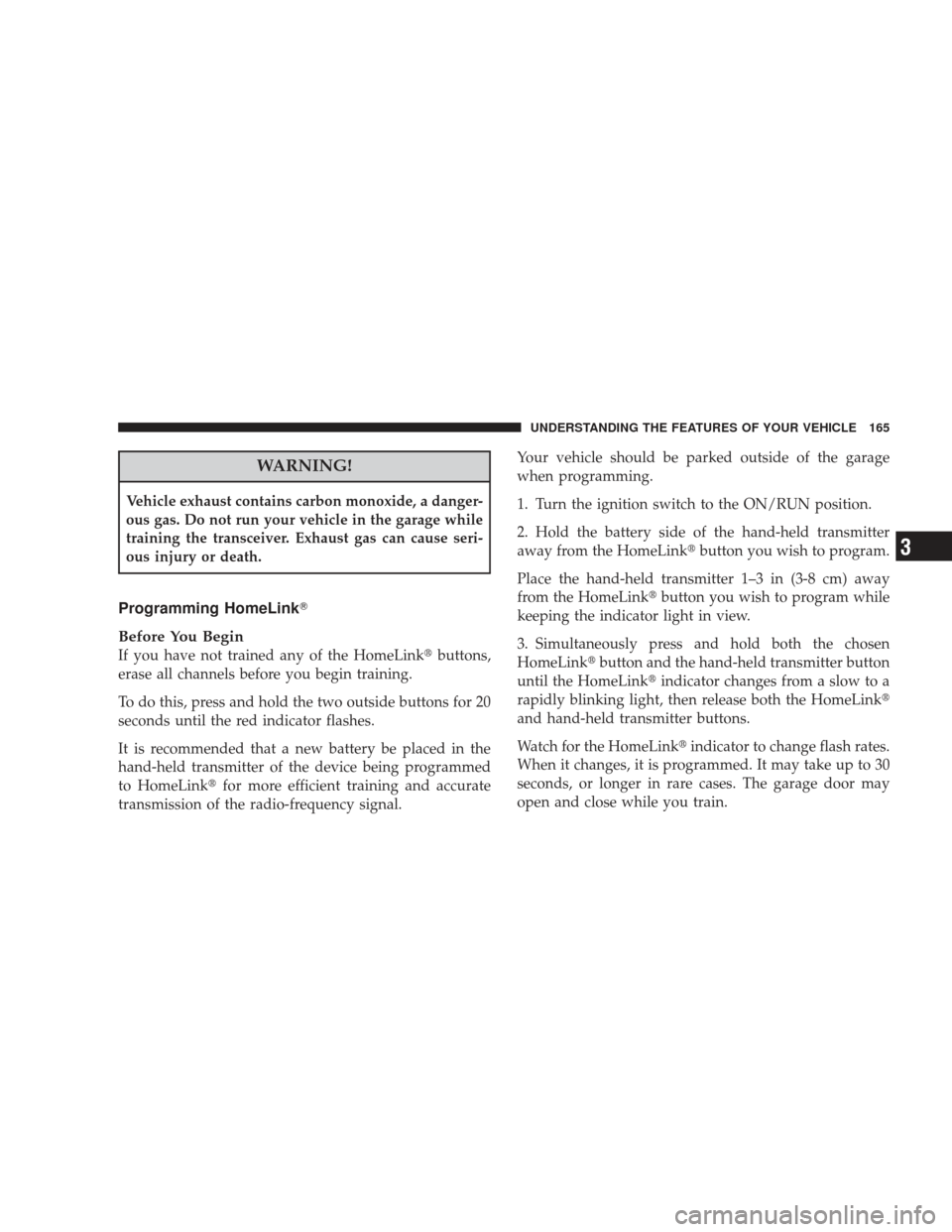

WARNING!
Vehicle exhaust contains carbon monoxide, a danger-
ous gas. Do not run your vehicle in the garage while
training the transceiver. Exhaust gas can cause seri-
ous injury or death.
Programming HomeLink
Before You Begin
If you have not trained any of the HomeLink buttons,
erase all channels before you begin training.
To do this, press and hold the two outside buttons for 20
seconds until the red indicator flashes.
It is recommended that a new battery be placed in the
hand-held transmitter of the device being programmed
to HomeLink for more efficient training and accurate
transmission of the radio-frequency signal. Your vehicle should be parked outside of the garage
when programming.
1. Turn the ignition switch to the ON/RUN position.
2. Hold the battery side of the hand-held transmitter
away from the HomeLink
button you wish to program.
Place the hand-held transmitter 1–3 in (3-8 cm) away
from the HomeLink button you wish to program while
keeping the indicator light in view.
3. Simultaneously press and hold both the chosen
HomeLink button and the hand-held transmitter button
until the HomeLink indicator changes from a slow to a
rapidly blinking light, then release both the HomeLink
and hand-held transmitter buttons.
Watch for the HomeLink indicator to change flash rates.
When it changes, it is programmed. It may take up to 30
seconds, or longer in rare cases. The garage door may
open and close while you train.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165
3

NOTE:
•Some gate operators and garage door openers may
require you to replace Step 3 with procedures noted in
the “Gate Operator/Canadian Programming” section.
•After training a HomeLinkchannel, if the garage
door does not operate with HomeLink and the ga-
rage door opener was manufactured after 1995, the
garage door opener may have a rolling code. If so,
proceed to the heading “Programming A Rolling Code
System.”
4. Press and hold the just-trained HomeLink button
and observe the indicator light.
If the indicator light stays on constantly, programming is
complete and the garage door (or device) should activate
when the HomeLink button is pressed. If the indicator light blinks rapidly for two seconds, and
then turns to a constant light, continue with program-
ming for a Rolling Code.
5. PROGRAMMING A ROLLING CODE SYSTEM
At the garage door opener motor (in the garage), locate
the “Learn” or “Training” button.
This can usually be found where the hanging antenna
wire is attached to the garage door opener motor (it is
NOT the button normally used to open and close the
door).
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
