CavityCartridge
FuseMini
FuseDescription
8—30 Amp
GreenIgnition Off
Draw (IOD)
Sense 2
940 Amp
GreenBattery Feed —
Power Seats - if
equipped/PZEV
Air Pump - if
equipped
10 —20 Amp
YellowBattery Feed —
Cabin Compart-
ment Node
(CCN)
11 —15 Amp
Lt BlueSelectable Power
Outlet
12 —20 Amp
Yellow—CavityCartridge
FuseMini
FuseDescription
13 —20 Amp
Yellow—
14 —10 Amp
RedIgnition Off
Draw (IOD) —
Cabin Compart-
ment Node
(CCN)/ Interior
Lighting
1540 Amp
Green—Battery Feed —
Radiator Fan Re-
lay
16 —15 Amp
Lt.
BlueIGN Run/ACC
— Cigar Lighter/
PWR Sunroof
Mod
MAINTAINING YOUR VEHICLE 407
7

CavityCartridge
FuseMini
FuseDescription
17 —10 Amp
RedIgnition Off
Draw (IOD) —
Wireless Control
Module (WCM)/
Clock/Steering
Control Module
(SCM)
1840 Amp
Green—Battery Feed —
Auto Shutdown
(ASD) Relay
19 —20 Amp
YellowIgnition Off
Draw (IOD) —
Power Amp Feed
2 - if equipped
20 —15 Amp
Lt.
BlueIgnition Off
Draw (IOD) —
RadioCavityCartridge
FuseMini
FuseDescription
21 —10 Amp
Red—
22 —10 Amp
RedIgnition Run —
Climate
Controls/Hot
Cupholder - if
equipped
23 —15 Amp
Lt.
BlueAuto Shutdown
(ASD) Relay Feed
3
24 —25 Amp
ClearBattery Feed —
PWR Sunroof
Feed
25 —10 Amp
RedIgnition Run —
Heated Mirrors -
If Equipped
408 MAINTAINING YOUR VEHICLE

CavityCartridge
FuseMini
FuseDescription
26 —15 Amp
Lt.
BlueAuto Shutdown
(ASD) Relay Feed
2
27 —10 Amp
RedIgnition Run —
Occupant Classi-
fication Module
(OCM)/Occupant
Restraint Control-
ler (ORC)
28 —10 Amp
RedIgnition Run —
Occupant Classi-
fication Module
(OCM)/Occupant
Restraint Control-
ler (ORC)
29 — —Hot Car (No Fuse
Required)CavityCartridge
FuseMini
FuseDescription
30 —20 Amp
YellowIgnition Run —
Heated Seats - If
Equipped
31 —10 Amp
Red—
3230 Amp
Pink—Auto Shutdown
(ASD) Relay Feed
1
33 —10 Amp
RedBattery Feed —
Switch Bank/
Diagnostic Link
Connector/
Powertrain Con-
trol Module
(PCM)
MAINTAINING YOUR VEHICLE 409
7

CavityCartridge
FuseMini
FuseDescription
3430 Amp
Pink—Battery Feed —
Anti-Lock Brakes
(ABS) Module - if
equipped/
Electronic Stabil-
ity Program
(ESP) Module - If
Equipped
3540 Amp
Green—Battery Feed —
Anti-Lock Brakes
(ABS) Module - If
Equipped/
Electronic Stabil-
ity Program
(ESP) Module - If
EquippedCavityCartridge
FuseMini
FuseDescription
3630 Amp
Pink—Battery Feed —
Passenger Door
Module (PDM)/
Driver Door
Module (DDM)
37 —25 Amp
ClearPower Top Mod-
ule (If Equipped)
CAUTION!
•When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Totally
Integrated Power Module, and possibly result in
an electrical system failure.
(Continued)
410 MAINTAINING YOUR VEHICLE

CAUTION! (Continued)
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS — Interior Bulb Number
Front Courtesy/Reading
Lights..................... LED(Dealer Service)
Center Console Courtesy Light...........578/W5W
Glove Box Light......................... 194
Rear Compartment (Trunk) Light............. 579
NOTE:For lighted switches, see your dealer for replace-
ment instructions.
MAINTAINING YOUR VEHICLE 411
7

LIGHT BULBS — Exterior Bulb No.
Low Beam Headlight.....................9006
High Beam Headlight.....................9005
Front Park/Turn Signal/Side Marker Light. . . 3457AK
Front Fog Light.....................9145//H10
Center High Mounted Stop Light
(CHMSL)........................W16W (921)
Rear Tail/Stop Light.....................3057
Rear Turn Signal Light....................3057
Backup Light...........................3157
License Light..................... 168orW5W
BULB REPLACEMENT
Headlight
1. Raise and prop open the hood. Locate the connector
behind the headlight.NOTE:It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlight
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.
412 MAINTAINING YOUR VEHICLE

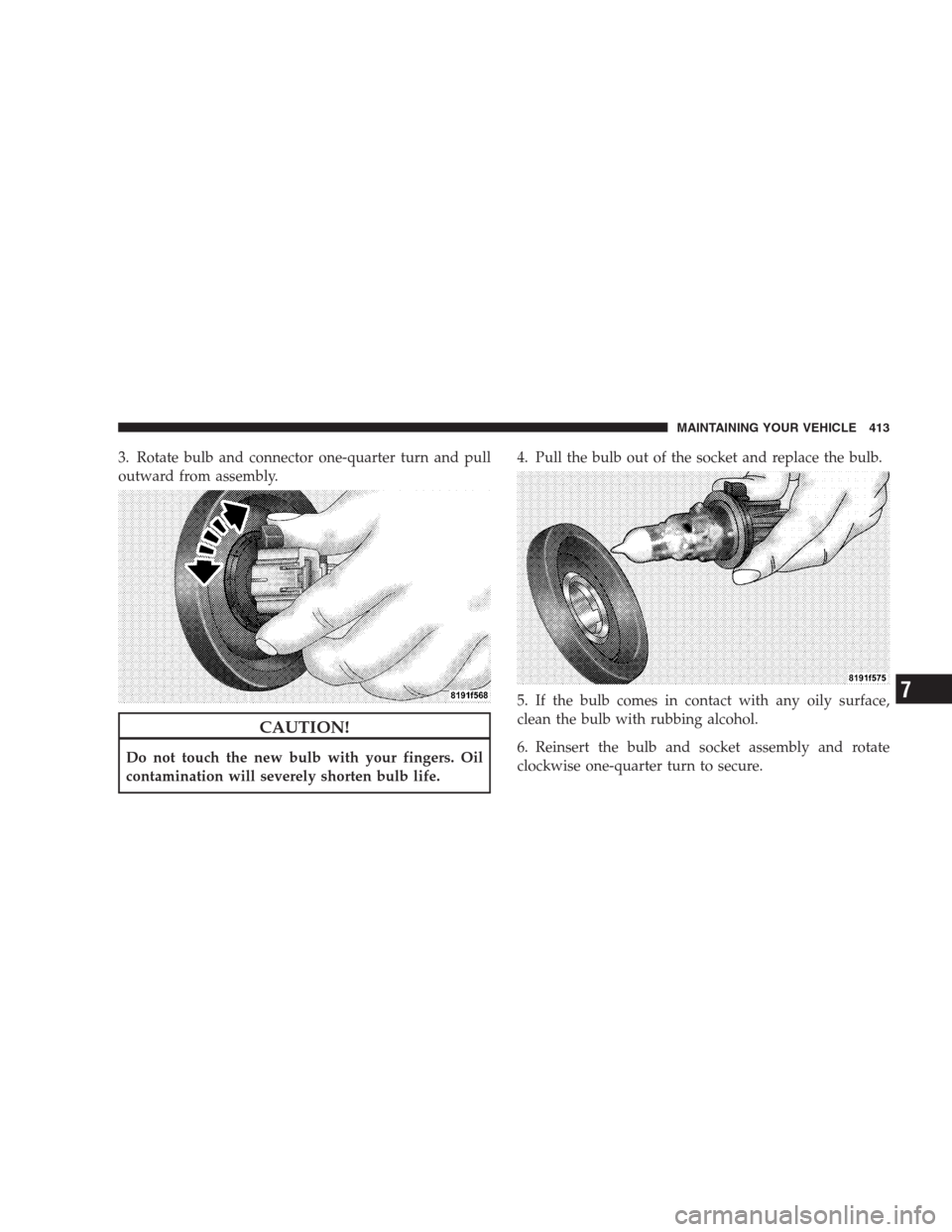

3. Rotate bulb and connector one-quarter turn and pull
outward from assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.4. Pull the bulb out of the socket and replace the bulb.
5. If the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate
clockwise one-quarter turn to secure.
MAINTAINING YOUR VEHICLE 413
7

Front Turn Signal/Parking Light
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the headlight hous-
ing.3. Remove the bulb from the connector socket and install
the replacement bulb.
4. Install the bulb and connector assembly into the
headlight housing and rotate the connector one-quarter
turn clockwise to lock it in place.
Front Fog Light
NOTE:Access to the lights through the lower fascia
cutout is limited. We recommend you access the lights by
turning the steering wheel to allow access and remove
the inner fender shield.
1. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the fog light hous-
ing.
