2009 CHEVROLET TRAVERSE Owners Manual

4. Remove the tire valve stem cap
from the at tire by turning it
counterclockwise.
5. Attach the air only hose (G) onto
the tire valve stem by turning it
clockwise until it is tight.
6. Plug the power plug (H) into the
accessory power outlet in the
vehicle. Unplug all items from
other accessory power outlets.
SeeAccessory Power Outlet(s)
on page 3-17.
If the vehicle has an accessory
power outlet, do not use the
cigarette lighter.
If the vehicle only has a cigarette
lighter, use the cigarette lighter.
Do not pinch the power plug
cord in the door or window.
7. Start the vehicle. The vehicle
must be running while using
the air compressor.8. Turn the selector switch (A)
clockwise to the Air Only position.
9. Press the on/off (B) button to turn
the compressor on.
The compressor will inate the
tire with air only.
10. Inate the tire to the
recommended ination pressure
using the pressure gage (C).
The recommended ination
pressure can be found on the
Tire and Loading Information
label. SeeInflation - Tire
Pressure on page 5-42.
The pressure gage (C) may
read higher than the actual tire
pressure while the compressor
is on. Turn the compressor off
to get an accurate reading.
The compressor may be turned
on/off until the correct pressure
is reached.If you inate the tire higher
than the recommended pressure
you can adjust the excess
pressure by pressing the
pressure deation button (D),
if equipped, until the proper
pressure reading is reached.
This option is only functional
when using the air only hose (G).
11. Press the on/off button (B) to
turn the tire sealant and
compressor kit off.
Be careful while handling the tire
sealant and compressor kit as it
could be warm after usage.
12. Unplug the power plug (H) from
the accessory power outlet in
the vehicle.
13. Disconnect the air only hose (G)
from the tire valve stem, by
turning it counterclockwise, and
replace the tire valve stem cap.
Service and Appearance Care 5-63

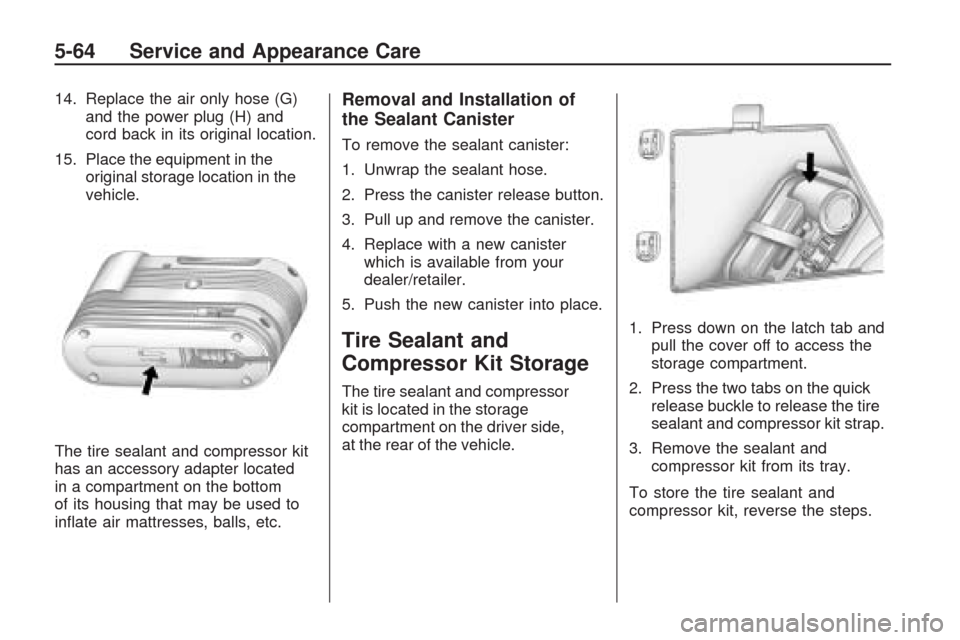

14. Replace the air only hose (G)
and the power plug (H) and
cord back in its original location.
15. Place the equipment in the
original storage location in the
vehicle.
The tire sealant and compressor kit
has an accessory adapter located
in a compartment on the bottom
of its housing that may be used to
inate air mattresses, balls, etc.Removal and Installation of
the Sealant Canister
To remove the sealant canister:
1. Unwrap the sealant hose.
2. Press the canister release button.
3. Pull up and remove the canister.
4. Replace with a new canister
which is available from your
dealer/retailer.
5. Push the new canister into place.
Tire Sealant and
Compressor Kit Storage
The tire sealant and compressor
kit is located in the storage
compartment on the driver side,
at the rear of the vehicle.1. Press down on the latch tab and
pull the cover off to access the
storage compartment.
2. Press the two tabs on the quick
release buckle to release the tire
sealant and compressor kit strap.
3. Remove the sealant and
compressor kit from its tray.
To store the tire sealant and
compressor kit, reverse the steps.
5-64 Service and Appearance Care

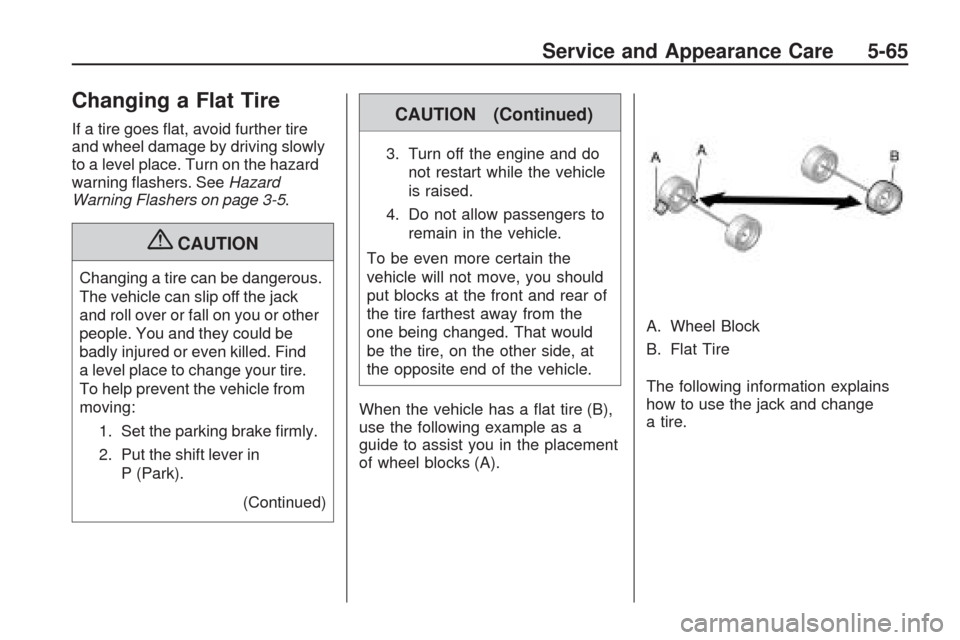

Changing a Flat Tire
If a tire goes at, avoid further tire
and wheel damage by driving slowly
to a level place. Turn on the hazard
warning ashers. SeeHazard
Warning Flashers on page 3-5.
{CAUTION
Changing a tire can be dangerous.
The vehicle can slip off the jack
and roll over or fall on you or other
people. You and they could be
badly injured or even killed. Find
a level place to change your tire.
To help prevent the vehicle from
moving:
1. Set the parking brake rmly.
2. Put the shift lever in
P (Park).
(Continued)
CAUTION (Continued)
3. Turn off the engine and do
not restart while the vehicle
is raised.
4. Do not allow passengers to
remain in the vehicle.
To be even more certain the
vehicle will not move, you should
put blocks at the front and rear of
the tire farthest away from the
one being changed. That would
be the tire, on the other side, at
the opposite end of the vehicle.
When the vehicle has a at tire (B),
use the following example as a
guide to assist you in the placement
of wheel blocks (A).A. Wheel Block
B. Flat Tire
The following information explains
how to use the jack and change
a tire.
Service and Appearance Care 5-65

Removing the Spare Tire
and Tools
The tools needed to remove the
spare tire are located in the storage
compartment on the driver side,
at the rear of the vehicle.
1. Open the jack storage
compartment by pulling on the
latch tab, located toward the rear
of the vehicle, and pulling the
cover off.
A. Tool Bag
B. Wing Bolt
C. Jack2. Remove the wing bolt (B) by
turning it counterclockwise
3. Push the jack (C) up out of the
holding bracket.
4. Turn the jack on its side, with the
bottom facing toward you.
5. Pull the jack straight out, bottom
rst.
The tools you will be using include
the jack (A) and lug wrench (B).
Removing the Spare Tire
The compact spare tire is located
under the vehicle, in front of the rear
bumper. SeeCompact Spare Tire
on page 5-77for more information
about the compact spare.
A. Rear Convenience Center
B. Lug Wrench
C. Storage Compartment Cap Hole
D. Hoist Shaft
E. Compact Spare Tire
F. Retainer
G. Hoist Shaft Assembly
5-66 Service and Appearance Care

1. Open the storage compartment
door of the convenience center
that is nearest the liftgate and
remove the cap on the bottom of
the storage compartment.
2. Open the carpet cutout that is
located through the hole of the
storage compartment.
3. Attach the lug wrench into the
hoist shaft.
4. Turn the lug wrench
counterclockwise to lower
the spare tire to the ground.
Continue turning the wrench
until the spare tire can be pulled
out from under the vehicle.
5. Tilt the retainer and slip it through
the wheel opening to remove the
spare tire from the cable.6. Turn the wrench clockwise to
raise the cable back up after
removing the spare tire.
Do not store a full-size or a at
road tire under the vehicle.
SeeStoring a Flat or Spare Tire
and Tools on page 5-74.
To continue changing the at tire,
seeRemoving the Flat Tire and
Installing the Spare Tire on
page 5-68.
If the spare tire will not lower, the
secondary latch could be engaged.
Service and Appearance Care 5-67

Do the following to check the cable:
1. Check under the vehicle to
see if the cable is visible.
2. If it is not visible, seeSecondary
Latch System on page 5-72.
If it is visible, rst try to tighten the
cable by turning the lug wrench
clockwise until you hear two clicks
or feel it skip twice. You cannot
over-tighten the cable.
3. Loosen the cable by turning the
wrench counterclockwise three
or four turns.
4. If the spare tire has not lowered,
tighten the cable all the way and
then loosen it at least two times.
If the spare tire did lower to the
ground, continue with Step 5
under “Removing the Spare Tire
(Vehicles with the Rear
Convenience Center)” listed
previously.
5. If you still cannot lower the spare
tire to the ground, seeSecondary
Latch System on page 5-72.Removing the Flat Tire
and Installing the
Spare Tire
1. Do a safety check before
proceeding. SeeChanging a Flat
Tire on page 5-65for more
information.
2. If the vehicle has a wheel cover,
loosen the plastic nut caps with
the wheel wrench. They will not
come off. Then, using the at end
of the wheel wrench, pry along
the edge of the cover until it
comes off. Be careful; the edges
may be sharp. Do not try to
remove the cover with your
bare hands.
Store the wheel cover securely
in the rear of the vehicle until you
have the at tire repaired or
replaced.
If the vehicle has aluminum
wheels, remove the wheel nut
caps using the wheel wrench.3. Loosen the wheel nuts — but do
not remove them — using the lug
wrench. For wheels with a wheel
lock key, use the wheel lock key
between the lock nut and lug
wrench. The key is supplied in the
front passenger door pocket.
Notice:If this vehicle has wheel
locks and an impact wrench is
used to remove the wheel nuts,
the lock nut or wheel lock key
could be damaged. Do not use an
impact wrench to remove the
wheel nuts if this vehicle has
wheel locks.
5-68 Service and Appearance Care

4. To identify the appropriate jacking
location, nd the triangle (A)
about 12 inches (30.5 cm)
from the front tire or (B) about
10.5 inches (27 cm) from the
rear tire.
The triangle is located near each
wheel on the vehicle’s exterior.
Notice:If a jack is used to raise
the vehicle without positioning it
correctly, the vehicle could be
damaged. When raising the
vehicle on a jack, avoid contact
with the rear axle control arms.5. Do not raise the vehicle yet.
Put the compact spare tire
near you.
{CAUTION
Getting under a vehicle when it is
jacked up is dangerous. If the
vehicle slips off the jack, you
could be badly injured or killed.
Never get under a vehicle when it
is supported only by a jack.
{CAUTION
Raising your vehicle with the jack
improperly positioned can damage
the vehicle and even make the
vehicle fall. To help avoid
personal injury and vehicle
damage, be sure to t the jack lift
head into the proper location
before raising the vehicle.6. Attach the lug wrench to the
jack, and turn the wrench
clockwise to raise the jack head
3 inches (7.6 cm).
7. Place the jack under the vehicle
as identied in Step 3. Raise the
vehicle by turning the lug wrench
clockwise in the jack. Raise the
vehicle far enough off the ground
so that there is enough room for
the spare tire to t under the
wheel well.
8. Remove all the wheel nuts and
the at tire.
Service and Appearance Care 5-69

9. Remove the plastic spare tire
heat shield by pulling the rubber
latch. Store the plastic spare
tire heat shield. SeeStoring
a Flat or Spare Tire and Tools on
page 5-74for more information.
{CAUTION
Rust or dirt on a wheel, or on the
parts to which it is fastened, can
make wheel nuts become loose
after time. The wheel could come
off and cause an accident. When
changing a wheel, remove any
rust or dirt from places where the
wheel attaches to the vehicle. In
an emergency, use a cloth or a
paper towel to do this; but be sure
to use a scraper or wire brush
later, if needed, to get all the rust
or dirt off. SeeChanging a Flat
Tire on page 5-65.
{CAUTION
Never use oil or grease on
bolts or nuts because the nuts
might come loose. The vehicle’s
wheel could fall off, causing a
crash.
10. Remove any rust or dirt
from the wheel bolts,
mounting surfaces, and
spare wheel.
11. Place the spare tire on the
wheel mounting surface.
5-70 Service and Appearance Care
