Front Seats
Manual Seats
{CAUTION
You can lose control of the
vehicle if you try to adjust a
manual driver’s seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver’s seat only when
the vehicle is not moving.A. Manual Seat Adjustment Bar
B. Driver Seat Height Adjuster. See
Seat Height Adjuster on
page 1-3.
C. Manual Reclining Seatback
Lever. SeeReclining Seatbacks
on page 1-8.
If the vehicle has a manual bucket
seat you can adjust the seat
forward or rearward with the bar
located under the front of the seat
cushion.Lift the bar to unlock the seat. Slide
the seat to where you want it
and release the bar. Try to move
the seat with your body to be
sure the seat is locked in place.Seat Height Adjuster
If the vehicle has a manual driver
seat height adjuster, it is located on
the outboard side of the seat.
SeeManual Seats on page 1-3for
more information. To raise the
seat, move the lever upward
repeatedly until the seat is at the
desired height. To lower the
seat, move the lever downward
repeatedly until the seat is at
the desired height.
Seats and Restraint System 1-3

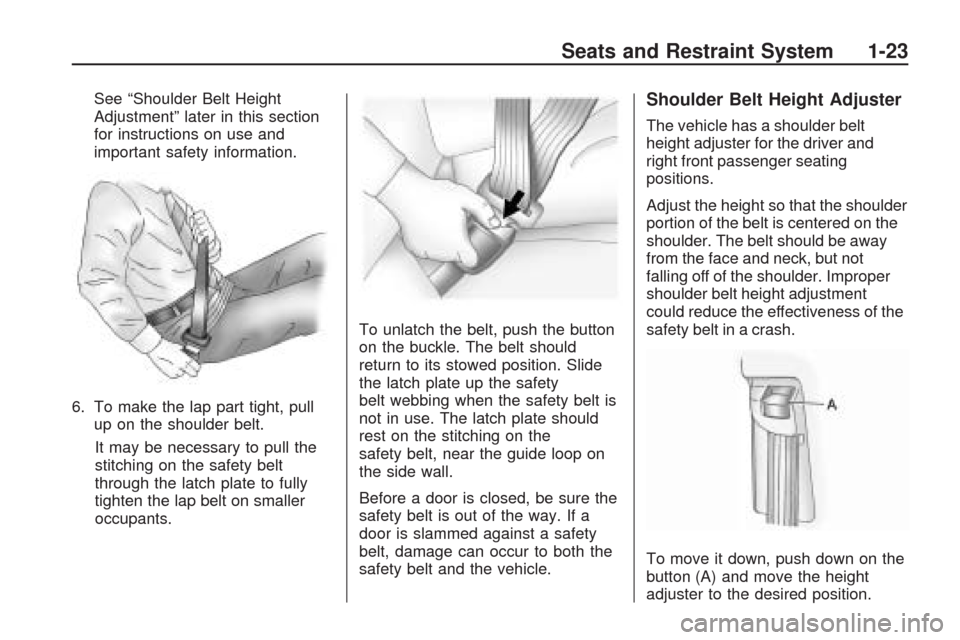

See “Shoulder Belt Height
Adjustment” later in this section
for instructions on use and
important safety information.
6. To make the lap part tight, pull
up on the shoulder belt.
It may be necessary to pull the
stitching on the safety belt
through the latch plate to fully
tighten the lap belt on smaller
occupants.To unlatch the belt, push the button
on the buckle. The belt should
return to its stowed position. Slide
the latch plate up the safety
belt webbing when the safety belt is
not in use. The latch plate should
rest on the stitching on the
safety belt, near the guide loop on
the side wall.
Before a door is closed, be sure the
safety belt is out of the way. If a
door is slammed against a safety
belt, damage can occur to both the
safety belt and the vehicle.Shoulder Belt Height Adjuster
The vehicle has a shoulder belt
height adjuster for the driver and
right front passenger seating
positions.
Adjust the height so that the shoulder
portion of the belt is centered on the
shoulder. The belt should be away
from the face and neck, but not
falling off of the shoulder. Improper
shoulder belt height adjustment
could reduce the effectiveness of the
safety belt in a crash.
To move it down, push down on the
button (A) and move the height
adjuster to the desired position.
Seats and Restraint System 1-23
