2009 CHEVROLET TRAVERSE Owners Manual

Power Lumbar
If the seats have power lumbar, the
controls used to operate this
feature are located on the outboard
side of the seats. See “Power
Lumbar” underPower Seats on
page 1-4for more information.
To increase or decrease lumbar
support, press and hold the front
or rear of the control (C).
Release the control when the
seatback reaches the desired level
of lumbar support.
The lumbar support may need to
be adjusted when changing
the seating position.
Heated Seats
On vehicles with heated front seats,
the controls are located on the center
console. To operate the heated seats
the engine must be running.
I(Heated Seatback):Press to
turn on the heated seatback.
J(Heated Seat and Seatback):
Press to turn on or off the heated
seat and seatback.
The light on the button will come
on to indicate that the feature is on.
Each time the button is pressed, the
temperature settings change from
high, to medium, to low, to off.
Indicator lights above the button
will show the level of heat
selected: three for high, two
for medium, and one for low.
The passenger seat may take longer
to heat up.
If the vehicle has remote vehicle
start and is started using the remote
keyless entry transmitter, the front
heated seats will be turned on to the
high setting if it is cold outside.See “Remote Vehicle Start” under
Remote Keyless Entry (RKE)
System Operation on page 2-4.
When the ignition is turned on, the
heated seat feature will turn off.
To turn the heated seat feature back
on, press the desired button.Heated and Cooled Seats
If the front seats have the heated
and cooled seat feature, the buttons
used to control this feature are
located on the front doors near
the door handle.
H(Cooled Seat):To cool the
entire seat, press the button with
the cooled seat symbol.
This symbol will appear on the
climate control display to indicate
that the feature is on. Press the
button to cycle through the
temperature settings of high,
medium, and low and to turn the
cooled seat off. Indicator bars next
to the symbol designate the level of
cooling selected: three for high, two
for medium, and one for low.
Seats and Restraint System 1-5

z(Heated Seat and Seatback):To
heat the entire seat, press the
button with the heated seat and
seatback symbol.
This symbol will appear on the
climate control display to indicate
that the feature is on. Press the
button to cycle through the
temperature settings of high,
medium, and low and to turn the
heated seat off. Indicator bars next to
the symbol designate the level of
heat selected: three for high, two for
medium, and one for low.
The heated and cooled seats will
be canceled after the ignition is
turned off. To use the heated and
cooled seat feature after the vehicle
is started, you will need to press the
appropriate seat button again.Memory Seat and Mirrors
On vehicles with the memory
package, the controls for this feature
are located on the driver door
panel. The controls are used to
program and recall memory settings
for the driver seat and outside
mirrors.
To save positions in memory:
1. Adjust the driver seat, including
the seatback recliner and both
outside mirrors to a comfortable
position.
SeeOutside Power Mirrors on
page 2-32for more information.Not all mirrors will have the
ability to save and recall
the mirror positions.
2. Press and hold button 1 until
two beeps let you know that
the position has been stored.
A second seating and mirror position
can be programmed by repeating
the above steps and pressing
button 2.
To recall the memory positions, the
vehicle must be in P (Park). Press
and release either button 1 or
button 2 corresponding to the
desired driving position. The seat
and outside mirrors will move to the
position previously stored. You will
hear a single beep.
Using the RKE transmitter to
enter the vehicle, with the remote
recall memory feature on, causes
automatic seat and mirror
adjustment. There is no adjustment
when the position has not been
changed by another seating
position or the easy exit feature.
1-6 Seats and Restraint System

See “MEMORY SEAT RECALL”
underDIC Vehicle Customization
(With DIC Buttons) on page 3-65for
more information.
To stop recall movement of the
memory feature at any time, press
one of the power seat controls,
memory buttons, or power mirror
buttons.
If something has blocked the driver
seat while recalling a memory
position, the driver seat recall
may stop working. If this happens,
press the appropriate control for
the area that is not recalling
for two seconds, after the
obstruction is removed. Then try
recalling the memory position again
by pressing the appropriate
memory button. If the memory
position is still not being recalled,
see your dealer/retailer for service.Easy Exit Seat
The control for this feature is
located on the driver door panel
between buttons 1 and 2.
With the vehicle in P (Park), the
exit position can be recalled
by pressing the exit button. You will
hear a single beep. The driver
seat will move back.
If the easy exit seat feature is on in
the Driver Information Center (DIC),
automatic seat movement will occur
when the key is removed from the
ignition. See “EASY EXIT SEAT”
underDIC Vehicle Customization
(With DIC Buttons) on page 3-65for
more information.Further programming for the
memory seat feature can be done
using the DIC. You can select
or cancel the following:
The automatic easy exit seat
feature.
The remote memory seat recall
feature.
For programming information, see
DIC Vehicle Customization (With
DIC Buttons) on page 3-65.
Seats and Restraint System 1-7

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION
You can lose control of the
vehicle if you try to adjust a
manual driver’s seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver’s seat only when
the vehicle is not moving.
{CAUTION
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.In vehicles with seats that have
manual reclining seatbacks, the lever
used to operate them is located on
the outboard side of the seat.
To recline the seatback, do the
following:
1. Lift the recline lever.
2. Move the seatback to the desired
position, then release the lever to
lock the seatback in place.
3. Push and pull on the seatback to
make sure it is locked.
To return the seatback to an upright
position, do the following:
1. Lift the lever fully without
applying pressure to the
seatback and the seatback will
return to the upright position.
2. Push and pull on the seatback to
make sure it is locked.
Power Reclining Seatbacks
In vehicles with seats that have
power reclining seatbacks,
the control used to recline them is
located on the outboard side of
the seat behind the power
seat control. SeePower Seats on
page 1-4for more information.
To recline the seatback, tilt the
top of the control rearward.
To bring the seatback forward, tilt
the top of the control forward.
1-8 Seats and Restraint System

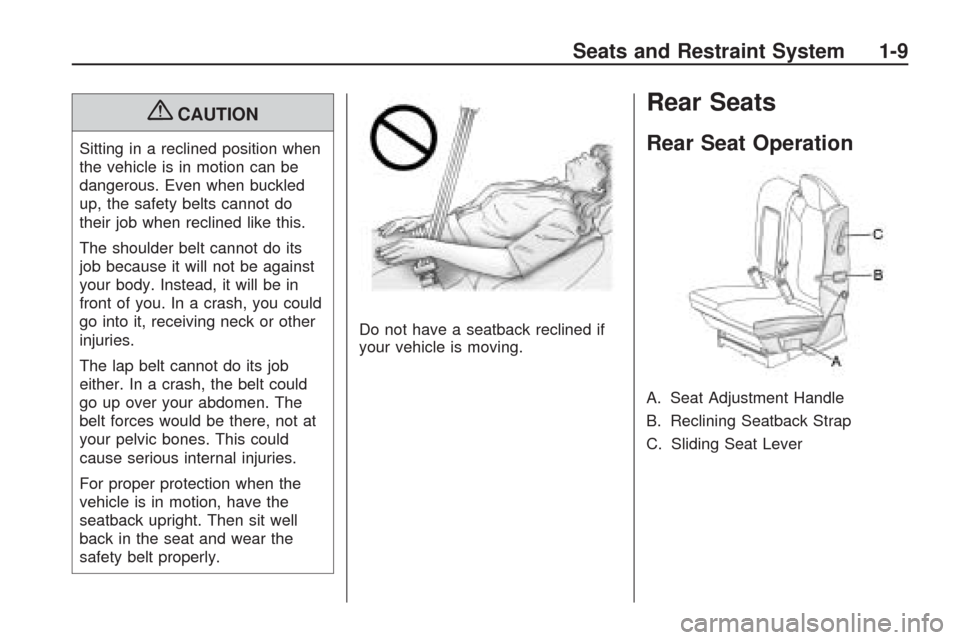

{CAUTION
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even when buckled
up, the safety belts cannot do
their job when reclined like this.
The shoulder belt cannot do its
job because it will not be against
your body. Instead, it will be in
front of you. In a crash, you could
go into it, receiving neck or other
injuries.
The lap belt cannot do its job
either. In a crash, the belt could
go up over your abdomen. The
belt forces would be there, not at
your pelvic bones. This could
cause serious internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
safety belt properly.Do not have a seatback reclined if
your vehicle is moving.
Rear Seats
Rear Seat Operation
A. Seat Adjustment Handle
B. Reclining Seatback Strap
C. Sliding Seat Lever
Seats and Restraint System 1-9

Entering and Exiting the
Third Row
{CAUTION
Using the third row seating
position while the second row is
folded, or folded and tumbled,
could cause injury in a sudden stop
or crash. Be sure to return the seat
to the passenger seating position.
Push and pull on the seat to make
sure it is locked into place.
Notice:Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.To access the third row:
1. Remove objects on the oor in
front of or on the second row
seat, or in the seat tracks on
the oor.
2. Move the front center console
armrest completely forward.
SeeCenter Console Storage on
page 2-52.3. Place folding armrests in the
upright position.
4. Ensure that the safety belt is
unfastened and in the stowed
position.
5. Pull the sliding seat lever (C)
forward and move the seatback
forward. The seat cushion
will fold, and the entire seat will
slide forward.
1-10 Seats and Restraint System

Returning the Seat to the
Seating Position
To return the second row seat to its
normal seating position:
1. Remove objects on the oor
behind the second row seat
or in the seat tracks on the oor.
2. Pull the seatback rearward until it
is locked in place.
3. Slide the seat rearward by
pushing on the seatback until it is
locked into place.
4. Push down on the rear of the
seat cushion until it is locked
in place.
5. Push and pull on the seatback
and seat cushion to make sure
they are locked in place.
6. Check that the safety belt is not
under the seat cushion.
Reclining the Seatbacks
To recline the seatback:
1. Leaning forward in the seat, pull
the reclining seatback strap (B).
2. Move the seatback to the desired
position, then release the strap
to lock the seatback in place.
3. Push and pull on the seatback to
make sure it is locked.
Folding the Rear Seat
To fold the second row seats:
1. Remove anything on or under
the seat.
2. Place the armrest in the upright
position, and unfasten the
safety belt.
3. Pull forward on the reclining
seatback strap (B) and push
down on the seatback.
If the headrest touches the front
seat, slide the second row
seat rearward.To return the seatback to the
seating position, lift the upper corner
of the seatback and push it
rearward until it locks into place.
Push and pull on the seatback
to make sure it is locked.
Adjusting the Seats
To adjust the second row seats, pull
outward on the seat adjustment
handle (A). Slide the seat forward or
rearward to the desired position.
Release the handle and push and
pull on the seat to make sure it is
locked.
Seats and Restraint System 1-11

Third Row Seats
{CAUTION
Using the third row seating
position while the second row is
folded, or pushed forward in the
entry position, could cause injury
in a sudden stop or crash. Be
sure to return the seat to the
passenger seating position. Push
and pull on the seat to make sure
it is locked into place.
The third row seats can be folded
forward or removed.
Notice:Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.To fold the seatback:
1. Remove anything on or under
the seat.
2. Disconnect the rear safety belt
mini-latch, using a key in the
slot on the mini-buckle, let
the belt retract into the headliner.
Stow the mini-latch in the
holder located in the headliner.3. Pull up on the release lever
located on the back of the
seat. The headrest moves
forward automatically.
4. Push the seatback forward to
lay at.
To return the seatback to the
seating position:
1. Raise the seatback into place by
using the pullstrap from the rear
of the vehicle, or by pushing
it into place from inside the
vehicle.
1-12 Seats and Restraint System
